  • L22M Micro-trip anti vandal switch

    L22M Micro-trip anti vandal switch

    [vc_row][vc_column][vc_custom_heading text=”L22M Micro-trip anti vandal switch” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]

    • Micro-trip
    • Sealed IP68/ IK10
    • Variety LED and Material option
    • Dot, ring or power symbol illumination available
    • Pin and Screw Terminal option

    [/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center” use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F04%2Fl22m-micro-trip-anti-vandal-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Functions

    [/vc_column_text][vc_column_text]Function of L22M Normally Open Momentary Push Button Switch[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]

    Order Code

    [/vc_column_text][vc_column_text]L22M Micro-trip anti vandal switch[/vc_column_text][vc_column_text]Notes：
    * Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]Technical Data[/vc_column_text][vc_column_text]

    Type L22M-F L22M-F-R L22M-F-D
    Illuminated Options Non-Illuminated Ring Dot
    Max. Panel Thickness: 0.394″ (10.0mm)
    Terminal Screw / Solder lug (2.8 x 0.8)
    Max. Switch Rating 50mA 24VDC
    Contact Resistance ≤100mΩ
    Insulation Resistance ≥1000mΩ
    Dielectric Strengh 2000VAC
    Operation Temp. -20°C ~ +55°C
    Mechanical Life 1,000,000cycles(max)
    Electrical Life 50,000cycles(min)
    Contact Material Gold Plated
    Rear Nut Fixing Torque 0.57Nm
    Operation Pressure approx. 5.5N
    Protection IP65/ IK09
    Material Switch Assembly UL94V-0 rated Polyamide (Nylon)
    Tags Copper Alloy
    Terminals Copper Alloy
    Switch Body & Actuator Stainless Steel/ Anodized Aluminum
    Lens and Lens Body Polycarbonate
    Internal Seal Silicone
    O Ring Nitrile
    Color Type LED (ratings @ 20mA)
    Color RED Yellow Orange Green Blue White
    Luminous Intensity (mcd) 160 200 150 520 220 2000
    Forward Volatge 1.8~2.6 2.8~3.6
    Illumination Voltage no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above.
    6V/ 12V/ 24V/ 36V
    Life Approx. 40, 000hours

    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Descriptions

    [/vc_column_text][vc_column_text]L22 Anti vandal switch[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Panel cutout & Illuminated options

    [/vc_column_text][vc_column_text]L22M Micro-trip anti vandal switch[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Dimension

    [/vc_column_text][vc_column_text]L22M Micro-trip anti vandal switch[/vc_column_text][vc_column_text]

    Screw terminal

    [/vc_column_text][vc_column_text]L22M Micro-trip anti vandal switch[/vc_column_text][vc_column_text]

    Solder lug

    [/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    FAQs

    [/vc_column_text][vc_column_text]Q1: What is a normally open momentary push button switch?

    A: A normally open momentary push button switch is a type of switch that completes the circuit only when the button is actively pressed, allowing for temporary electrical connections.



    Q2: How does a momentary push button switch differ from a toggle switch?

    A: Unlike a toggle switch, a momentary push button switch returns to its default state when released, making it ideal for applications that require brief activation, such as signaling or starting.



    Q3: What are the common applications for normally open momentary push button switches?

    A: Normally open momentary push button switches are often used in devices that require momentary actions, such as doorbells, horns, and electronic devices with momentary functions.



    Q4: What are the key features of the L22M push button switch from Langir?

    A: The L22M switch from Langir is designed for reliability, durability, and ease of use. It offers a normally open momentary action, making it suitable for various applications.



    Q5: How do I install and wire the L22M momentary push button switch?

    A: The installation process typically involves connecting the switch to the appropriate circuit. Refer to the product manual or Langir’s guidelines for proper installation instructions.



    Q6: Can the L22M momentary switch be used in marine applications?

    A: Yes, the L22M switch’s robust design and quality materials make it suitable for certain marine applications, especially where momentary control is needed.



    Q7: What are the benefits of using normally open push button switches in industrial settings?

    A: Normally open momentary switches in industrial settings allow for precise control over specific actions, contributing to operational efficiency and safety.



    Q8: How do I maintain and ensure the longevity of the L22M push button switch?

    A: Regular maintenance involves checking for wear, keeping the switch clean, and ensuring secure connections. Follow Langir’s maintenance recommendations to maximize the switch’s lifespan.[/vc_column_text][vc_zigzag]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

  • L22B High current Anti-vandal switches

    L22B High current Anti-vandal switches

    [vc_row][vc_column][vc_custom_heading text=”L22B High-current Anti-vandal switches” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]

    • High current available, Long life, high reliability
    • Anti-Vandal IK09/ Sealed IP65
    • Illuminated and Non-Illuminated
    • Contact type: SPDT (NO+NC), SPST (NO), SPST (NC)
    • Big range current: 3A, 5A, 8A, 10A, (15A) 16A, 20A (21A)

    [/vc_column_text][vc_column_text]Applications for this anti-vandal switch series include:[/vc_column_text][vc_column_text]

    • Outdoor kiosks and ticket dispensers
    • Security devices
    • Medical devices

    [/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:left” use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F04%2Fl22b-high-current-anti-vandal-switch.pdf|title:L22B%20High%20current%20anti-vandal%20switch|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Functions

    [/vc_column_text][vc_column_text]functions of L22B High Current Explosion Proof Switch[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]

    Order Code

    [/vc_column_text][vc_column_text]L22B High current anti vandal switch[/vc_column_text][vc_column_text]Notes：
    * Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]

    Technical Data

    [/vc_column_text][vc_column_text]

    Type L22B-F L22B-F-R L22B-F-D
    Illum. Options Non-Illuminated Ring Illuminated Dot Illuminated
    Max. Panel Thickness 0.394″ (10.0mm)
    Terminal Quick connect terminal (4.75 x 0.5 and 6.30 x 0.5)/ Screw
    Max. Switch Rating 3A 5A 8A 10A 15A(16A) 20A(21A)/ 250VAC, 125VAC 0.6A/ 125VDC 0.3A/ 250VDC
    Contact Resistance ≤25mΩ
    Insulation Resistance ≥100mΩ
    Dielectric Strengh Between non-consecutive terminals 1,000Vrms, 50/60Hz for 1min
    Between non-current carrying metal parts and each terminal 1,500Vrms, 50/60Hz for 1min
    Between ground and each terminal 1,500Vrms, 50/60Hz for 1min
    Shock Resistance Detruction:O.F.>0.5N: 1000m/s2 (approx. 100g), O.F.≤0.5N: 400m/s2 (approx. 40g)
    Malfunction:O.F.>0.5N: 200m/s2 (approx. 20g), O.F.≤0.5N: 100m/s2 (approx. 10g)
    Vibration Resistance 10 – 50Hz, 1.5mm Double Amplitude
    Operation Temp. -25℃ ~ +85℃
    Mechanical Life 2,000,000cycles
    Electrical Life >50,000cycles
    Contact Material Silver Alloy
    Torque 5 ~ 14Nm
    Operation Pressure approx. 10N
    Protection IP65/ IK09
    Material Actuator Stainless Steel
    Body Stainless Steel
    Base PA
    Color Type LED (ratings @ 20mA)
    Color RED Yellow Orange Green Blue White
    Luminous Intensity (mcd) 160 200 150 520 220 2000
    Forward Volatge 1.8~2.6 2.8~3.6
    Illum. Voltage no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above.
    6V/ 12V/ 24V/ 36V/ 110V/ 230V
    Life Approx. 40, 000hours

    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Descriptions

    [/vc_column_text][vc_column_text]L22B High current anti vandal switch[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Panel cutout & Illuminated options

    [/vc_column_text][vc_column_text]L22B High current anti vandal switch[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Dimension

    [/vc_column_text][vc_column_text]demensions of L22B High Current Explosion Proof Switch[/vc_column_text][vc_column_text]

    Momentary

    [/vc_column_text][vc_column_text]L22B High current anti vandal switch[/vc_column_text][vc_column_text]

    Alternated

    [/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    FAQs

    [/vc_column_text][vc_column_text]Q1: What is an explosion proof switch and where is it commonly used?

    A: An explosion proof switch is designed to prevent sparks or ignition in hazardous environments. It’s commonly used in industries such as oil and gas, chemical, and manufacturing.



    Q2: What is the significance of a high current switch in industrial applications?

    A: High current switches are crucial for managing heavy electrical loads in industrial settings, ensuring safe and efficient operation of equipment.



    Q3: How does the L22B explosion proof switch from Langir ensure safety?

    A: The L22B switch is built to withstand explosive environments, featuring robust construction and materials that prevent ignition sources.



    Q4: Can the L22B high current switch handle varying load requirements?

    A: Yes, the L22B switch is designed to manage high electrical currents, making it suitable for applications with varying load demands.



    Q5: What industries benefit from using explosion proof high current switches?

    A: Industries dealing with flammable gases, vapors, or combustible dust, such as petrochemical, mining, and pharmaceutical, benefit from the safety provided by explosion proof switches.



    Q6: Is the L22B explosion proof switch certified for hazardous environments?

    A: Yes, the L22B switch is likely certified by relevant authorities, ensuring its compliance with safety standards for explosive atmospheres.



    Q7: What are the advantages of Langir’s L22B explosion proof switch over conventional switches?

    A: Langir’s L22B switch offers enhanced safety measures, durability, and the capability to handle high currents, making it ideal for demanding environments.



    Q8: How do I select the right explosion proof switch for my specific application?

    A: Consider factors such as the type of hazardous environment, the required current capacity, and certifications when choosing an explosion proof switch. Langir’s experts can guide you.[/vc_column_text][vc_zigzag]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

  • L25 Series Illuminated, Sealed Anti-vandal Switch

    L25 Series Illuminated, Sealed Anti-vandal Switch

    [vc_row][vc_column][vc_custom_heading text=”L25 Series Illuminated, Sealed Anti-vandal Switch” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]

    • IP65 rated for dust and moisture protection
    • 25mm diameter panel cutout
    • Dot and ring illumination options available
    • 1NO1NC or 2NO2NC; maintained (latching) and momentary functions

    [/vc_column_text][vc_column_text]Applications for this illuminated, anti-vandal switch include:[/vc_column_text][vc_column_text]

    • Kiosks and ticket dispensers
    • Security devices
    • Audio/visual devices
    • Industrial controls
    • Electrical housewares
    • Medical equipment

    [/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center” use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F04%2Fl25-anti-vandal-switch.pdf|title:L25%20Series%20Illuminated%2C%20Sealed%20Anti-vandal%20Switch|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Functions

    [/vc_column_text][vc_column_text]L25 Anti-Vandal Resistor Switch[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]

    Order Code

    [/vc_column_text][vc_column_text]L25 Anti-Vandal Resistor Switch[/vc_column_text][vc_column_text]

    Notes：
    * Anodized aluminum: variety of colors(MOQ 500pcs/color), standard for black anodized
    ** Base voltage on LEDs:
    1.8V @ 20mA for Red, Yellow and Orange LED colors
    2.8V @ 20mA for Blue, Green and White LED colors

    [/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]

    Technical Data

    [/vc_column_text][vc_column_text]

    Type L25-F L25-F-R L25-F-D
    Illuminated Options Non-Illuminated Ring Dot
    Max. Panel Thickness 0.394″ (10.0mm)
    Terminal Pin(2.8×0.5)
    Max. Switch Rating 5A/ 250VAC
    Contact Resistance ≤50mΩ
    Insulation Resistance ≥1000mΩ
    Dielectric Strengh 2000VAC
    Operation Temp. -20°C ~ +55°C
    Mechanical Life 1,000,000cycles
    Electrical Life >50,000cycles
    Contact Material Silver Alloy
    Torque 5 ~ 14Nm
    Operation Pressure approx. 3 ~ 8N
    Protection IP65
    Material Actuator Stainless Steel/ Anodized Aluminum
    Body Stainless Steel/ Anodized Aluminum
    Base PA
    Color Type LED (ratings @ 20mA)
    Color
    Luminous Intensity (mcd) 160 200 150 520 220 2000
    Forward Volatge 1.8~2.6 2.8~3.6
    Illumination Voltage no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above.
    3.3V/ 6V/ 12V/ 24V/ 36V/ 110V/ 230V
    Life Approx. 40, 000hours

    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Descriptions

    [/vc_column_text][vc_column_text]L25 Anti-Vandal Resistor Switch[/vc_column_text][vc_column_text]Terminals (-) and (+) used with Illum. option only[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Panel cutout & Illuminated options

    [/vc_column_text][vc_column_text]L25 Anti-Vandal Resistor Switch[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Dimension

    [/vc_column_text][vc_column_text]L25 Anti-Vandal Resistor Switch[/vc_column_text][vc_column_text]

    Momentary

    [/vc_column_text][vc_column_text]L25 Anti-Vandal Resistor Switch[/vc_column_text][vc_column_text]

    Alternated

    [/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]

    FAQs

    1. What is a resistor switch, and what is its purpose in electrical circuits?

    A resistor switch is a specialized switch that incorporates a built-in resistor into its design. It serves the purpose of controlling current flow, limiting voltage, or attenuating signals within electrical circuits.

    2. What are the advantages of using an anti-vandal resistor switch in demanding environments?

    They are specifically designed to withstand harsh and demanding environments. Their advantages include resistance to vandalism, impact, water, dust, and extreme temperatures, making them suitable for applications where durability, reliability, and security are essential.

    3. How does an anti-vandal resistor switch provide protection against vandalism?

    They feature rugged construction and tamper-resistant design elements such as stainless steel or aluminum housings, anti-pry mechanisms, and sealed components. These features make it difficult for unauthorized individuals to damage or tamper with the switch.

    4. What are the typical applications of anti-vandal resistor switches?

    They find applications in various industries, including transportation, industrial automation, public access terminals, security systems, outdoor equipment, and any environment where resistance to physical abuse or tampering is required.

    5. How does the built-in resistor in a resistor switch affect the electrical circuit?

    It modifies the electrical properties of the circuit. It can limit current flow, attenuate signals, provide voltage division, or act as a pull-up or pull-down resistor, depending on the specific resistor value and circuit configuration.

    6. Can the resistance value of a resistor switch be customized?

    Yes, the resistance value can be customized to meet specific circuit requirements. Langir offers a range of options and can provide customized resistance values upon request.

    7. What are the different mounting options available for anti-vandal resistor switches?

    They are available with various mounting options, including panel mount, PCB mount, or surface mount, allowing for flexible integration into different types of equipment or systems.

    8. Are anti-vandal resistor switches compatible with different voltage and current ratings?

    Yes, they are designed to be compatible with a wide range of voltage and current ratings. It is important to choose the appropriate switch model and resistor value based on the specific electrical requirements of the application.

    9. Can anti-vandal resistor switches be illuminated for enhanced visibility?

    Yes, Langir offers illuminated versions, which feature integrated LED indicators for enhanced visibility in low-light or dimly lit environments.

    10. Are Langir anti-vandal resistor switches compliant with industry standards and certifications?

    Yes, they comply with various industry standards and certifications, including RoHS, CE, and IP67 ratings for ingress protection against dust and water. These certifications ensure quality, reliability, and adherence to industry requirements.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

  • Electrical Busbar System

    Electrical Busbar System

    [vc_row][vc_column][vc_custom_heading text=”Electrical Busbar System” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner][vc_column_text]The Busbar System is an innovative way to jumper up to 57 poles of Manual Motor Controllers (MMC) and Supplementary Protectors (SP).[/vc_column_text][vc_column_text]The advantages of this busbar system are:[/vc_column_text][vc_column_text]

    • 30% Installation time savings
    • Panel space savings
    • Reduced maintenance
    • High electrical ratings

    [/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Electrical Busbar System 1P+N

    • Shape: Pin Type
    • Rated current: 32A
    • Rated insulating voltage: 500V AC
    • Flammability of plastic part: class 1

    [/vc_column_text][vc_column_text]

    Items Rating (Amps) Terminals Pack Qty. Length Cat. No.
    1P+N 32A 56 100 1m BB101N

    [/vc_column_text][vc_column_text]

    Busbar 1P, 2P, 3P, 4P

    • Shape: Pin type, Fork Type
    • Rated Current: 63,125A
    • Rated Insulating Voltage: 500VAC
    • Flammbaility of Plastic Part: Class 1

    [/vc_column_text][vc_column_text]

    Items No. of pole Current Rating (Amps) Terminals Cat. No.
    (PIN) Type 1 63A 56(55) BB101
    100A 56(55) BB101A
    2 63A 27 BB201
    100A 27 BB201A
    3 63A 18 BB301
    100A 18 BB301A
    4 63A 14 BB401
    100A 14 BB401A

    [/vc_column_text][vc_column_text]

    Items No. of pole Current Rating (Amps) Terminals Cat. No.
    Fork Type 1 63A 56(55) BB102
    100A 56(55) BB102A
    2 63A 27 BB202
    100A 27 BB202A
    3 63A 18 BB302
    100A 18 BB302A
    4 63A 14 BB402
    100A 14 BB402A

    [/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Accessory

    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    End Cap

    • Adaptable to full range busbars
    • Used to insulate the exposed living parts at both ends of busbar

    End Cap[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Terminal Adaptor

    • Application to busbar for terminal connection
    • Fixed on busbar insulating part to secure high reliability
    • Connection capacity: 25mm2

    [/vc_column_text][vc_column_text]

    Power Feed Lug

    [/vc_column_text][/vc_column][vc_column width=”1/3″][vc_column_text]Terminal Adaptor[/vc_column_text][vc_column_text]

    SK-805

    [/vc_column_text][/vc_column][vc_column width=”1/3″][vc_column_text]Terminal Adaptor[/vc_column_text][vc_column_text]

    SK-805P

    [/vc_column_text][/vc_column][vc_column width=”1/3″][vc_column_text]Terminal Adaptor[/vc_column_text][vc_column_text]

    SK-806

    [/vc_column_text][/vc_column][vc_column width=”1/3″][vc_column_text]Terminal Adaptor[/vc_column_text][vc_column_text]

    SK-806P

    [/vc_column_text][/vc_column][vc_column width=”1/3″][vc_column_text]Terminal Adaptor[/vc_column_text][vc_column_text]

    SK-905

    [/vc_column_text][/vc_column][vc_column width=”1/3″][/vc_column][vc_column][vc_column_text]

    Insulation Cap

    [/vc_column_text][/vc_column][vc_column width=”1/3″][vc_column_text]Tooth sleeve[/vc_column_text][vc_column_text]

    SKU

    [/vc_column_text][/vc_column][vc_column width=”1/3″][/vc_column][vc_column width=”1/3″][/vc_column][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Assembly Instructions

    [/vc_column_text][vc_column_text]Electrical Busbar System Assembly [/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    FAQs

    1. What is an electrical busbar system?

    An electrical busbar system is a network of conductors used to distribute and transmit electrical power within a building or industrial facility. It consists of insulated bars or strips that provide a reliable and efficient method of power distribution.

    2. What are the advantages of using an electrical busbar system?

    Reduced installation time, improved flexibility, higher power density, enhanced electrical safety, and easier maintenance compared to traditional cable-based systems.

    3. How is an electrical busbar system different from conventional cabling?

    Unlike conventional cabling, an electrical busbar system uses a compact and modular design, eliminating the need for multiple individual cables. This results in reduced installation complexity, improved space utilization, and enhanced electrical efficiency.

    4. How is the capacity of an electrical busbar system determined?

    It’s determined by factors such as the cross-sectional area of the busbars, the material used, the temperature rating, and the design considerations for current-carrying capacity and voltage drop.

    5. What is the maintenance required for an electrical busbar system?

    It generally requires minimal maintenance. Routine inspections, cleaning, and periodic tightening of connections are recommended to ensure optimal performance and longevity.

    6. Are there safety considerations when using a busbar system?

    Yes, safety is an important aspect. Proper grounding, insulation, and protection against short-circuits and overloads are essential to ensure safe and reliable operation.

    7. What is the purpose of an electrical busbar system in power distribution?

    It serves as a centralized conductor for efficiently distributing electrical power from the source to various loads within a facility or system.

    8. What are the main components of an electrical busbar system?

    The busbar system includes busbars (conductive bars or strips), supports, insulators, connectors, expansion joints, and protective covers.

    9. What are the different types of busbar configurations commonly used?

    Common busbar configurations include single busbar, double busbar, ring busbar, and sandwich busbar arrangements. Each configuration offers specific advantages depending on the application requirements.

    10. What are the considerations for selecting the appropriate busbar material?

    It depends on factors such as electrical conductivity, thermal properties, mechanical strength, corrosion resistance, cost, and specific application requirements.

    11. How is fault protection and coordination achieved in an electrical busbar system?

    Fault protection and coordination are achieved through the use of protective devices such as circuit breakers, fuses, relays, and current-limiting devices. Proper coordination ensures selective and timely fault isolation.

    12. What are the safety measures to be followed during the installation and maintenance of a busbar system?

    Safety measures include proper personal protective equipment (PPE), adherence to electrical safety standards, grounding and bonding practices, lockout/tagout procedures, and regular inspection and maintenance schedules.

    13. Can an electrical busbar system be used in outdoor or harsh environments?

    Yes, they can be designed for outdoor or harsh environments by incorporating features such as weather-resistant enclosures, corrosion-resistant coatings, and appropriate insulation systems.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

  • DIN Rail Support /Brackets /Mounting

    DIN Rail Support /Brackets /Mounting

    [vc_row][vc_column][vc_custom_heading text=”DIN Rail Support/ Brackets” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner][vc_column_text]Cold-rolled steel treated with galvanic zinc plating and passivation.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column width=”3/4″][vc_column_text]

    Dimensions

    [/vc_column_text][vc_column_text]Brackets/ Mounting Dimensions[/vc_column_text][vc_column_text]

    ST

    [/vc_column_text][vc_column_text]DIN Rail Support/ Brackets/ Mounting[/vc_column_text][vc_column_text]

    STS

    [/vc_column_text][/vc_column][vc_column width=”1/4″][vc_column_text css=””]

    Order Code

    [/vc_column_text][vc_column_text]DIN Rail Support/ Brackets/ Mounting[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Notes:
    ST and STS screw size 6 mm, All dimensions shown are in mm    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

  • 35mm DIN Rail

    35mm DIN Rail

    [vc_row][vc_column][vc_column_text]

    • RoHS
    • CE

    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    35mm DIN Rail

    A DIN rail or top-hat rail is a standardized 35 mm wide metal rail with a hat-shaped cross-section. It is suitable for mounting circuit breakers and industrial control equipment inside equipment racks. It makes installing or removing terminal blocks and other devices quick and easy. In steel or aluminum, It is available in a variety of widths and heights that meet international standards. It brackets are straight or angled to tilt and/or raise rails for easy wiring. Mounting clips attach to small devices for easy installation on 35mm DIN rails.

    35mm DIN Rail mounted circuit breaker
    35 mm DIN rail with mounted circuit breaker
    Electrical equipment is mounted onto 35mm DIN Rail
    Electrical equipment is mounted onto 35 mm
    Cross section view of a G-type DIN rail, with electrical equipment mounted on
    Cross section view of a G-type, with electrical equipment mounted on

    Features
    35mm DIN Rail
    In addition to the popular 35 mm x 7.5 mm top-hat rail (EN 50022, BS 5584, DIN 46277-3), several less widely used types of mounting rails have been standardized.

    • Miniature top-hat, 15 mm x 5.5 mm (EN 50045, BS 6273, DIN 46277-2);
    • 7.5 mm wide top-hat rail (EN 50023, BS 5585);
    • G-type (EN 50035, BS 5825, DIN 46277-1).

    DIN Rail G types[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    How to order

    [/vc_column_text][vc_column_text]How to order Din Rail[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Dimensions

    [/vc_column_text][vc_column_text]G type Din Rail[/vc_column_text][vc_column_text]

    G Type

    [/vc_column_text][vc_column_text]G Type Din Rail[/vc_column_text][vc_column_text]Omega 35mm Din Rail[/vc_column_text][vc_column_text]

    OM Type

    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    1. What is DIN Rail and what is its purpose in electrical installations?

    DIN Rail is a standardized metal rail used to mount and support electrical devices and components in control panels and electrical enclosures. Its purpose is to provide a modular and organized platform for easy installation, maintenance, and flexibility in electrical systems.

    2. What are the dimensions and specifications of a standard 35mm DIN Rail?

    It adheres to the dimensions specified in the DIN EN 60715 standard. It has a width of 35mm, a height of 7.5mm, and a length that can vary depending on the installation requirements.

    3. What materials are commonly used to manufacture 35mm DIN Rails?

    They are typically made from high-quality metals such as steel or aluminum. Steel DIN Rails offer robustness and durability, while aluminum DIN Rails provide lightweight and corrosion-resistant options.

    4. What are the benefits of using a 35mm DIN Rail in electrical panel installations?

    It offers several benefits, including easy mounting of components, efficient use of space, standardized installation procedures, simplified wiring and maintenance, and compatibility with a wide range of electrical devices.

    5. Can a 35mm DIN Rail support heavy electrical components?

    Yes, it’s designed to support various electrical components, including heavy devices such as power supplies, circuit breakers, contactors, relays, and terminal blocks. However, it is important to consider the load capacity and choose appropriate mounting accessories for secure installation.

    6. How do I mount electrical devices onto a 35mm DIN Rail?

    Mounting electrical devices onto it is typically achieved by using mounting clips or snap-on fasteners specifically designed for DIN Rail installations. These accessories securely hold the devices in place, ensuring proper alignment and electrical connections.

    7. Are there different types of 35mm DIN Rails available for specific applications?

    Yes, there are variations available to accommodate specific application needs. For example, slotted DIN Rails provide flexibility for adjustable component positioning, while perforated DIN Rails offer enhanced ventilation for heat dissipation.

    8. Can a 35mm DIN Rail be customized or cut to specific lengths?

    Yes, they can be customized or cut to specific lengths using appropriate cutting tools and techniques. This allows for precise fitting and adaptation to the available space in the electrical enclosure or control panel.

    9. What are the international standards governing the design and specifications of 35mm DIN Rails?

    The design and specifications are governed by international standards such as DIN EN 60715 and IEC 60715. These standards ensure consistency, compatibility, and interchangeability of DIN Rail-based components worldwide.

    10. Where can I find compatible accessories and components for 35mm DIN Rail installations?

    Langir offers a wide range of compatible accessories and components for the installations, including terminal blocks, mounting clips, end brackets, support brackets, grounding terminals, and labeling solutions. These products ensure seamless integration and efficient utilization of DIN Rail systems.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

  • Touch Metal Piezo Keypad

    Touch Metal Piezo Keypad

    [vc_row][vc_column][vc_custom_heading text=”Touch Metal Piezo Keypad” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]

    • With maximum reliability and durability, the piezo keypads are Ideal for use in rough environments.
    • IP68 Dust and water resistant, Sea-water and detergent resistant.
    • No moving part, maintenance free.
    • Made of one piece of solid metal, totally rugged.
    • Potted switching unit at rear seals against all contamination and prevents freezing
    • Flexible anodize print or laser engrave layout

    [/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F03%2Fpiezo-keypads.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Technical Data

    [/vc_column_text][vc_column_text]

    Electrical Data
    Standard Output Matrix / Common Bus
    Contact Arrangement SPST N.O.
    Switch Voltage 1 – 24V AC/DC
    Switching Current 0.2A / 1A
    Force required for switch operation 3 – 5N
    Mechanical Data
    Material Aluminium / Stainless Steel
    Graphics Anodized Printing / Laser Engraving
    Electrical Connection Flat Cable / Pins
    Available Interfaces RS232 / RS485 / USB/ I2C / ASCII / UART
    Environmental Data
    Operating Temperature -20°C to 85°C
    Exceeds Class 1 Div 1 hazardous location requirements
    Impact proof to lK10
    IP68-IP69K wash-down proof up to 100 Bar (manysubmerged installations)
    Compliant with IEC/EN 60529,CE, ROHS,REACH
    Neither creates nor is affected by ESD, RFI or EM.

    [/vc_column_text][vc_column_text]

    3X4/ 4X3 Description Options
    KP34 Piezo Keypads 3X4 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB
    KP43 Piezo Keypads 4X3 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB
    4X4 Description Options
    KP44 Piezo Keypads 4X4 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB
    4X5 / 5X4 Description Options
    KP45 Piezo Keypads 4X5 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB
    KP54 Piezo Keypads 5X4 Touch Metal  Piezo Keypad Matrix , Common Bus, Data, USB

    [/vc_column_text][vc_column_text]

    Order Code

    [/vc_column_text][vc_column_text]Touch Metal Piezo Keypads

    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    FAQs

    [/vc_column_text][/vc_column][vc_column][vc_toggle title=”What is a piezo keypad and how does it work?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]A piezo keypad is a type of keypad that utilizes piezoelectric technology to detect user input. Piezoelectric materials generate electrical charges in response to mechanical pressure. When a user applies pressure to a piezo keypad, it generates an electrical signal that is detected and interpreted as a key press.[/vc_toggle][vc_toggle title=”What are the benefits of using piezoelectric technology in keypads?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]

    • High reliability and durability
    • Fast response time
    • Resistance to environmental factors such as moisture, temperature, and chemicals
    • Long lifespan with millions of actuations
    • Low power consumption

    [/vc_toggle][vc_toggle title=”What are the advantages of using piezo keypads?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]

    • Durability and resistance to wear and tear
    • Waterproof and resistant to harsh environments
    • Long lifespan
    • No moving parts, reducing the risk of mechanical failure
    • High sensitivity and responsiveness
    • Can be operated with gloves or in wet conditions

    [/vc_toggle][vc_toggle title=”How are piezo keypads different from traditional mechanical keypads?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]Unlike traditional mechanical keypads that use physical switches, piezo keypads rely on the piezoelectric effect to detect input. This eliminates the need for moving parts, making them more durable and less prone to mechanical failure. Additionally, they are often more resistant to water and environmental factors.[/vc_toggle][vc_toggle title=”What industries commonly use piezo keypads and keypad switches?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]

    • Industrial automation and control
    • Medical and healthcare
    • Transportation and automotive
    • Aerospace and aviation
    • Security and access control
    • Public kiosks and self-service terminals

    [/vc_toggle][vc_toggle title=”Are switchplates available for piezo keypads?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]Yes, switchplates or protective overlays are commonly available for piezo keypads. These switchplates provide an additional layer of protection, preventing accidental key presses and enhancing the overall durability of the keypad.[/vc_toggle][vc_toggle title=”How do piezo keypads enhance security in access control applications?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]

    • Anti-tampering features: Piezo keypads are resistant to physical tampering, making it difficult for unauthorized individuals to manipulate the keypad.
    • Covert operation: The lack of tactile feedback in piezo keypads makes it difficult for potential intruders to detect the pressed keys, enhancing security.
    • PIN code protection: Piezo keypads can be used to enter PIN codes or passwords, adding an additional layer of security to access control systems.

    [/vc_toggle][vc_toggle title=”What customization options and requirements are available for a custom piezo keypad?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]When customizing a piezo keypad, you have various options such as choosing the size, shape, layout, materials, graphics, backlighting, and additional functionalities. Common customization requirements include meeting industry standards, IP-rated sealing for water and dust resistance, compliance with specific specifications, resistance to harsh conditions, and integration into larger systems.[/vc_toggle][vc_toggle title=”Why should I choose Langir as my trusted piezo keypad manufacturer for customizing my keypad?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” use_custom_heading=”true”]Langir is a leading and reputable piezo keypad manufacturer known for its expertise in producing high-quality and customized keypads. With years of experience in the industry, Langir has a proven track record of delivering reliable and durable solutions for various applications. By choosing Langir, you can benefit from their in-house design and engineering capabilities, ensuring that your custom piezo keypad meets your exact requirements. Langir utilizes top-grade materials, rigorous quality control processes, and comprehensive testing to ensure the performance and longevity of their keypads. Their commitment to customer satisfaction and their excellent reputation in the industry make Langir the ideal choice for your piezo keypad customization needs.[/vc_toggle][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

  • 19mm Capacitive Switch

    19mm Capacitive Switch

    [vc_row][vc_column][vc_custom_heading text=”19mm Capacitive Touch Button” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]Available with diameter 16, 19, 22 or 25 mm bushing, CP series capacitive touch buttons are extremely easy to use and ideal for repetitive applications (no operating force). Their IK10 robustness and unlimited life are perfect for self-service applications.[/vc_column_text][vc_column_text]

    • Activated by the easy touch of a finger, the capacitive touch buttons extremely to use
    • Adjustable sensitivity sensor adapts to external environments
    • Easy-to-locate or on/off indication is possible through independent or output image LED functionality
    • Easy to clean because the switch is impervious to dust and dirt, and resistant to harsh chemicals and contaminants
    • 50 million cycles and no moving mechanical parts make LANGIR’s CP Switches robust and durable
    • Available in momentary or latching and with or without illumination

    [/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F03%2Fcapacitive-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

    Main Features

    [/vc_column_text][vc_column_text] Autocalibration
    Momentary or latching
    Independent or output image LED functionality
    Adjustable sensitivity
    50 million cycles
    No moving mechanical parts to wear out
    Bushing diameter 16, 19 or 22 mm
    Impervious to dust and dirt
    Resistant to harsh chemicals and contaminants
    Sealed to IP68 and IP69K
    Impact resistance : IK10[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

    Key Feature

    [/vc_column_text][vc_column_text]Operating force : 0N
    LED state for output image option :1 LED : the LED is ON when the output is closed.2 LEDs : first colour is ON when the output is open. Second colour is ON when the output is closed.
    Output type : NPN / PNP
    Life expectancy : 50 million cycles
    Adjustable sensitivity : Connection to ground by means of the yellow wire increases sensitivity (momentary version only)[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Benefits

    [/vc_column_text][vc_column_text]Extreme ease of use/ Adaptable/ Easy-locate or on/off indication/ Easy to clean/ Robust and durable[/vc_column_text][vc_column_text]

    Order code

    [/vc_column_text][vc_column_text]

    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches

    [/vc_column_text][vc_column_text]

    Specifications

    [/vc_column_text][vc_column_text]

    Environmental Specifications
    Sealing IP68 and IP69K according to IEC 60529
    Triggered by flowing water
    Impact resistance IK10
    Operating temperature -20°C to +65°C
    ESD complies with EN61000-4-2 (extended) ± 8KV (20 contacts) and ± 15KV (20 air discharges)
    Electrical and General Specifications
    Max. current/voltage rating 200mA 24VDC
    Supply voltage 5 to 24VDC
    Life expectancy 50 million cycles
    Power consumption non-illuminated 7mA
    Power consumption illuminated 25mA
    Operating force 0N
    LED state for output image option 1 LED : the LED is ON when the output is closed.
    2 LEDs : first color is ON when the output is open. Second color is ON when the output is closed.
    Output type NPN / PNP
    Materials
    Case stainless steel, anodized and plastic
    Terminal • Multi-wire leads section 0,22 mm2 length 300 mm
    • Cable, length 300 mm, section depending on switch model
    • Connector : HE14 6V compatible with AMP/TYCO281839-3

    [/vc_column_text][vc_column_text]

    Wiring Diagrams

    [/vc_column_text][vc_column_text]

    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches

    [/vc_column_text][vc_column_text]Legend
    R red +V
    Black black GND
    W white output
    A = same colour as LED

    Wire colours may vary.
    Always refer to the label on the switch.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    FAQs

    Q1: What are capacitive touch buttons and how do they work?

    A: Capacitive touch buttons are touch-sensitive buttons that use capacitance to detect touch. They work by measuring changes in electrical charge when a conductive object, such as a finger, comes in contact with the button’s surface. This change in capacitance is then interpreted as a button press.

    Q2: Are capacitive touch buttons sensitive to accidental touches?

    A: Capacitive touch buttons are designed to be highly sensitive to touch inputs. However, modern capacitive touch technology incorporates advanced algorithms and filters to differentiate between intentional touches and accidental ones. This helps reduce the chances of unintentional activations, providing a more reliable user experience.

    Q3: Can capacitive touch buttons work with gloves?

    A: Capacitive touch buttons primarily rely on the conductivity of the human body or conductive objects to detect touch inputs. In most cases, regular gloves hinder the touch sensitivity. However, some devices and applications offer a “glove mode” or utilize specialized touch materials that enable capacitive touch functionality even with gloves on.

    Q4: Are capacitive touch buttons affected by environmental factors?

    A: Capacitive touch buttons can be influenced by certain environmental factors such as temperature, humidity, and electromagnetic interference. However, manufacturers implement robust shielding and calibration techniques to minimize these effects and ensure consistent performance across different conditions.

    Q5: Can capacitive touch buttons be customized for different shapes and sizes?

    A: Yes, one of the significant advantages of capacitive touch technology is its versatility in terms of design. Manufacturers can customize touch buttons to various shapes, sizes, and even integrate them seamlessly into curved or irregular surfaces. This flexibility enables designers to create innovative and aesthetically pleasing user interfaces.

    Q6: Are capacitive touch buttons more expensive than traditional mechanical buttons?

    A: Capacitive touch buttons may have a higher upfront cost compared to mechanical buttons due to the additional components and technology involved. However, considering their durability, longevity, and enhanced user experience, capacitive touch buttons often provide a more cost-effective solution in the long run.[/vc_column_text][vc_zigzag]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

  • 16mm Capacitive Switch

    16mm Capacitive Switch

    [vc_row][vc_column][vc_custom_heading text=”16mm Capacitive Buttons” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]Available with diameter 16, 19, 22 or 25 mm bushing, CP series sensory switches are extremely easy to use and ideal for repetitive applications (no operating force). Their IK10 robustness and unlimited life are perfect for self-service applications.[/vc_column_text][vc_column_text]

    • Activated by the easy touch of a finger, the capacitive buttons extremely to use
    • Adjustable sensitivity sensor adapts to external environments
    • Easy-to-locate or on/off indication is possible through independent or output image LED functionality
    • Easy to clean because the capacitive buttons are impervious to dust and dirt, and resistant to harsh chemicals and contaminants
    • 50 million cycles and no moving mechanical parts make LANGIR’s CP Switches robust and durable
    • Available in momentary or latching and with or without illumination

    [/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F03%2Fcapacitive-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

    Main Features

    [/vc_column_text][vc_column_text] Autocalibration
    Momentary or latching
    Independent or output image LED functionality
    Adjustable sensitivity
    50 million cycles
    No moving mechanical parts to wear out
    Bushing diameter 16, 19 or 22 mm
    Impervious to dust and dirt
    Resistant to harsh chemicals and contaminants
    Sealed to IP68 and IP69K
    Impact resistance : IK10[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

    Key Features

    [/vc_column_text][vc_column_text]Operating force : 0N
    LED state for output image option :1 LED : the LED is ON when the output is closed.2 LEDs : first colour is ON when the output is open. Second colour is ON when the output is closed.
    Output type : NPN / PNP
    Life expectancy : 50 million cycles
    Adjustable sensitivity : Connection to ground by means of the yellow wire increases sensitivity (momentary version only)[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Benefits

    [/vc_column_text][vc_column_text]Extreme ease of use/ Adaptable/ Easy-locate or on/off indication/ Easy to clean/ Robust and durable[/vc_column_text][vc_column_text]

    Order Code

    [/vc_column_text][vc_column_text]

    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches

    [/vc_column_text][vc_column_text]

    Specifications

    [/vc_column_text][vc_column_text]

    Environmental Specifications
    Sealing IP68 and IP69K according to IEC 60529
    Triggered by flowing water
    Impact resistance IK10
    Operating temperature -20°C to +65°C
    ESD complies with EN61000-4-2 (extended) ± 8KV (20 contacts) and ± 15KV (20 air discharges)
    Electrical and General Specifications
    Max. current/voltage rating 200mA 24VDC
    Supply voltage 5 to 24VDC
    Life expectancy 50 million cycles
    Power consumption non-illuminated 7mA
    Power consumption illuminated 25mA
    Operating force 0N
    LED state for output image option 1 LED : the LED is ON when the output is closed.
    2 LEDs : first color is ON when the output is open. Second color is ON when the output is closed.
    Output type NPN / PNP
    Materials
    Case stainless steel, anodized and plastic
    Terminal • Multi-wire leads section 0,22 mm2 length 300 mm
    • Cable, length 300 mm, section depending on switch model
    • Connector : HE14 6V compatible with AMP/TYCO281839-3

    [/vc_column_text][vc_column_text]

    Wiring Diagrams

    [/vc_column_text][vc_column_text]

    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches
    Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches Capacitive Switches

    [/vc_column_text][vc_column_text]Legend
    R red +V
    Black black GND
    W white output
    A = same colour as LED

    Wire colours may vary.
    Always refer to the label on the switch.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    FAQs

    1. What are capacitive buttons?

    Capacitive buttons are touch-sensitive buttons that utilize the principle of capacitance to detect the presence and location of a user’s touch. They are commonly found in electronic devices and provide a sleek and responsive user interface.

    2. How do capacitive buttons work?

    Capacitive buttons consist of a capacitive touch sensor and an underlying circuit. When a user touches the button’s surface, it creates a change in the electrical field, which is detected by the touch sensor. The sensor then sends signals to the circuit, triggering the desired action or function.

    3. What are the advantages of capacitive buttons over traditional mechanical buttons?

    Capacitive buttons offer several advantages, including:

    • Durability: Capacitive buttons have no moving parts, making them more durable and resistant to wear and tear.
    • Easy to clean: Since capacitive buttons are flat and seamless, they are easy to clean and maintain.
    • Sleek design: Capacitive buttons provide a modern and minimalist design aesthetic, contributing to the overall appearance of electronic devices.
    • Multitouch capabilities: Capacitive buttons can support multiple touch points simultaneously, enabling gestures such as pinch-to-zoom or swipe actions.

    4. Can capacitive switches be used in outdoor environments?

    Yes, capacitive switches can be designed to withstand outdoor environments. They can be made resistant to water, dust, and other environmental factors, ensuring their reliable operation even in challenging conditions.

    5. Can capacitive buttons work with gloves or styluses?

    Some capacitive buttons are designed to be compatible with gloves or styluses. However, this depends on the sensitivity and design of the specific capacitive touch sensor. In general, capacitive switches are more responsive to touch from bare skin, but there are specialized touch sensors that can detect input from gloves or styluses with different levels of effectiveness.[/vc_column_text][vc_zigzag]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

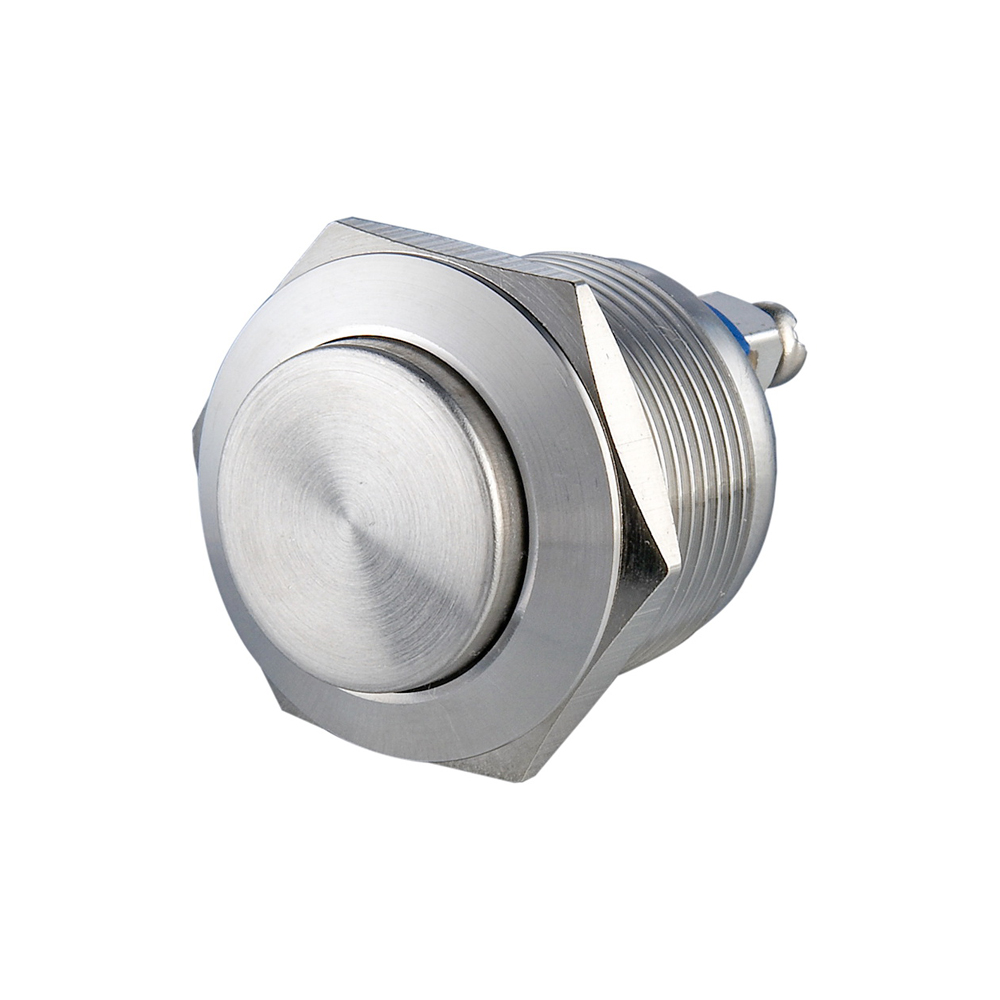

  • V19 Series Long Life, Waterproof Anti-vandal Switch

    V19 Series Long Life, Waterproof Anti-vandal Switch

    [vc_row][vc_column][vc_custom_heading text=”V19 Series Long Life, Waterproof Anti-vandal Switch” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]

    • IP65 rated protection against dust and moisture
    • 19mm diameter panel cutout
    • 1 pole, Off-(On) functionality
    • Solder and screw terminal options available

    [/vc_column_text][vc_column_text]Applications for these anti-vandal switches include:[/vc_column_text][vc_column_text]

    • Kiosks and ticket dispensers
    • Audio/visual
    • Medical equipment
    • Security devices
    • Electrical housewares
    • Industrial controls

    [/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F04%2Fv19-anti-vandal-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Functions

    [/vc_column_text][vc_column_text]function of V19 Series Long Life IP65 Waterproof Switch[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]

    Order Code

    [/vc_column_text][vc_column_text]V19 Anti vandal switch[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]

    Actuator Options

    [/vc_column_text][vc_column_text]V19 Anti vandal switch[/vc_column_text][vc_column_text]

    Technical Data

    [/vc_column_text][vc_column_text]

    Type V19-F V19-B V19-H
    Actuator Options Flat Domed High Flat
    Max. Panel Thickness: 0.394″ (10.0mm)
    Terminal Screw / Solder lug (2.8 x 0.5)
    Max. Switch Rating 2A/ 48VDC
    Contact Resistance ≤50mΩ
    Insulation Resistance ≥1000mΩ
    Dielectric Strengh 2000VAC
    Operation Temp. -20°C ~ +55°C
    Mechanical Life 1,000,000cycles
    Electrical Life >50,000cycles
    Contact Material Silver Alloy
    Torque 5 ~ 14Nm
    Operation Pressure approx. 5.5N
    Protection IP65
    Material Actuator Stainless Steel/ Nickel plated brass/ *Gold plated Brass/ *Anodized Aluminum
    Body Stainless Steel/ Nickel plated brass/ *Gold plated Brass/ *Anodized Aluminum
    Base PBT

    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Descriptions/ Panel Cutout

    [/vc_column_text][vc_column_text]panel cutout of V19 Series Long Life IP65 Waterproof Switch[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    Dimension

    [/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]V19 Anti vandal switch[/vc_column_text][vc_column_text]

    Solder terminal

    [/vc_column_text][vc_column_text]V19 Anti vandal switch[/vc_column_text][vc_column_text]

    Screw terminal

    [/vc_column_text][/vc_column_inner][/vc_row_inner][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

    FAQs

    [/vc_column_text][vc_column_text]Q1: What does “IP65” mean in the context of a waterproof switch?

    A: “IP65” indicates that the switch has an Ingress Protection rating of 65, providing effective protection against dust and water splashes, making it suitable for certain outdoor and industrial environments.



    Q2: Can the V19 switch withstand direct exposure to water?

    A: The V19 IP65 waterproof switch is designed to withstand water splashes and jets from various directions, making it suitable for applications where water resistance is essential.



    Q3: What makes the V19 switch ideal for outdoor use?

    A: The V19 switch’s IP65 rating ensures it can handle outdoor conditions, providing reliable operation in environments with dust and occasional water exposure.



    Q4: Is the V19 switch suitable for marine applications?

    A: Yes, the V19 switch’s IP65 waterproof rating makes it suitable for certain marine applications where protection against water and dust is necessary.



    Q5: Can I use the V19 IP65 switch in food processing environments?

    A: Yes, the V19 switch’s protection against water splashes and dust makes it suitable for use in food processing facilities where cleanliness and durability are crucial.



    Q6: How do I install the V19 IP65 waterproof switch?

    A: The installation process is typically straightforward. Refer to the product manual or Langir’s guidelines for step-by-step instructions on proper installation.



    Q7: What are the benefits of a waterproof switch in industrial settings?

    A: Waterproof switches, like the V19 IP65, ensure durability and reliable operation in challenging industrial environments, reducing the risk of electrical failure due to exposure to water and dust.



    Q8: Can I find different configurations of the V19 IP65 waterproof switch?

    A: Yes, Langir likely offers a range of configurations, including different sizes, colors, and electrical specifications, to meet specific application requirements.



    Q9: Can the V19 IP65 switch be used in applications with frequent exposure to humidity?

    A: Yes, the V19 IP65 waterproof switch is designed to withstand high humidity environments, making it suitable for applications where moisture is a concern.



    Q10: What is the operating temperature range of the V19 IP65 waterproof switch?

    A: The V19 switch is typically designed to operate within a specific temperature range, ensuring reliable performance even in challenging temperature conditions. Refer to Langir’s specifications for precise details on the operating range.[/vc_column_text][vc_zigzag]

    Get Custom Quote
    We’ll get back to you within 12 hours.
    Drag & Drop Files, Choose Files to Upload You can upload up to 3 files.
    [/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]
