DC circuit breakers provide overcurrent protection by interrupting current during faults. Whether a breaker is directional affects installation and operation, especially in systems with reversible flow such as renewable-energy arrays. This article explains directionality in DC breakers, polarity considerations, wiring risks, installation best practices, and common breaker types.

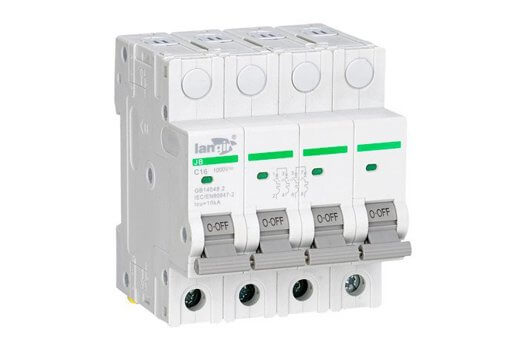

What Does Directional Mean in DC Circuit Breakers?

“Directional” means the breaker can detect the direction of DC current and trip based on that direction. This is useful where flow can reverse — for example, PV systems or bi-directional converters — because directional devices improve fault discrimination and limit unnecessary outages.

Some modern DC breaker designs support interruption in both directions to accommodate flexible power flows.



Bi-directional Z-Source DC Circuit Breaker for Flexible Power Flow

The paper addresses limitations of the Z-Source DC circuit breaker by proposing new topologies. Both proposed topologies allow bi-directional power flow and permit interruption in either direction.

Protection of DC system using bi-directional Z-Source Circuit breaker, S Savaliya, 2016



Get a quote for custom DC circuit breakers from Langir



How Directional Protection Works in DC Circuit Breakers

Directional protection uses sensors and logic to measure current magnitude and vector. When sensing indicates a fault in a monitored direction, the breaker trips according to configured criteria. Accurate sensing and dependable decision logic are required to avoid misoperations and maintain selective protection.

Despite progress, challenges remain in sensing accuracy and reliable fault classification for DC systems.



Directional Relays in DC Circuit Breaker Fault Protection

DC fault protection methods, including circuit breakers and fault current limiters, are essential. A directional relay may misclassify a forward fault as reverse, or vice versa, which can result in incorrect protection actions.

A comprehensive survey of HVDC protection system: fault analysis, methodology, issues, challenges, and future perspective, M Mishra, 2023



Why Is Polarity Important in DC Circuit Breakers?

Correct polarity affects a DC breaker’s ability to operate and interrupt faults as designed. Reversed connections may prevent tripping or degrade arc control, increasing equipment risk and safety hazards. Installers must follow polarity markings and manufacturer guidance during wiring and maintenance.

Langir Technologies specializes in custom electronic components, including DC circuit breakers , which are configured for specific application needs.



Consequences of Incorrect Polarity Wiring in DC Breakers

Incorrect polarity wiring can cause several issues, including:



1. Potential Equipment Damage: Reversed polarity can operate components outside design limits and shorten service life.
2. Increased Safety Hazards: Improper wiring can raise the risk of fires or electric shock.
3. Impaired Arc Control: DC interruption relies on correct orientation for effective arc suppression; wrong wiring can reduce arc-control effectiveness.

Research emphasizes that correct orientation improves arc interruption performance.



DC Circuit Breaker Polarity for Arc Interruption

The arc can be reversed in a manner that impedes interruption, which necessitates specifying the breaker polarity. The paper discusses the resulting improvement in arc control when polarity is correctly managed.

No-polarity interruption technology of circuit breakers for high-voltage direct current, 2014

These risks make verification of polarity essential during installation and routine checks.



Comparing Polarity-Sensitive and Non-Polarity-Sensitive DC Breakers

Choose between polarity-sensitive and non-polarity-sensitive breakers based on system needs. Polarity-sensitive designs require correct orientation and are used where direction matters. Non-polarity-sensitive breakers tolerate either connection and simplify installation but may not meet all protection requirements.



• Polarity-Sensitive Breakers: Require correct polarity for specified operation; used where direction is critical.
• Non-Polarity-Sensitive Breakers: Work regardless of polarity and allow more installation flexibility.

Selection should follow system specifications, operational risks, and manufacturer recommendations.



Get a quote for custom DC circuit breakers from Langir

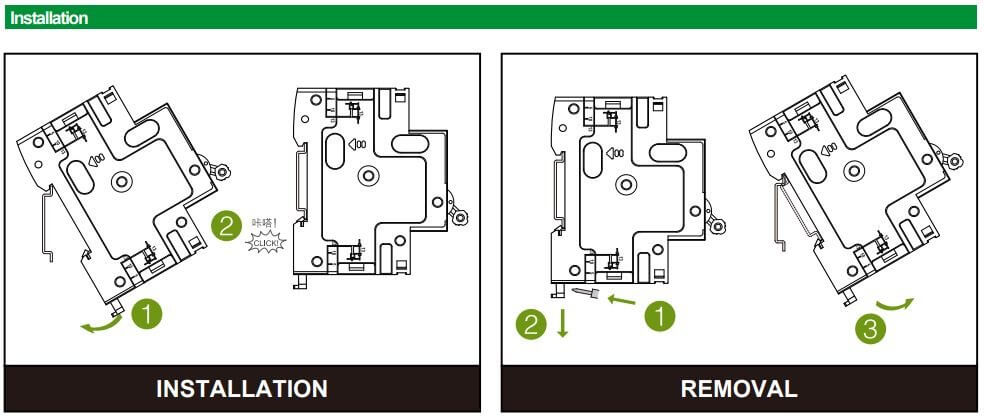

How to Install and Wire DC Circuit Breakers Correctly?

Proper installation is essential for safety and reliable operation. Standard practice focuses on safety, correct wiring, and verification.



1. Safety Precautions: Disconnect power before work to reduce shock risk.
2. Wiring Procedure: Follow the manufacturer’s wiring instructions, verify polarity, and use conductors sized for expected current.
3. Inspection and Testing: Inspect connections and perform functional tests to confirm correct operation under load.

Langir Technologies provides custom solutions for DC circuit breakers , with configurations to match installation requirements.



Types and Working Principles of DC Circuit Breakers

DC breakers come in several types for different voltages and applications. Typical examples include miniature circuit breakers for low-voltage protection, solar-rated breakers for PV systems, and high-voltage DC breakers for industrial or utility applications.



• Miniature Circuit Breakers (MCBs): For low-voltage circuits; protect against overloads and short circuits.
• Solar Circuit Breakers: Designed for photovoltaic systems and reverse-current challenges.
• High-Voltage DC Breakers: Used where higher voltages require robust interruption methods.

Knowing these options helps match breaker selection to the application’s electrical and environmental needs.



Common DC Circuit Breaker Types and Their Features

Breaker categories vary by size, interruption method, and application suitability. Consider whether the device needs reverse-current protection, higher current ratings, or rugged construction for industrial environments.



1. Miniature Circuit Breakers: Compact, suited to residential and light-commercial use.
2. Solar Circuit Breakers: Built for PV systems; may include reverse-current protection.
3. Molded Case Circuit Breakers: Robust units for larger systems with higher current capacity.

These features determine the appropriate environment and load types for each breaker.

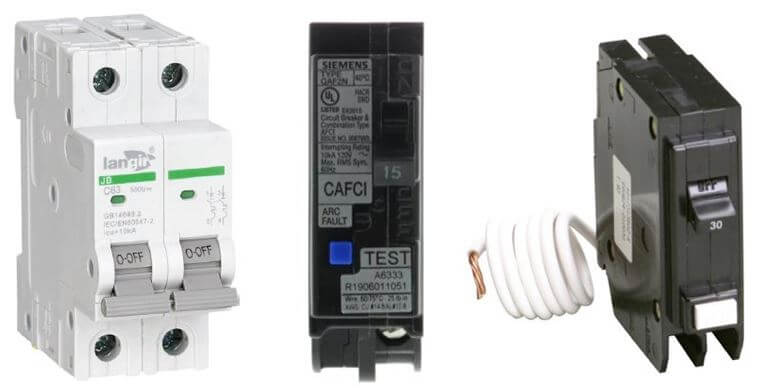

Basic Working Principle of DC Circuit Breakers

A DC circuit breaker interrupts current when a fault is detected. Common mechanisms include thermal trips, magnetic actuation, and arc-control elements. When abnormal current is sensed, the breaker opens to isolate the fault and protect equipment.

Understanding operational principles and reading manufacturer guidance helps installers and maintenance personnel troubleshoot and follow correct procedures.

For inquiries or product support, please contact us .



Are DC Circuit Breakers Directional | FAQs



Get a quote for custom DC circuit breakers from Langir



What are the main differences between AC and DC circuit breakers?

AC and DC breakers both protect circuits, but DC devices must handle steady, unidirectional current and require stronger arc suppression. AC breakers benefit from natural current zero crossings; DC breakers use specialized interruption methods and ratings.



How do I choose the right DC circuit breaker for my application?

Choose by matching system voltage and current, load type, polarity requirements, and environmental conditions. Review manufacturer specifications or consult a qualified engineer for final selection and settings.



Can DC circuit breakers be used in renewable energy systems?

Yes. DC breakers are commonly used in solar and some wind systems to protect against faults and manage variable or reversible current where bi-directional interruption is required.



What maintenance is required for DC circuit breakers?

Perform periodic inspections for wear or corrosion, test tripping mechanisms under load, and clean terminals to reduce contact resistance. Follow the manufacturer’s maintenance schedule.



What are the safety standards for DC circuit breakers?

DC breakers should meet applicable standards such as IEC 60947-2 and UL 489 where relevant. These standards address safety, thermal and short-circuit protection, and environmental requirements.



How do I troubleshoot a DC circuit breaker that won’t reset?

Verify the fault that caused the trip is cleared, inspect for visible damage, and confirm wiring and connections. If the breaker still will not reset, consult the manufacturer’s guide or a qualified technician; the device may be defective.



Are there any advancements in DC circuit breaker technology?

Yes. Developments include bi-directional breakers, better fault detection, and improved arc suppression to increase reliability in modern DC systems.



Conclusion

Directionality and correct polarity are important for safety and reliable operation of DC breakers. Selecting the appropriate type and following installation and maintenance best practices reduces equipment risk and supports stable system performance, particularly in renewable-energy applications. For tailored solutions and technical guidance, explore our range of DC circuit breakers.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Selecting the correct conductor for an ACS 300A DC circuit breaker ensures safety and reliable performance. This guide summarises the breaker’s key specs, ampacity criteria, compatible conductor options, installation best practices, and how Langir Technologies supports custom DC protection solutions.



What Are the Key Specifications of the ACS 300A DC Circuit Breaker?

The ACS 300A is rated at 300 A nominal and typically up to 1000 V DC. Terminal configuration and physical dimensions affect panel and enclosure compatibility; confirm these when integrating the breaker into a system.



Get a quote for custom DC circuit breakers from Langir

What Is the Current and Voltage Rating of the ACS 300A Breaker?

The breaker is intended for continuous 300 A operation and DC systems up to 1000 V, suitable for substantial DC loads when installed per manufacturer guidance.



Which Wire Sizes Are Compatible with the ACS 300A Model?

Wire choice depends on conductor material, insulation, and installation conditions. Copper options commonly range from 2 AWG to 4/0 AWG for 300 A DC circuits; aluminum conductors require larger sizes (typically 3 AWG up to 250 kcmil) to reach equivalent ampacity. Always choose conductors that meet ampacity and terminal requirements.



How to Determine the Correct Wire Size for a 300 Amp DC Circuit Breaker?

Selecting conductor size requires evaluating load and installation variables.



1. Assess Load Characteristics: Determine steady-state and peak currents, and allow margin for future changes.
2. Calculate Continuous Load: Base sizing on continuous load (NEC guidance often uses 80% of breaker rating as a reference — 240 A for a 300 A breaker).
3. Select Wire Size: Use approved ampacity tables and insulation ratings to pick a conductor whose ampacity covers the calculated load and ambient conditions.

Langir Technologies can advise on component selection for project-specific requirements.



Get a quote for custom DC circuit breakers from Langir



What Are the Ampacity Requirements for DC Circuit Breaker Wiring?

Ampacity is the maximum continuous current a conductor can carry without damage. For a 300 A DC application, follow National Electrical Code (NEC) guidance, accounting for continuous load, ambient temperature, insulation, and any required deratings.

The NEC provides ampacity tables and rules to ensure correct DC conductor sizing and code compliance.



NEC Ampacity Tables for DC Circuit Sizing

Standards and requirements for proper circuit sizing are set forth in the 1990 NEC. Similar tables are provided for drive isolation transformers and DC motors. Depending on the application, these tables can be used to size conductors and overcurrent protective devices.

NEC ampacity tables, circuit sizing, and developing standardized tables, 1990



How to Use Wire Gauge and Ampacity Charts for Wire Sizing?

Confirm the expected current, conductor material, insulation temperature rating, and installation conditions before consulting charts.



1. Identify Expected Amperage: Base on load calculations.
2. Consult Wire Gauge Chart: Use charts for the conductor material and insulation rating applicable to your installation.
3. Select Appropriate Gauge: Pick a gauge whose ampacity meets or exceeds the required current after applying deratings.

Ampacity charts are the authoritative reference for ensuring safe conductor selection.



What Are the Installation Best Practices for ACS 300A DC Circuit Breakers and Wiring?

Follow established installation practices to ensure safety and reliable operation.



1. Use a Licensed Electrician: Have qualified personnel perform DC installations.
2. Follow Local Codes: Comply with NEC and the authority having jurisdiction (AHJ).
3. Secure Connections: Terminate conductors to manufacturer torque specs and protect connections from corrosion.

These practices reduce thermal risk and improve long-term reliability.



How to Ensure Safety and Compliance When Installing DC Circuit Breakers?

Safety and regulatory compliance should guide every installation step.



1. Use the Right Tools: Use connectors and tools rated for the conductor type and size.
2. Follow Safety Protocols: De-energize circuits and use suitable PPE.
3. Inspect Installations: Verify terminations, insulation integrity, and component ratings before energising.

Strict adherence to these measures minimises hazards and supports code compliance.



What Are the Recommended Wiring Techniques for Optimal Performance?

Use wiring techniques that support thermal performance and electrical efficiency.



1. Use Proper Wire Gauge: Match conductor ampacity to calculated load and terminal ratings.
2. Minimize Lengths: Shorter runs reduce voltage drop and resistive loss.
3. Secure Connections: Ensure correct termination and insulation to prevent arcing.

Also follow any documented cable length limits relevant to protection coordination.



DC Circuit Breaker Cable Length Limits for Protection

The Cable Length Limit (CLL) is defined to ensure effective protection by Z-source circuit breakers in DC power networks. Studies assess CLL as a function of fault levels and ZCB parameters to determine acceptable cable lengths for protection schemes.

Assessment of cable length limit for effective protection by Z-source circuit breakers in DC power networks, R Fu, 2021



How Does Langir Technologies Support Custom Solutions for DC Circuit Protection?

Langir provides customised circuit protection products and engineering support, configuring DC breakers and ancillary components to meet safety standards and project performance goals.



Get a quote for custom DC circuit breakers from Langir



What Custom Switch Options Are Available with Langir’s DC Circuit Breakers?

Langir offers configurable switch options, including alternative colour schemes, bespoke labelling, and tailored packaging to aid identification and system integration.



How to Obtain a Custom Quote for ACS 300A Breaker and Wiring Solutions?

Request a customised quote by following the vendor’s submission procedure and supplying project details and technical requirements.



1. Visit the ‘Get Custom Quote’ section on the Langir Technologies website.
2. Fill out the form with project specifications.
3. Receive a tailored quote based on your requirements.

This enables Langir to provide an accurate, project-specific proposal.

For inquiries or direct contact, visit the Langir Technologies contact page.



ACS 300A DC Circuit Breaker Wire Size | FAQs



What are the common applications for the ACS 300A DC circuit breaker?

Common uses include solar PV systems, EV charging infrastructure, industrial machinery, battery energy storage, and DC distribution networks — applications requiring 300 A and up to 1000 V DC protection.



What safety standards should be considered when installing DC circuit breakers?

Follow the NEC and applicable local regulations. These set conductor sizing, protective device selection, installation, and testing requirements. Use certified components and follow manufacturer instructions.



How can I troubleshoot issues with my ACS 300A DC circuit breaker?

Start with a visual inspection for damage or corrosion and check terminations. Confirm the load is within ratings, measure voltage and continuity, and consult a licensed electrician or the manufacturer if problems persist.



What factors influence the lifespan of a DC circuit breaker?

Lifespan depends on component quality, operation frequency, and environment. High temperatures, moisture, corrosive atmospheres, and repeated overloads accelerate wear. Regular inspection and maintenance extend service life.



Can I use the ACS 300A DC circuit breaker in an AC application?

No. The ACS 300A is designed for DC interruption characteristics and should not be used in AC systems.



What maintenance is required for the ACS 300A DC circuit breaker?

Perform periodic inspections for wear or corrosion, verify secure connections, clean terminals, and conduct functional tests as recommended by the manufacturer.



Conclusion

Correct conductor selection and proper installation are essential for safe, efficient operation of the ACS 300A DC circuit breaker. Apply the breaker specifications, NEC ampacity guidance, and best practices in this guide. For project-specific configurations and technical support, contact Langir Technologies for customised DC protection solutions.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Connecting a DC circuit breaker with reverse polarity creates safety hazards and can cause equipment failure. This article explains the effects of incorrect wiring, gives troubleshooting steps, and summarises installation best practices and indicators of reverse polarity to help maintain safe, reliable installations.



Effects of hooking up dc breakers backwards

Reversed polarity can impair a breaker’s protective function: it may not trip during faults, increasing the risk of overheating or fire. Reverse wiring also accelerates internal wear and shortens service life, leading to equipment damage, downtime, and higher maintenance costs. Proper polarity is essential for system safety.

Langir Technologies supplies products intended to improve installation safety. Their custom DC circuit breakers are engineered to reduce wiring errors and deliver consistent operation.



Get a quote for custom DC circuit breakers from Langir



Troubleshooting Steps

If you suspect incorrect wiring, follow a systematic troubleshooting routine to find and correct errors.



1. Inspect Wiring Connections : Verify each connection is oriented per the manufacturer’s specification.
2. Test Operation After Corrections : After adjustments, test the circuit to confirm the breaker trips and resets correctly.
3. Look for Visible Damage : Check the breaker and nearby components for burn marks, deformation, or other damage.

Langir Technologies provides products and technical support to assist with troubleshooting and restoring safe operation.

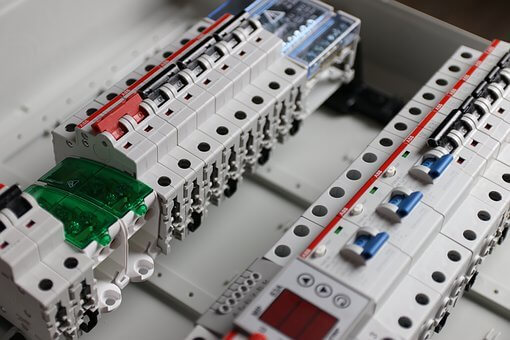

Wiring Best Practices

Follow established wiring practices when installing DC breakers to minimise errors and ensure reliable protection.



• Confirm Polarity Before Connection : Verify polarity with a meter before making connections.
• Follow Manufacturer Instructions : Install according to the manufacturer’s guidance.
• Use Proper Tools for Safety : Use insulated tools and suitable equipment to reduce installation mistakes.



Common Signs of Reverse Polarity in DC Breakers

Early detection reduces risk. Watch for the indicators below.



• Failure to Trip Under Fault Conditions : The breaker does not trip when expected.
• Impaired Arc Control : Arc suppression performs poorly or inconsistently.
• Accelerated Wear on the Breaker : Unusual wear patterns suggest improper operation.



Steps to Correct Reverse Wiring Issues

If reverse wiring is suspected, perform these corrective actions.



1. Check Wiring Connections : Rewire connections to match correct polarity.
2. Double-Check Terminal Connections : Ensure source conductors are on the proper terminals.
3. Inspect for Damage : Replace or repair components that show damage.



Best Practices for Correct DC Circuit Breaker Installation

Correct installation ensures safety and long-term reliability. Apply the practices below.



• Use the Right Tools : Have the appropriate tools to avoid errors.
• Follow Safety Precautions : Prioritize safety protocols during installation.
• Regular Maintenance Checks : Schedule inspections to catch issues early.



Get a quote for custom DC circuit breakers from Langir



Ensuring Proper Polarity When Wiring DC Circuit Breakers

Use these verification steps to ensure correct polarity.



• Identify Terminals Correctly : Label and confirm positive and negative terminals before connecting.
• Connect Source Conductors Properly : Attach source conductors to the correct terminals.
• Inspect and Test Connections : Inspect and test after installation to confirm correct operation.



Wiring Diagrams and Tools for Installation

Wiring diagrams and the right tools improve installation accuracy and safety.



• Essential Tools for Installation : Use wire strippers, reliable multimeters, and insulated screwdrivers.
• Importance of Wiring Diagrams : Refer to diagrams to confirm connections and visualize the circuit.
• Safety Measures During Installation : Wear protective gear and ensure power is off before starting work.



Custom Solutions for DC Circuit Breaker Safety

Langir Technologies offers tailored solutions to improve safety and reliability of DC circuit breakers . Their designs help prevent wiring errors and support OEM customization to meet high safety standards.



Customization Options to Prevent Wiring Errors

Consider these customization options to reduce installation mistakes.



• Custom Bezel Materials : Select visible materials to lower the chance of wrong connections.
• Specialized Cable Lengths : Use lengths suited to the installation to avoid excess wiring.
• Precision Logo Etching : Clear labeling and etching improve component identification.



Support for Troubleshooting and Installation

Langir Technologies provides diagnostic guidance, assistance with complex installations, and warranty support to improve system safety and reliability.

For more information or to contact Langir , visit their website.



DC Circuit Breaker Wiring | FAQs



Get a quote for custom DC circuit breakers from Langir



What are the potential risks of using a DC circuit breaker that is wired backwards?

Reversing polarity can prevent the breaker from operating during faults, increasing the risk of overheating and fire. Internal wear and premature failure may follow, compromising system protection.



How can I identify if my DC circuit breaker is wired incorrectly?

Look for failure to trip under fault conditions, degraded arc suppression, or abnormal wear. Regular inspections and functional tests help detect problems early.



What tools are essential for installing a DC circuit breaker correctly?

Use wire strippers, a multimeter, and insulated screwdrivers. Personal protective equipment such as gloves and safety glasses is also necessary; a multimeter is vital to verify polarity.



Are there specific guidelines for maintaining DC circuit breakers?

Perform scheduled inspections, check terminal security, and run operational tests. Follow the manufacturer’s maintenance instructions and keep the installation clean.



What should I do if I suspect my DC circuit breaker is damaged?

De-energize the circuit before inspecting. If you find burn marks, deformation, or defects, replace the device and consult a qualified electrician for assessment and reinstallation.



Can customization options really help prevent wiring errors?

Yes. High-visibility bezels, tailored cable lengths, and clear labeling reduce identification errors and installation mistakes.



What resources are available for troubleshooting DC circuit breaker issues?

Use manufacturer documentation, technical support teams, and guides from experienced vendors like Langir Technologies. Consulting qualified electricians or technical support resolves complex issues.



Conclusion

Understanding the risks of wiring a DC circuit breaker with reverse polarity is essential for electrical safety. Follow best practices, use proper tools, and perform routine inspections. For customized solutions and support, refer to Langir Technologies’ products and services.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Correctly sizing DC circuit breakers in 24V installations protects equipment and people from overloads and short circuits while minimising nuisance trips. This guide summarises the core procedures for calculating breaker ratings, key specifications to check, how load types affect sizing, and practical selection tips.



What Is a DC Circuit Breaker and Why Is Proper Sizing Important?

A DC circuit breaker interrupts current when a fault or overload occurs. Proper sizing ensures reliable protection and reduces false trips; incorrect sizing can allow damage or create fire risk. Familiarity with the device function and sizing principles is essential for safe 24V systems.



Get a quote for custom DC circuit breakers from Langir



How Does a DC Circuit Breaker Protect 24V Systems?

DC breakers detect overcurrent and disconnect the circuit to prevent damage. Because DC lacks natural zero crossings, breakers designed for DC use specific interruption methods and contact materials to break current reliably under overload or short‑circuit conditions.



Which Formulas and Methods Are Used to Calculate Breaker Current Rating?

Calculation starts by determining load current from device power requirements, then applying correction factors and codes.



1. Load Current Calculation : The load current can be calculated using the formula: I = frac{P}{V} where I is the current in amperes, P is the power in watts, and V is the voltage in volts.
2. NEC 125% Rule : Per the National Electrical Code (NEC), size the breaker at 125% of a continuous load to reduce nuisance tripping and provide margin.
3. Voltage Rating Considerations : Use a breaker with a voltage rating equal to or above the system voltage to ensure safe interruption.

In addition to matching system voltage, note that commercially available DC breaker voltage ratings vary and must be selected to suit the application.



DC Circuit Breaker Ratings for 250V Systems

Provides overcurrent protection for three-phase, 415 V (line) AC systems and for DC systems up to 250 V. Designs are also available at specified ratings for AC circuits up to 660 V and for certain DC ratings.

Electrical power system protection, 2013



What Is the Standard Formula for DC Breaker Amp Calculation?

Use the continuous load current and apply a safety factor to select the breaker rating.

The 1.25 multiplier gives margin for continuous operation. Example: a 10 A continuous load requires a breaker rated at least 12.5 A.



How Do Load Types Affect Breaker Sizing in 24V DC Circuits?

Load behaviour determines the type and rating of breaker needed; consider steady, inductive, and intermittent loads when sizing.



• Inrush Currents : Inductive devices (motors, solenoids) draw high startup currents; choose breakers or coordination that tolerate inrush without unwanted trips.
• Steady Loads : Resistive loads have predictable current draw, so sizing follows the continuous load calculation.
• Intermittent Duty Cycles : For intermittent loads, evaluate average versus peak currents and duty cycle when choosing ratings.



Get a quote for custom DC circuit breakers from Langir



How to Select the Appropriate DC Circuit Breaker for 24V Applications?

Selection requires checking voltage and current ratings, breaking capacity, and trip characteristics, then matching those to the system and load profile.



1. Voltage and Current Ratings : Confirm the breaker can handle 24V and the calculated load current.
2. Breaking Capacity Assessment : Verify the breaker interrupts expected fault currents without damage.
3. Trip Characteristics Evaluation : Match trip curves to load behaviour to avoid nuisance trips while protecting the circuit.

Research and industry guidance further identify additional factors to consider when selecting DC circuit breakers.



Selecting DC Circuit Breakers by Voltage & Current Levels

The selection of DCCBs will be based on the working conditions, the voltage and current level, board size, cost, reliability, and a fail-safe mechanism are crucial considerations in the

DC circuit breaker evolution, design, and analysis, M Moradian, 2023

Langir Technologies offers a range of DC circuit breakers engineered for low-voltage DC systems, providing overcurrent protection matched to application needs.



What Are the Key Specifications to Consider When Selecting a DC Breaker?

Focus on system voltage, expected current, and load type; these determine breaker class, trip curve, and required breaking capacity.



• System Voltage : Verify compatibility with 24V.
• Expected Current : Use the calculated maximum load current to select the rating.
• Load Type Considerations : Choose trip characteristics that suit inductive, resistive, or intermittent loads.



How Do Custom Switch Solutions Integrate with DC Circuit Protection?

Custom switches provide control interfaces that complement DC protective devices. Integrating push‑button or specialised switches with breakers enables tailored control and protection schemes for machine panels, control cabinets, and bespoke equipment. Langir Technologies supplies configurable solutions to support these integrations.



What Are Common Questions and Troubleshooting Tips for DC Circuit Breaker Sizing?

Typical sizing issues include underestimating fault current, neglecting inrush, and environmental derating. The following concise tips address common concerns.



1. Determining Breaking Capacity : Confirm the breaker interrupts the maximum possible fault current for the system.
2. Factors for Selection : Account for temperature, humidity, and enclosure conditions that affect performance.
3. Maintenance Tips : Inspect, test, and replace worn devices to maintain protection reliability.



How Do DC Breakers Differ from AC Breakers in Current Calculation?

DC breakers must interrupt steady current without relying on zero crossings, so their design, contact materials, and arc suppression differ from AC breakers. These differences affect how breakers are specified and selected for DC circuits.



Get a quote for custom DC circuit breakers from Langir



What Are Typical Errors to Avoid When Calculating Breaker Current?

Avoid common mistakes that compromise protection or cause nuisance trips.



1. Ignoring Continuous Load Factor : Always include continuous-load multipliers when sizing.
2. Incorrect Voltage Rating : Use breakers rated for the system voltage to ensure safe interruption.
3. Underestimating Short-Circuit Current : Accurately determine potential fault currents to select adequate breaking capacity.

Following these principles will help maintain safe, reliable 24V systems.

If you require assistance with component selection, please contact us . Our team can provide technical support to match components to your requirements.



Calculate Current Circuit Breaker for DC 24V | FAQs



What factors should I consider when determining the breaking capacity of a DC circuit breaker?

Identify the maximum fault current for your configuration and ensure the breaker’s breaking capacity exceeds that value; consider system layout and environmental effects.



How can I ensure my DC circuit breaker is suitable for different load types?

Match the breaker’s trip characteristics to the load: choose higher tolerance or time-delay characteristics for inductive inrush and standard thermal-magnetic types for steady resistive loads.



What maintenance practices should I follow for DC circuit breakers?

Perform scheduled inspections, functional tests under load, and clean enclosures; replace breakers that trip persistently or show physical deterioration.



Can I use AC circuit breakers in DC applications?

No. AC breakers rely on current zero crossings and are not rated for reliable DC interruption; always use breakers specified for DC service.



What are the implications of not sizing a DC circuit breaker correctly?

Incorrect sizing can lead to nuisance trips, equipment damage, or unprotected overloads. Balance protection and operational continuity by applying standard sizing rules.



How do environmental conditions affect DC circuit breaker performance?

Temperature, humidity, and dust affect breaker ratings and operation; apply derating where specified and select devices rated for the environment.



Conclusion

Accurate calculation and sensible selection of DC circuit breakers for 24V systems ensure safety and uptime. Use the formulas, apply code multipliers, account for load types and environment, and verify breaking capacity when choosing devices. Contact our team for technical assistance or product guidance.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Replacing breakers on a DC marine circuit breaker panel is essential to vessel safety and electrical reliability. The task requires familiarity with panel parts, the correct tools, and strict safety procedures. This guide outlines the tools, safety steps, a standard replacement sequence, troubleshooting tips, and selection points for marine DC breakers and custom switches.

A working knowledge of marine electrical design principles and safety protocols is a prerequisite for effective maintenance.



Marine Electrical Systems: Breakers, Safety & Diagrams

The paper addresses key elements of marine electrical distribution systems, including the configuration of the main switchboard, the function of transformers and circuit breakers, and the role of electrical diagrams in system operation. It also examines grounding arrangements, emergency power configurations, and circuit sectioning strategies that preserve essential services during faults. Marine electrical knowledge, 2013



What Tools and Safety Precautions Are Required for DC Marine Circuit Breaker Replacement?

Prepare before you start: gather tools, check PPE, and confirm the isolation and lockout state of the circuits to avoid accidents and speed the job.



Get a quote for custom DC circuit breakers from Langir



Which Tools Are Essential for Replacing Marine DC Circuit Breakers?

Essential tools include:



1. Wire Strippers: For accurate insulation removal.
2. Insulated Screwdrivers: Reduce shock risk when working near live parts.
3. Multimeter: Verify circuits are de-energized and check voltages.

These tools allow safe preparation, correct terminations, and verification testing.



What Safety Measures Ensure Compliance During Breaker Replacement?

Follow basic safety controls to reduce risk:



1. PPE: Safety glasses and gloves.
2. De-energize and test: Confirm zero energy with a meter.
3. Lockout/Tagout: Prevent accidental re-energisation.

Consistent application of these measures supports safe and compliant maintenance.



How to Perform a Step-by-Step Replacement of DC Circuit Breakers on Marine Panels?

Use a controlled, sequential procedure and verify each action to ensure a reliable installation.



What Are the Sequential Steps to Remove and Install DC Breakers?



1. Turn Off Power: Isolate the main supply to the panel.
2. Remove the Old Breaker: Unscrew and extract the faulty unit carefully.
3. Inspect Wiring: Check for corrosion, loose terminations and heat damage.
4. Install the New Breaker: Seat and fasten the breaker per the panel design.
5. Reconnect Wires: Make tight, correctly routed, and insulated connections.
6. Test the Installation: Re-energize and verify correct operation and absence of faults.

Work methodically, confirm torque values where specified, and keep wiring neat to reduce future faults.



How to Identify and Troubleshoot Common Issues During Replacement?

Common symptoms and quick checks:



1. Breaker Not Resetting: Check for short circuits or persistent overloads.
2. Frequent Tripping: Verify load, wiring condition, and correct breaker sizing.
3. No Power to the Circuit: Confirm correct installation and tight connections.

Use a structured diagnostic approach—inspect, measure, and isolate—to find most faults rapidly.



Get a quote for custom DC circuit breakers from Langir



Which DC Circuit Breakers and Custom Switches Are Suitable for Marine Panels?

Select components rated for marine environments, focusing on corrosion resistance, ingress protection, and mechanical robustness to withstand vibration and salt exposure.



Type of Breaker	Features	Benefits
Miniature Circuit-Breakers	Compact design, reliable performance	Space-saving and efficient
Marine Panel Switches	Waterproof and corrosion-resistant	Enhanced durability in harsh conditions
Custom Marine Switches	Tailored specifications for specific applications	Optimal performance and safety

Choosing components with suitable ingress protection, corrosion resistance, and correct electrical ratings helps maintain availability at sea.



What Are the Features of Langir’s Custom DC Circuit Breakers for Marine Use?

Langir Technologies supplies custom DC breakers with marine-focused features such as:



• Bidirectional Current Protection: Prevents reverse current flow.
• Lockable OFF Position: Allows secure isolation for maintenance.

These features enhance safety and reduce the chance of unintended energisation or reverse-feed damage.



How Do Piezo, Capacitive, and Anti-Vandal Switches Enhance Marine Panel Reliability?

Specialized switches improve durability and reduce service needs:



1. Durability: Designed to resist moisture, salt, and vibration.
2. Low maintenance: Robust designs reduce interventions.

Using these switch types improves long-term reliability of control interfaces on marine panels.



What Are Best Practices for Maintaining and Troubleshooting Marine DC Breaker Panels?

Adopt a scheduled maintenance routine and a consistent troubleshooting method to extend service life and ensure compliance.



1. Routine Inspections: Look for wear, corrosion and loose connections.
2. Testing and Cleaning: Functional tests and terminal cleaning to prevent faults.
3. Documentation: Log maintenance and fault history for trend analysis.

Documented inspections and tests help spot trends and prevent at-sea failures.



How to Conduct Routine Marine Circuit Breaker Maintenance?

Key recurring tasks:



1. Visual Inspections: Check panels and terminations for visible damage.
2. Functional Testing: Verify breakers reset and operate as intended.
3. Cleaning: Remove dust, corrosion and debris from terminals and housings.

Schedule these checks and record findings to catch early degradation.



Get a quote for custom DC circuit breakers from Langir



What Are Common Troubleshooting Techniques for DC Breaker Panel Issues?

Common diagnostic steps:



1. Check Load Conditions: Confirm the load matches breaker ratings.
2. Inspect for Short Circuits: Look for damaged insulation, chafing or bridged terminals.
3. Test Breaker Functionality: Use a multimeter to confirm voltages and continuity as needed.

These steps quickly identify overloads, shorts, or defective devices so corrective action can follow.

For product details see DC circuit breakers designed for marine environments. To discuss custom options, contact Langir. For further component options, review DC circuit breakers from qualified suppliers.



Marine DC Circuit Breaker Replacement | FAQs



What are the signs that a DC circuit breaker needs to be replaced?

Persistent tripping without an identifiable overload, visible damage or corrosion, inability to reset, burning odour, or unusual noises are signs to replace the breaker and inspect the circuit.



How can I ensure the correct installation of a new DC circuit breaker?

Follow the manufacturer’s instructions, confirm compatibility, secure and correctly insulate connections, apply specified terminal torque, and perform operational tests. If unsure, use a qualified electrician.



What maintenance should I perform on my marine electrical system?

Keep a routine of inspections for corrosion and wear, functional testing of breakers, and cleaning of terminals. Log actions and repairs for trend tracking.



Are there specific regulations for marine electrical systems?

Yes—comply with applicable standards such as ABYC and IEC guidance covering wiring, circuit protection, and equipment specification to ensure safety and certification.



What should I do if my new breaker continues to trip?

Check that the circuit load is within rating, inspect wiring for shorts or damage, and confirm correct installation. If problems persist, replace the breaker or call a qualified electrician.



Can I use standard circuit breakers in marine applications?

Standard breakers are usually unsuitable for marine service due to moisture, salt and vibration. Specify marine-rated breakers for corrosion resistance and mechanical robustness.



How often should I test my marine circuit breakers?

Test breakers operationally at least every six months, resetting each and inspecting for wear or corrosion. Address anomalies promptly.



Conclusion

Replacing DC circuit breakers on marine panels preserves vessel safety and system reliability. Follow the listed tools, safety procedures and stepwise installation, and choose marine-rated components with appropriate features. Maintain documented inspections and tests to reduce operational risk and extend service life; consult qualified suppliers for approved components and custom switches.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Correct wiring of a DC inline circuit breaker is essential for battery protection and reliable operation. This guide explains which breaker terminal connects to the battery, how to identify the battery positive terminal, and recommended wiring practices to improve safety and system reliability.



Which Side of a DC Inline Circuit Breaker Connects to the Battery?

Connect the battery positive lead to the terminal designated for the battery, commonly labelled “COM” . That terminal accepts the positive lead and allows the breaker to monitor and interrupt current when necessary. A correct connection to the COM terminal is required for proper breaker operation and overall system safety.



Get a quote for custom DC circuit breakers from Langir



Identifying the Battery Positive Terminal Connection

Identifying the battery positive terminal is straightforward. Key indicators include:



1. Symbol: The positive terminal is usually marked with a ‘+’ symbol.
2. Size: The positive terminal is often larger than the negative terminal.
3. Color Coding: In most cases, the positive terminal is color-coded red, while the negative terminal is black.

These markers help prevent incorrect connections and potential damage to the electrical system.



How to Wire a DC Inline Circuit Breaker for Battery Protection?

Follow these critical steps for safe, functional wiring:



1. De-energize the System: Always turn off power before starting any wiring to avoid shock.
2. Use Insulated Tools: Use insulated tools to reduce the risk of accidental shorts.
3. Connect the Positive Lead: Attach the battery positive lead to the COM terminal.
4. Connect the Load: Connect the load to the NO (Normally Open) or NC (Normally Closed) terminal as required by the application.
5. Inspect and Test: Inspect all connections and test the circuit after wiring.

Langir Technologies specializes in custom switches and DC circuit breakers designed for inline battery protection, ensuring wiring configurations meet safety and performance requirements.



Wiring the Battery Side vs. Load Side Explained

Distinguishing the battery side from the load side ensures correct installation and protective function:



• Battery Side: Connects to the COM terminal and receives power from the battery. It is used for monitoring current and protecting the battery from overcurrent.
• Load Side: Connects to the NO or NC terminal and supplies power to devices or systems. This side delivers current to the connected load.

Correct identification of both sides ensures the breaker operates as intended and provides the expected protection.



Get a quote for custom DC circuit breakers from Langir



What Are the Benefits of Correct DC Circuit Breaker Battery Connections?

Proper connection of a DC circuit breaker to the battery delivers several operational benefits:



Benefit	Description	Impact Level
Improved Safety	Proper connections prevent overheating and potential fire hazards.	High
Equipment Protection	Correct wiring safeguards devices from overcurrent damage.	High
Enhanced Reliability	Ensures consistent performance and compliance with standards.	Medium

These benefits underscore the importance of following correct wiring protocols when connecting a DC inline circuit breaker to a battery.



Ensuring Reliable Inline Battery Protection

To maintain reliable battery protection, adopt these best practices:



1. Regular Inspection : Periodically check connections for wear and corrosion.
2. Choose the Right Battery Type : Verify compatibility between battery and breaker specifications.
3. Secure Connections : Tighten terminals to prevent loosening over time.

Applying these practices helps ensure the DC inline circuit breaker continues to provide effective protection.



How Does a DC Inline Circuit Breaker Compare to an Inline Fuse?

When comparing a DC inline circuit breaker to an inline fuse, several key differences matter:



• Reset Capability: Circuit breakers can be reset after tripping; fuses must be replaced.
• Response Time: Fuses typically respond faster to overcurrent.
• Flexibility: Circuit breakers offer adjustable settings and wider application flexibility.

For adjustable, reusable protection, circuit breakers are often preferred.



Differences Between DC Inline Fuse and Circuit Breaker

The differences between DC inline fuses and circuit breakers can be summarised as follows:



Feature	DC Inline Fuse	DC Inline Circuit Breaker
Usage	One-time use	Reusable after tripping
Response	Faster response to overcurrent	Adjustable response settings
Maintenance	Requires replacement	Can be reset and reused

For product inquiries or technical support, please contact us . Our team can provide assistance.



DC Inline Circuit Breaker Wiring | FAQs



Get a quote for custom DC circuit breakers from Langir



1. What is the purpose of a DC inline circuit breaker?

A DC inline circuit breaker interrupts current during an overcurrent condition to protect the battery and connected equipment. It trips automatically to disconnect the circuit and reduce hazards like overheating or fire.



2. Can I use a DC inline circuit breaker with any type of battery?

Many breakers are compatible with multiple battery types, but compatibility depends on matching voltage rating and current capacity to the battery. Check the manufacturer’s specifications before use.



3. How often should I inspect my DC inline circuit breaker?

Inspect connections and breaker condition regularly — at least every six months. Look for wear, corrosion, or loosened connections and address issues promptly.



4. What should I do if my circuit breaker keeps tripping?

Persistent tripping often indicates overload, a short, or a faulty device. Disconnect loads and reset the breaker. If it trips with no load, replace the breaker; otherwise reconnect devices one at a time to find the problem.



5. Are there any specific tools required for wiring a DC inline circuit breaker?

Use insulated tools such as wire strippers, screwdrivers, and wrenches. A multimeter is useful for testing voltage and continuity. Always use appropriate personal protective equipment.



6. What are the signs of a failing DC inline circuit breaker?

Signs include frequent unintended tripping, visible damage or burn marks, excessive heat, and failure to trip during an overcurrent event. Replace suspected faulty breakers promptly.



7. Can I install a DC inline circuit breaker myself?

Installation is possible for those with basic electrical knowledge and who follow manufacturer instructions. If unsure, hire a qualified electrician to ensure safe installation.



Conclusion

Correct wiring of a DC inline circuit breaker is vital for battery safety and reliable system performance. Follow the recommended practices above and consult product documentation for detailed specifications and wiring guidance.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



A DC circuit breaker protects circuits by interrupting current during overloads and faults. This guide summarizes the components, installation steps, design principles, and best practices for building a dependable DC breaker and briefly covers integration with custom push button switches .



Key Components:

The primary elements are:



1. DC Circuit Breaker: The device that interrupts current during faults.
2. Wiring: Connects the breaker to the system.
3. Tools: Basic tools include screwdrivers, wire strippers, and a multimeter.

Together these allow detection of faults and protection of circuits.



Get a quote for custom DC circuit breakers from Langir



Steps for Installation:

Follow a safety-first sequence:



1. Turn Off Power: De-energise the circuit before work.
2. Select the Right Breaker: Match the breaker to system specifications.
3. Connect the Breaker: Make secure, correct wiring connections.

Following these steps supports a safe installation.



Best Practices:

Use these practices to maintain reliability and compliance:



1. Follow Wiring Standards: Comply with local electrical codes.
2. Regular Inspections: Check for wear and test trip mechanisms periodically.
3. Consult Safety Standards: Know the applicable standards for your installation.

Consistent application of these practices improves safety and uptime.



What Are the Essential Design Principles of a DC Circuit Breaker?

Key design principles ensure reliable interruption of DC currents:



• Arc Management: Effective suppression to control and extinguish arcs.
• Robust Trip Mechanisms: Fast, dependable activation on faults.
• High Breaking Capaci: Ability to interrupt high fault currents safely.

These principles are central to effective breaker performance.

Further research examines design details including fault protection and surge absorption, which are critical to the evolution and analysis of DC circuit breakers.



DC Circuit Breaker Design: Fault Protection & Surge Absorption

The article reviews performance improvements and higher breaking capacity for faults and switching in DC circuits, and examines surge absorption principles in DC systems to illustrate DC circuit breaker evolution, design, and analysis.

DC circuit breaker evolution, design, and analysis, M Moradian, 2023



How Does the Working Principle of a DC Circuit Breaker Ensure Electrical Safety?

DC breakers stop current on faults to prevent overheating and fire. Main safety mechanisms:



• Interrupting Current: Detects excessive current and opens the circuit.
• Preventing Overheating: Stops current to avoid thermal damage.
• Managing Arcs: Uses suppression methods to extinguish arcs safely.

Together these maintain safety across applications.

A clear understanding of DC breaker fundamentals is necessary, particularly given their distinct challenges relative to AC systems.



Fundamental Principles of DC Circuit Breaker Concepts

The paper discusses fundamental principles for switching DC currents and reviews different concepts for DC circuit breakers, noting that existing high-power circuit breakers are designed for AC systems.

Circuit breaker concepts for future high-power DC-applications, 2005



Get a quote for custom DC circuit breakers from Langir



Which Components Are Required to Build a Reliable DC Circuit Breaker?

Essential components include:



1. Arc Suppression Mechanisms: For managing arcs during operation.
2. Trip Mechanisms: Detect overloads and trigger the breaker.
3. Contact Design: Durable contacts for reliable current transfer.

Choosing quality parts improves reliability and performance.

Notably, advances in arc suppression mechanisms, such as magnetic arc extinguishing, are important for low-voltage DC circuit breaker design.



Low-Voltage DC Circuit Breaker Design: Magnetic Arc Extinguishing

The study examines a permanent-magnet arc extinguishing technique and magnetic concentration mechanisms developed to improve breaking capability in low-voltage DC circuit breakers.

A study on Low-Voltage DC circuit breakers, 2013



What Are the Roles of Key Components in DC Circuit Breaker Assembly?

Core roles to understand during assembly:



• Operating Mechanism: Opens and closes the breaker reliably.
• Current-Carrying Contacts: Conduct and withstand high currents.
• Arc-Extinguishing Elements: Safely manage and quench arcs.

Proper assembly of these parts ensures dependable operation.



How Do Custom Push Button Switches Integrate with DC Circuit Breakers?

Custom push button switches provide control interfaces for breakers. Common types:



• Piezo Switches: Durable and reliable in harsh settings.
• Capacitive Switches: Touch-sensitive options for modern panels.
• Anti-Vandal Switches: Tamper-resistant choices for public installations.

These switches can improve control and safety when integrated correctly.



How Is a DC Circuit Breaker Properly Installed and Wired?

Key installation tips:



1. Safety Precautions: Use PPE and confirm power is off.
2. Identify Terminals: Mark input and output clearly.
3. Inspect and Test: Verify connections and test operation after installation.

Following these guidelines supports correct performance.



Get a quote for custom DC circuit breakers from Langir



What Are the Step-by-Step Procedures for DC Circuit Breaker Installation?

A concise procedure:



1. De-energize the System: Ensure the system is fully de-energised.
2. Connect Source Conductors: Attach source conductors to the correct terminals.
3. Regular Maintenance: Schedule checks to keep the breaker in serviceable condition.

These steps support safe, reliable installations.



Which Safety Certifications and Standards Must Be Followed During Installation?

Common certifications to consider:



1. CE: Compliance with European safety standards.
2. RoHS: Limits hazardous substances.
3. UL: Safety and performance certification from Underwriters Laboratories.

Adhering to relevant standards improves safety and compliance.



What Are the Common Types of DC Circuit Breakers and Their Applications?

Common types include:



• Magnetic Circuit Breakers: Fast response for high-current applications.
• Thermal Circuit Breakers: Trip on sustained overloads using heat elements.
• Hybrid Circuit Breakers: Combine magnetic and thermal features.

Choose the type that matches load and environment.



How Do DC Circuit Breaker Types Differ in Design and Function?

Differences that affect selection:



• Arc Control Mechanisms: Approaches to manage arcs vary by design.
• Contact Design: Materials and geometry affect current capacity.
• Insulation Requirements: Specified by application and environment.

Match design features to application needs.



Which DC Circuit Breaker Types Are Best Suited for Small to Medium-Sized Businesses?

Recommended options:



1. Miniature Circuit Breakers: Compact for limited-space installations.
2. Molded Case Circuit Breakers: Robust protection for larger systems.
3. Solid-State Circuit Breakers: Fast, low-maintenance protection with advanced control.

Selecting the right type improves safety and efficiency.



How to Build a DC Circuit Breaker | FAQs



What is the difference between AC and DC circuit breakers?

AC breakers interrupt alternating current that crosses zero volts, which helps extinguish arcs. DC breakers must handle continuous current and therefore use stronger arc suppression and different contact arrangements. Choose the type suited to your system.



How often should DC circuit breakers be inspected?

Inspect at least annually; increase frequency in harsh or high-use environments. Check connections, trip function, and signs of wear or overheating.



Can I install a DC circuit breaker myself?

Professional installation is recommended. If done in-house, ensure qualified personnel follow codes and safety practices.



What are the signs that a DC circuit breaker needs replacement?

Replace a breaker that trips persistently under normal load, shows physical damage or burn marks, fails to reset, or overheats.



What safety precautions should I take when working with DC circuit breakers?

De-energise circuits, wear PPE, label circuits clearly, and follow local codes. Consult an electrician for uncertainties.



What are the advantages of using solid-state DC circuit breakers?

Solid-state breakers respond faster, require less mechanical maintenance, and can include remote monitoring and precise control for modern installations.



Conclusion

A reliable DC circuit breaker is essential to electrical safety. Knowing components, following installation steps, and applying best practices keeps systems safe and dependable. Regular inspections and compliance with standards help maintain long-term performance.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



DC circuit breakers interrupt overloads and short circuits on direct-current systems. Because DC does not cross zero, DC breakers use different electrical and mechanical measures than AC devices. This article summarises how trip behaviour changes with amperage, the mechanisms that set trip response, and the key factors designers consider for renewables and electric vehicles.

We cover operational mechanisms, trip characteristics, trip curves, and why correct amperage selection or customisation matters. For product details see DC circuit breakers .



How Do DC Circuit Breakers Operate and Trip at Specific Amperage Levels?

DC breakers detect overcurrent and open when measured current exceeds the rated threshold. The amperage rating defines continuous carrying capacity and tolerance for transient surges; sizing determines whether the device trips appropriately under fault or overload.

Because DC lacks a natural zero-crossing, designs must focus on arc control and interruption methods. Many devices combine magnetic (instant) and thermal (time-delayed) elements so the breaker responds appropriately across load profiles.

Understanding the physical phenomena of arc generation and motion is key to designing effective DC circuit breakers.



DC Circuit Breaker Arc Phenomena & Motion Analysis

This paper investigates the complex arc phenomena that occur in air DC circuit breakers during the interruption process and analyses how arc chamber width influences arc motion based on experimental results.

Investigation on arc behavior during arc motion in air DC circuit breaker, F Yang, 2013

Langir Technologies supplies custom DC protection components tailored to required amperage, helping systems meet application-specific protection and compliance needs.



Get a quote for custom DC circuit breakers from Langir



What Are the Trip Characteristics Unique to DC Circuit Breakers?

DC breakers have trip behaviours shaped by the need to manage a continuous current path and sustained arcing. Without zero-crossing, interruption relies on rapid arc-extinguishing measures and contact durability to avoid excessive erosion or thermal damage.

Manufacturers tune arc control, contact materials and trip thresholds to balance reliable interruption with acceptable service life; mismatches can lead to equipment damage or nuisance trips.

Further research delves into the intricate details of arc behavior in DC circuit breakers.



DC Circuit Breaker Series Arc Characteristics

In DC systems the arc persists unless the arc current is forced to zero by external circuit conditions. This paper examines the characteristics of series-breaking arcs in DC circuit breakers to clarify arc behaviour.

Modeling for series arc of DC circuit breaker, 2018



How Does Amperage Rating Influence DC Breaker Trip Performance?

Amperage rating determines when the breaker trips and how it handles normal and fault currents. Undersized breakers trip under normal loads; oversized breakers may not clear faults quickly enough. Proper sizing accounts for continuous current, expected surges and safety margins.



What Are the Key Differences Between DC and AC Circuit Breakers Regarding Trip Amperage?

The main difference is arc extinction: AC benefits from periodic zero-crossing, easing interruption. DC requires engineered arc-control, higher interruption capacity in many cases, and components rated for sustained current without relying on waveform reversal.

These constraints affect voltage and current specifications and increase design complexity where continuous arcing must be managed without degradation.



How Do Trip Curves Differ Between DC and AC Circuit Breakers?

Trip curves show current versus trip time; DC curves reflect the need for active interruption since DC cannot depend on periodic current reversal. As a result DC trip characteristics often require faster, controlled interruption for comparable fault currents.

The development of these trip curves is crucial for accurately predicting a breaker’s response to various fault conditions.



DC Circuit Breaker Time-Current Trip Curves

Time–current trip curves are developed for DC circuit breakers to determine tripping time under different fault currents. This paper provides a survey of technology development status for DC circuit breakers.

DC circuit breakers: A technology development status survey, S Zheng, 2021

Designers must balance rapid fault clearance with avoiding excessive sensitivity that causes nuisance trips; accurate trip curves help achieve that balance.



Get a quote for custom DC circuit breakers from Langir



Why Is Selecting the Correct Amperage Rating More Critical for DC Breakers?

Because DC has no zero-crossing to help extinguish arcs, precise amperage selection is essential. The correct rating prevents premature trips while ensuring faults are cleared safely to avoid overheating or fire.



How to Select the Appropriate Amperage Rating for DC Circuit Breakers?

Selection requires assessing system voltage, continuous current demands and the breaking capacity needed for prospective faults. Consider operating conditions, transient behaviour and any downstream protection coordination.



1. System Voltage : Understand the voltage levels in your system, as this will influence the breaker’s performance.
2. Continuous Current Rating : Determine the continuous current requirements of the circuit to ensure the breaker can handle normal operating conditions.
3. Breaking Capacity : Assess the breaking capacity needed to interrupt potential fault currents safely.

Langir Technologies offers customisation so amperage ratings, trip thresholds and breaking capacity match application needs, improving protection accuracy and reliability.



Amperage Rating	Application	Implications
10A	Small DC motors	Suitable for low-power applications, prevents nuisance tripping
20A	Solar inverters	Handles moderate loads, essential for renewable energy systems
30A	Electric vehicles	Supports high current demands, critical for safety and performance

The table maps common amperage ratings to representative uses and highlights why matching rating to application is important for protection and performance.



What Factors Should Be Considered in DC Circuit Breaker Selection?

Evaluate electrical ratings, interruption capability and environmental compatibility to ensure the breaker meets system demands and operates safely over its service life.



• Voltage and Current Ratings : Ensure the breaker is rated for the specific voltage and current levels in your application.
• Interruption Capacity : Assess the breaker’s ability to interrupt fault currents safely.
• Environmental Conditions : Consider the operating environment, including temperature and humidity, which can affect performance.

These factors determine whether a chosen breaker will provide consistent protective performance in its intended environment.



How Does Customization Enhance DC Breaker Amperage Accuracy?

Customisation permits specification of trip thresholds, breaking capacity and component tolerances to align breaker behaviour with system profiles, reducing mismatch between protection and real-world conditions.

Adjusting trip settings and interruption capacity improves reliability and safety, especially where tight current control is required, for example in renewable arrays or electric vehicle powertrains.

A clear understanding of DC breaker characteristics and accurate amperage selection support safe, reliable electrical systems; customised options allow optimisation for specific applications.



Get a quote for custom DC circuit breakers from Langir



Do DC Circuit Breakers Trip at Different Amperage Levels | FAQs



What are the common applications for DC circuit breakers?

Common uses include solar and wind installations, battery storage, electric vehicles and industrial automation; each has distinct load profiles requiring suitable amperage and trip characteristics.



How do environmental conditions affect DC circuit breaker performance?

Temperature, humidity and contamination can alter trip behaviour and reduce service life; select breakers rated for the intended environment.



Can DC circuit breakers be used in AC applications?

No — DC devices are engineered for direct current and generally are not suitable for AC, which relies on zero-crossing for reliable arc extinction.



What maintenance is required for DC circuit breakers?

Routine checks include visual inspection, functional trip testing, contact cleaning and verification of ratings versus system conditions per manufacturer guidance.



How do you determine the breaking capacity needed for a DC circuit breaker?

Calculate the maximum prospective fault current from system topology and source impedance, or consult an electrical engineer or simulation tools to set the required interruption rating.



What is the role of trip curves in selecting DC circuit breakers?

Trip curves show time–current response and help engineers choose breakers that clear faults promptly while avoiding unnecessary trips.



Conclusion

Selecting the correct amperage rating and understanding DC breaker behaviour are central to system safety and reliability. Apply the selection criteria above and consider customisation to align protection with application requirements; contact Langir Technologies for tailored solutions.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Selecting the correct 400 amp DC circuit breaker is essential for safety and reliable operation. A breaker interrupts current during overloads or faults to protect equipment and reduce fire risk. This article summarizes the key specifications, ratings, and selection steps for 400 amp DC breakers and outlines customization options from Langir Technologies .



What Are the Key Specifications of a 400 Amp DC Circuit Breaker?

A 400 amp DC breaker is defined by a few primary specifications: voltage rating, current rating, and interrupting capacity. Understanding these ensures the breaker matches the system and provides adequate protection.



1. Voltage Rating: Maximum voltage the breaker can safely withstand; choose equal to or above system voltage.
2. Current Rating: The continuous current the breaker can carry (400 A in this case); select to handle expected loads.
3. Interrupting Capacit: The maximum fault current the breaker can interrupt safely; higher values are needed where short-circuit potential is significant.

These parameters together determine performance and suitability for a given application.

Get a quote for custom DC circuit breakers from Langir

Which Electrical Ratings Define a 400 Amp DC Breaker?

Important electrical ratings to check are voltage rating, current rating, and trip curve (how quickly the breaker trips under overload). Confirm these match the system and the protection goals.



• Voltage Rating: Must match or exceed system voltage.
• Current Rating: Rated for 400 A to handle continuous load.
• Trip Curve: Determines time-to-trip behavior for overloads and inrush currents.

Verifying these ratings promotes system safety and reliability.



What Are the Interrupting Capacity and Voltage Ratings?

Interrupting capacity and voltage rating are key safety parameters: interrupting capacity specifies the fault current the breaker can clear, and voltage rating defines the maximum continuous voltage the device can withstand.



• Interrupting Capacity: Choose a breaker rated to interrupt the largest foreseeable fault current.
• Voltage Ratings: For DC systems select a breaker with a voltage rating at or above the system voltage to ensure reliable operation.

Confirm these ratings to ensure the breaker can protect the system under fault and normal conditions.



How to Accurately Size a DC Circuit Breaker for 400 Amp Applications?

Sizing follows a simple process: assess the load, apply safety factors, and select a breaker that meets calculated requirements.



1. Assess Load Characteristics: Evaluate connected devices and their power draw.
2. Calculate Safety Factor: Account for continuous loads (commonly using 125% for continuous circuits) and inrush currents.
3. Select the Breaker: Pick a breaker with the required current, voltage, and interrupting ratings.

Following these steps yields a selection that protects equipment and maintains uptime.



What Factors Influence DC Breaker Amp Rating Selection?

Key factors include system voltage, expected current, and load type; each affects the required breaker characteristics.



• System Voltage: Breaker voltage rating must be compatible with system voltage.
• Expected Current: Base rating on the expected continuous and peak currents.
• Load Type: Resistive or inductive loads influence trip behavior and coordination.

Evaluate these to choose an amp rating that balances protection and service continuity.



How to Use Ampacity Charts and Load Calculations for Sizing?

Use ampacity charts and load calculations to confirm conductor sizing and breaker selection.



1. Determine Continuous Load: Sum device loads and identify continuous portions.
2. Refer to Ampacity Charts: Select cable size and temperature/correction factors per charts and codes.
3. Calculate Required Breaker Size: Apply safety factors and pick a breaker that matches the load and wiring.

These steps ensure compliance with wiring limits and safe operation.



Get a quote for custom DC circuit breakers from Langir

What Are the Installation and Safety Considerations for 400 Amp DC Breakers?

Proper installation requires correct wiring, matched breaker ratings, and standard safety precautions.



• Correct Wiring: Use conductors sized and rated for the breaker and environmental conditions.
• Breaker Ratings: Confirm voltage, current, and interrupting capacity before installation.
• Safety Precautions: De-energize circuits, use PPE, and follow local codes.

Following these measures helps avoid overheating, failures, and hazards.



Which Safety Standards Apply to High Amp DC Circuit Breakers?

High‑amp DC breakers should conform to recognised standards that define performance and testing.



• IEC 60947-2: Requirements for low-voltage switchgear and circuit breakers.
• EN 60947-2: European performance and safety requirements for similar devices.

Conformance demonstrates that a breaker meets accepted safety and performance criteria.



What Are Best Practices for Installing 400 Amp DC Breakers?

Use qualified installers, proper tools, and manufacturer guidance for a safe, compliant installation.



1. Hire a Professional: A qualified electrician ensures code compliance and correct installation.
2. Use the Right Tools: Proper tools and torque settings preserve connections and safety.
3. Follow Manufacturer Instructions: Adhere to installation and maintenance recommendations.

These practices reduce risk and improve long-term reliability.



How Does Langir Technologies Customize 400 Amp DC Circuit Breakers to Meet Specific Needs?

Langir Technologies offers configurable 400 A DC breakers to align with system requirements and OEM needs.



• Tailored Options: Specify voltage ratings, interrupting capacities, and other critical parameters.
• OEM Design Support: Integration assistance for custom applications and equipment.

Custom options help ensure the breaker fits operational specifications.



What Custom Design Options Are Available for DC Breakers?

Langir provides practical customization choices to improve usability and identification.



• Color Customization: Match breakers to branding or system colour coding.
• Labeling Options: Custom labels for clear identification and instructions.

These options assist installation, maintenance, and system organisation.



How Do Custom Breakers Integrate with Push Button Switches?

Langir’s custom breakers are designed to integrate with push-button switches for control and monitoring.



• Compatibility: Engineered to work with common push-button designs.
• Functionality: Integration supports straightforward control and system monitoring.

These integration features facilitate diverse application requirements. For inquiries or technical support, you can contact us directly.



Get a quote for custom DC circuit breakers from Langir

Choose the Right Size for 400 Amp DC Circuit Breaker | FAQs



What is the difference between AC and DC circuit breakers?

AC breakers interrupt alternating current that crosses zero each cycle, while DC breakers must suppress a continuous arc without natural zero crossings. That difference requires DC breakers to have more robust arc suppression and suitable interrupting capacity.



How often should a 400 amp DC circuit breaker be tested?

Test at least annually and after major electrical work or system changes, following the manufacturer’s recommendations and local code requirements.



What are the signs that a circuit breaker needs replacement?

Frequent tripping under normal load, visible burn marks, burning odour, unusual noises, failure to reset, or mechanical wear indicate a need for inspection and possible replacement by a qualified electrician.



Can a 400 amp DC circuit breaker be used in residential applications?

Yes—when the home’s electrical demand justifies it (for example large PV systems or EV infrastructure). Ensure wiring and ancillary components are rated correctly and compliant with local codes.



What maintenance is required for a 400 amp DC circuit breaker?

Perform periodic visual inspections, functional trip testing, and clean terminals and connections to prevent corrosion and ensure reliable operation; follow the manufacturer’s maintenance schedule.



What is the role of a trip unit in a circuit breaker?

The trip unit monitors current and initiates breaker operation for overloads or short circuits; trip units can be thermal, magnetic, or electronic, each with distinct response characteristics.



Conclusion

Choosing the correct 400 amp DC circuit breaker requires matching specifications, ratings, and installation practices to the system. Review customization options from Langir Technologies to obtain breakers tailored to your requirements.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



The DC Main Circuit Breaker HPB provides primary circuit protection in DC systems, guarding against overloads and short circuits to preserve safety and reliability. This article summarises its purpose, protective mechanisms, key ratings, and common applications to support engineering and maintenance decisions.



What Is the Primary Function of the DC Main Circuit Breaker HPB?

The HPB breaker interrupts DC during fault conditions to prevent equipment damage. It offers overload and short-circuit protection and disconnects faulty circuits to maintain system integrity.



Get a quote for custom DC circuit breakers from Langir



How Does the HPB Breaker Protect DC Electrical Circuits?

The breaker detects abnormal currents and rapidly interrupts fault currents to reduce fire risk and limit component damage, protecting equipment and personnel while keeping installations safe.



What Are the Key Electrical Ratings and Safety Features of the HPB Breaker?

The HPB is specified by voltage and current ratings, trip characteristics, and safety certifications so it performs predictably under expected conditions.



• Voltage and Current Ratings: Designed for defined voltage and current levels to match the circuits they protect.
• Trip Characteristics: Defined trip behaviour determines response time to overloads and shorts.
• Safety Certifications: Certified to relevant standards for demanding environments.



Rating	Description	Value
Voltage Rating	Maximum voltage the breaker can handle	1000V
Current Rating	Maximum current the breaker can interrupt	125A
Trip Time	Time taken to disconnect during a fault	< 20ms

Correct voltage ratings and protective levels are essential for reliable DC breaker performance.



DC Breaker Protective Levels and Voltage Ratings

The protective level of the MOV is typically 1.5 times the nominal DC voltage; therefore, the voltage rating of the main breaker in each cell is specified as 1.5 times the nominal DC voltage [18].

Interlink hybrid DC circuit breaker, C Li, 2018

These ratings and features make the HPB suitable for protecting DC circuits across many installations.



Which Industrial Applications Benefit from the HPB DC Main Breaker?

The HPB is used where robust DC protection is required.



1. Solar PV Systems: Protects PV arrays and DC cabling.
2. Battery Storage Systems: Safeguards storage and power distribution equipment.
3. Electric Vehicles: Protects EV charging infrastructure.

These applications illustrate the breaker’s versatility in modern systems.

Recent studies highlight how protective devices affect PV system reliability and safety.



PV System Protection: Reliability, Safety, and Device Impact

Reliability and safety are primary considerations for deployment and operation of PV systems. Notable failures of protective devices in recent installations have caused significant damage to solar equipment and resulted in repair and maintenance costs estimated in the millions of Naira. These incidents underscore the need for technical competency in PV installations and procurement of quality protective components. This study examines the role of protective devices in PV system reliability, operational safety, and financial impact.

The Impact of Protective Devices on Photovoltaic (PV) System Performance and Installation, 2025



In What Sectors Is the HPB Breaker Commonly Used?

The HPB is implemented across sectors that need dependable DC protection.



• Solar Energy: Protects panels, inverters and DC circuits.
• Industrial Applications: Used in manufacturing and processing to safeguard equipment.
• Electric Vehicle Charging: Ensures safe charging operations.

These sectors benefit from the HPB’s reliable protective performance.



Get a quote for custom DC circuit breakers from Langir



How Does the HPB Breaker Support Custom Electronic Component Solutions?

The HPB offers configuration options to fit bespoke electronic designs, allowing engineers to match trip behaviour and ratings and to interface with complementary components such as push button switches.



How Does the HPB Breaker Compare to Other DC Circuit Breakers?

The HPB has distinguishing features that make it suitable for demanding DC applications.



• Breaking Capacity: Generally higher breaking capacity for larger faults.
• Design Features: Compact form aids installation in tight spaces.
• Safety Ratings: Often meets elevated safety standards.

These characteristics support selection of the HPB where robust protection is required.



What Distinguishes the HPB Breaker’s High Power Features?

The HPB is designed for high-power use with construction and design choices that sustain performance under heavy load and harsh conditions.



• High Breaking Capacity: Interrupts high fault currents without damage.
• Compact Design: Suits constrained installations.
• Robust Construction: Withstands harsh environments for longevity.

These attributes make the HPB appropriate for high-demand applications.



What Are the Advantages Over Standard DC Breakers?

The HPB offers operational and specification advantages versus standard DC breakers.



1. Customization Options: Tailored solutions for specific needs.
2. Bidirectional Current Protection: Protects regardless of current direction.
3. Enhanced Safety Features: Additional layers of protection.

These advantages make the HPB a preferred choice for systems needing advanced DC protection.

The topic of bidirectional protection is explored in research on hybrid DC breaker topologies.



Hybrid DC Circuit Breaker Topologies for Microgrid Protection

Abstract—This paper introduces a hybrid DC circuit breaker (DCCB) topology suitable for protection of bidirectional DC systems such as DC micro-grids with energy storage.

Bidirectional coupled inductor based hybrid circuit breaker topologies for DC system protection, A Ray, 2019



What Are the Integration and Maintenance Considerations for the HPB Breaker?

Proper integration follows manufacturer installation procedures and a programme of periodic inspection to maintain safe operation.



• Installation Procedures: Follow manufacturer guidance for mounting and wiring.
• Periodic Inspections: Regular checks confirm correct function.
• Safety Protocols: Observe safety standards during work.

Consistent application of these practices preserves reliability and safety.



How Is the HPB Breaker Integrated with Push Button Switches?

Integrating push button switches gives manual control for safe disconnection, improving operational safety and simple circuit management.



Get a quote for custom DC circuit breakers from Langir



What Are Best Practices for Troubleshooting and Maintenance?

Effective operation relies on established troubleshooting and maintenance routines.



1. Regular Inspections: Routine checks to catch issues early.
2. Functional Testing: Periodic tests to verify trip response.
3. Professional Help When Needed: Use qualified technicians for complex faults.

These practices support sustained HPB performance across applications.



Main Purpose of the DC Main Circuit Breaker HPB | FAQs



What maintenance is required for the HPB breaker?

Include visual inspections, scheduled functional testing, and cleaning to prevent dust build-up. Follow the manufacturer’s schedule and use qualified personnel for diagnostics or repairs.



Can the HPB breaker be used in residential applications?

While primarily industrial, the HPB can suit residential PV or high-power EV charging if its voltage and current ratings match the installation—confirm suitability with an electrical engineer.



What are the environmental considerations for using the HPB breaker?

Consider resistance to temperature, humidity, dust and corrosive atmospheres. Review materials, disposal practices, and regulatory compliance to minimise environmental impact.



How does the HPB breaker handle overload conditions?

The HPB uses defined trip characteristics to detect overloads and interrupt the circuit quickly (typical response < 20 ms), limiting damage and fire risk.



What is the lifespan of an HPB breaker?

Lifespan depends on use, environment and maintenance. High-quality breakers commonly achieve service lives of a decade or more with proper care and timely replacement when wear appears.



Are there any specific installation requirements for the HPB breaker?

Install per the manufacturer’s instructions for mounting, wiring and connections. Ensure ratings match the application and comply with local codes; use a qualified electrician as needed.



What are the benefits of using the HPB breaker in renewable energy systems?

In renewable installations the HPB provides high breaking capacity, a compact footprint, robust construction and customisation options to meet specific system needs and improve safety.



Conclusion

The HPB DC Main Circuit Breaker delivers protection and reliability for high-demand applications such as solar energy and electric vehicle infrastructure. Its protective capabilities and configuration options safeguard sensitive equipment from overloads and short circuits. For technical details and product information, please contact us .



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Knowing UL-recognized maximum voltage ratings for DC circuit breakers is essential for safe system design and regulatory compliance. This article summarizes UL-recognized maximum voltages, the key standards and specifications, differences with AC breakers, and customization and application considerations for high-voltage DC protection.



What Is the Maximum Voltage Rating for UL Listed DC Circuit Breakers?

Underwriters Laboratories (UL) recognizes DC circuit breakers with ratings up to 1,500 volts DC. That rating indicates a device engineered to interrupt fault currents safely at specified system voltages and is widely applied in sectors such as renewable energy and electric vehicles.

For those seeking quality protection solutions, Langir Technologies offers a range of UL recognized DC circuit breakers designed to meet these requirements.



Get a quote for custom DC circuit breakers from Langir



Overview of UL Certification Standards for DC Breakers

UL certification defines tests and performance criteria — including interrupting performance, dielectric strength, mechanical durability, and environmental resilience — that verify a breaker’s safety and operational reliability. Manufacturers and users rely on UL recognition as a consistent measure of product safety and performance.



Current Highest Voltage Ratings Recognized by UL for DC Systems

UL currently recognizes DC circuit breakers up to 1,500 V DC. This maximum is particularly relevant to photovoltaic arrays and other high-voltage DC installations where adequate interrupting capability protects equipment and personnel from fault conditions.

The following table summarizes typical UL-recognized DC voltage ratings:



Application	Voltage Rating	Description
Solar Power	1,500 V DC	Used in photovoltaic systems for optimal performance.
Electric Vehicles	1,000 V DC	Essential for battery management systems in EVs.
Industrial Applications	1,500 V DC	Required for high-power DC motor control.

These examples show how high-voltage DC breakers match application-specific voltage needs.



How Do UL Standards Define Voltage and Current Specifications for DC Circuit Breakers?

UL standards use standardized test sequences and performance thresholds to define voltage and current limits. Tests verify a breaker’s ability to withstand operating voltages and safely interrupt fault currents. UL 489 and related documents specify electrical, mechanical, and environmental criteria used in certification.

Meeting these specifications is required for manufacturers that market UL-recognized products and gives end users predictable performance expectations.



Key Technical Specifications in UL 489 and Related Standards

UL 489 lists parameters that guide breaker selection and performance. Primary specifications include:



1. Interrupting Capacity: Maximum fault current the breaker can interrupt.
2. Voltage Rating: Maximum continuous voltage the breaker can handle.
3. Temperature Rating: Operational temperature range for reliable performance.

The table below summarizes typical values for DC breakers under UL 489.



Specification	Value	Importance
Interrupting Capacity	Up to 100 kA	Ensures safety during fault conditions.
Voltage Rating	Up to 1,500 V DC	Critical for high-voltage applications.
Temperature Rating	-40°C to 85°C	Ensures reliability in extreme conditions.

These parameters define operational limits that keep DC breakers reliable in renewable energy, transportation, and industrial settings.



Get a quote for custom DC circuit breakers from Langir



Differences Between AC and DC Breaker Voltage Ratings in UL Certification

AC and DC systems have different electrical behaviours that affect breaker design. AC current crosses zero each cycle, which aids arc extinction; DC does not, so DC breakers require designs that manage continuous current and sustained arcing. Consequently, DC breakers are often rated for higher continuous voltages.

Key differences include:



• Voltage Ratings: DC breakers are commonly rated up to 1,500 V; AC breakers are typically lower.
• Interrupting Mechanism: DC interruption requires mechanisms to extinguish arcs without zero crossings, increasing design complexity.
• Applications: DC breakers are essential in renewable energy and EV systems; AC breakers dominate residential/commercial use.

Classification by voltage and system type helps specify the proper breaker for each application.



DC & AC Circuit Breaker Classification by Voltage Rating

The classification of circuit breakers is commonly based on whether they serve direct current (DC) or alternating current (AC) systems and on their voltage rating. DC breakers, including mechanical, solid-state, and hybrid types, are applied in domestic and industrial contexts and are particularly relevant in high voltage direct current (HVDC) networks for device protection. AC breakers are typically categorised by high-voltage and low-voltage forms.

Applications of various types of circuit breakers in electrical power systems: a review, PI Obi, 2021

These distinctions reinforce the need to match breaker type to voltage characteristics and protection requirements.



What Are the Customization Options for High-Voltage UL Recognized DC Circuit Breakers?

High-voltage UL-recognized DC breakers can be customised for voltage rating, trip characteristics, mounting, and auxiliary interfaces to meet application-specific electrical and mechanical requirements.

For instance, Langir Technologies offers customization options for push button switches that can be integrated into high-voltage DC circuit breakers to optimise protection for operational demands.



Tailoring Voltage Ratings and Trip Characteristics to Client Needs

Tailoring begins with assessing installation requirements and fault profiles. Manufacturers set trip curves and thresholds to ensure timely interruption of faults while minimising nuisance trips — an important consideration in variable-load systems such as solar installations.



Integration of UL Certification in Custom DC Breaker Designs

Integrating UL certification into custom designs requires completing prescribed test sequences and documentation. Manufacturers must demonstrate compliance through testing and records before marketing a UL-recognized device.



Which Applications Require the Highest Voltage UL Recognized DC Circuit Breakers?

High-voltage UL-recognized DC breakers are needed when system voltages or prospective fault currents exceed standard device ratings. Primary sectors include:



1. Renewable Energy Systems: Solar and wind systems often operate at high voltages and need robust protection.
2. Electric Vehicles: High-voltage battery systems require reliable breakers for safe operation.
3. Industrial Machinery: DC motors and drives in industry need specialised protection.

In these scenarios, selecting appropriately rated breakers is essential for safety and uptime.



Get a quote for custom DC circuit breakers from Langir



Use Cases in Renewable Energy and Electric Vehicle Systems

In renewable installations, DC breakers protect inverters, string combiners, and HVDC interfaces; many systems exceed 1,000 V DC, so certified protection is critical. In EV systems, high-voltage DC breakers protect battery packs and power electronics during charging and discharging, preventing damage from high fault currents.



DC System Circuit Protection Needs in Small to Medium Businesses

Small and medium businesses deploying DC generation or EV charging should select UL-recognized breakers to meet safety standards and minimise liability. Evaluate electrical loads, potential fault currents, and environmental conditions to determine required ratings and interrupting capacity.



Highest Voltage Ratings for DC Circuit Breakers | FAQs



What are the benefits of using UL recognized DC circuit breakers?

UL-recognized DC breakers have verified interrupting capacity, environmental resistance, and mechanical durability. Using certified devices reduces the risk of equipment damage and fire and helps meet regulatory requirements in sectors like renewable energy and transportation.



How do I choose the right DC circuit breaker for my application?

Choose a breaker based on system voltage, maximum prospective fault current, required interrupting capacity, operating temperature range, trip characteristics, and mechanical form factor. Consult manufacturers or qualified engineers for application-specific guidance.



Are there specific maintenance requirements for DC circuit breakers?

Regular maintenance—visual inspections, functional testing, torque checks, and cleaning—preserves reliability. Follow the manufacturer’s maintenance schedule to extend service life and maintain performance.



What is the role of trip characteristics in DC circuit breakers?

Trip characteristics determine response time and thresholds for overloads and short circuits. Proper settings protect equipment while minimising unnecessary interruptions; manufacturers can provide configurable profiles to match operational priorities.



Can UL recognized DC circuit breakers be used in AC applications?

No. DC breakers are engineered for direct current and are not substitutes for AC breakers. DC and AC interruption requirements differ significantly; using a DC breaker in AC service can be unsafe and lead to failure.



What are the implications of using non-UL recognized circuit breakers?

Non-UL-recognized breakers may lack standardized testing for interrupting performance and environmental resilience. Relying on unverified devices increases the risk of inadequate fault interruption, equipment damage, regulatory non-compliance, and possible insurance or legal issues.



Conclusion

Understanding UL-recognized voltage ratings is fundamental to designing safe, compliant DC systems, especially in renewable energy and electric vehicle contexts. Follow UL standards, assess customization options, and select UL-recognized breakers that match your system’s voltage, interrupting capacity, and environmental needs.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Understanding a 100 amp DC circuit breaker is essential for electrical professionals. These devices interrupt current to protect circuits from overloads and faults. This article explains typical trip current, how breakers respond to overloads, the mechanisms involved, factors that affect performance, customization options, and maintenance practices to preserve safe, reliable operation.



What Is the Trip Current of a 100 Amp DC Circuit Breaker?

The trip current is the preset level at which a 100 amp DC circuit breaker opens to protect the circuit. Manufacturers normally set the trip point slightly above expected operating current so brief inrushes do not cause nuisance trips. Knowing the threshold supports correct circuit design and protection coordination.



Get a quote for custom DC circuit breakers from Langir



How Trip Current Defines Breaker Activation Thresholds

Trip current, expected load, system voltage and the breaker’s interrupting capacity together determine when a device will activate. Breakers must carry normal loads while providing protection against sustained overloads and faults. If fault or continuous currents exceed the trip setting, the breaker opens to prevent damage, so correct specification and calibration are important.



How Does a 100 Amp DC Circuit Breaker Respond to Overload Conditions?

On overload, a 100 amp DC breaker interrupts current to protect the circuit and connected equipment. Breakers typically combine thermal and magnetic trip elements: the thermal element handles sustained overcurrent, while the magnetic element responds to rapid surges. The two elements together address different fault profiles.

Langir Technologies specializes in custom DC circuit breakers designed to meet specific client needs. Their products provide reliable protection for a range of applications and suit many small and medium businesses.



Thermal and Magnetic Trip Mechanisms Explained

Circuit breakers use thermal and magnetic trip mechanisms. The thermal mechanism uses a bimetal element that bends as it heats, giving a delayed trip for prolonged overloads. The magnetic mechanism uses an electromagnetic coil to actuate quickly when current exceeds a threshold, producing an almost instantaneous trip for sudden surges. Together they provide layered protection against varied faults.



Typical Response Times for DC Breaker Trips

Response time depends on design and trip mechanism. Thermal trips need time to heat and respond more slowly; magnetic trips act quickly to clear short, high-current surges. Choose a breaker whose response characteristics match the application’s fault profile.



Breaker Type	Trip Mechanism	Response Time	Application
Thermal	Bimetal Element	Slower	Prolonged Overloads
Magnetic	Electromagnetic	Fast	Sudden Surges

This comparison highlights selecting the breaker type that aligns with the system’s operational profile.



What Factors Influence When a 100 Amp DC Circuit Breaker Will Blow?

Several variables influence tripping: sustained load current, short-circuit magnitude, and environmental conditions. Higher sustained currents speed tripping; ambient temperature and other factors can shift trip performance. Evaluating these variables ensures effective protection.



Get a quote for custom DC circuit breakers from Langir



Impact of Load Characteristics and Fault Types

Load characteristics and fault types change how breakers behave. AC and DC loads differ, and faults such as short circuits or ground faults produce distinct current waveforms that alter trip timing. Matching breaker specifications to expected loads and faults improves reliability.



Role of Customization in Breaker Trip Settings

Customization lets organisations adjust trip current and time characteristics for specific system requirements, improving safety and performance. Langir Technologies offers custom DC circuit breakers that allow setting parameters to ensure appropriate protection for specialised installations.



How Can You Reset and Maintain a 100 Amp DC Circuit Breaker After Tripping?

After a trip, identify and correct the cause before resetting. Inspect the circuit for overloads or faults, correct the issue, then return the breaker to the “on” position. Implement routine maintenance—inspect connections, clean components and log service events—to sustain reliable operation.



Maintenance Tips to Ensure Reliable Breaker Performance

To maintain reliability, implement these practices:



1. Regular Inspections: Check the breaker periodically for wear or damage.
2. Cleaning Connections: Keep connections clean and free of corrosion to preserve conductivity.
3. Logging Maintenance Events: Record maintenance activities to track performance and spot issues early.

These steps help ensure breakers perform as intended and provide consistent protection.

For product inquiries or support regarding our products, contact us. We are available to assist with your requirements.



When Does a 100 Amp DC Circuit Breaker Blow | FAQs



Get a quote for custom DC circuit breakers from Langir



What are the signs that a 100 Amp DC circuit breaker is failing?

Frequent tripping, unusual noises, visible damage such as burn marks, difficulty resetting, or sustained warmth at the device can indicate failure. If trips occur without a clear overload, arrange a formal inspection to ensure safety and reliability.



Can a 100 Amp DC circuit breaker be used for both AC and DC applications?

Some breakers are rated for both AC and DC, but a 100 Amp DC breaker is optimised for direct current. Using a DC-specific breaker on AC may cause improper operation. Always verify device specifications for the intended application.



How do environmental factors affect the performance of a 100 Amp DC circuit breaker?

Ambient temperature, humidity and dust affect trip margins and mechanical operation. High temperatures reduce trip margins, humidity can promote corrosion, and dust can impede movement. Regular maintenance and suitable installation environments mitigate these issues.



What is the difference between a thermal and magnetic trip mechanism in circuit breakers?

Thermal trips use a bimetal strip that bends under heat from sustained overcurrent, producing a delayed trip. Magnetic trips use an electromagnetic coil that actuates rapidly for sudden surges. Choice depends on the application’s fault profile.



How often should a 100 Amp DC circuit breaker be inspected?

Inspect at least once per year, and more frequently in high-demand or harsh environments. Routine inspections identify wear, damage or corrosion. Verifying connections, cleanliness and maintaining a service log supports long-term reliability.



What should I do if my 100 Amp DC circuit breaker keeps tripping?

If the breaker repeatedly trips, check for overloads, short circuits or faulty connected equipment. Isolate and disconnect suspect devices and attempt to reset. If trips persist, the fault may be internal or in the wiring—engage a qualified electrician to diagnose and resolve the issue safely.



Conclusion

Knowing trip currents, response mechanisms and maintenance needs for a 100 amp DC circuit breaker is fundamental to safe, reliable electrical systems. Proper specification, calibration and routine care reduce equipment damage and improve performance. For systems that need specific protection parameters, consider custom breakers tailored to those requirements. Visit our product page to review available solutions.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]
