- 25mm diameter actuator
- 22.2mm diameter mounting hole
- Normally open, momentary action
- Make impulse time of 125-300 msec
- Recessed face
- Wi re termination
- IP68 Sealed
- Available in 12V and 24V LED’s
[/vc_column_text][/vc_column][vc_column width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F07%2Fplastic-piezo-switch.pdf|title:Plastic%20Piezo%20Switches|target:_blank”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Order Code
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]
Specifications
[/vc_column_text][vc_column_text]
| Operating voltage: | 1-24V AC/DC | |
| Switching current | 0.2A (Standard) / 1A | |
| Actuation force | 3-5N | |
| Operating temperature | -20°C to +70°C | |
| LED operating voltage | 12V DC max OR 24V DC max | |
| LED max current consumption: | 12V | 24V |
| Red | 18mA | 18mA |
| Green | 9mA | 9mA |
| Blue | 27mA | 16mA |
| Ingress Protection | IP68 | |
| Life time | 50 million operations | |
| Material | POM. | |
[/vc_column_text][vc_column_text]
Wiring Diagrams
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]Legend: B = black, A = same colour as LED
* LED colour is indicated by the bottom of the product.[/vc_column_text][vc_column_text]

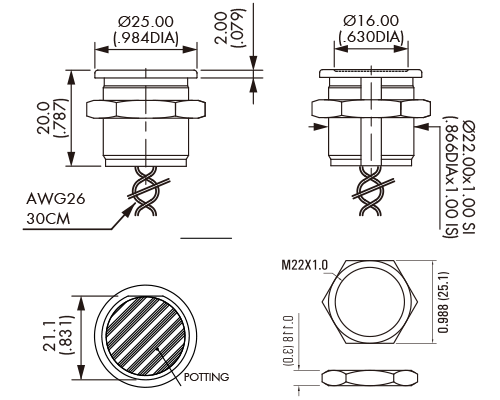

Dimensions
[/vc_column_text][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
FAQs
[/vc_column_text][vc_toggle title=”What is a piezo switch with a plastic push button?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]A piezo switch with a plastic push button is a type of electronic switch that uses a piezoelectric sensor to detect physical pressure, providing a reliable and durable alternative to traditional mechanical switches. The plastic push button serves as the interface for activating the switch.[/vc_toggle][vc_toggle title=”How does a plastic piezo switch work?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]It utilizes piezoelectric technology, where pressing the plastic push button generates an electric charge. This charge activates the switch, making it ideal for use in applications that require a simple, touch-sensitive interface.[/vc_toggle][vc_toggle title=”What are the advantages of using plastic piezo switches?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]They are more durable and reliable compared to mechanical switches. They offer a longer lifespan, are resistant to wear and tear, and provide a smooth, tactile response. The plastic push button adds an ergonomic, easy-to-use design.[/vc_toggle][vc_toggle title=”Can a plastic piezo switch be used in outdoor environments?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Yes, they are suitable for outdoor use. They are typically designed to be resistant to weather conditions, moisture, and dust, making them ideal for outdoor and industrial applications.[/vc_toggle][vc_toggle title=”What industries use plastic piezo switches?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]They are commonly used in various industries, including automotive, medical devices, consumer electronics, and industrial machinery. Their durability and reliability make them ideal for demanding environments.[/vc_toggle][vc_toggle title=”Is the plastic piezo switch customizable?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Yes, it can be customized in terms of shape, size, and color to meet specific design requirements. Customization options help integrate the switch into various product designs and branding.[/vc_toggle][vc_toggle title=”How long does a plastic piezo switch last?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]They generally have a long lifespan, often lasting up to millions of cycles. The lack of mechanical parts in the switch means there is less wear and tear, ensuring a durable and long-lasting performance.[/vc_toggle][vc_toggle title=”Can plastic piezo switches be integrated with other electronic components?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Yes, they can easily be integrated with other electronic components, such as microcontrollers, LEDs, or buzzers. They are versatile and can be used in a wide range of applications, from simple on/off switches to more complex user interfaces.[/vc_toggle][vc_toggle title=”How sensitive is a plastic piezo switch?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]They are highly sensitive, detecting even light touches. The sensitivity can be adjusted based on the application, ensuring precise and reliable actuation when the plastic push button is pressed.[/vc_toggle][vc_toggle title=”Where can I buy plastic piezo switches in bulk?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]They are available for wholesale from reputable manufacturers and suppliers like Langir. Contact us directly to get customized solutions for your application and benefit from our high-quality products and competitive pricing.[/vc_toggle][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]
