- Micro-trip
- Long life, high reliability
- Anti-Vandal IK09/ Sealed IP65
- Dot or ring illumination available
[/vc_column_text][/vc_column][vc_column width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F10%2Fl22o-rear-mounting-anti-vandal-switch.pdf|title:L22O%20Rear%20Mounting%20Anti%20Vandal%20Switch|target:_blank”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Functions
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]
Order Code
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]Notes：
* Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Technical Data
[/vc_column_text][vc_column_text]
| Type | L22O | |||||
| Illuminated Options | Non-Illuminated/ Ring Illuminated/ Dot Illuminated | |||||
| Max. Panel Thickness: | Max. 0.394″ (10.0mm) | |||||
| Terminal | Screw and Solder lug (2.8X0.8) | |||||
| Max. Switch Rating | 50mA 24VDC | |||||
| Contact Resistance | ≤100mΩ | |||||
| Insulation Resistance | ≥1000mΩ | |||||
| Dielectric Strengh | 2000VAC | |||||
| Operation Temp. | -20°C ~ +55°C | |||||
| Mechanical Life | 1,000,000cycles(max) | |||||
| Electrical Life | 50,000cycles(min) | |||||
| Contact Material | Silver Alloy | |||||
| Torque | 0.57Nm | |||||
| Operation Pressure | approx. 8N | |||||
| Protection | IP65/ IK09 | |||||
| Material | Switch Assembly | UL94V-0 rated Polyamide (Nylon) | ||||
| Tags | Copper Alloy | |||||
| Terminals | Copper Alloy | |||||
| Switch Body & Actuator | Stainless Steel/ Anodized Aluminum | |||||
| Lens and Lens Body | Polycarbonate | |||||
| Internal Seal | Silicone | |||||
| O Ring | Nitrile | |||||
| Color | Type | LED (ratings @ 20mA) | ||||
| Color |  |
 |
 |
 |
 |
|
| Luminous Intensity (mcd) | 160 | 200 | 520 | 220 | 2000 | |
| Forward Volatge | 1.8~2.6 | 2.8~3.6 | ||||
| Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. | |||||
| 3.3V/ 6V/ 12V/ 24V/ 36V | ||||||
| Life | Approx. 40, 000hours | |||||
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

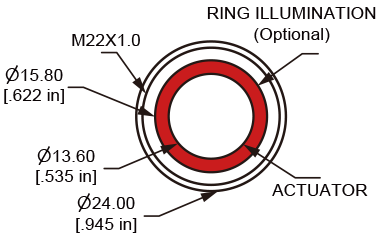

Descriptions
[/vc_column_text][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Panel Cutout / Illuminated Options
[/vc_column_text][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Dimension
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]
Screw terminal
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]
Solder lug
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
FAQs
Q1: What is a rear mounting anti vandal switch?
A rear mounting anti vandal switch is a robust switch designed to be mounted from the rear of a panel or enclosure. It provides enhanced durability and resistance to vandalism or unauthorized use.
Q2: What does IP65 rating mean for the L22O anti vandal switch?
An IP65 rating indicates that the switch is dust-tight and protected against low-pressure water jets from any direction. It ensures reliable operation in harsh environments.
Q3: What does IK09 rating signify for the L22O anti vandal switch?
An IK09 rating indicates a high level of impact resistance. The L22O switch can withstand significant mechanical shocks and vandalism attempts without compromising functionality.
Q4: What is the micro-trip feature in the L22O anti-vandal switch?
The micro-trip feature refers to the highly sensitive triggering mechanism of the switch. It enables precise and reliable touch detection, offering enhanced user experience.
Q5: How does the LED ring illumination work in the L22O anti-vandal switch?
The LED ring illumination provides visual feedback and improves visibility. It is designed to illuminate the switch area, making it easier to locate and operate.
Q6: What are the advantages of a rear mounting design for an anti vandal switch?
The rear mounting design of an anti vandal switch offers several benefits. It provides a clean and seamless look on the front panel, minimizing the risk of tampering or damage. It also simplifies installation and maintenance processes by allowing the switch to be mounted from the rear of the panel.
Q7: Can the rear mounting anti vandal switch be easily retrofitted into existing panels or enclosures?
Yes, the rear mounting anti vandal switch is designed for easy retrofitting into existing panels or enclosures. Its compact design and versatile mounting options make it convenient to replace or upgrade switches without significant modifications to the panel.
Q8: Are L22O anti-vandal switches available in different sizes and configurations?
Yes, they are available in various sizes and configurations to accommodate different panel and application requirements. Contact Langir for specific customization options.
Q9: Does the rear mounting feature affect the durability and reliability of the anti vandal switch?
No, the rear mounting feature does not compromise the durability and reliability of the anti vandal switch. It is specifically engineered to withstand challenging environments and resist vandalism attempts, ensuring long-lasting performance and functionality.
Q10: Do the L22O rear mounting anti-vandal switches comply with any industry standards or certifications?
The L22O switches from Langir comply with industry standards and certifications like CE, RoHS, and ISO. These certifications ensure adherence to safety, environmental, and quality requirements.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]
