22mm Anti Vandal Switch
Anti-vandal switches are designed to provide durable and robust performance in harsh environments where traditional switches may fail. One of the main advantages is their durability and reliability.
-
Anti Vandal Toggle Switch
Toggle Switches have an operating lever that can be pushed up and down or left and right to switch an electrical circuit. A “toggle” is a small wooden rod that is used as a clothing fastener in the place of buttons. The term “toggle switch” was created because of the resemblance of the switch’s lever to that of the toggle used in clothing. -
Backlit LED switch Label Kit
The Backlit LED Light Switch Labels Kit for use with backlit anti vandal switch 16, 19 and 22mm。 Easy to change Save the cost Scratch Resistant Back printed for durability 50 Icon labels with backlight capability Waterproof adhesive for longevity in wet environments -
Emergency Stop Switch
The Turn to Release Emergency Stop Switch provides you with a way to stop your ctuator instantly in case of emergency. All you do is press the button down and it will lock in the Off position, stopping the movement of your actuator. To put it back in the On position, just turn the switch clockwise to release it. Please be aware you may require a relay for actuator control. -

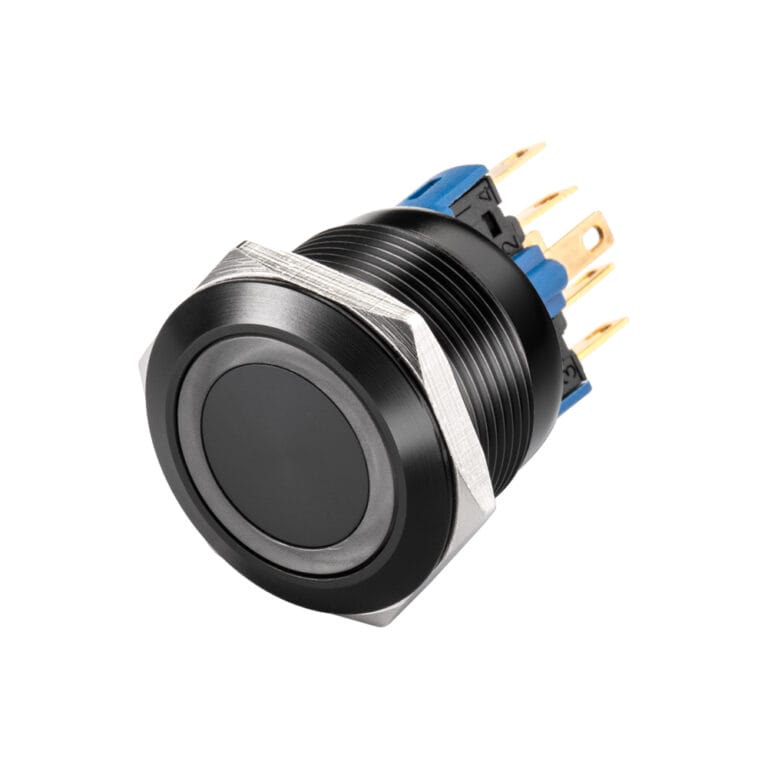

L22 High Reliability Anti-Vandal Pushbutton Switch
These anti vandal switches have a 22mm diameter panel cutout, dot and ring illumination options, 1NO1NC Momentary or Latching function and are IP65 rated. -

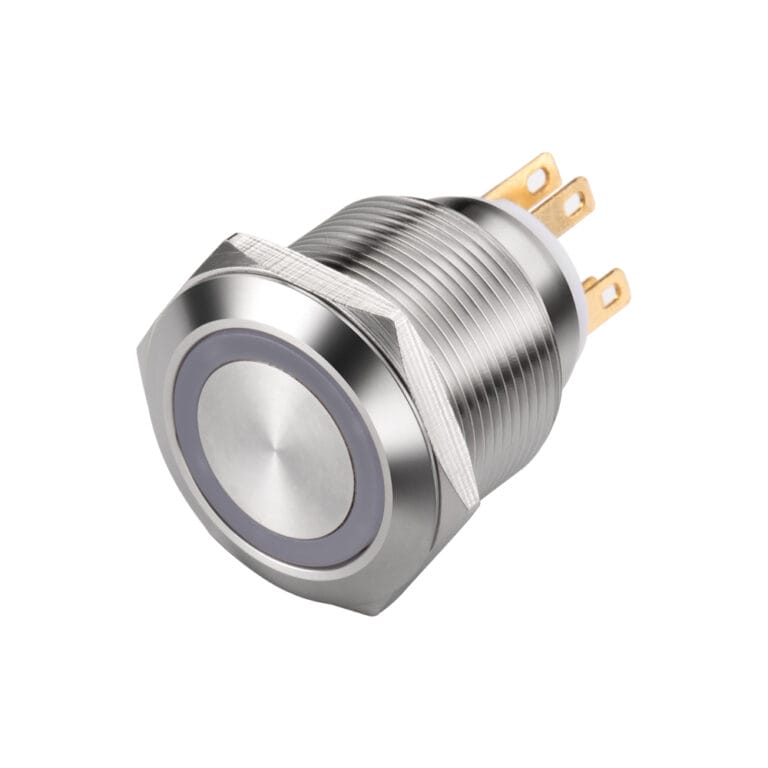

L22A Series Illuminated, Sealed Anti-vandal Switch
This switch offers dot and ring illumination options, 1 or 2 poles for performing maintained and momentary functions and double break functions, with an IP65 rating for dust and water resistance. It is meant for a panel cutout sized 22mm, with a maximum depth of 10mm. -
L22B High current Anti-vandal switches
The L22B Series anti-vandal switch has an electrical rating of 21A, 125/250VAC and is protected from dust and moisture at an IP67 rating. It fits panel cutouts sized 22mm in diameter. -

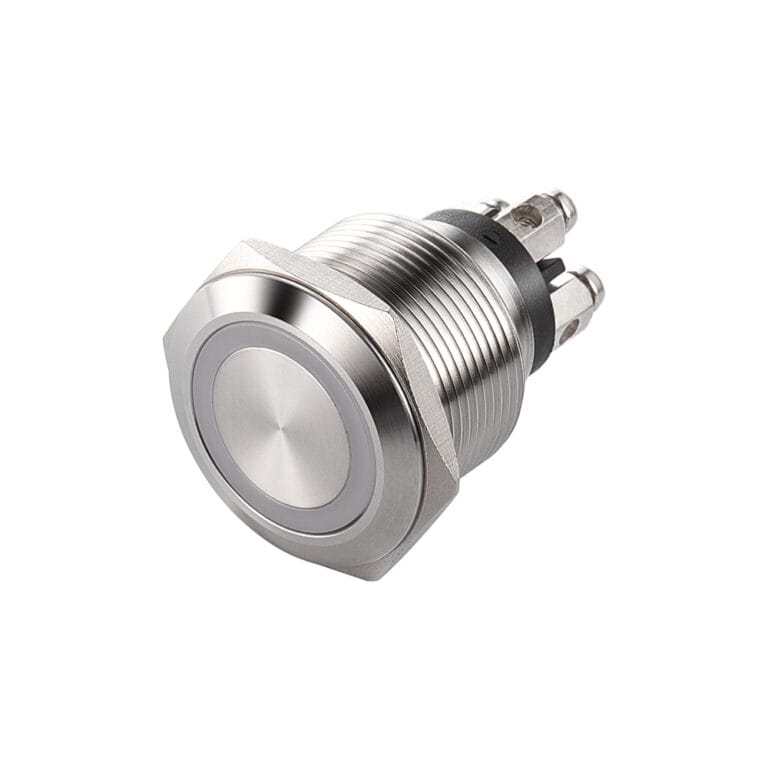

L22M Micro-trip anti vandal switch
L22M micro-trip anti vandal switch is a contact mechanism with micro contact interval and quick action mechanism, which uses the specified stroke and specified force to switch. It is a kind of switch covered by a shell with a driving rod outside. Because the contact distance of the switch is relatively small, it is called micro switch, also called sensitive switch. -

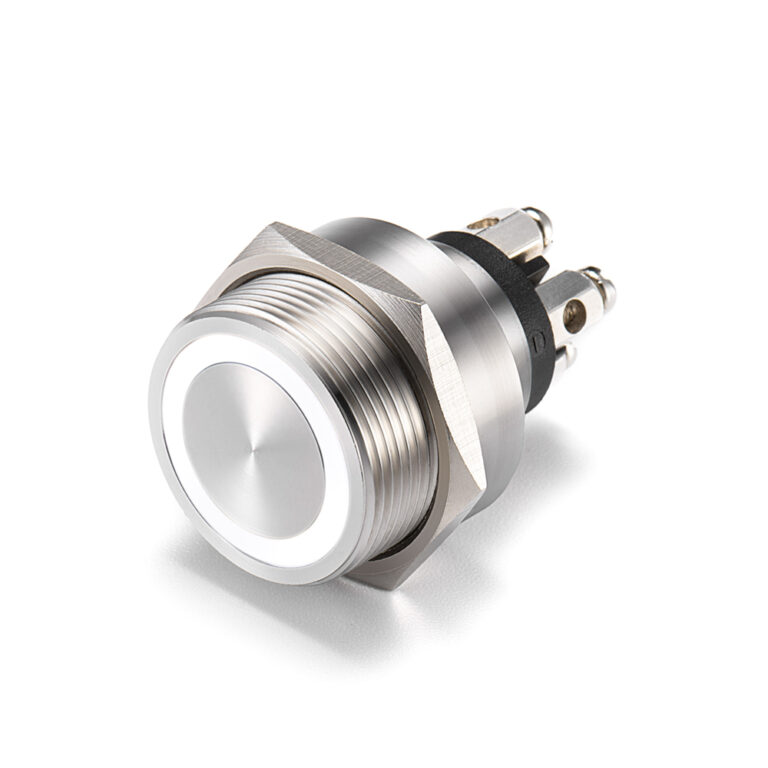

L22O Rear Mounting Anti Vandal Switch
L22O Rear mounting anti vandal switch provides a unique aesthetic feature for 22mm rear mounting. The panel hole size is thread M22X1.0, and the Protection for IP65/ IK09. It offers a variety of options, such as ring illum., stainless steel housing material and LED color options. M22X1.0 diameter panel cutout 1 pole momentary switch IP65 rating Multiple LED color options Dot and ring illumination options available Solder terminals and screw terminals options available -

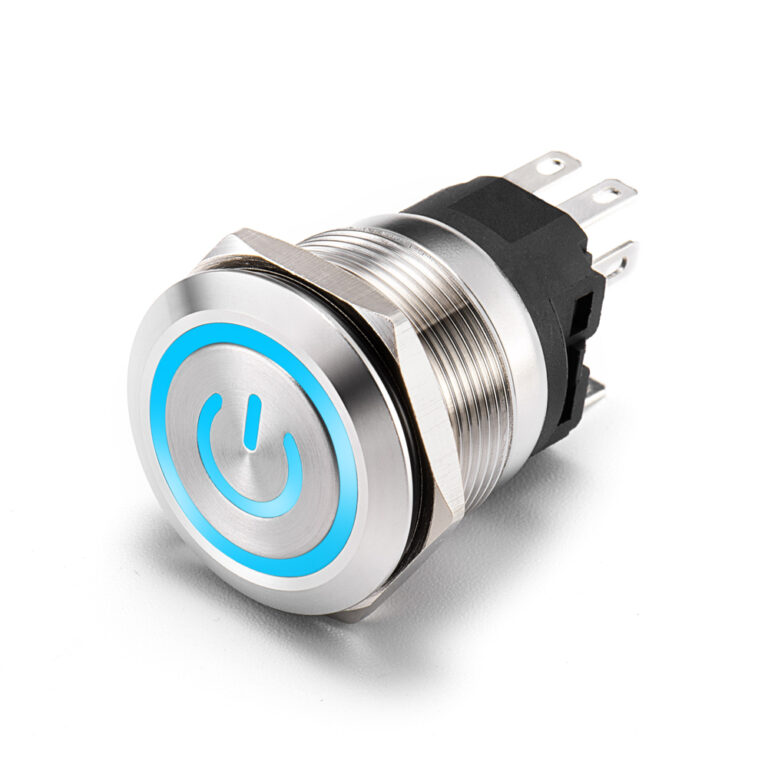

L22T Anti-vandal switch
The panel cut-out size is 22mm diameter and it provides IP65 rating for dust and moisture protection. It offers multiple options such as ring illumination, 1NO1NC or 2NO2NC circuits, stainless steel housing material, and many LED color options which also includes an RGB LED and Backlit option. Backlit available 22mm diameter panel cutout Dot, ring or symbol illumination available Multiple switch functions available IP65 rated for dust and moisture protection RGB LED illumination option
Need Custom Solutions? Contact Us Now
Please feel free to let us know what you’re looking for, and we’ll get back to you promptly.
Connect with Experts
Why Choose Langir 16mm Anti-Vandal Switches？
Langir 16mm Anti-Vandal Switches combine durability, reliability, and a compact design to meet the demands of challenging applications. Constructed from high-quality metal materials, they offer excellent resistance to impact, wear, dust, and moisture, ensuring long-term performance in both indoor and outdoor environments.
Available with LED illumination, multiple actuator styles, and customizable markings, these switches provide enhanced functionality and a professional appearance. Their compact 16mm mounting size makes them ideal for space-constrained equipment while maintaining the robust protection and long service life required for industrial and public-use applications.
Frequently Asked Questions About 16mm Anti-Vandal Switches
Learn more about 16mm anti-vandal switches, including their applications, durability, protection ratings, and available customization options.
They are ideal for harsh or public environments requiring rugged reliability. Common applications include public transportation, industrial machinery, control panels, security systems, medical equipment, and outdoor devices like kiosks, ticketing machines, and parking meters.
Yes. Langir 16mm anti-vandal switches (such as the L16T and L16D series) feature an IP65 or IP67 rating. This ensures robust protection against dust, moisture, and water ingress, making them highly suitable for demanding outdoor and marine applications.
Yes. Langir offers both illuminated and non-illuminated models, with LED options available in various colors to improve visibility and enhance equipment design.
They are constructed from premium, high-quality metals to resist physical impact and vandalism. Available material options include durable stainless steel (featured in the L16T series), brass, and aluminum.
Yes, highly customizable. You can customize them with various bushing diameters, actuator shapes (flat/domed), and illumination styles like dot, ring, backlit, or RGB LEDs. Specific custom laser engraving and optional 300mm soldered wire leads are also available.
