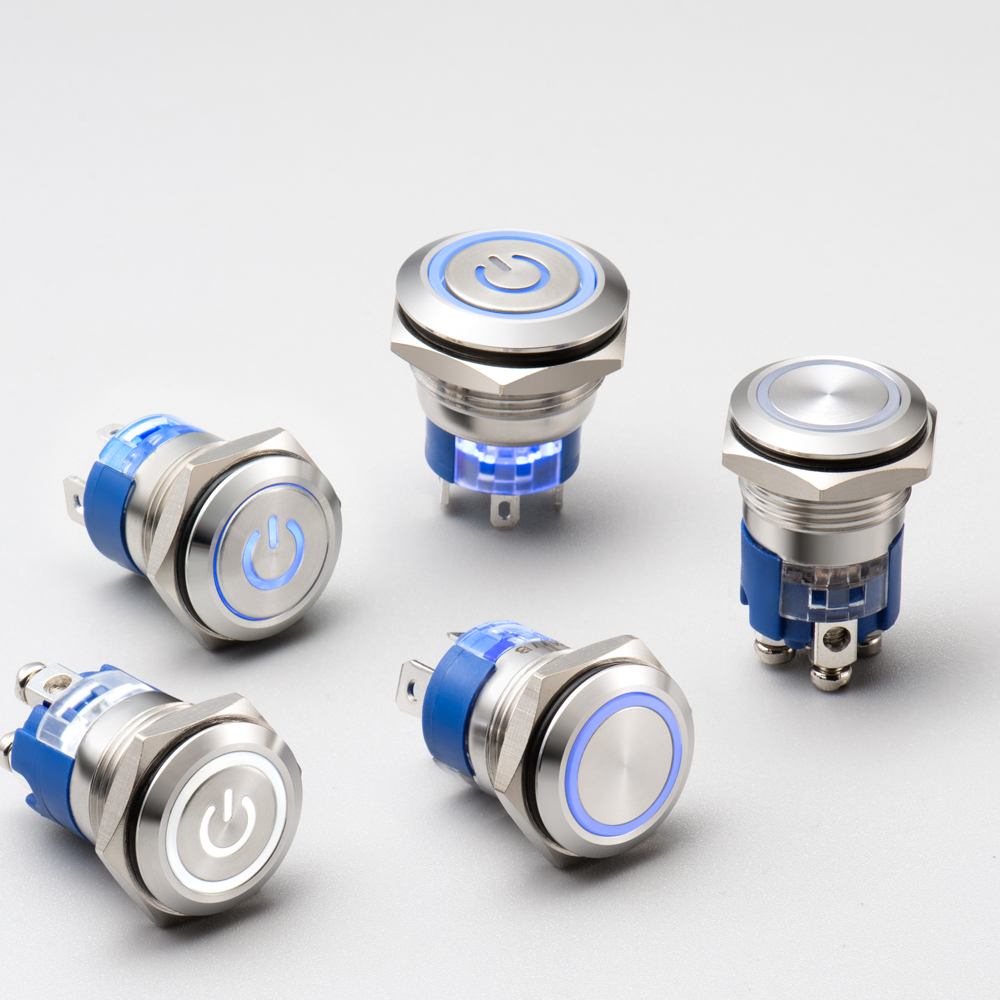

Low Profile High Current Anti-Vandal Switch

Low Profile High Current Anti-Vandal Switch

IP67 sealing and robust metal construction protect against dust, water, impact, and frequent use.

Key Features

  • High current switching capacity up to 20A
  • Low-profile metal actuator design
  • IP67 waterproof and dustproof protection
  • IK09 impact resistance
  • Available in 16mm and 19mm panel cutout sizes
  • RoHS
  • CE
  • IP68
  • Impact Protection
[vc_row][vc_column][vc_custom_heading text=”Low Profile High Current Anti-Vandal Switch” font_container=”tag:h2|text_align:left|color:%23333333″ use_theme_fonts=”yes” css=””][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text css=””]L16D, L19D for Low Profile High Current Anti-Vandal Switch available with LED illumination and engraving, protection IP67 / IK09 and Max. 20A 205VAC. is perfect for Marine and Automation.
Langir offers attractive, robust and durable switch, available with different actuator shapes.[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” css=”” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2026%2F05%2FL16D-L19D-high-current-anti-vandal-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]

Features

[/vc_column_text][vc_column_text css=””]

  • 16 or 19mm diameter panel cutout
  • Max. 20A current
  • Multiple function options
  • Ring or power symbol illumination available
  • Pin and Screw optionsIP67 rated
  • Soldered wire leads (300mm long) optional

[/vc_column_text][vc_column_text]

Specifications

[/vc_column_text][vc_column_text css=””]

  • Electrical Rating: 16A, 250VAC (20A24VDC)
  • Mechanical Life: 500,000 Cycles
  • Electrical Life: 50,000 Cycles
  • Contact Resistance: 50mΩ Max.
  • Insulation Resistance: 1500 MΩ /500V.DC 1Min.
  • Dielectric Strength: 2,000VAC
  • Operating/Storage Temperature: -20°C to 55°C
  • Travel: 3.50mm
  • Moisture Protection: IP67
  • Actuation Force: 4N
  • Panel Thickness: 1-5mm
  • Mounting Nut Torque: 5-14Nm

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Order Code

[/vc_column_text][vc_column_text css=””]Low Profile High Current Anti-Vandal Switch[/vc_column_text][vc_column_text css=””]NOTES:

    Base voltage on LEDs:
    1.8V @ 20mA for Red, Yellow and Orange LED colors
    2.8V @ 20mA for Blue, Green and White LED colors

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Dimension

[/vc_column_text][vc_column_text css=””]L16D Low Profile High Current Anti-Vandal Switch[/vc_column_text][vc_column_text css=””]

L16D Low Profile High Current Anti-Vandal Switch

[/vc_column_text][vc_separator][vc_column_text css=””]L16D Low Profile High Current Anti-Vandal Switch[/vc_column_text][vc_column_text css=””]

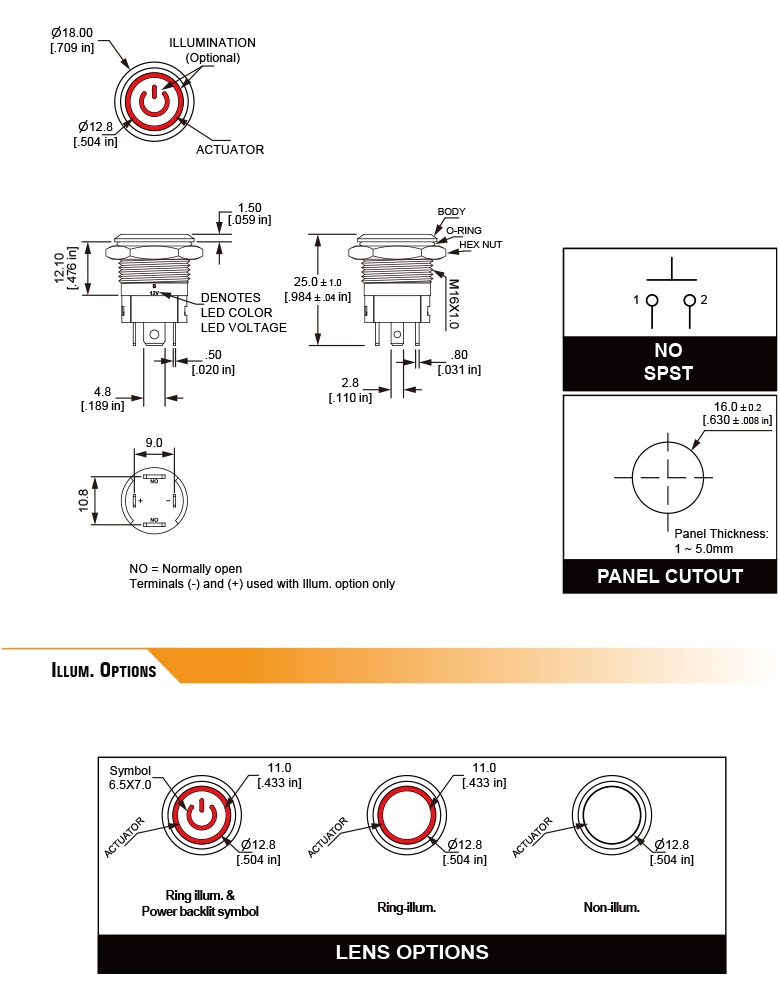

L16D Low Profile High Current Anti-Vandal Switch

[/vc_column_text][vc_zigzag][vc_column_text css=””]L19D Low Profile High Current Anti-Vandal Switch[/vc_column_text][vc_column_text css=””]

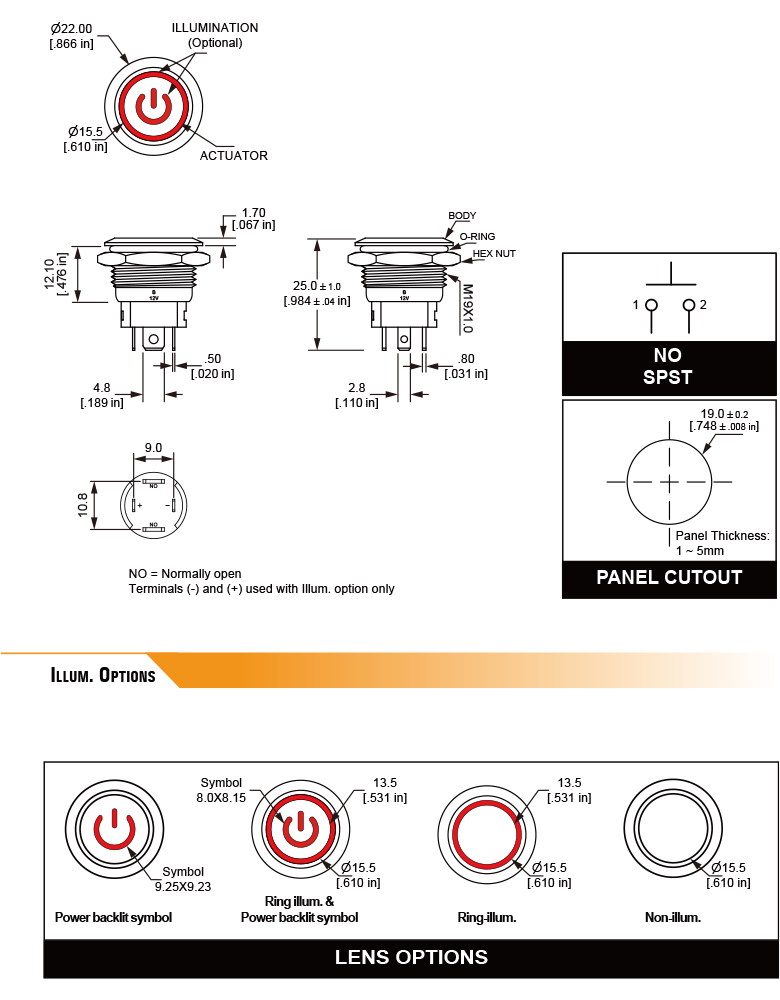

L19D Low Profile High Current Anti-Vandal Switch

[/vc_column_text][vc_separator][vc_column_text css=””]L19D Low Profile High Current Anti-Vandal Switch[/vc_column_text][vc_column_text css=””]

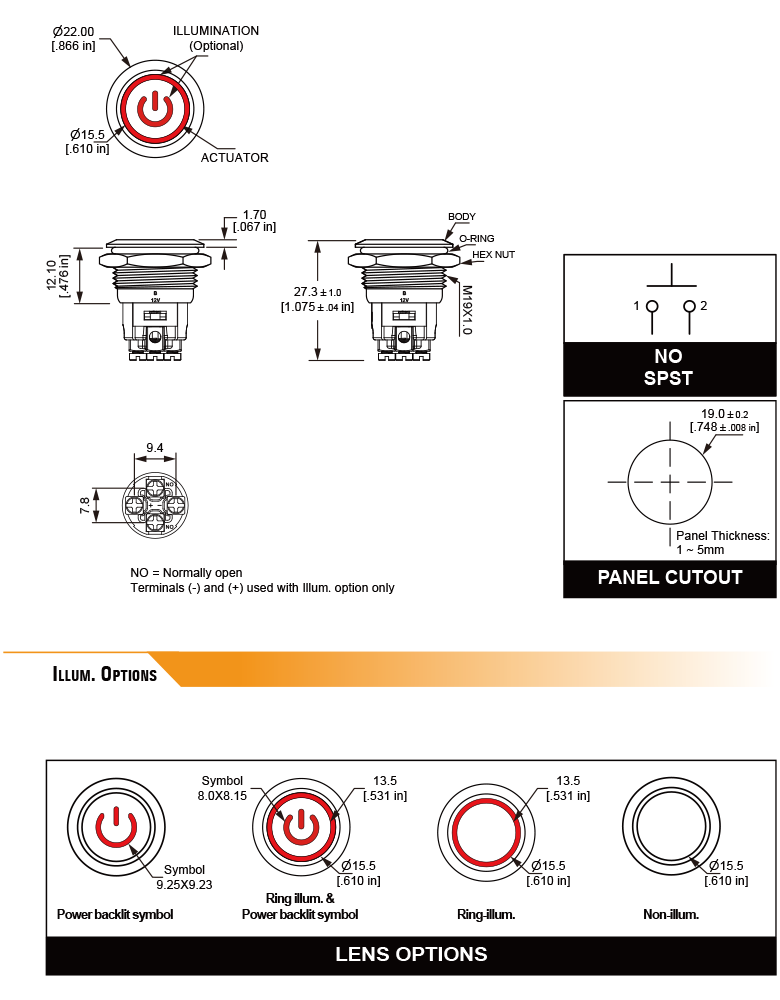

L19D Low Profile High Current Anti-Vandal Switch

[/vc_column_text][vc_zigzag]
