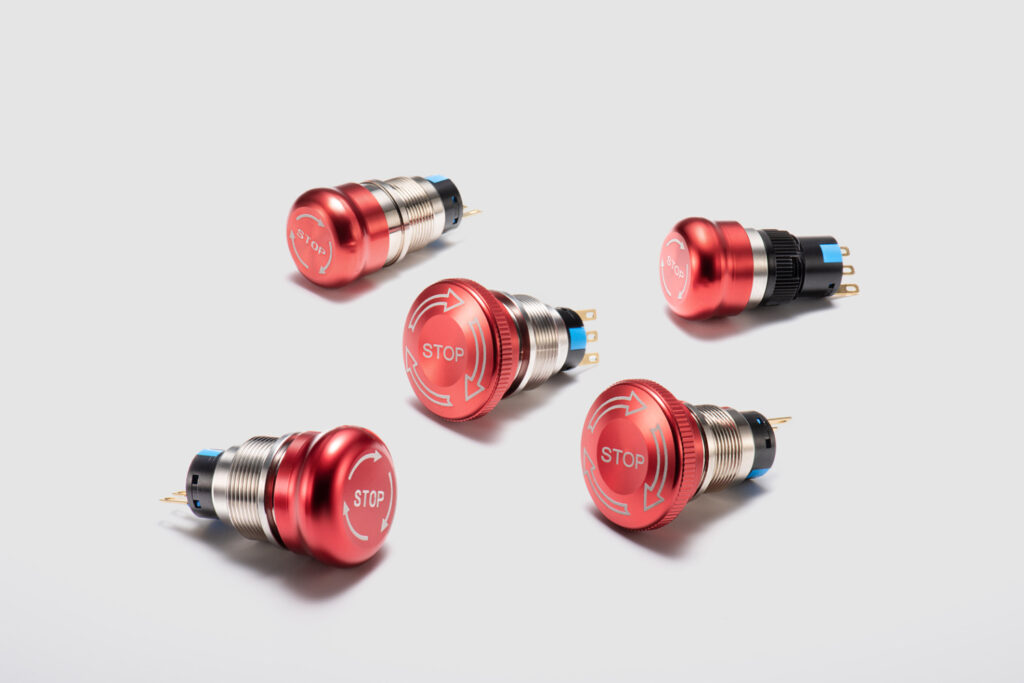

Emergency Stop Switch

Emergency Stop Switch

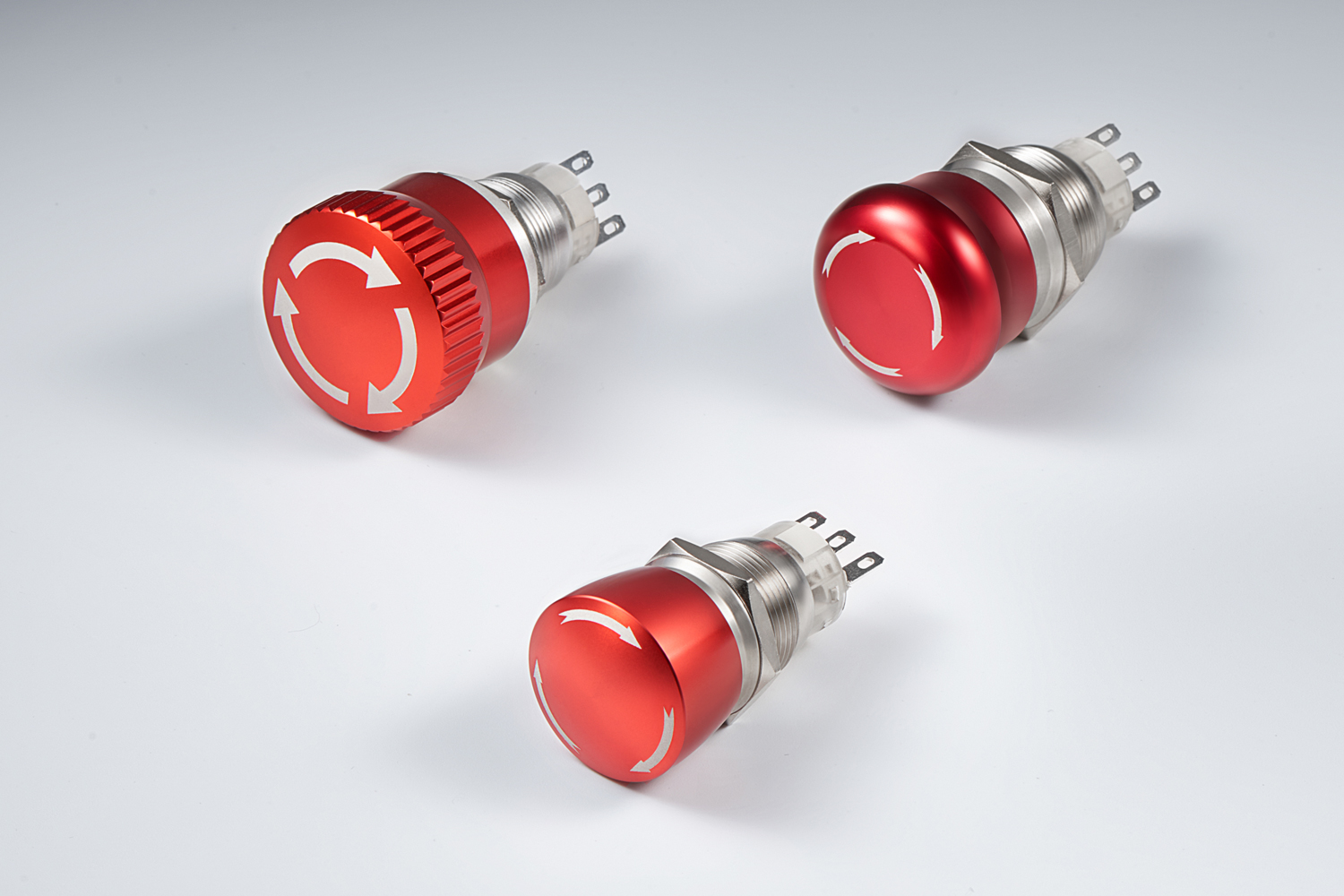

The Turn to Release Emergency Stop Switch provides you with a way to stop your ctuator instantly in case of emergency. All you do is press the button down and it will lock in the Off position, stopping the movement of your actuator. To put it back in the On position, just turn the switch clockwise to release it. Please be aware you may require a relay for actuator control.

[vc_row][vc_column][vc_custom_heading text=”Emergency Stop Switch” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner content_placement=”middle”][vc_column_inner width=”2/3″][vc_column_text]

  • 16, 19 or 22mm diameter panel cutout
  • Push lock -Turn Release
  • 1NO1NC,2NO2NC
  • IP65 rated
  • Soldered wire leads optional

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2021%2F06%2Femergency-stop-switch.pdf|title:Emergency%20Stop%20Switches|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Specifications

[/vc_column_text][vc_column_text] Max. Rating: 5A, 250VAC
Switching Rating: 0.5A, 250VAC
Mechanical Life: 1,000,000 Cycles
Electrical Life: 50,000 Cycles
Contact Resistance: 50mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Dielectric Strength: 2,000VAC
Operating/Storage Temperature: -20°C to 55°C
Panel Thickness: 1-5mm
Mounting Nut Torque: 5-14Nm[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Order Code

[/vc_column_text][vc_column_text]Langir Emergency Stop Switch order code[/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

ES16

[/vc_column_text][vc_column_text]Langir ES16 Emergency Stop Switch Design Drawings[/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

ES19

[/vc_column_text][vc_column_text]Langir ES19 Sooth Edge Emergency Stop Switch Design Drawings[/vc_column_text][vc_column_text]

Smooth Edge

[/vc_column_text][vc_column_text]Langir ES19 Knurled Edge Emergency Stop Switch Design Drawings[/vc_column_text][vc_column_text]

Knurled Edge

[/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

ES22

[/vc_column_text][vc_column_text]Langir ES22 Smooth Edge Emergency Stop Switch Design Drawings[/vc_column_text][vc_column_text]

Smooth Edge

[/vc_column_text][vc_column_text]Langir ES22 knurled Edge Emergency Stop Switch Design Drawings[/vc_column_text][vc_column_text]

Knurled Edge

[/vc_column_text][vc_zigzag]
