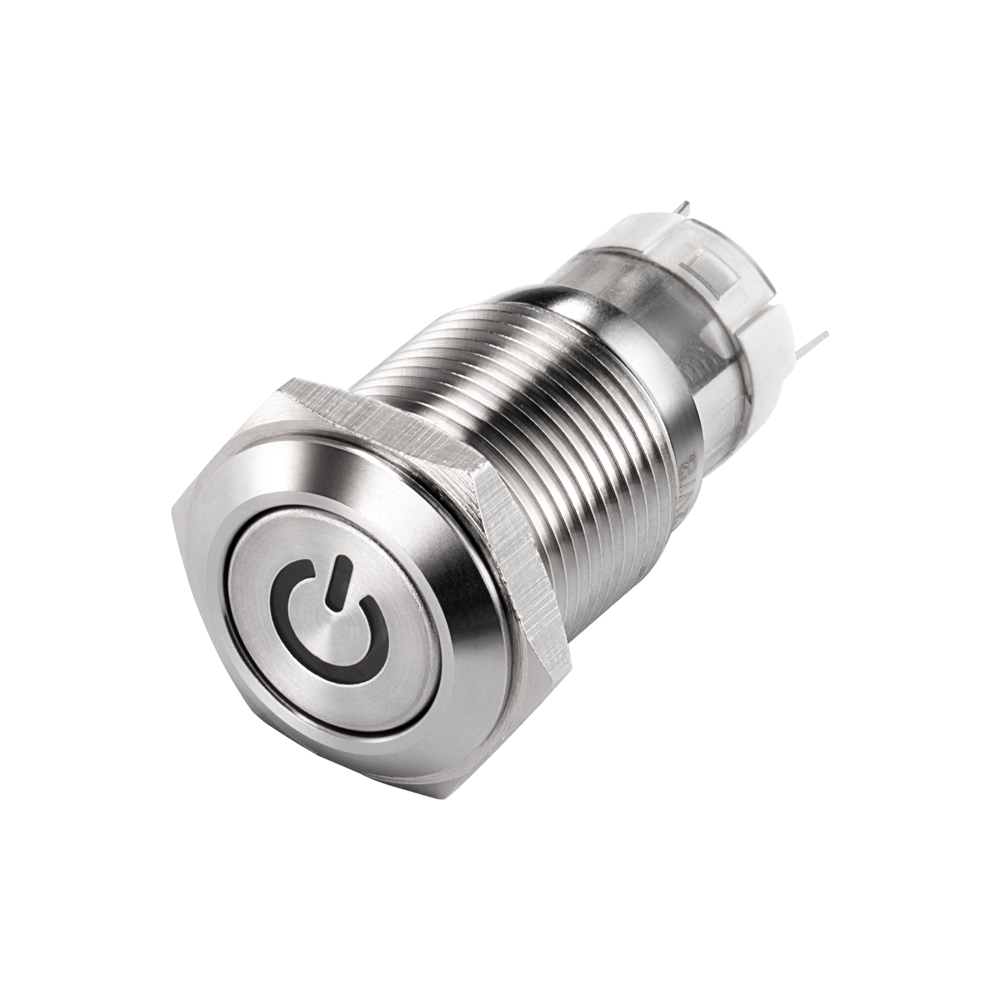

Anti-vandal 16mm Push Button Switch (L16 Series)
[/vc_column_text][vc_column_text]
- Non-sealed (IP40) and sealed (IP67) options
- 16mm diameter panel cutout
- Dot and ring illumination options available
- 1 or 2 poles; maintained (latching), momentary pushbuttons
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F04%2Fl16-anti-vandal-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][vc_column][vc_column_text css=””]
Applications
- Kiosk and ticket dispensers
- Industrial controls
- Medical equipment
- Security devices
- Audio/visual
- Electrical housewares
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Functions
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]
Order Code
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]Notes：
* Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]
Technical Data
[/vc_column_text][vc_column_text]
| Type | L16-F | L16-F-R | L16-F-D | ||||
| Illuminated Options | Non-Illuminated | Ring Illuminated | Dot Illuminated | ||||
| Max. Panel Thickness: | 0.394″ (10.0mm) | ||||||
| Terminal | Solder lug (2.8 x 0.5) | ||||||
| Max. Switch Rating | Ith: 5A Ui: 250VAC | ||||||
| Contact Resistance | ≤50mΩ | ||||||
| Insulation Resistance | ≥1000mΩ | ||||||
| Dielectric Strengh | 2000VAC | ||||||
| Operation Temp. | -20°C ~ +55°C | ||||||
| Mechanical Life | 1,000,000cycles | ||||||
| Electrical Life | >50,000cycles | ||||||
| Contact Material | Silver Alloy | ||||||
| Torque | 5 ~ 14Nm | ||||||
| Operation Pressure | approx. 3 ~ 8N | ||||||
| Protection | IP65/ IK10 | ||||||
| Material | Actuator | Stainless Steel/ Anodized Aluminum | |||||
| Body | Stainless Steel/ Anodized Aluminum | ||||||
| Base | PA | ||||||
| Color | Type | LED (ratings @ 20mA) | |||||
| Color |  |
 |
 |
 |
 |
 |
|
| Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 | |
| Forward Volatge | 1.8~2.6 | 2.8~3.6 | |||||
| Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. | ||||||
| 3.3V/ 6V/ 12V/ 24V/ 36V/ 110V/ 230V | |||||||
| Life | Approx. 40, 000hours | ||||||
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Descriptions
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]Notes:
C = Common
NO = Normally open
NC = Normally closed
Terminals (-) and (+) used with Illum. option only[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Actuator options & Panel cutout
[/vc_column_text][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Actuator options & Panel cotout
[/vc_column_text][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Dimension
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text css=””]
FAQs
[/vc_column_text][vc_toggle title=”What is an anti-vandal 16mm push button switch?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]An anti-vandal 16mm push button switch is a durable and compact switch designed to resist tampering and physical abuse. It features a 16mm button size and is commonly used in environments where security and reliability are critical, such as public transportation, kiosks, and industrial equipment.[/vc_toggle][vc_toggle title=”How does our L16 switch withstand harsh environments?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]It’s built with a stainless steel housing that resists impacts, dust, and moisture. Its rugged construction makes it ideal for high-traffic or exposed locations, offering long-term durability and protection from vandalism.[/vc_toggle][vc_toggle title=”What makes the L16 switch ideal for public-facing applications?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]The compact 16mm push button combined with anti-vandal features makes this switch perfect for public-facing applications such as ticket machines, elevators, and outdoor kiosks. It’s designed to endure heavy use and maintain functionality even in challenging conditions.[/vc_toggle][vc_toggle title=”Does the L16 switch support momentary or latching operation?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]It can be configured for either momentary or latching operation, providing flexibility to suit your specific needs.[/vc_toggle][vc_toggle title=”Are the L16 switches compatible with different panel thicknesses?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]They are designed to accommodate various panel thicknesses, providing flexibility for installation in different equipment and control panels.[/vc_toggle][vc_toggle title=”Are Langir’s 16mm push button switches compliant with industry standards and certifications?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]They are manufactured to meet industry standards and often hold certifications such as CE, RoHS, and UL, ensuring their quality, safety, and compliance with regulatory requirements.[/vc_toggle][vc_toggle title=”What industries benefit from using the anti-vandal 16mm push button switch?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]It’s ideal for industries such as transportation, retail, vending, kiosks, and industrial controls. Its robust design and vandal-resistant features make it perfect for any environment that demands security and durability.[/vc_toggle][vc_toggle title=”Is the L16 switch resistant to extreme temperatures?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Absolutely! It’s designed to withstand a wide temperature range, typically operating reliably from -20°C to 55°C, making it suitable for various industrial environments.[/vc_toggle][vc_toggle title=”Does the anti-vandal 16mm push button switch support a variety of electrical configurations?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Certainly! It offers a range of electrical configurations, including SPST, SPDT, DPST, and DPDT, allowing for different circuit arrangements and control options based on your specific requirements.[/vc_toggle][vc_toggle title=”Can I customize the anti-vandal 16mm push button switch for my specific needs?” custom_font_container=”tag:h3|font_size:18px|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Yes, Langir offers customization options for the L16 switch. You can choose from different actuator colors, illumination options, and wiring configurations to meet your exact requirements, ensuring it integrates perfectly into your system.[/vc_toggle][vc_zigzag]
