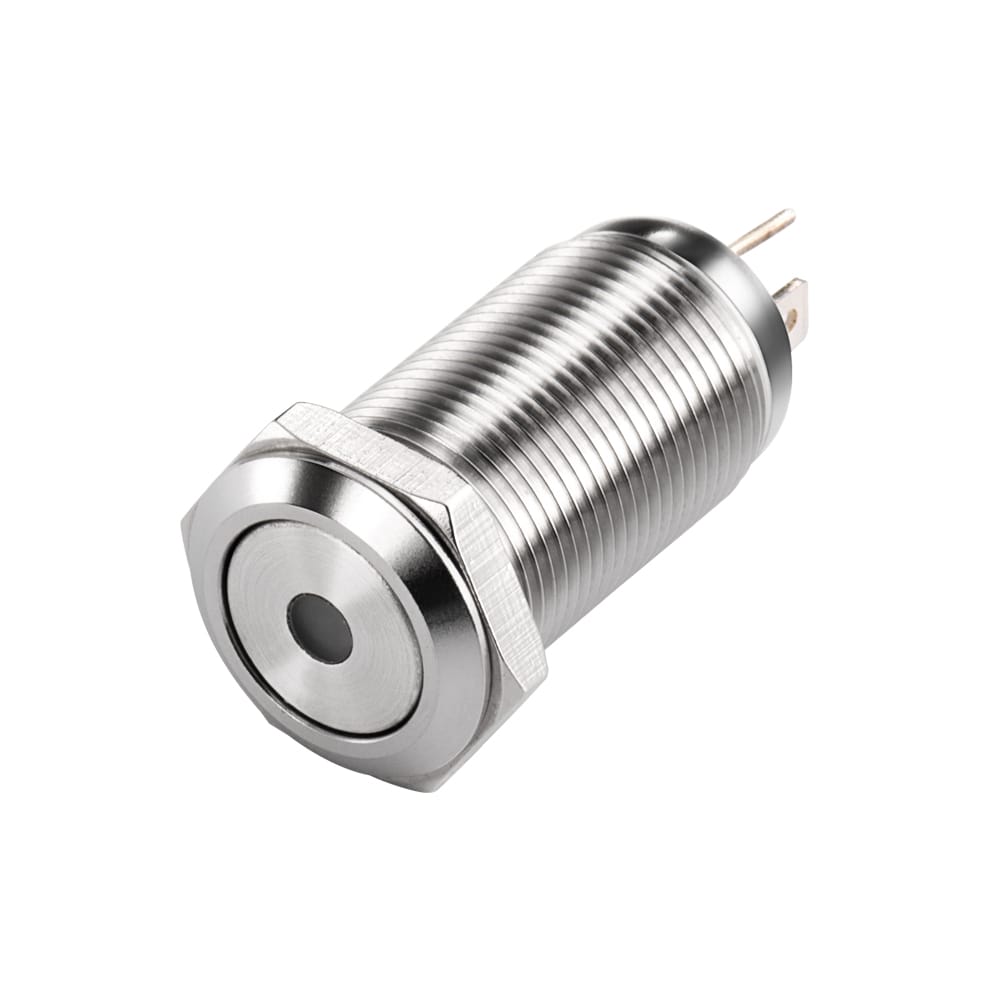

[vc_row][vc_column][vc_custom_heading text=”L12 Anti-vandal pushbutton switch” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]
- 12mm diameter panel cutout
- Variety LED option
- Dot, ring illumination available
- Multiple actuator options
- Pilot indicator option
- IP65 rated latching push button switch
- Momentary Off-(On), Latching Off-On
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F04%2Fl12-anti-vandal-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Specifications
[/vc_column_text][vc_column_text]
- Electrical Rating: 2A36VDC
- Mechanical Life: 200,000 Cycles
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 1.50mm
- Moisture Protection: IP65
- Actuation Force: 4N
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
[/vc_column_text][vc_column_text]
Part Number Configurator
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]NOTES:
* Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors[/vc_column_text][vc_column_text]
Panel Cutout
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]
Schematic & Actuator
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]

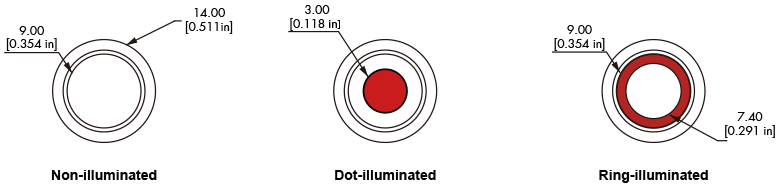

Illumination Options
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]

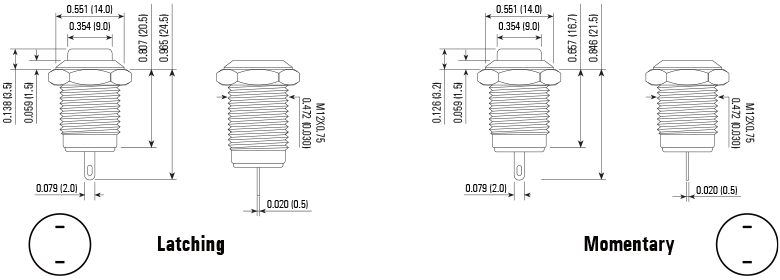

Non-illuminated
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]

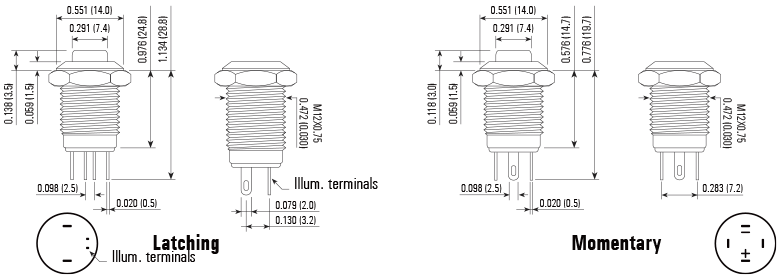

Ring-illuminated
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]

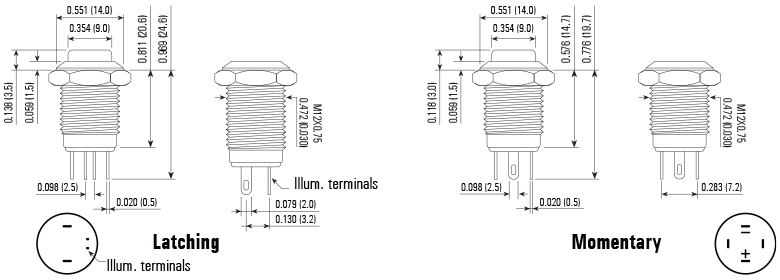

Dot-illuminated
[/vc_column_text][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][vc_tta_accordion c_icon=”” active_section=”1″ no_fill=”true” collapsible_all=”true” title=”FAQs”][vc_tta_section title=”What is a 12mm Anti-vandal Switch and what makes it different from other switches?” tab_id=”1753111031798-58ecd092-9dd5″][vc_column_text]Our 12mm Anti-vandal Switch is a compact, rugged pushbutton designed specifically to withstand mechanical abuse, harsh environments, and moisture ingress with an IP65 rating. Its strong construction and vandal resistance make it ideal for public-facing or industrial applications where durability is critical.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Could you explain what “latching” means in the context of this pushbutton switch?” tab_id=”1753112744421-5c0bcf39-0a7a”][vc_column_text]Certainly! A latching switch maintains its ON or OFF state after being pressed, without needing continuous pressure. This feature allows devices to stay powered or controlled in a stable manner until the switch is pressed again to change the state, enhancing user convenience and energy efficiency.[/vc_column_text][/vc_tta_section][vc_tta_section title=”What are the typical electrical specifications and durability parameters for this switch?” tab_id=”1753112684216-476671fa-0293″][vc_column_text]Our L12 series is rated for 2A at 36V DC, with mechanical life up to 200,000 cycles and electrical life exceeding 50,000 cycles. It also boasts high insulation resistance and a dielectric strength of 2000 VAC, ensuring long-lasting reliable performance even in demanding environments.[/vc_column_text][/vc_tta_section][vc_tta_section title=”What illumination options exist for the 12mm Anti-vandal Switch?” tab_id=”1753112713775-ba448e23-ddbf”][vc_column_text]We offer non-illuminated, dot-illuminated, and ring-illuminated versions with LED options available in several colors such as red, green, blue, yellow, and white. This variety helps your product stand out and fits different design aesthetics or operational indicators.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Is the switch suitable for both AC and DC applications?” tab_id=”1753113920539-f3240a17-50b8″][vc_column_text]Yes, our 12mm Anti-vandal Switches can safely operate with both AC and DC currents, allowing broad adaptability across various electrical systems and control requirements.[/vc_column_text][/vc_tta_section][vc_tta_section title=”How does the switch handle environmental challenges like moisture or temperature fluctuations?” tab_id=”1753113952310-d6b24be3-0a31″][vc_column_text]The switch is IP65 rated which means it is protected against dust and water jets, making it suitable for outdoor or industrial environments. It also withstands operating temperatures from -20°C to +55°C, and its materials resist heat shock and mechanical impacts.[/vc_column_text][/vc_tta_section][vc_tta_section title=”What kind of actuators or button styles can be customized?” tab_id=”1753113984809-8f2f26a5-697f”][vc_column_text]We provide multiple actuator shapes and sizes including flat, round, long button styles, and others. Customers can choose styles that best fit their interface design or ergonomic requirements.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Can the mounting and panel cutout dimensions be customized to fit different products?” tab_id=”1753114029350-c419ddaa-8953″][vc_column_text]Absolutely, the standard panel cutout is 12mm diameter, compatible with panels 1 to 11mm thick. We also support OEM customizations for dimensions and mounting hardware to ensure seamless integration.[/vc_column_text][/vc_tta_section][vc_tta_section title=”What makes your Anti-vandal Switch suitable for use by distributors and brand owners worldwide?” tab_id=”1753114063864-8ff9a46e-6ec2″][vc_column_text]We ensure consistent quality with international certifications like CE and RoHS, provide flexible OEM/ODM solutions, and maintain competitive pricing with low MOQ. We back our products with responsive technical support and reliable shipment logistics to help you serve your markets efficiently.[/vc_column_text][/vc_tta_section][vc_tta_section title=”How can I select the right 12mm Anti-vandal Switch model for my specific application?” tab_id=”1753114092138-64812c37-d803″][vc_column_text]Consider factors like current and voltage requirements, illumination needs, actuator style, operating environment, and mounting constraints. Our team is here to assist you with expert advice and sample provision to ensure the perfect fit for your application.[/vc_column_text][/vc_tta_section][/vc_tta_accordion][vc_zigzag]
