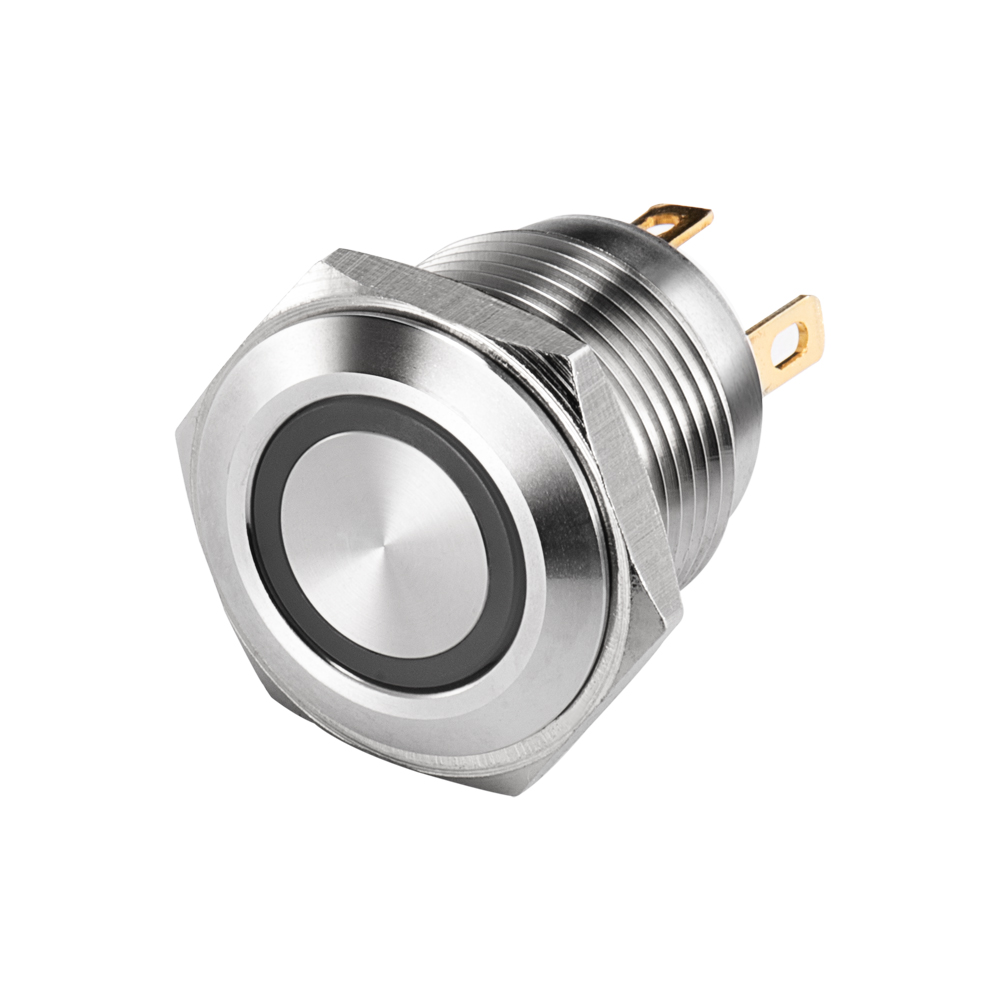

The Ls19 Series illuminated anti-vandal switch features a long life expectancy of up to 50,000 electric cycles and dust and water resistance at an IP65 rating. It is meant for mounting in a round, 19mm panel cutout.
Additional options include solder lug or wire lead termination, high actuator, a pilot indicator, and a black anodized finish. The pilot indicator does not have internal switch contacts, only illumination. Common applications for the PV6 series long life anti-vandal switch include:
- IP65 rated protection against dust and moisture
- 19mm diameter panel cutout
- 1 pole; Off-(On) functionality
- Dot, ring illumination and Backlit options available
- Solder lug or wire lead terminals
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F04%2Fls19-anti-vandal-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Functions
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]
Order Code
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]Notes：
* Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]
Technical Data
[/vc_column_text][vc_column_text]
| Type | Ls19-F | Ls19-F-R | LS19-F-D | ||||
| Illuminated Options | Non-Illuminated | Ring Illuminated | Dot Illuminated | ||||
| Max. Panel Thickness: | 0.394″ (10.0mm) | ||||||
| Terminal | Solder lug (2.8 x 0.5) | ||||||
| Max. Switch Rating | 2A 36VDC | ||||||
| Contact Resistance | ≤100mΩ | ||||||
| Insulation Resistance | ≥1000mΩ | ||||||
| Dielectric Strengh | 2000VAC | ||||||
| Operation Temp. | -20°C ~ +55°C | ||||||
| Mechanical Life | 1,000,000cycles(max) | ||||||
| Electrical Life | 50,000cycles(min) | ||||||
| Contact Material | Gold Plated | ||||||
| Rear Nut Fixing Torque | 0.57Nm | ||||||
| Operation Pressure | approx. 5.5N | ||||||
| Protection | IP65/ IK09 | ||||||
| Material | Switch Assembly | UL94V-0 rated Polyamide (Nylon) | |||||
| Tags | Copper Alloy | ||||||
| Terminals | Copper Alloy | ||||||
| Switch Body & Actuator | Stainless Steel/ Anodized Aluminum | ||||||
| Lens and Lens Body | Polycarbonate | ||||||
| Internal Seal | Silicone | ||||||
| O Ring | Nitrile | ||||||
| Color | Type | LED (ratings @ 20mA) | |||||
| Color |  |
 |
 |
 |
 |
 |
|
| Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 | |
| Forward Volatge | 1.8~2.6 | 2.8~3.6 | |||||
| Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. | ||||||
| 3.3V/ 6V/ 12V/ 24V/ 36V | |||||||
| Life | Approx. 40, 000hours | ||||||
