- 12, 16, 19, 22 or 25mm diameter panel cutout
- Ring illumination available
- IP67 rated
- Soldered wire leads optional
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2021%2F05%2Fultra-short-anti-vandal-switch.pdf|title:Ultra%20Short%20Anti-vandal%20switch|target:_blank”][/vc_column_inner][/vc_row_inner][vc_column_text]
Specifications
[/vc_column_text][vc_column_text css=””] Electrical Rating: 50mA, 12VDC
Mechanical Life: 1,000,000 Cycles
Electrical Life: 50,000 Cycles
Contact Resistance: 50mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Dielectric Strength: 2,000VAC
Operating/Storage Temperature: -20°C to 55°C
Travel: 0.5mm
Protection: IP67
Actuation Force: 4N
Panel Thickness: 1-3mm
Mounting Nut Torque: 5-14Nm[/vc_column_text][vc_column_text]
Order Code
[/vc_column_text][vc_column_text css=””]
[/vc_column_text][vc_column_text css=””]NOTES: * 3A Common Anode[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Dimension
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_column_text]

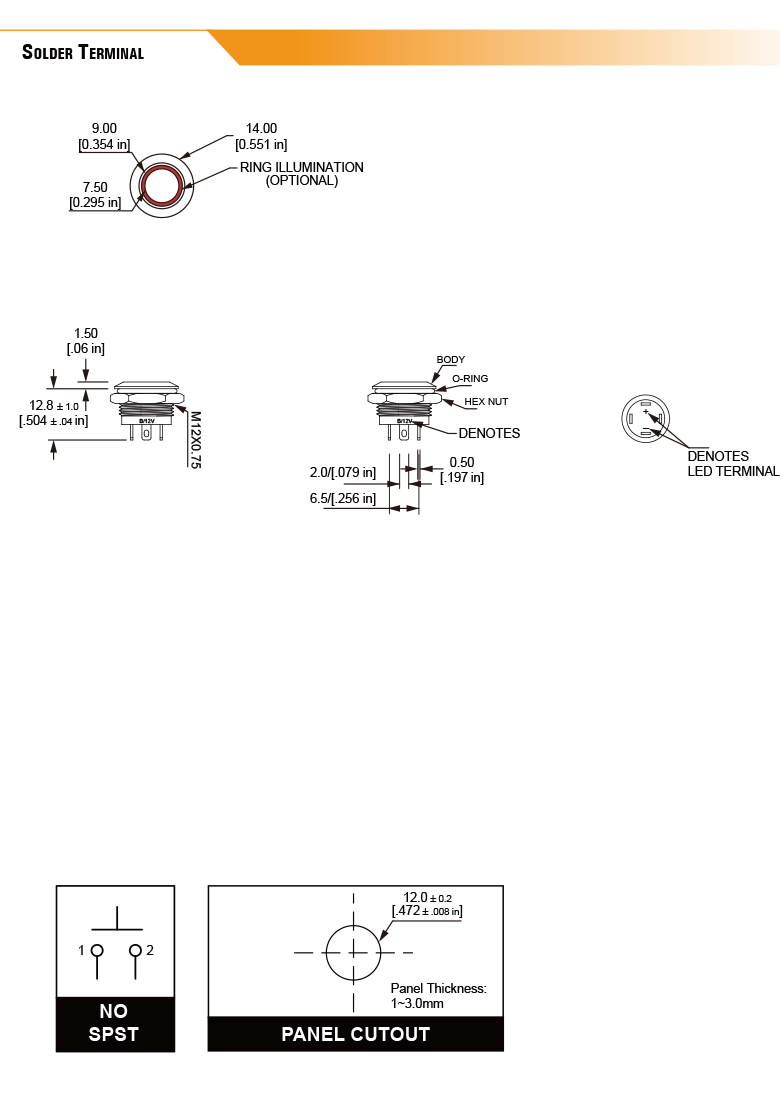

L12U Ultra Short Anti-vandal switch
[/vc_column_text][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_column_text]

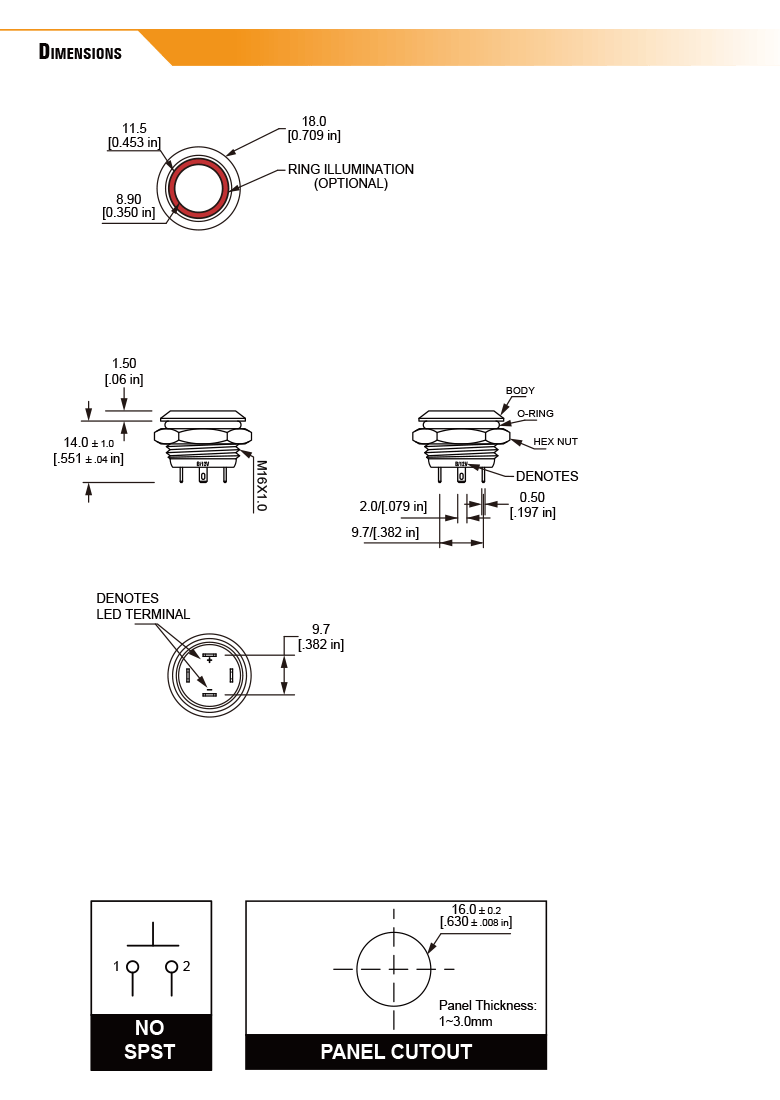

L16U Ultra Short Anti-vandal switch
[/vc_column_text][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]
[/vc_column_text][vc_column_text]

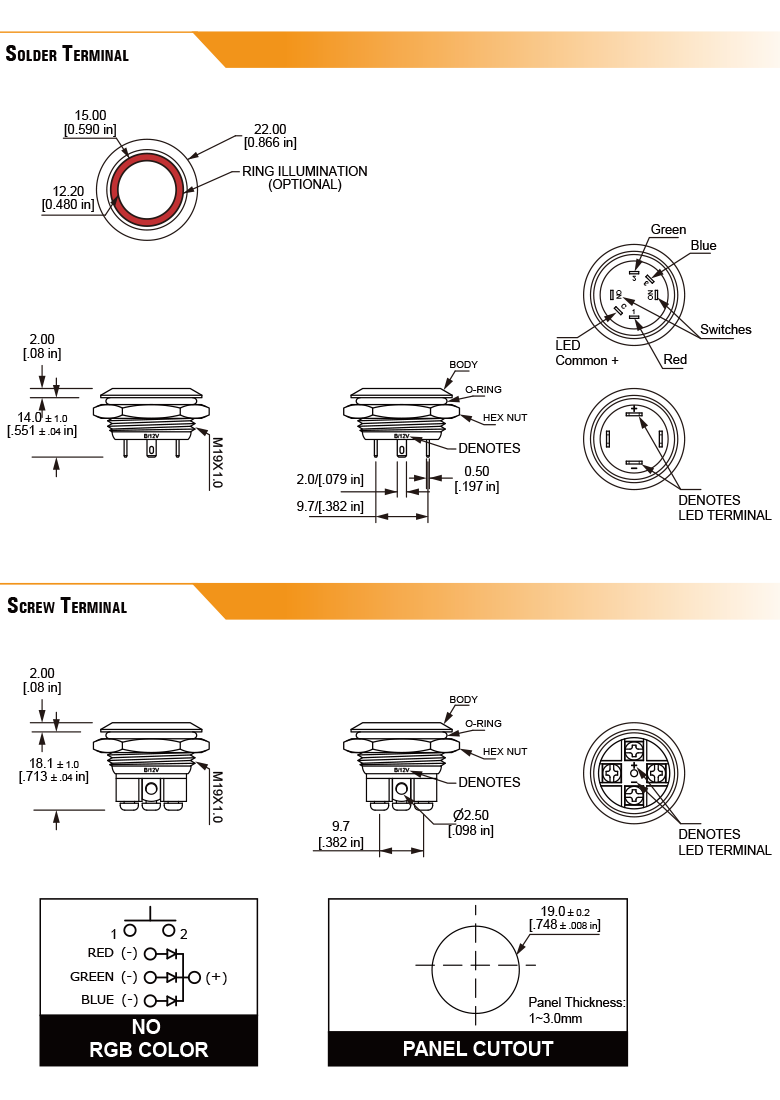

L19U Ultra Short Anti-vandal switch
[/vc_column_text][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_column_text]

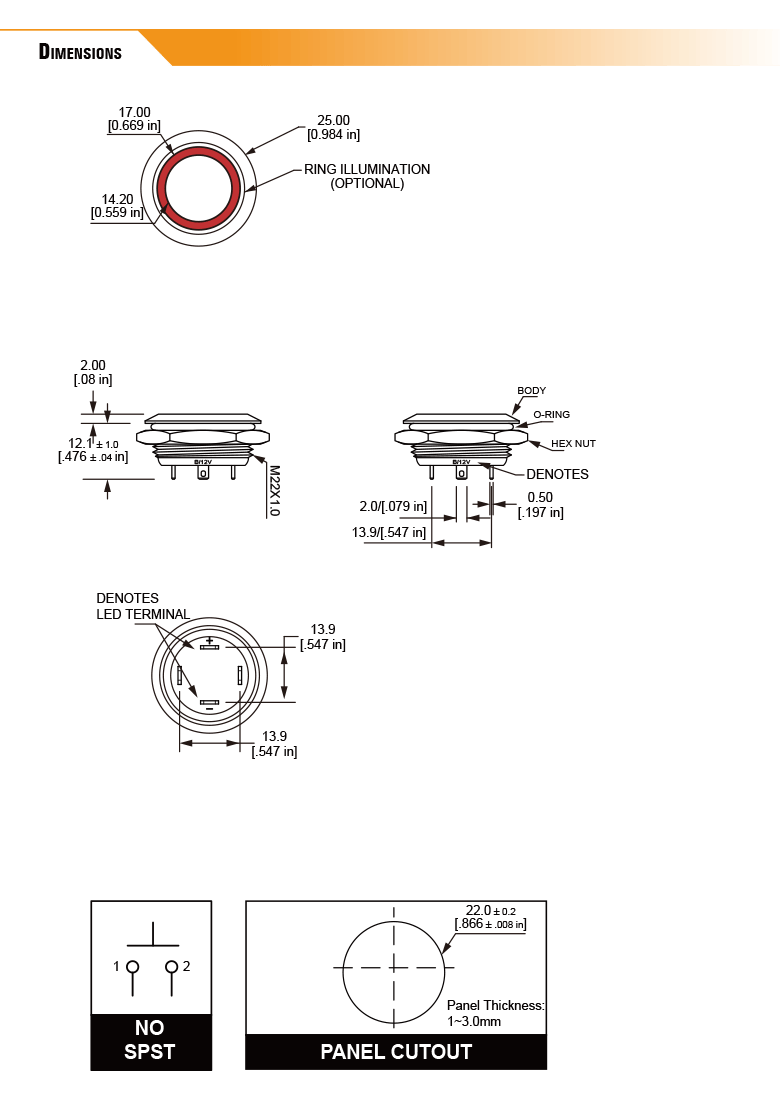

L22U Ultra Short Anti-vandal switch
[/vc_column_text][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_column_text]

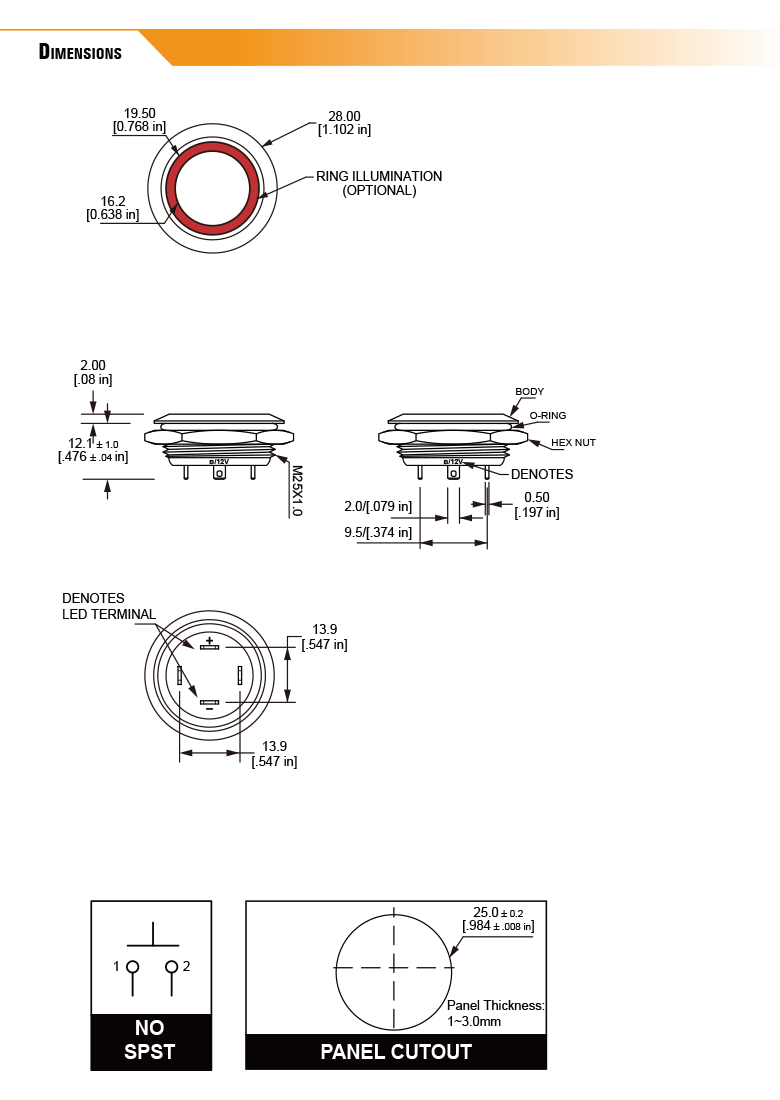

L25U Ultra Short Anti-vandal switch
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
FAQs
[/vc_column_text][vc_toggle title=”What are the benefits of using Langir’s low profile anti-vandal switches in industrial applications?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Langir’s low profile anti-vandal switches are designed to withstand harsh environments, offering superior durability and resistance to tampering. Their compact design ensures they fit seamlessly into tight spaces, making them ideal for industrial applications where space is a premium.[/vc_toggle][vc_toggle title=”How does Langir ensure the durability and reliability of its low profile push button switches for high-demand environments?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Langir employs rigorous testing and quality control processes to ensure the durability and reliability of its low profile push button switches. These switches are built with high-quality materials and are tested for performance under extreme conditions, ensuring they meet the demands of high-usage environments.[/vc_toggle][vc_toggle title=”Can Langir customize anti-vandal switches to meet specific design or branding requirements?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Yes, Langir offers customization services for anti-vandal switches, allowing clients to specify design, materials, and branding requirements. Our engineering team works closely with customers to develop switches that meet their unique needs, ensuring both functionality and aesthetic appeal.[/vc_toggle][vc_toggle title=”What makes Langir’s custom switches suitable for diverse B2B applications?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Langir’s custom switches are designed with flexibility and adaptability in mind, making them suitable for a wide range of B2B applications. We offer various customization options, including size, shape, illumination, and actuation force, ensuring our switches can meet the specific requirements of different industries.[/vc_toggle][vc_toggle title=”How does Langir address the unique needs of B2B clients when designing and manufacturing switches?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Langir prioritizes understanding the unique needs of B2B clients by offering tailored solutions and dedicated support. We provide personalized consultation, prototyping, and custom manufacturing services to ensure our switches align with our clients’ specific applications and operational requirements.[/vc_toggle][vc_toggle title=”What are the key features that distinguish Langir’s low profile anti-vandal switches from competitors’ offerings?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Langir’s low profile anti-vandal switches stand out due to their robust construction, compact design, and customizable options. These switches are engineered for high performance and reliability, with features like water resistance, long lifespan, and tamper-proof design, setting them apart from competitors.[/vc_toggle][vc_toggle title=”Does Langir offer technical support and consultation for integrating its switches into complex systems?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Yes, Langir provides comprehensive technical support and consultation services. Our experienced engineers assist clients in integrating our switches into complex systems, ensuring optimal performance and seamless integration. We offer guidance from the initial design phase through to post-installation support.[/vc_toggle][vc_toggle title=”How does Langir ensure compliance with industry standards and regulations for its switch products?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Langir is committed to maintaining compliance with all relevant industry standards and regulations. Our switch products undergo stringent testing and certification processes to ensure they meet international standards, providing our clients with reliable and compliant solutions.[/vc_toggle][vc_toggle title=”What quality control measures does Langir employ during the production of its low profile push button switches to guarantee consistency and performance?” custom_font_container=”tag:h3|font_size:18px%3B|text_align:left” custom_use_theme_fonts=”yes” css=”” use_custom_heading=”true”]Langir implements rigorous quality control measures at every stage of production. Our quality assurance team conducts thorough inspections and testing, including environmental, mechanical, and electrical performance tests, to ensure each switch meets our high standards for consistency and reliability.[/vc_toggle][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]
