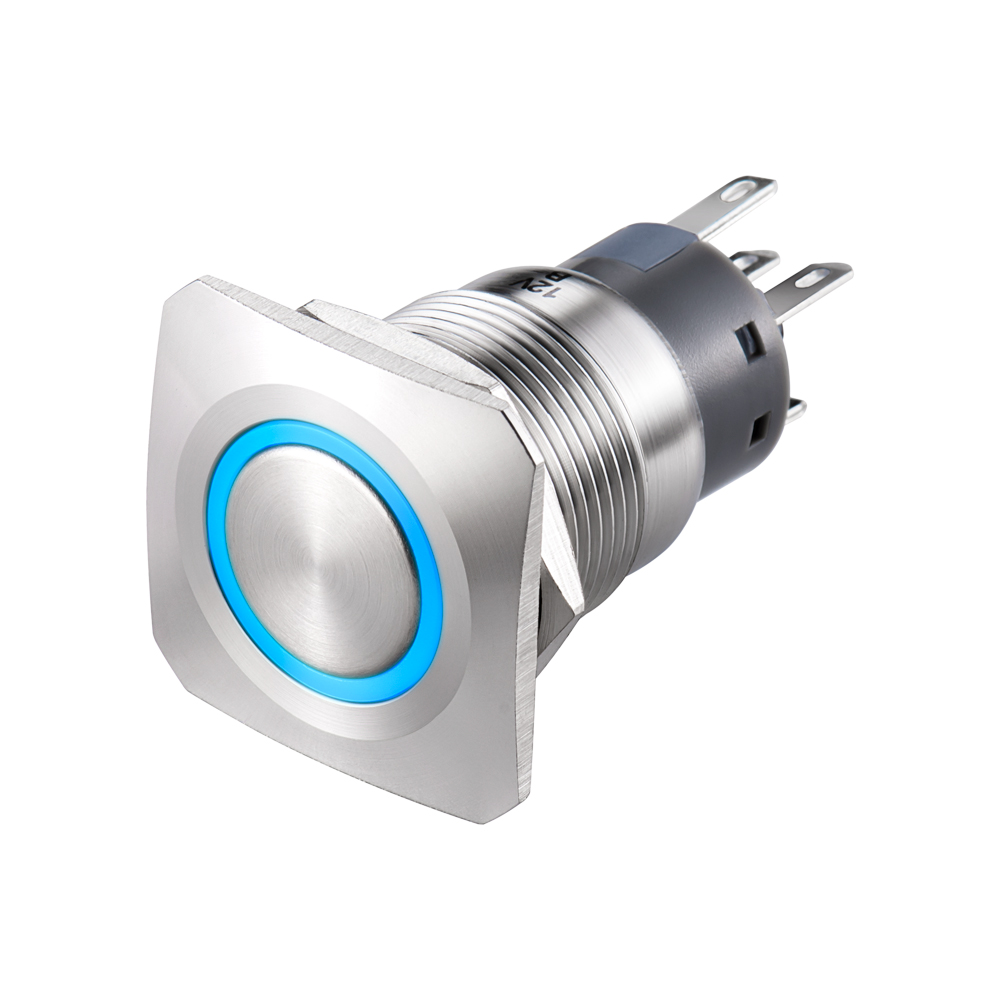

- 19mm or 22mm diameter panel cutout
- RGB LED illumination option
- Dot, ring or symbol illumination available
- IP65 rated for dust and moisture protection
- Multiple function options
- SPDT & DPDT
- Soldered wire leads (300mm long) optional
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h3|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2020%2F03%2Fsquare-bezel-anti-vandal-switch.pdf|title:Square%20Bezel%20Anti-vandal%20Switch|target:_blank”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Specifications
[/vc_column_text][vc_column_text css=””]Electrical Rating: 5A, 250AC
Mechanical Life: 1,000,000 Cycles
Electrical Life: 50,000 Cycles
Contact Resistance: 50mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Dielectric Strength: 2,000VAC
Operating/Storage Temperature: -20°C to 55°C
Travel: 1.50mm
Moisture Protection: IP65
Actuation Force: 4N
Panel Thickness: 1-11mm
Mounting Nut Torque: 5-14Nm[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]
Functions
[/vc_column_text][vc_column_text]
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner][vc_column_text]
Order Code
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]Notes：
* Base voltage on LEDs: 1.8V @ 20mA for Red, Yellow and Orange LED colors / 2.8V @ 20mA for Blue, Green and White LED colors
** 3A is only for functions 1NO1NC(SPDT)[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Illuminated Options
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]
Panel Cutout
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]
Terminal
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]Notes:
C = Common
NO = Normally open
NC = Normally closed
Terminals (-) and (+) used with Illum. option only[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Dimension
[/vc_column_text][vc_column_text]
[/vc_column_text][vc_column_text]
L19S
[/vc_column_text][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_column_text]
L22S
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]
FAQs
Q1: What is a square bezel anti-vandal switch?
A square bezel anti-vandal switch is a robust switch featuring a square-shaped outer frame. It is designed to resist vandalism, provide enhanced durability, and ensure reliable operation in demanding environments.
Q2: What does RGB LED illumination offer in a square bezel anti-vandal switch?
The RGB LED illumination in the switch allows for customizable and vibrant lighting options. It enhances visibility, provides status indication, and adds aesthetic appeal to the switch.
Q3: What is the IP65 rating for a square bezel anti-vandal switch?
An IP65 rating indicates that the switch is dust-tight and protected against low-pressure water jets from any direction. It offers reliable performance even in harsh environmental conditions.
Q4: What is the difference between SPDT and DPDT configurations in a switch?
SPDT (Single Pole, Double Throw) and DPDT (Double Pole, Double Throw) refer to the switch’s contact configurations. SPDT has one common terminal and two switchable terminals, while DPDT has two separate sets of contacts. This allows for different switching options based on the application requirements.
Q5: What are the typical applications of square bezel anti-vandal switches?
They find applications in various industries, including industrial control systems, transportation, gaming machines, public facilities, and security systems, where durability and tamper resistance are crucial.
Q6: Do square bezel anti-vandal switches from Langir comply with any industry standards or certifications?
They comply with industry standards and certifications like CE, RoHS, and ISO. These certifications ensure adherence to safety, environmental, and quality requirements.
Q7: Does the square bezel design offer any advantages in terms of sealing and protection?
Yes, the square bezel design contributes to the sealing and protection of the anti-vandal switch. It helps to create a secure and tight seal between the switch and the panel, ensuring reliable performance and resistance to dust, moisture, and other environmental factors.
Q8: Can the square bezel anti-vandal switch be easily cleaned and maintained?
Yes, It’s designed for easy cleaning and maintenance. Its smooth surface and durable materials allow for simple wiping or cleaning with commonly used cleaning agents, ensuring optimal performance over time.
Q9: Does the square bezel design provide a secure and stable mounting for the anti-vandal switch?
Yes, the square bezel design ensures a secure and stable mounting for the anti-vandal switch. Its square shape provides increased stability, minimizing any potential movement or rotation of the switch within the panel.
Q10: Are square bezel anti-vandal switches available in different sizes and configurations?
Yes, they are available in various sizes and configurations to accommodate different panel and application requirements. Consult Langir for specific customization options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]
