Household circuit breakers are built for alternating current (AC) and rely on AC characteristics to interrupt faults. They may not extinguish arcs or safely interrupt currents in 12V direct-current (DC) systems. This article reviews compatibility issues, highlights AC vs DC breaker design differences, and summarises practical guidance for choosing and installing appropriate DC protection while advising when to consult professionals.



Comprehensive Protection Guide for 12V DC Circuits:

Correct breaker selection and installation are central to safe 12V DC systems. The short guide below lists the key considerations for selection, wiring, maintenance and verification of DC protection.





Get a quote for custom DC circuit breakers from Langir

Select the Right Breaker:

Verify the breaker’s voltage and current ratings. The voltage rating must equal or exceed system voltage. Pick a current rating above the expected continuous load (for example, a 10 A continuous load typically uses a 15 A breaker) to avoid nuisance trips while still protecting conductors and equipment.



Follow Electrical Codes:

Comply with local and national codes (for example NEC where applicable). Codes specify conductor sizing, device placement and protective measures; following them reduces safety and regulatory risk.



Wiring and Polarity:

Maintain correct polarity and use conductors sized to the load and run length to limit voltage drop and heating. Proper terminations and routing reduce resistive losses and improve reliability.



Routine Maintenance:

Inspect breakers and connections periodically for wear, corrosion or heat damage. Test operation where possible and replace units that show degradation or inconsistent performance.



Installation Practices:

De-energise circuits before work, use insulated tools, and secure devices in suitable enclosures. Correct mounting and torque on terminals help prevent overheating and intermittent faults.



Monitor System Performance:

Watch for frequent trips, hotspots, or discoloration at terminals. Persistent symptoms usually indicate underlying faults that need investigation before replacing protective devices.



Consult Professionals:

If uncertain, engage licensed electricians or qualified engineers to confirm protection schemes, ensure code compliance and validate installation safety.

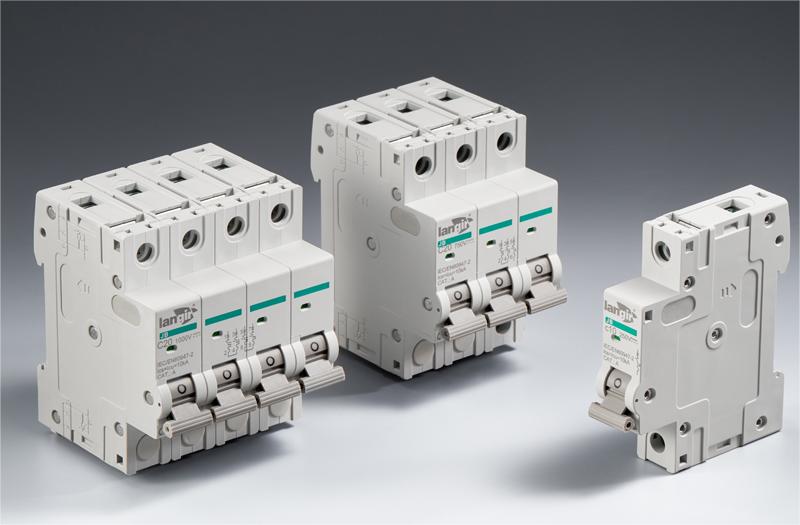

Why Are Household AC Circuit Breakers Unsuitable for 12V DC Protection?

AC breakers depend on the waveform’s zero crossings to interrupt current and extinguish arcs. DC lacks those zero crossings, so an AC breaker can sustain an arc when opening, overstress contacts, and fail to clear faults safely. This increases the risk of equipment damage and fire in DC applications.

Additional research documents specific challenges when applying AC breakers to DC power sources, notably in photovoltaic (PV) system contexts.



12V DC Power Supply & AC Circuit Breaker Compatibility

The cited analysis considers configurations where a 12V input, 500W inverter (230V AC output) supplies a monitor while a DC power supply (12V, 6…) is also present. The study addresses compatibility issues of household appliances with DC microgrids for PV systems (AH Sabry, 2020).



Get a quote for custom DC circuit breakers from Langir



What Are the Key Differences Between DC and AC Circuit Breakers?

DC breakers are designed for continuous unidirectional current and include arc-quenching features and contact geometries to interrupt without relying on waveform zero-crossings. AC breakers are optimised for alternating waveforms and often cannot safely interrupt DC except where specifically rated or modified.



How Does DC Current Affect Breaker Performance Compared to AC?

Unidirectional DC sustains arcing during interruption, increasing interruption energy and thermal stress on contacts. DC-rated breakers use longer arcing paths, magnetic blowouts, or other methods to manage extended arcs and reduce contact damage.



What Types of DC Circuit Breakers Are Best for 12V Systems?

For 12V use, choose DC-rated devices such as miniature DC breakers for general loads, solar-rated breakers for PV arrays, or solid-state breakers for fast electronic protection. Select the type that matches interrupting capacity and sensitivity needs of the application.



Which DC Circuit Breaker Types Offer Optimal Protection for Low Voltage?

Miniature circuit breakers suit common low-voltage circuits, while industrial JB Series or similarly rated DC breakers provide higher breaking capacity and extra safety features where fault currents or environmental demands are greater.



How Do Custom DC Circuit Breakers from Langir Enhance Safety and Reliability?

Langir Technologies offers customised DC breakers with features like bidirectional protection and higher breaking capacity to handle fault conditions. Custom designs can match specific voltage, current and installation constraints to improve system reliability.



How to Select and Install the Best DC Circuit Protection for 12V Applications?

Define operating voltage, continuous and peak currents, fault-current expectations, and environmental factors before selecting protection. Install per manufacturer guidance and local code, and verify operation with post-installation testing.



What Are the Essential Criteria for Sizing a DC Circuit Breaker at 12V?

Ensure voltage rating meets or exceeds 12V, choose a current rating above expected continuous load, and account for derating due to ambient temperature, grouping, or cable limits. Confirm manufacturer derating tables for accurate selection.



What Installation and Safety Practices Ensure Effective 12V DC Circuit Protection?

Use insulated tools, de-energise circuits before work, maintain correct polarity, secure mounting, and tighten connections to rated torque. Follow local codes and perform periodic verification of component condition.



Where Can Businesses Obtain Reliable 12V DC Circuit Protection Solutions?

Businesses can review product offerings from Langir Technologies . The company supplies configurable solutions to meet application-specific safety and reliability needs.



How Does Langir Technologies Support Custom DC Circuit Breaker Needs?

Langir provides OEM design support, customisation options and procurement assistance to help match breakers to client specifications and volume requirements.



Get a quote for custom DC circuit breakers from Langir



What Industry Trends Influence the Demand for Specialized 12V DC Protection?

Growth in renewables and electric vehicle infrastructure increases demand for reliable DC protection. These sectors require devices that balance breaking capacity, efficiency and longevity in varied environments.



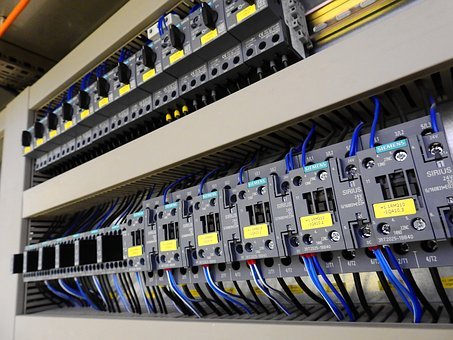

Can You Use Household Circuit Breakers for 12V DC | FAQs



Can I use AC circuit breakers in DC applications?

No. AC breakers usually rely on waveform zero-crossings and are not generally rated to interrupt DC safely. Use breakers explicitly rated for DC service.



What are the signs that a DC circuit breaker needs replacement?

Replace breakers that trip frequently without fault, show physical damage or overheating, fail to reset, or fail functional tests.



How can I ensure my DC circuit breaker is properly sized?

Confirm system voltage and load current, select a rating above continuous load, apply environmental derating, and follow manufacturer guidance.



What maintenance practices should I follow for DC circuit breakers?

Regularly inspect for mechanical or thermal damage, test operation, check tightness of terminations, and keep enclosures clean and dry.



Are there specific installation guidelines for DC circuit breakers?

Yes: de-energise before work, use insulated tools, observe polarity, mount securely, and comply with local codes.



What role do environmental conditions play in circuit breaker performance?

Temperature, humidity and corrosive atmospheres affect thermal ratings and corrosion resistance; select devices suitable for the environment and apply derating where required.



How do I choose between different types of DC circuit breakers?

Base selection on voltage and current ratings, breaking capacity, environment, and protection needs for sensitive electronics; compare specifications to find the best fit.



Conclusion

Household AC breakers are generally unsuitable for 12V DC systems because DC interruption requires different design features. Use DC-rated breakers, apply correct sizing and installation practices, perform regular maintenance, and consult qualified professionals for system-specific advice. For tailored solutions and support, consider the products and services offered by Langir Technologies.

For further inquiries or technical assistance, you can contact Langir for expert support and tailored solutions.



[/vc_column_text][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



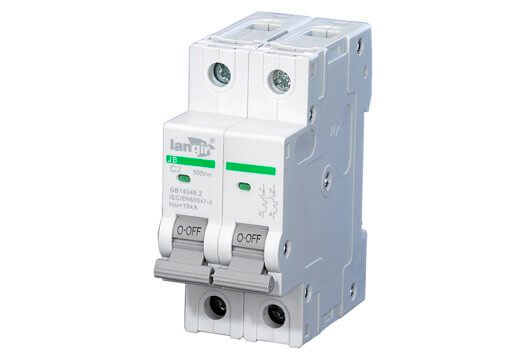

DC circuit breakers protect electrical systems from overloads and short circuits by detecting faults and safely interrupting current. Knowing how these devices work helps you choose the right protection and keep systems reliable. Below we explain the operating principles of DC circuit breakers, compare common types, and highlight where they’re used—especially in solar installations and electric vehicles, where DC’s constant flow creates specific challenges compared with AC.



What Is a DC Circuit Breaker and Why Is It Essential?

A DC circuit breaker is a protective switch that opens a direct-current circuit when it detects dangerous operating conditions. Its job is straightforward: stop excessive current before it damages components or causes a fire. Because DC doesn’t cross zero like AC, interrupting it safely requires purpose-built designs and components.

Get a quote for custom DC circuit breakers from Langir



Defining DC Circuit Breakers and Their Role in Electrical Safety

These breakers monitor current and disconnect power when a fault is detected, protecting wiring, inverters, batteries, and other equipment. In a photovoltaic array, for example, a correctly specified DC breaker can isolate a fault quickly, preventing damage to panels and downstream electronics while improving overall system safety.



Challenges of Interrupting Direct Current Compared to AC

Unlike AC, DC has no natural zero point where the arc extinguishes, so breakers must rely on arc-control strategies and larger contact separations. Effective DC interruption depends on arc suppression, contact design, and often longer travel distances—factors that influence a breaker’s construction and application.

That absence of a natural zero crossing is a core technical challenge called out in the literature.



DC Circuit Breaker Challenges: No Natural Zero Crossing

In DC systems there is no alternating zero crossing to help extinguish an arc, so robust DC breakers require dedicated interruption techniques and mechanical or electronic measures to safely stop the current.



DC power distribution: New opportunities and challenges, L Qi, 2017



How Does a DC Circuit Breaker Work: Key Principles and Mechanisms

DC breakers rely on several methods to interrupt current safely: thermal and magnetic trip mechanisms, plus arc suppression and extinction systems. These elements work together to detect faults, separate contacts, and extinguish arcs so circuits can be isolated without damage.



What Are Thermal and Magnetic Protection Methods in DC Breakers?

Thermal protection typically uses a bimetal element that bends with heat from sustained overcurrent, opening the circuit for slow, overload conditions. Magnetic protection uses a coil that produces a strong force under short-circuit currents, triggering a fast trip. Many breakers combine both methods to cover different fault profiles.



How Do Arc Suppression Techniques Ensure Safe DC Interruption?

Because DC sustains arcs, breakers use arc chutes, magnetic blowouts, specialized insulating materials, and longer contact travel to lengthen and cool arcs until they extinguish. These design choices reduce arc energy and prevent damage to contacts and surrounding equipment—especially important in high-power systems.



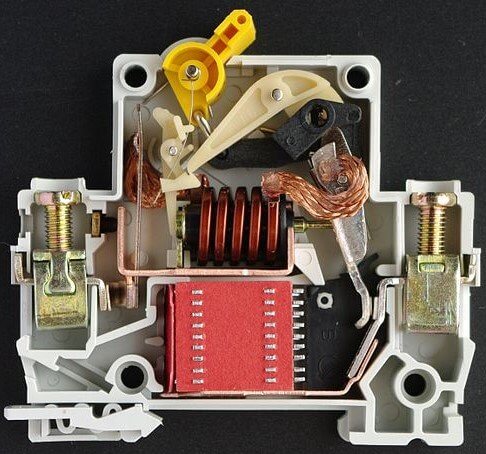

What Are the Main Internal Components of a DC Circuit Breaker?

Key parts include the operating mechanism (the trip and reset hardware), the current-carrying contacts, and arc-extinguishing elements. Protection electronics or coils detect fault conditions; contacts separate to interrupt current; and arc-control structures safely manage the energy released during interruption.



What Are the Different Types of DC Circuit Breakers and Their Features?

DC breakers are available in multiple formats to suit voltage, current, and application needs. Choosing between mechanical, solid-state, and hybrid options comes down to response speed, durability, cost, and the electrical environment.

Get a quote for custom DC circuit breakers from Langir



How Do DC Miniature Circuit Breakers Differ from Molded Case Circuit Breakers?

Miniature circuit breakers (MCBs) are compact and suited to low-current, light-commercial, and residential DC circuits. Molded case circuit breakers (MCCBs) are larger and rated for higher currents and tougher industrial conditions. Pick the family that matches your current and fault-level requirements.



What Are Solid-State and Hybrid DC Circuit Breakers?

Solid-state breakers use power semiconductors and electronics to sense faults and interrupt current, offering very fast response and frequent switching without contact wear. Hybrid breakers combine solid-state elements for fast clearing with mechanical contacts for low steady-state loss—balancing performance and cost for many renewable and EV applications.

Research highlights the range of mechanical, solid-state, and hybrid solutions used across DC systems.



Types & Applications of DC Circuit Breakers

Mechanical, solid-state, and hybrid DC breakers find use across residential, commercial, and industrial DC systems, including HVDC networks, where tailored interruption characteristics are required to protect equipment.



Applications of various types of circuit breakers in electrical power systems: a review, PI Obi, 2021



Where Are DC Circuit Breakers Applied and Why Are They Critical?

DC circuit breakers are essential across renewables, energy storage, EV charging, and any system that carries significant DC power. Their correct selection and installation protect assets and people while keeping systems available and efficient.



How Are DC Circuit Breakers Used in Solar Photovoltaic Systems?

In PV systems, DC breakers isolate strings, protect inverters, and guard battery connections. They help contain faults and allow maintenance without shutting down larger portions of the array, which supports both safety and uptime.



What Roles Do DC Breakers Play in Electric Vehicle Charging and Battery Storage?

DC breakers protect chargers, battery packs, and DC busbars from short circuits and overloads. As EV and storage systems scale, reliable DC protection becomes a core safety and performance requirement for charging stations and energy systems.



How Do DC Circuit Breakers Compare to AC Circuit Breakers?

Knowing the differences helps ensure you use the right device for the job. DC and AC breakers may look similar, but their interruption strategies and internal designs differ because of the current waveform.



What Are the Key Differences Between DC and AC Circuit Breakers?

AC breakers can rely on the zero-crossing points of alternating current to help extinguish arcs. DC breakers must extinguish a continuous arc through design features like arc chutes, magnetic blowouts, or electronic interruption. Those differences drive different ratings and application limits.



Why Are Specialized DC Circuit Breakers Necessary for DC Systems?

Specialized DC breakers address DC’s sustained arcing and different fault dynamics. Using the correct DC-rated breaker reduces the risk of failed interruption, excessive contact wear, or unsafe conditions—so always match the breaker type to the system’s current type and ratings.



How to Choose the Right DC Circuit Breaker for Your Application

Picking the correct breaker depends on system voltage, prospective fault current, continuous current, environmental conditions, and compliance with relevant standards.

Get a quote for custom DC circuit breakers from Langir



What Voltage, Current Ratings, and Breaking Capacities Should You Consider?

Confirm the breaker’s DC voltage rating, continuous current rating, and breaking capacity exceed your system’s maximum operating and fault conditions. Overspecifying breaking capacity gives margin against unexpected faults; underspecifying risks unsafe interruption and equipment damage.



What Environmental and Certification Factors Affect DC Circuit Breaker Selection?

Account for ambient temperature, humidity, altitude, and corrosive environments when selecting a breaker. Also verify applicable certifications—UL, IEC, or regional standards—to ensure the device meets safety and performance expectations for your market.



Type of DC Circuit Breaker	Features	Applications
DC Miniature Circuit Breaker	Compact, low-current protection	Residential, light commercial
Molded Case Circuit Breaker	Higher current capacity, robust construction	Industrial, commercial systems
Solid-State Circuit Breaker	Very fast response, no contact wear	Renewable arrays, EV chargers, fast-switching systems
Hybrid Circuit Breaker	Combines speed with low steady losses	Versatile applications needing both performance and efficiency

DC circuit breakers are a fundamental safety component for modern electrical installations. Understanding how they work and matching the right type to your system keeps equipment protected and systems reliable. For tailored product recommendations and technical support, please contact us.



How a DC Circuit Breaker Works | FAQs



What maintenance is required for DC circuit breakers?

Routine inspections, contact cleaning, and trip-function testing keep DC breakers reliable. Check for corrosion, mechanical wear, and proper operation of arc-extinguishing parts. Follow the manufacturer’s maintenance schedule and perform load or functional tests as recommended.



Can DC circuit breakers be used in AC applications?

Generally no. DC breakers are engineered for continuous-current interruption and may lack the characteristics optimized for AC zero-crossing behavior. Use the breaker type specified for the system’s current waveform to ensure safe interruption.



How do I determine the right breaking capacity for my DC circuit breaker?

Calculate the maximum prospective fault current for your system and select a breaker with a higher breaking capacity. Where calculations are complex, consult an electrical engineer or use industry-standard methods to size protective equipment correctly.



What are the safety standards for DC circuit breakers?

Key standards include regional and international specifications such as UL listings and IEC standards (for example, IEC 60947 series) that define testing and performance requirements. Verify the breaker’s certifications for your intended market and application.



What factors influence the lifespan of a DC circuit breaker?

Lifespan depends on operating frequency, fault history, environmental stress, and component quality. High ambient temperature, humidity, corrosive atmospheres, and frequent tripping shorten service life. Regular maintenance and choosing appropriate ratings extend operational life.



Are there any advancements in DC circuit breaker technology?

Yes. Developments include solid-state breakers, smarter hybrid designs, faster sensing electronics, and improved materials for arc control. These advances improve response time, longevity, and integration into renewable and EV systems.



Conclusion

DC circuit breakers play a key role in protecting modern electrical systems—especially in solar, storage, and electric vehicle applications. By understanding interruption principles, types, and selection criteria, you can choose the right protection for safety and long-term reliability. For application-specific guidance and product details, please contact us.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Installing a 2‑pole DC circuit breaker is a basic but essential task for anyone working with DC systems, especially in solar and industrial settings. This guide walks you through the wiring process clearly and safely. A 2‑pole DC circuit breaker protects circuits from overloads and shorts, so correct installation is vital to keep systems reliable. Many mistakes happen during wiring — this article explains what a 2‑pole breaker does, shows step‑by‑step wiring, flags common errors, and outlines where these breakers are used.

A basic grasp of circuit behavior and common fault types makes it easier to see why proper breaker wiring matters.



Electrical Faults and Circuit Reliability

Electricity powers daily life, but it must be controlled to be safe. Every electrical design is a circuit, and predictable math governs how that circuit behaves. Kirchhoff’s laws require that voltages and currents around a closed loop balance; if they don’t, something is wrong. Ohm’s law links current, voltage and impedance (resistance, inductance and capacitance). Deviations—unexpected current rises or voltage drops—signal a fault that protection devices must address.

Circuit Breaker Testing and Calibration by Simulating Common Faults and Checking Reliability, 2025



What Is a 2‑Pole DC Circuit Breaker and Why Proper Wiring Matters?

A 2‑pole DC circuit breaker is a protective device that simultaneously interrupts both DC conductors—typically the positive and negative—so the circuit is fully isolated. That dual‑pole isolation is critical in systems where safety and continuity matter, such as solar PV arrays and industrial control panels. Correct wiring prevents short circuits, reduces fire risk, and helps the breaker operate as designed.

Get a quote for custom DC circuit breakers from Langir



What Defines a 2‑Pole DC Circuit Breaker?

Key traits include the rated DC voltage and current the breaker can handle, and its interrupting (breaking) capacity. These breakers commonly cover ranges from 12V up to 1000V DC, serving small battery systems up to large photovoltaic and industrial installations. Choose a breaker whose voltage, current and breaking capacity match your system’s potential fault conditions.



Why Correct Wiring Improves Safety and Arc Suppression

Wiring a 2‑pole breaker correctly ensures both conductors open together, which reduces the chance of sustained arcing and protects downstream equipment. Proper installation—following manufacturer instructions and safety standards—reduces wear on contacts and lowers fire and equipment‑failure risk. Incorrect wiring can defeat arc suppression measures and cause serious damage.



How Do You Wire a 2‑Pole DC Circuit Breaker Correctly?

Wiring a 2‑pole DC breaker safely requires attention to detail and basic electrical practice. Follow the steps below and always consult local codes and the breaker’s datasheet.



Essential Safety Precautions Before Wiring



1. De‑energize the system: Turn off the power and isolate energy sources before you begin.
2. Use insulated tools: Work with tools rated for electrical use to reduce shock and short risks.
3. Confirm zero volts: Verify absence of voltage with a reliable meter before touching conductors.



Step‑by‑Step Wiring Procedure for 2‑Pole DC Breakers



1. Identify terminals: Note input (source) and output (load) terminals—terminals are usually labeled.
2. Connect source conductors: Attach the positive and negative (or +/–) source wires to the input terminals. Ensure correct polarity and secure terminations.
3. Connect load conductors: Connect the corresponding output wires to the load terminals, keeping polarity consistent.
4. Inspect and test: Double‑check torque on terminals, confirm insulation and clearances, then restore power and verify normal operation. Watch for heat, unusual noise, or other signs of trouble.



Polarized vs. Non‑Polarized DC Circuit Breakers — What’s the Difference?

Polarized breakers require specific polarity on their terminals to function as intended. Non‑polarized breakers can be installed in either orientation. Choose polarized units where manufacturer guidance or system design depends on a defined conductor assignment; use non‑polarized breakers when orientation flexibility is needed.



How Polarity Affects Breaker Performance

Polarity matters because some internal mechanisms and test circuits assume a particular conductor order. Reversing polarity on a polarized breaker can prevent proper tripping or impair arc control. Non‑polarized breakers avoid that constraint but verify suitability for the application and voltage level before selecting one.



Identifying and Wiring Polarized vs. Non‑Polarized Breakers

Check terminal markings and the datasheet. For polarized breakers, connect positive and negative exactly as labeled. For non‑polarized units, either conductor can be connected to either pole—but still follow the manufacturer’s wiring and torque specifications.



Common Wiring Mistakes to Avoid When Installing 2‑Pole DC Breakers

Avoiding simple errors keeps systems safe and reliable. Take your time during installation and verification.

Get a quote for custom DC circuit breakers from Langir



How Reversed Polarity Impacts Breaker Function

If polarity is reversed on a polarized breaker, it may fail to trip under fault conditions or experience accelerated wear. That can allow damaging currents to persist, risking equipment and safety.



Other Frequent Installation Errors and How to Fix Them



1. Loose connections: Always torque terminals to the manufacturer’s specification to prevent arcing and overheating.
2. Incorrect sizing: Match the breaker’s voltage, continuous current rating and breaking capacity to your system—undersized breakers will fail to protect equipment.
3. Ignoring codes: Follow local electrical codes and industry best practices; consult a licensed electrician when in doubt.



Where 2‑Pole DC Circuit Breakers Are Used: Solar and Industrial Systems

2‑pole DC breakers are common in solar PV arrays, battery systems and industrial DC control panels. Their ability to interrupt both conductors fast makes them well suited to environments where safety and uptime are priorities.

From large industrial installs to smaller residential systems, 2‑pole DC breakers provide a consistent layer of protection across many DC applications.



DC Circuit Breaker Applications in Industrial & Domestic Systems

DC circuit breakers—mechanical, solid‑state and hybrid types—are used across domestic and industrial systems that rely on direct current. They are particularly important in HVDC and other high‑voltage DC networks where protecting equipment from faults is critical.



Applications of various types of circuit breakers in electrical power systems: a review, PI Obi, 2021



Wiring 2‑Pole DC Breakers in Solar Photovoltaic Systems

In PV systems, breakers are typically placed between the panel/string output and the inverter or battery input. Proper placement and wiring let the breaker isolate the array during faults or maintenance, protecting both the panels and downstream electronics.



Industrial Applications and Wiring Considerations

In industrial settings, 2‑pole DC breakers protect control panels, motor drives and battery banks. Consider system voltage, expected fault current, conductor sizes, and ambient conditions when specifying and wiring breakers to ensure safe, reliable performance.



Choosing the Right 2‑Pole DC Circuit Breaker and Customizing It

Selecting the correct breaker means checking a few key specs and planning for real‑world fault conditions. Proper selection reduces downtime and extends equipment life.



Technical Specifications to Consider



1. Voltage rating: Verify the breaker’s maximum DC voltage matches your system.
2. Current rating: Choose a breaker that can handle the system’s continuous current and occasional surges.
3. Breaking capacity: Ensure the breaker’s interrupting rating exceeds the maximum possible fault current.



How Langir’s JB Series Supports Customization and Bulk Ordering

Langir Electric’s JB Series offers customizable 2‑pole DC breakers and scalable production for industrial customers. With in‑house tooling and technical support, Langir can tailor specifications and handle volume orders to meet manufacturers’ needs. For project inquiries, see Contact Langir Electric.



How to Wire a 2‑Pole DC Circuit Breaker | FAQs

Get a quote for custom DC circuit breakers from Langir



What are the signs that a 2‑pole DC circuit breaker needs to be replaced?

Replace a breaker if it trips repeatedly without an obvious cause, shows visible damage (cracks, burn marks), won’t reset after tripping, or runs unusually hot or noisy. Failure to trip under test conditions also indicates internal fault and warrants replacement.



Can I install a 2‑pole DC circuit breaker myself, or should I hire a professional?

If you have electrical training and understand local codes, you can install a breaker following the manufacturer’s instructions. Otherwise, hire a qualified electrician. Professional installation reduces code violations and safety risks.



What maintenance is required for 2‑pole DC circuit breakers?

Maintain breakers with periodic inspections: check for corrosion, tight connections, clean contacts and proper ventilation. Test operation per the manufacturer’s guidance and replace components that show wear.



How do environmental factors affect the performance of 2‑pole DC circuit breakers?

Temperature, humidity, dust and corrosive atmospheres affect breaker life and performance. High heat increases contact wear; humidity and corrosives can corrode terminals. Use appropriate enclosures and environmental ratings to protect breakers.



What is the difference between a 2‑pole DC circuit breaker and a fuse?

Both protect circuits, but a breaker can reset after tripping while a fuse must be replaced once it blows. Breakers are more convenient for repeated events and testing; fuses are simple and sometimes more cost‑effective for one‑time protection.



Are there specific brands or models of 2‑pole DC circuit breakers that are recommended?

Choose a brand and model that match your voltage, current and breaking‑capacity needs. Langir Electric, Schneider Electric and Eaton are well known for reliable DC protection. Always compare datasheets and certifications before selecting a product.



Conclusion

Correctly wiring a 2‑pole DC circuit breaker keeps systems safe and dependable, whether in solar arrays or industrial control panels. Follow the steps, apply the safety checks, and choose a breaker sized for your system. If you need tailored solutions or volume supply, explore Langir’s product range and support to find the right protection for your project.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Knowing how AC (Alternating Current) and DC (Direct Current) circuit breakers behave differently is essential for safe, efficient electrical systems. This guide walks through the core distinctions between AC and DC power, how breakers interrupt each type of current, and what that means for industrial use. Choosing the wrong breaker can cause safety issues and downtime — here we’ll help you understand the practical differences, design implications, and how to pick the right breaker for your application. Topics include current behavior, breaker operating principles, load capacity, and real-world uses across industries.

Research consistently highlights that voltage rating is a key classification point — and that understanding these categories matters when specifying protection devices.

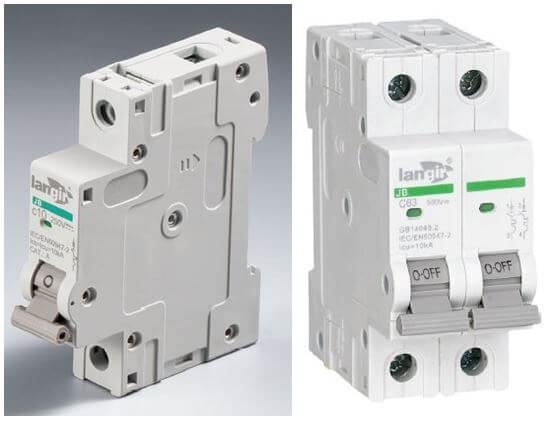

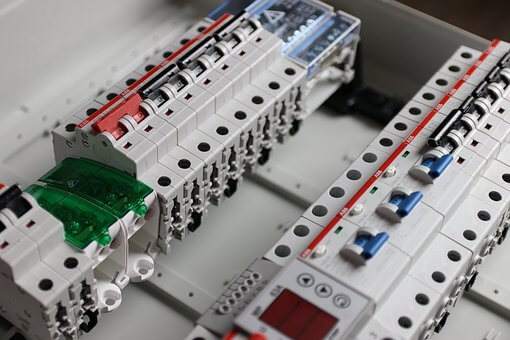

AC vs. DC Circuit Breaker Applications & Classification

A recent review summarizes how circuit breakers in power transmission and distribution are grouped by system type — AC or DC — and, crucially, by voltage rating. The paper notes that while DC breakers (mechanical, solid‑state and hybrid) are widely used in domestic and industrial DC systems and in HVDC protection, the literature often stops short of mapping each breaker type clearly to its ideal application. AC breakers are typically categorized by high‑ and low‑voltage use.



Applications of various types of circuit breakers in electrical power systems: a review, PI Obi, 2021

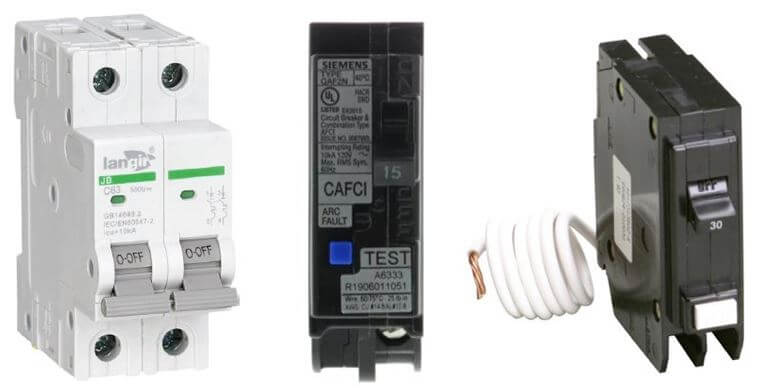

What Are the Fundamental Differences Between AC and DC Electricity?

The main difference is direction. AC reverses direction periodically; DC flows in one direction only. That simple distinction changes how devices behave and how protection must be engineered — so breakers for AC and DC are not interchangeable by default.

Get a quote for custom DC circuit breakers from Langir



How Do Alternating Current and Direct Current Differ in Flow and Characteristics?

AC and DC have different waveforms and practical strengths. AC cycles back and forth — usually at 50 or 60 Hz depending on your region — which makes long‑distance transmission practical. DC holds a steady voltage and current, which is ideal for batteries, electronics and many renewable setups. AC voltages are typically sinusoidal; DC is constant, and that steadiness affects switching and protection requirements.



Why Does Current Type Affect Circuit Breaker Load and Design?

Current type drives breaker design. AC breakers can rely on the waveform’s natural zero crossings to help extinguish arcs. DC gives no such pauses, so breakers need additional arc‑quenching measures. In short: DC demands dedicated design features to interrupt continuous current safely.

Because of these flow differences, conventional high‑power AC breakers usually can’t be used for DC without major redesigns.



High-Power DC Circuit Breaker Concepts & AC Limitations

Existing high‑power breakers were developed for AC and cannot reliably switch large DC currents without substantial changes. That gap has driven new concepts specifically for DC switching at high power levels.

Circuit breaker concepts for future high-power DC-applications, 2005



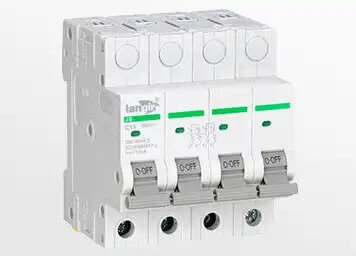

How Do AC Circuit Breakers Work? Design and Arc Extinguishing Principles

AC circuit breakers detect overloads and short circuits and then open contacts to stop current flow. Designers use several interruption techniques and mechanisms to ensure arcs are minimized and the system stays protected.



What Is the Role of Zero-Crossing in AC Arc Interruption?

Zero‑crossing is when the AC waveform passes through zero volts. Breaking the circuit near that moment reduces arc energy and makes interruption easier. That built‑in pause is a major reason AC switching is generally less demanding than DC switching.



Which Types of AC Circuit Breakers Are Common in Industrial Applications?

Common industrial AC breakers include miniature circuit breakers (MCBs), molded case circuit breakers (MCCBs), and air circuit breakers (ACBs). MCBs suit residential and light commercial loads. MCCBs and ACBs handle larger currents and offer features better suited to industrial panels and distribution systems.



What Makes DC Circuit Breakers Unique? Specialized Design for Continuous Current Protection

DC breakers are built to handle continuous current without the benefit of natural zero crossings. That requires tailored arc control and faster, more robust interruption strategies to keep systems and people safe.

Get a quote for custom DC circuit breakers from Langir



Why Is Arc Extinguishing More Challenging in DC Circuits? Magnetic Blowouts and Arc Chutes Explained

In DC, the arc can persist because the current never drops to zero. To manage this, designers use magnetic blowouts and arc chutes that lengthen, cool and steer the arc until it extinguishes. These methods reduce contact wear and prevent sustained arcing that would damage equipment.

High‑speed DC breakers rely heavily on their internal design and on circuit parameters (like inductance). Breaking DC can produce overvoltages, so both breaker design and the surrounding circuit matter for safe interruption.



DC High-Speed Circuit Breaker Performance & Overvoltage Challenges

High‑speed DC breakers (HSCBs) are key for overload, short‑circuit and shock protection in transport, power supply facilities and vehicles. Their current‑limiting performance depends on design choices and circuit characteristics such as inductance. Each DC interruption in an RL circuit can create overvoltages whose magnitude is tied to those parameters and the breaker’s construction.

AN EXPERIMENTAL ANALYSIS OF DC MAGNETIC BLOWOUT HIGHSPEED CIRCUIT BREAKERS’ PARAMETERS, 2020



What Are the Features and Benefits of Langir JB Series DC Circuit Breakers for Solar and Industrial Use?

Langir’s JB Series is engineered for solar and industrial DC applications. The series combines compact form, strong breaking capacity and proven arc‑extinguishing technology — meeting international standards and making these breakers a practical choice for PV arrays, EV chargers and similar DC systems.



What Are the Key Differences in Load Handling and Performance Between AC and DC Circuit Breakers?

Knowing how load handling and performance differ between AC and DC breakers helps you specify the right device for the job and avoid safety or reliability issues.



How Do Arc Extinguishing, Voltage, and Current Ratings Differ Between AC and DC Breakers?

Arc control, voltage ratings and current ratings vary between AC and DC breakers. AC units take advantage of zero crossings; DC units employ more complex arc control. Because DC lacks natural current zeros, DC breakers are often rated for higher voltages at comparable currents. Always match ratings to your expected load and fault conditions.



Circuit Breaker Type	Arc Extinguishing Method	Voltage Rating	Current Rating
AC Circuit Breaker	Zero-Crossing	Up to 1000V (commonly up to 690V in industrial low voltage)	Up to 125A (varies widely)
DC Circuit Breaker	Magnetic Blowout / Arc Chute	Up to 1500V (common for solar and EV applications)	Up to 100A (varies widely)



What Are the Safety Risks of Using the Wrong Type of Circuit Breaker?

Installing the wrong breaker can cause serious hazards: sustained arcing, fires, equipment damage and risk to personnel. For example, an AC breaker used on a DC feed may fail to extinguish an arc properly. Always specify breakers for the current type and application to reduce these risks.



Where Are DC Circuit Breakers Applied in Industrial Manufacturing and Renewable Energy?

DC breakers are central to many industrial and renewable systems, protecting equipment and enabling safe maintenance and operation.



How Do DC Circuit Breakers Protect Solar Photovoltaic Systems?

In PV systems, DC breakers guard against overloads and short circuits and let technicians isolate panels from inverters during service or faults. Proper selection helps protect modules, inverters and downstream equipment.



What Is the Role of DC Circuit Protection in Electric Vehicle Charging and Battery Storage Systems?

DC protection is critical for EV charging and battery storage where continuous current is present. DC breakers interrupt faults to protect chargers, batteries and connected systems from damage.



How Are DC Circuit Breakers Integrated with Industrial Control Panels and Push Button Switches?

DC breakers are commonly mounted inside control panels and paired with pushbutton switches for local control and protection. This arrangement simplifies monitoring and lets operators isolate circuits quickly when needed.



How to Choose the Right Circuit Breaker for Your Industrial Needs? Selection Criteria and Standards Compliance

Picking the right industrial breaker requires weighing technical ratings and compliance so your system stays safe and code‑compliant.

Get a quote for custom DC circuit breakers from Langir



What Factors Should Industrial Buyers Consider: Voltage, Current, Breaking Capacity, and Trip Curves?



1. Voltage Rating: Confirm the breaker is rated for your system voltage.
2. Current Rating: Choose a breaker sized to carry your normal load without nuisance trips
3. Breaking Capacity: Ensure the breaker can interrupt the maximum possible fault current.
4. Trip Curves: Review trip characteristics so the breaker reacts properly to overloads and short circuits.



Why Is Compliance with IEC, EN, and GB Standards Essential for DC Circuit Breakers?

Compliance with IEC, EN and GB standards ensures DC breakers meet established safety, testing and performance benchmarks. Using certified products reduces risk and helps meet legal and insurance requirements — a must for manufacturers and installers.

For tailored advice on breaker selection, industrial integration, or project specifications, you can contact our experts for hands‑on support.



Are Circuit Breaker Loads Different Between AC and DC | FAQs



What are the common misconceptions about AC and DC circuit breakers?

A frequent mistake is assuming AC and DC breakers are interchangeable. They are not. AC breakers rely on waveform zero crossings; DC breakers need extra arc‑quenching strategies. Using the wrong type risks equipment failure and safety hazards.



How do environmental factors affect the performance of circuit breakers?

Temperature, humidity and dust all influence breaker reliability. High heat can accelerate wear, humidity can cause corrosion, and dust can impair moving parts. Select breakers rated for your environment and follow manufacturer guidelines for installation and enclosure type.



What maintenance practices are recommended for circuit breakers?

Regular inspections and tests keep breakers dependable. Check for wear, corrosion and loose connections; exercise trip mechanisms and clean contacts where recommended. Keep a maintenance log to track condition and schedule replacements before failures occur.



Can circuit breakers be retrofitted for different applications?

Some breakers can be adjusted or retrofitted (for example, trip settings), but swapping an AC‑rated breaker into a DC circuit is rarely safe. Always consult a qualified engineer to confirm suitability and compliance; often the best solution is a purpose‑built replacement.



What role do circuit breakers play in renewable energy systems?

Breakers are essential in solar and wind installations to protect equipment from faults and to allow safe isolation during maintenance. In PV systems, DC breakers protect the string level and provide a safe disconnect between panels and inverters.



How do you determine the appropriate breaking capacity for a circuit breaker?

Calculate the maximum prospective fault current based on system layout and sources, then select a breaker with a higher breaking capacity. An electrical engineer can model fault currents and recommend the correct rating for safe interruption.



What advancements are being made in circuit breaker technology?

Innovations include smart breakers with digital monitoring, remote operation and real‑time diagnostics, as well as material and design advances that improve arc control and allow higher voltage/current handling. These developments are helping modern grids and renewable systems become safer and more resilient.



Conclusion

Understanding how AC and DC circuit breakers differ is critical for safety and reliable operation. Recognize each type’s design limits and select protection that matches your system’s current type, voltage and fault conditions. Browse our range of AC and DC breakers designed for real‑world applications — or contact our experts for project‑specific guidance.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Wiring a DC circuit breaker is a core skill for electricians, solar installers, and maintenance teams working with DC systems. This guide gives a clear, practical walkthrough so you can wire a DC circuit breaker safely and reliably. A DC circuit breaker protects circuits from overloads and short circuits that can damage equipment or start fires. Follow the steps below to understand a breaker’s functions, wiring best practices, and how to choose the right device for your application — including polarity and arc-extinction considerations.

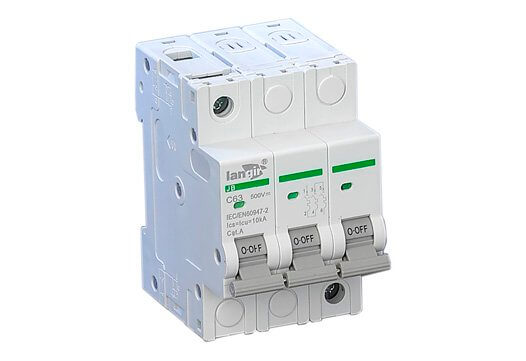

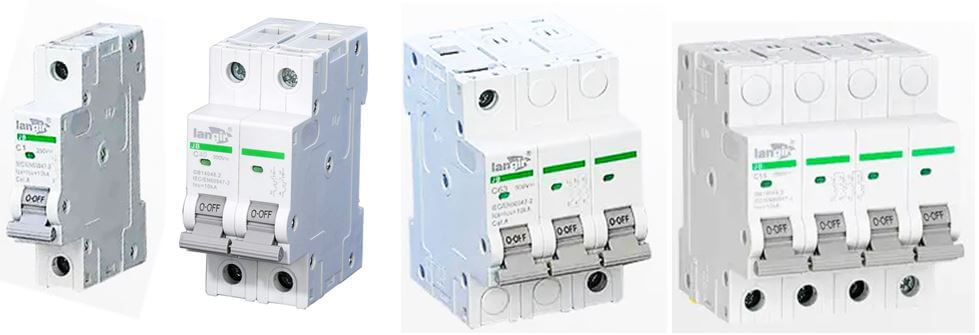

What Is a DC Circuit Breaker and Why Is Proper Wiring Essential?

A DC circuit breaker is a protective device that interrupts direct current when an overload or short circuit occurs. Correct wiring ensures the breaker operates as intended and protects your system. Mistakes in wiring can cause equipment failure, unsafe conditions, or reduced protection.

Get a quote for custom DC circuit breakers from Langir



What Are the Key Functions of a DC Circuit Breaker?

DC circuit breakers provide several essential protections:



1. Overload Protection: Stops excessive current that can overheat conductors and damage components.
2. Short Circuit Protection: Quickly breaks the circuit during a short to limit fault energy and reduce fire risk.
3. Safety Mechanisms: Many breakers offer manual reset, visual trip indicators, and other features to simplify maintenance and improve safety.

These roles underline why correct installation and wiring are critical for dependable operation.



How Does DC Circuit Breaker Wiring Impact Electrical Safety?

The way a DC breaker is wired has a direct effect on system safety and reliability. Common wiring-related risks include:



• Wiring Mistakes: Poor terminations or reversed polarity can prevent proper operation and create hazards.
• Safety Standards: Following applicable wiring standards helps ensure the breaker will interrupt faults as specified.
• Best Practices: Using the correct wire size, secure terminals, and proper routing reduces heat, vibration issues, and nuisance trips.

A solid grasp of these factors is essential for anyone installing or servicing DC circuitry.



How to Wire a DC Circuit Breaker Correctly: Step-by-Step Installation Guide

Wiring a DC circuit breaker requires attention to detail. The following sections outline the practical steps and principles to follow during installation.



What Are the General Wiring Principles for DC Circuit Breakers?

Keep these core principles in mind when wiring:



1. Polarity: Confirm positive and negative connections — reversing polarity can damage devices and reduce protection.
2. Wire Gauge: Select conductor size to match the circuit current and breaker rating to prevent overheating and voltage drop.
3. Connection Types: Use appropriate terminals (ring lugs, spades, or busbar connections) and tighten to the manufacturer’s torque spec for a secure, low-resistance joint.

These basics form the foundation of a safe, long-lasting installation.



How to Wire a DC Circuit Breaker in Solar Photovoltaic Systems?

Solar PV installations have some specific wiring practices to follow:



1. Connection to Solar Panels: Route the positive string leads to the breaker’s input terminal; the negative string usually ties to the system negative bus or battery negative terminal.
2. Inverter Integration: Place the inverter downstream of the DC breaker so the breaker protects upstream strings and batteries during faults.
3. Safety Checks: After making connections, verify tightness, correct polarity, and that fuses or isolators are in the expected states before energizing.

Adhering to these steps helps ensure a safe, code-compliant PV system.



How to Handle DC Circuit Breaker Polarity and Arc Extinction During Wiring?

Polarity and arc extinction are key considerations in DC breaker installations because DC does not pass through zero like AC.

Get a quote for custom DC circuit breakers from Langir



Why Is Polarity Important When Wiring DC Circuit Breakers?



• Effects on Performance: Incorrect polarity can stop protection features from working correctly and may damage connected equipment.
• Safety Risks: Reversed wiring increases the chance of hazardous faults and complicates troubleshooting.

Always double-check polarity during installation and testing.



How Does Arc Extinction Influence DC Circuit Breaker Wiring?

Arc extinction is the method that stops the electrical arc when contacts separate — a critical element in DC protection. Effective approaches include:



• Arc Suppression Techniques: Design features such as arc chutes, magnetic blowouts, or vacuum interrupters reduce arc energy during interruption.
• Wiring Implications: Clean, correct connections and proper orientation help the breaker’s arc-control features work as intended, improving interrupting performance and safety.

Understanding arc behavior and wiring to support the breaker’s design improves reliability in DC systems.



Which Types of DC Circuit Breakers Are Used and How Do Wiring Methods Vary?

Different breaker types serve different currents and environments; wiring methods reflect those differences.



What Are the Common Types of DC Circuit Breakers and Their Applications?



1. Miniature Circuit Breakers (MCBs): Suited to low-current circuits, commonly used in small residential solar or auxiliary DC circuits.
2. Molded Case Circuit Breakers (MCCBs): Built for higher currents and industrial installations where robust protection is required.
3. JB Series DC Circuit Breakers: Optimized for multi-string photovoltaic arrays, offering reliable overload and short-circuit protection.

Each type presents specific wiring and mounting requirements to meet its intended use.



How Do Wiring Techniques Differ Among Various DC Circuit Breaker Types?

Key wiring differences depend on the breaker family:



• Wiring Differences: Terminal styles, busbar connections, and mounting clearances vary — follow the manufacturer’s wiring diagrams precisely.
• Compatibility Issues: Verify the breaker’s voltage and current ratings, physical fit, and coordination with upstream/downstream protective devices.

Matching wiring technique to breaker type ensures consistent protection and easier maintenance.



How to Select and Size a DC Circuit Breaker for Your Wiring Needs?

Choosing the right breaker starts with a clear view of your system’s voltages, currents, and fault conditions.



What Voltage and Current Ratings Should Be Considered for Wiring?

When selecting a breaker, account for these ratings:



1. Voltage Ratings: Confirm the breaker’s maximum DC voltage rating meets or exceeds your system’s open-circuit and operating voltages.
2. Current Ratings: Pick a breaker with a continuous current rating at or above the expected load to avoid nuisance trips while maintaining protection.
3. Load Types: Consider inrush currents and the nature of connected loads — motor or converter loads may require different protection settings.

Correct rating selection is essential for both safety and reliability.



How to Calculate Breaking Capacity and Trip Curves for Proper Wiring?

Two technical checks help confirm suitability:



1. Breaking Capacity: Ensure the breaker’s interrupting capacity exceeds the maximum possible fault current at the installation point.
2. Trip Curves: Review the breaker’s time-current characteristics to confirm its response matches your system’s coordination and selectivity needs.

These evaluations ensure the breaker will clear faults without failure or unwanted downstream interruption.



What Are the Best Practices and Safety Standards for DC Circuit Breaker Wiring?

Follow established standards and safe work practices to protect people and equipment during installation and operation.

Get a quote for custom DC circuit breakers from Langir



Which International Standards Govern DC Circuit Breaker Wiring?



• IEC 60947-2: Covers low-voltage switchgear and control gear, including circuit breaker requirements.
• EN 60947-2: The European implementation for low-voltage circuit breaker standards.
• GB 14048.2: Chinese standard for low-voltage switchgear and control gear.

Compliance with these standards helps ensure safe, certified installations.



What Safety Guidelines Should Be Followed During Installation?



1. Personal Protective Equipment: Always use proper PPE — insulated gloves, eye protection, and other gear suitable for the voltage and environment.
2. Installation Checks: Verify wiring, torque settings, and correct polarity before energizing. Confirm protective coordination and that labeling is in place.
3. Compliance with Standards: Install per local codes and manufacturer instructions to meet regulatory and safety requirements.

Following these practices reduces risk and improves long-term performance.

If you need help sizing, wiring, or selecting a DC circuit breaker for your project, our technical team is ready to assist. You can contact us for expert support and detailed guidance.



Breaker Type	Typical Application	Key Features
Miniature Circuit Breaker	Residential solar systems	Compact footprint, low current ratings
Molded Case Circuit Breaker	Industrial installations	High current capacity, rugged construction
JB Series DC Circuit Breaker	Multi-string PV arrays	Designed for photovoltaic protection: overload and short-circuit handling



How to Wire a DC Circuit Breaker | FAQs



What are the signs that a DC circuit breaker needs to be replaced?

Look for frequent unexplained tripping, visible burn marks, melted or cracked insulation, or a breaker that won’t reset. If a breaker cannot interrupt faults reliably or is out of date with current standards, replace it to maintain safety and performance.



Can I use an AC circuit breaker for DC applications?

No. AC breakers rely on the alternating current’s zero-crossing to extinguish arcs and are not rated for DC interruption. Use a breaker specifically rated for DC service to ensure proper arc control and safe interruption.



How often should I inspect my DC circuit breakers?

Inspect breakers at least annually, or more often in demanding environments. Inspections should include visual checks for damage, verifying torque on terminals, testing operation, and noting any unusual behavior. Keep a maintenance record to track condition and trends.



What tools do I need for wiring a DC circuit breaker?

Common tools include a wire stripper, appropriate screwdrivers, a calibrated torque wrench, crimping tools, and a multimeter. Wear PPE such as gloves and eye protection. Using the right tools ensures secure terminations and correct installation.



What should I do if my DC circuit breaker keeps tripping?

Start by identifying overloaded circuits or shorted loads. Remove non-essential loads and test. Inspect wiring for loose or damaged connections. If trips continue, the breaker may be undersized or faulty — consult a qualified electrician to diagnose and resolve the issue safely.



Are there specific maintenance practices for DC circuit breakers?

Yes. Regular maintenance includes visual inspections, cleaning dust from enclosures, checking terminal tightness, testing trip function, and logging any events. Schedule periodic professional inspections to verify performance and compliance.



Conclusion

Correctly wiring a DC circuit breaker is essential for the safety and reliability of solar and industrial DC systems. Keep polarity, conductor sizing, breaker ratings, and applicable standards front of mind during installation. If you need project-specific advice or technical support, please contact us — our team can help you choose and install the right protection for your system.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



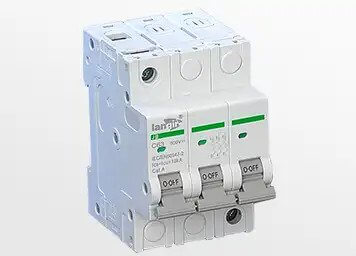

Testing a DC circuit breaker helps keep electrical systems safe and working as intended. This guide takes you through the exact steps to test a DC breaker using a multimeter — from safety checks and the right tools to interpreting readings and common fixes. Whether you’re a qualified electrician or a skilled DIYer, these procedures will help you diagnose issues reliably and decide when a breaker needs servicing or replacement. We also highlight how Langir products can simplify testing and maintenance.



What Safety Precautions Should You Follow Before Testing a DC Circuit Breaker?

Safety comes first. Before you touch a breaker, follow proper procedures to minimize risk and make testing straightforward.



Get a quote for custom DC circuit breakers from Langir

Which Personal Protective Equipment Is Essential for Electrical Safety?

Use appropriate PPE whenever you work on electrical equipment. Core items are:



1. Insulated gloves: Prevent electric shock when handling live or recently de-energized parts.
2. Safety glasses: Protect your eyes from sparks, debris, or accidental arcing.
3. Hard hat: Required whenever there’s a risk of falling objects or overhead work.

Wearing the right PPE reduces injury risk while you inspect and test components.



How to Properly De-energize and Lockout Circuits Before Testing?

Follow a lockout/tagout routine every time you work on a circuit:



1. Turn off power: Open the breaker or disconnect the supply at the source.
2. Apply lockout devices: Use locks and tags so the circuit can’t be re-energized accidentally.
3. Verify de-energization: Confirm the circuit is dead with your multimeter before touching terminals.

These steps protect you and anyone else who may be near the equipment.



What Tools Are Required to Test a DC Circuit Breaker with a Multimeter?

Accurate testing depends on using the right instruments and knowing how to use them.



How to Select and Use a Digital Multimeter for Voltage, Resistance, and Continuity Tests?

A quality digital multimeter is the core tool. Practical guidance:



1. Choose a reliable model: Prefer brands known for accuracy and safety; pick a meter rated for your system voltage.
2. Set the meter correctly: Select DC voltage for live checks, resistance or continuity for contact tests.
3. Connect probes safely: Make solid probe contact at the breaker terminals and observe proper probe polarity.

A multimeter lets you confirm voltage presence, measure contact resistance, and verify continuity for quick, dependable diagnostics.

Beyond basic multimeters, portable multifunction testers are emerging that combine continuity, voltage/current measurement and built-in lighting to speed up field diagnostics.



Portable Multifunction Tester for Circuit Diagnostics

The paper describes a single portable device that checks continuity on single and multi‑wire cables, measures current and voltage, and provides illumination for the work area. Error states are shown on an LCD and indicated with audible alerts. Because it tests without dismantling circuits, the device supports non‑destructive troubleshooting and rapid fault identification.



What Additional Tools Enhance Advanced DC Circuit Breaker Testing?

For deeper analysis, add these instruments:



• Insulation resistance tester: Verifies the integrity of insulation and detects leakage paths.
• Contact resistance tester: Measures resistance across breaker contacts to reveal wear or poor connections.

These tools uncover problems a standard multimeter might miss and help you decide whether a breaker needs repair or replacement.



How Do You Perform Step-by-Step Testing of a DC Circuit Breaker Using a Multimeter?

Work methodically for consistent, safe results. Break the process into inspection, live checks, and contact testing.



How to Conduct a Visual Inspection for Physical Damage and Loose Connections?

Start with a close visual check to catch obvious faults:



1. Check for cracks: Examine the breaker housing for physical damage or deformation.
2. Inspect connections: Ensure terminals and wiring are tight and free of corrosion.
3. Look for burn marks: Discoloration or charring indicates overheating or arcing.

A careful visual inspection often points you to the next diagnostic step.



What Are the Procedures for Voltage and Continuity Tests on DC Circuit Breakers?

Use your multimeter to verify circuit condition:



1. Voltage test: With the circuit energized and measured safely, set the meter to DC voltage and measure across the breaker terminals. A reading near the system voltage indicates the supply is present.
2. Continuity test: With the breaker ON and power isolated where required, switch to continuity or low‑ohms mode and check across the contacts. A beep or a low resistance value shows the contacts are conducting.

Combine visual and electrical checks to confirm the breaker’s operational state.



How to Interpret Multimeter Readings for DC Circuit Breaker Diagnostics?

Know what the numbers mean so you can decide on repair, cleaning, or replacement.

Get a quote for custom DC circuit breakers from Langir



What Do Different Voltage and Resistance Values Indicate About Breaker Condition?

Typical interpretations:



• Normal voltage reading: Confirms the circuit is supplied and the breaker can pass voltage when closed.
• High resistance reading: Elevated contact resistance suggests wear, contamination, or loose connections and may require cleaning or replacement.

Use these readings alongside physical inspection to assess component health.



How to Identify Faulty Breakers Through Continuity and Voltage Measurements?

Common diagnostic signs:



• No continuity: If the meter shows open circuit while the breaker is supposed to be closed, the breaker contacts are likely faulty and replacement is required.
• Inconsistent voltage readings: Fluctuating or partial voltage under load points to internal contact problems or intermittent failure.

When measurements and observations disagree, prioritize safety and consult a technician if needed.



What Are Common Troubleshooting Scenarios and Solutions for DC Circuit Breakers?

These practical checks cover frequent problems and how to approach them.



How to Diagnose Frequent Tripping and No Power Issues?

To find the cause of nuisance tripping or power loss:



1. Check load conditions: Verify the connected load does not exceed the breaker’s rated capacity.
2. Inspect for short circuits: Look for damaged insulation, loose conductors, or wiring faults that could create a short.
3. Test the breaker: Measure the breaker’s continuity and contact resistance as described earlier to rule out internal failure.

Working through these steps narrows down whether the issue is the load, the wiring, or the breaker itself.



When Should You Replace a DC Circuit Breaker or Consult a Professional?

Replace or escalate when:



• Signs of wear: Visible damage, burning, or failed tests indicate replacement.
• Uncertain diagnosis: If readings are ambiguous or the system is critical, call a qualified electrician or service professional.

Timely replacement or expert intervention prevents repeated failures and unsafe conditions.



How Do Langir JB Series DC Circuit Breakers Integrate with Testing and Customization?

Langir designs breakers to be test‑friendly and reliable in real installations.



What Features of Langir JB Series Facilitate Reliable Testing and Protection?

The Langir JB Series DC circuit breakers include features that simplify testing and protect equipment:



• Advanced protection mechanisms: Built‑in overload and short‑circuit protection helps prevent equipment damage.
• User‑friendly design: Accessible terminals and clear markings make inspection and testing quicker and safer.

Those design choices reduce downtime and make maintenance more predictable.



How to Access Customization Services and Bulk Orders for Industrial Applications?

Langir supports tailored solutions and volume procurement for projects:



1. Contact Langir Electric: Reach out to discuss specifications and application requirements.
2. Bulk order options: Ask about pricing, lead times, and customization for large installations.

Our team can help match product features to your operational needs and delivery schedule.



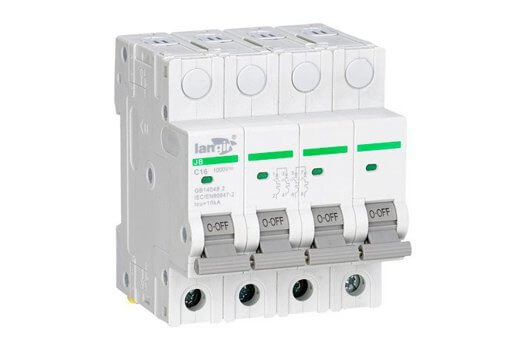

How to Test a DC Circuit Breaker with a Multimeter | FAQs

Get a quote for custom DC circuit breakers from Langir



What are the signs that a DC circuit breaker needs to be replaced?

Replace a breaker if it trips repeatedly under normal load, shows visible damage or overheating, won’t reset, or fails continuity/voltage tests. Any combination of these signs means the breaker is no longer reliable and should be replaced to protect the system.



Can I test a DC circuit breaker without a multimeter?

You can perform basic visual checks for damage, loose wires, or burn marks without a multimeter. But for accurate voltage, resistance, and continuity checks you need a multimeter — it’s the only practical tool for reliable electrical diagnostics.



How often should I test my DC circuit breakers?

As a rule, test breakers at least once a year during routine maintenance. Increase the frequency if the circuit sees heavy use, frequent faults, or repeated tripping to catch wear before it causes failure.



What should I do if my multimeter gives an unexpected reading?

If readings look wrong, first verify the meter on a known good circuit and check probe connections and settings. If the meter is confirmed good but results remain inconsistent, investigate the circuit for wiring faults or contact a qualified technician.



Are there specific brands of multimeters recommended for testing DC circuit breakers?

Choose a meter from reputable manufacturers known for accuracy and safety, such as Fluke, Klein Tools, or Extech. Pick a model rated for the voltages you work with and with features for DC voltage, continuity, and low‑ohms resistance testing.



What is the importance of using insulation resistance testers in circuit breaker diagnostics?

Insulation resistance testers identify degraded insulation and leakage paths that a standard multimeter might miss. Using one helps prevent shorts and unexpected faults by revealing insulation problems early.



How can I ensure the longevity of my DC circuit breakers?

Regular inspection and testing, clean and secure connections, correct sizing for the load, and avoiding repeated overloads will extend breaker life. Choose quality breakers designed for your application and replace units that show wear.



Conclusion

Testing DC circuit breakers with a multimeter is a straightforward way to confirm safety and performance. Follow the safety steps, use the proper tools, and interpret readings with the checks described here. For tougher cases or customization, Langir offers products and support to streamline maintenance and protect your installations. Visit Langir Electric for product details and technical assistance.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Sizing the right circuit breaker for a DC circuit is essential to protect equipment and keep systems running reliably. This guide walks you through the principles that matter for DC breaker selection: DC fundamentals, the parameters that drive ratings, and clear, step‑by‑step calculation methods. Many installers and designers struggle with choosing the correct breaker, which can cause nuisance trips or, worse, equipment damage. Follow this guide to determine accurate breaker ratings for common use cases — from solar arrays and battery banks to demanding industrial loads — and learn how Langir Electric’s JB Series meets those needs.



What Are the Fundamentals of DC Circuits and Circuit Breakers?

Knowing how DC circuits behave is the foundation of correct breaker sizing. Direct current flows in a single direction, which changes how faults and interruptions behave compared with AC circuits. Circuit breakers are protective devices that stop excessive current during overloads or shorts to prevent component damage, fires, and unsafe conditions.

Get a quote for custom DC circuit breakers from Langir



What Is a DC Circuit Breaker and How Does It Differ from AC Breakers?

A DC circuit breaker is engineered for the continuous, one‑direction current characteristic of DC systems. Because DC lacks the zero‑crossing that helps AC breakers extinguish arcs, DC breakers use stronger arc‑quenching and dedicated trip mechanisms — magnetic, electronic, or hybrid designs — to interrupt current safely. Typical applications include renewable energy systems, battery storage, and electric vehicles where reliable DC protection is critical.



Which Basic Electrical Principles Affect DC Circuit Breaker Sizing?

Several core electrical principles inform breaker sizing. Ohm’s Law (V = I × R) lets you relate voltage, current and resistance when determining expected currents. Power relationships (P = V × I) and the system’s operating voltage also affect current levels and component selection. Applying these fundamentals ensures the selected breaker will carry normal load without nuisance trips while still clearing faults effectively.



What Key Parameters Influence DC Circuit Breaker Rating Calculations?

Breaker ratings rely on a set of measurable parameters: the expected load current, the system voltage, the maximum possible short‑circuit current, and the breaker’s breaking capacity. Each parameter contributes to safe, reliable operation and must be verified during design and procurement.



How Do Load Current and Continuous Load Factor Determine Breaker Size?

Load current is the current the circuit will carry during regular operation. Because some loads run continuously, designers apply a continuous load factor — a safety multiplier — to avoid nuisance trips and overheating. Multiply the expected load current by the continuous load factor to establish the minimum breaker rating that will reliably carry the load.



Why Are Voltage Rating, Short Circuit Current, and Breaking Capacity Critical?

The voltage rating shows the maximum system voltage the breaker can safely interrupt. Short‑circuit current is the highest current that could flow during a fault, and breaking capacity (or interrupting rating) is the maximum fault current the breaker can safely interrupt. Selecting a breaker with an appropriate voltage rating and breaking capacity is essential to avoid equipment damage or failure during fault conditions.



How to Calculate DC Circuit Breaker Size: Step-by-Step Formulas and Examples

Use a straightforward, methodical approach when calculating breaker size. The following steps and examples make the process repeatable across applications.



What Is the General Formula for DC Circuit Breaker Sizing?

The general sizing rule is:

This gives the minimum breaker rating to carry the load under normal operating conditions. Typical continuous load factors range from 1.25 to 1.5 depending on the application and code requirements.



How to Calculate Breaker Rating for Solar PV, Battery Banks, and Industrial Loads?

Specific applications call for small adjustments to the basic formula. For example, for a solar PV string you should size the breaker for the panel’s maximum output current plus a safety margin:

This accounts for peak production and prevents nuisance trips during maximum insolation. For battery banks, size the breaker to handle maximum continuous and peak discharge currents. For industrial loads, include startup and inrush currents in your load current estimate before applying the continuous load factor.

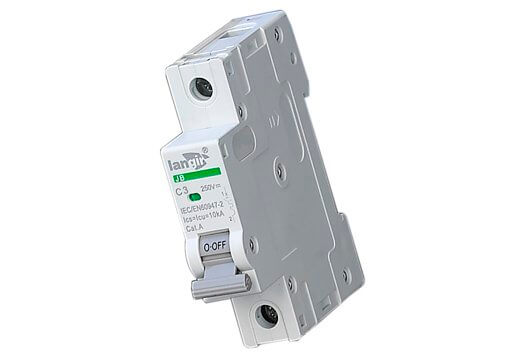

Which Selection Criteria Should Guide Choosing the Right DC Circuit Breaker?

Choose a breaker based on the application’s electrical and environmental demands. Key criteria include the breaker’s trip characteristics, pole configuration, environmental ratings, and compliance with relevant codes and standards.



Get a quote for custom DC circuit breakers from Langir

How Do Trip Curves, Number of Poles, and Environmental Factors Affect Selection?

Trip curves describe the time‑current response of a breaker and help you match protection to the load’s normal and fault behavior. The number of poles depends on the circuit layout — single‑pole for many DC systems, multi‑pole for multi‑conductor or multi‑string setups. Environmental conditions such as ambient temperature, humidity, dust, or corrosive atmospheres affect thermal performance and long‑term reliability, so select breakers rated for the environment where they’ll be installed.



What Are the NEC and International Standards for DC Circuit Breaker Compliance?

National and international codes — including the NEC and IEC standards — set minimum safety and installation requirements. These standards guide correct breaker sizing, installation methods, and labeling so systems meet legal and safety expectations. Always verify local code requirements and applicable standards during design and procurement.



What Are the Features and Benefits of Langir JB Series DC Circuit Breakers?

Langir’s JB Series is built to deliver dependable protection and flexible installation across DC applications. The series combines reliable trip mechanisms, compact form factors, and ratings suitable for renewable, storage, and industrial systems.



How Does the JB Series Provide Reliable Protection and Bidirectional Current Flow?

JB Series breakers include robust overload and short‑circuit protection and are designed to support bidirectional current flow — a key requirement for systems like solar + storage where current can reverse during charging and discharging. That bidirectional capability, together with consistent trip performance, makes JB Series ideal for modern DC systems.



What Customization Options Does Langir Offer for DC Circuit Breakers?

Langir Electric provides customization to match specific system needs. Options include tailored voltage ratings, higher breaking capacities, and modified trip characteristics so the breaker aligns with unique system requirements and operational profiles. Custom configurations are especially useful for specialized industrial or large renewable projects.



What Common Questions Arise About DC Circuit Breaker Sizing and Selection?

Below are concise answers to frequent design and selection questions that come up during system planning and installation.



How Do You Calculate DC Circuit Breaker Size Using the 125 Percent Rule?

The 125 percent rule is a common guideline for continuous loads: multiply the continuous load current by 1.25 to determine the breaker rating. This built‑in margin helps prevent nuisance tripping and allows safe, continuous operation.



How Do NEC Requirements Impact DC Circuit Breaker Selection?

NEC rules define minimum sizing practices, installation methods, and labeling for safety and code compliance. NEC requirements often dictate the continuous load multipliers, wiring limits, and protective device placement; follow them to ensure installations are safe and meet inspection criteria.



Parameter	Description	Importance
Load Current	Expected operating current the circuit will carry	Determines the base breaker size
Voltage Rating	Maximum system voltage the breaker can interrupt safely	Ensures proper insulation and safe interruption
Short Circuit Current	Maximum fault current that could flow in the circuit	Used to verify breaker interrupting ability
Breaking Capacity	Maximum current the breaker can interrupt without damage	Protects the breaker and the system during faults



How to Calculate DC Circuit Breaker Ratings | FAQs



Get a quote for custom DC circuit breakers from Langir

What is the importance of selecting the right continuous load factor?

The continuous load factor gives a safety margin for sustained operation. Using a multiplier—commonly 1.25 to 1.5—accounts for sustained loads and minor fluctuations, reducing nuisance trips and preventing overheating. Choosing the correct factor improves reliability and protects both the breaker and connected equipment.



How can environmental conditions affect DC circuit breaker performance?

Ambient conditions influence breaker thermal performance and long‑term reliability. High temperature raises internal temperatures and can lower allowable current ratings; moisture and corrosives can harm contacts and housings. Always select breakers with environmental ratings and derating guidance appropriate for the installation.



What are the common applications for DC circuit breakers?

DC breakers are used widely in solar PV systems, battery energy storage, electric vehicles, telecom power systems, and certain industrial machinery. Wherever DC power is present, appropriate protection is required to safeguard equipment and personnel.



How do you determine the breaking capacity needed for a DC circuit breaker?

Calculate the maximum prospective short‑circuit current at the breaker location based on system impedance and fault scenarios. Select a breaker whose breaking capacity exceeds that calculated value so it can interrupt the fault without sustaining damage.



What role do trip curves play in circuit breaker selection?

Trip curves show how long the breaker takes to open at various overcurrent levels. Matching the trip curve to the load profile avoids nuisance trips from inrush currents while ensuring fast clearing of dangerous faults. Choose a curve that balances protection and operational tolerance for your specific load.



Can DC circuit breakers be used in AC applications?

DC breakers are designed specifically for direct current and are not interchangeable with AC breakers in most cases. AC breakers rely on current zero‑crossing for arc extinction; using a DC breaker in AC service—or vice versa—can result in inadequate protection. Always use the type specified for the circuit.



Conclusion

Correctly calculating DC breaker ratings protects equipment, improves uptime, and keeps installations safe. By focusing on load current, voltage, short‑circuit currents, and breaking capacity — and by following applicable codes — you can select breakers that perform reliably. For tailored solutions, explore Langir’s resources or contact our team to match JB Series breakers to your system requirements. Start optimizing your DC systems for safer, more efficient operation today.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



If you work with electrical systems or industrial equipment, being able to break down a combination DC circuit is a core skill. This guide gives clear, practical steps to analyze mixed series–parallel networks and shows how proper protection keeps systems safe and reliable.

Combination DC circuits include both series and parallel elements, which makes their behavior less obvious than simple circuits. Engineers and technicians often struggle with identifying sections, finding equivalent resistances, and choosing the right protection. Below we cover core concepts, analysis techniques, essential formulas, troubleshooting tips, and why the correct industrial protection matters.

Because DC behavior is steady and predictable, instructors and engineers often use DC circuits first to teach and verify fundamentals before moving to more complex systems.



DC Circuit Fundamentals: Concepts & Practical Applications

Circuit analysis is fundamental to designing and understanding electrical equipment. Over time, a variety of methods have been developed to calculate voltages, currents, and power for each circuit element. While those methods apply under many excitation conditions, beginners benefit most from starting with DC circuits where voltages and currents are time-invariant. Direct current simplifies the math and highlights core ideas — which is why many battery-powered designs and initial teaching examples use DC circuits as practical illustrations of circuit analysis.



DC Circuit Analysis, TA Bigelow, 2020



What Is a Combination DC Circuit and Why Is Its Analysis Important?

A combination DC circuit mixes series and parallel components to meet specific performance and reliability goals. Correct analysis is critical: it helps you predict voltages and currents, size protection devices, and avoid failures. In industrial contexts, that means fewer unexpected outages and safer equipment operation.

Get a quote for custom DC circuit breakers from Langir



How Do Series and Parallel Circuits Form Combination DC Circuits?

Series and parallel connections are the building blocks. In series, components sit end-to-end so the same current flows through each element. In parallel, components share the same voltage but carry different currents. Combination circuits are simply networks that use both arrangements — for example, a string of resistors in series feeding a parallel branch. Drawing a clear schematic makes it much easier to spot those sections.

Visual diagrams and schematics are especially helpful when you map nodes, junctions, and loops for analysis.



What Are the Key Electrical Properties in Combination DC Circuits?

The primary quantities to track are voltage, current, and resistance. Voltage (V) drives current (I) through the circuit, and resistance (R), measured in ohms, limits that current. How these three interact determines power distribution and component stresses — the values you need to check when designing or troubleshooting a circuit.

Mastering these relationships is the foundation of reliable circuit design and diagnosis.



How to Analyze Combination DC Circuits: Step-by-Step Breakdown Methods

Systematic analysis reduces mistakes. Break the network into recognizable series and parallel groups, calculate equivalent resistances where possible, and simplify the circuit step by step until you can apply Ohm’s and Kirchhoff’s rules to the remaining network.



How Do You Identify Series and Parallel Sections in a DC Circuit?

Start at a single node and follow the wiring. Components that share the same single path for current are in series; components that connect to the same two nodes and therefore share voltage are in parallel. If the configuration is ambiguous, label nodes and redraw the schematic. Simple measurements with a multimeter — checking continuity and voltage at key points — also confirm your identification.



How to Calculate Equivalent Resistance in Series and Parallel Parts?

Reducing the circuit into equivalent resistances simplifies further analysis. For series connections, add resistances directly. For parallel groups, use the reciprocal formula to find the combined resistance, then replace the group with its equivalent.

For example, the equivalent resistance in parallel can be calculated using the formula:

Working through these reductions stepwise makes it easier to compute currents and voltage drops under load.



Which Formulas and Laws Are Essential for DC Combination Circuit Analysis?

Two foundational tools are Ohm’s Law and Kirchhoff’s Laws. Together they let you relate voltages, currents, and resistances across any network and solve for unknowns in multi-branch circuits.



How Is Ohm’s Law Applied to Combination DC Circuits?

Ohm’s Law links voltage, current, and resistance with a simple equation:

Use it to calculate current through a resistor, the voltage drop across a component, or the resistance needed for a target current. Apply the law at each stage after you simplify the circuit.



How Do Kirchhoff’s Laws Help Solve Complex DC Circuits?

Kirchhoff’s Current Law (KCL) states that currents entering a node equal currents leaving it; Kirchhoff’s Voltage Law (KVL) states that the sum of voltage changes around any closed loop is zero. Use KCL to write node equations for multi-branch points, and KVL to write loop equations — together they let you solve networks that aren’t reducible by simple series/parallel rules.



How to Troubleshoot Complex Combination DC Circuits Effectively?

Troubleshooting is best done methodically: isolate sections, confirm expected voltages and currents, and swap or simulate suspect components. Reliable troubleshooting minimizes downtime and prevents repeated faults.

Get a quote for custom DC circuit breakers from Langir



What Are Common Issues in Industrial DC Circuits?

Typical problems include shorts (unwanted low-resistance paths), opens (broken connections), and component failures. Shorts produce excessive current and heat; opens stop current flow. Identifying which of these is present quickly narrows your search for the root cause.



How Can You Use Circuit Breakers and Switches to Identify Faults?

Circuit breakers and switches let you systematically isolate circuit segments. By opening or closing specific breakers and observing which sections lose power, you can pinpoint faulty branches. This approach is safer than probing live networks without isolation and speeds up diagnosis.



Why Is Industrial DC Circuit Protection Critical for Combination Circuits?

Proper protection prevents damage to equipment and reduces safety risks. Overcurrent protection, correct interrupting devices, and appropriately rated components all protect against short circuits, overloads, and cascading failures in mixed-series/parallel systems.



How Do Langir’s DC Circuit Breakers Safeguard Combination Circuits?

Langir’s DC circuit breakers detect overcurrent conditions and interrupt fault currents before they damage equipment. Designed for industrial use, these breakers help minimize downtime and repair costs while keeping installations compliant and safe.



What Push Button Switches Enhance Control in Industrial DC Systems?

Push button switches give operators simple, reliable control for starting, stopping, or resetting equipment. Langir’s push buttons are built for repeated use in harsh industrial environments, combining clear actuation with durable construction so controls remain dependable over long service life.



How to Choose and Customize DC Circuit Protection Solutions for Industrial Applications?

Selecting the right protection requires matching device ratings and environmental tolerances to your application. Consider voltage and current ratings, interrupting capacity, ambient conditions, and maintenance needs when choosing breakers or switches.



What Factors Influence the Selection of DC Circuit Breakers and Switches?

Key selection factors include nominal voltage, continuous current rating, trip characteristics, and the physical environment (temperature, humidity, vibration). Knowing the load profile and any startup inrush currents also ensures you pick devices that protect without nuisance tripping.



How Does Langir Support Bulk Orders and Customization for Industrial Needs?

Langir supports bulk orders and customization, helping businesses specify product variants, labels, packaging, and delivery schedules. Our team works with customers to match product configurations to application requirements while offering competitive lead times and support.



How to Break Down a Combination DC Circuit​ | FAQs

Get a quote for custom DC circuit breakers from Langir



What are the safety considerations when working with combination DC circuits?

Safety comes first. De-energize circuits before working on them and verify zero energy with a meter. Use appropriate PPE (insulated gloves, eye protection) and follow lockout/tagout procedures. Be mindful of stored energy in capacitors and always review the circuit schematic before testing or repairs.



How can I improve the efficiency of a combination DC circuit?

Improve efficiency by using properly rated components, minimizing unnecessary wiring length, and reducing resistive losses. Choose components with low power dissipation where possible and perform regular maintenance to keep connections tight and corrosion-free.



What tools are essential for analyzing combination DC circuits?

Essential tools include a reliable multimeter for voltage/current/resistance checks, an oscilloscope for observing signal behavior, and circuit simulation software for modeling complex networks. Hand tools (wire strippers, soldering iron) and clear schematics complete a practical toolkit.



What role do fuses play in DC circuit protection?

Fuses provide simple, fast overcurrent protection by melting a fusible element when current exceeds its rating. They protect wiring and components from overheating. Selecting the correct fuse type and rating for the specific circuit is critical to ensure reliable protection without nuisance blows.



How can I troubleshoot intermittent issues in DC circuits?

For intermittent faults, start with a visual inspection for loose or corroded connections, then monitor voltages and currents under the conditions when the fault appears. Logging tools and an oscilloscope can capture transient events. Document the conditions and replicate them in a controlled way to isolate the problem.



What are the benefits of using digital circuit testers for DC circuits?

Digital testers deliver accurate, repeatable readings for voltage, current, and resistance. Features like data logging and auto-ranging help track intermittent issues and speed diagnostics. Clear displays and built-in safety features make them valuable for both bench testing and field troubleshooting.



Conclusion

Understanding how to analyze combination DC circuits is essential for safe, efficient industrial systems. By applying series/parallel reduction, Ohm’s and Kirchhoff’s Laws, and a structured troubleshooting process, you can design and maintain reliable circuits. Pairing that knowledge with correctly specified protection — such as Langir’s breakers and controls — reduces risk and keeps operations running smoothly. Explore our industrial protection products to find solutions tailored to your projects.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



DC circuit breakers protect electrical circuits from overloads and short circuits, keeping installations safe and reliable where direct current (DC) is used. This guide walks through common DC breaker types, their typical applications, and the technical differences that set DC protection apart from AC. It’s written for engineers, installers, and system designers who need clear, actionable guidance on selecting the right protection. We also summarize Langir Electric’s solutions and customization options to help you specify the right product for your project.



What is a DC Circuit Breaker and Why is it Essential?

A DC circuit breaker is a protective device that stops the flow of direct current when it detects an overload or a short circuit. Interrupting the current prevents equipment damage, reduces fire risk, and protects personnel. Because DC does not cross zero like AC, DC breakers require specific designs and operating methods to interrupt current safely and reliably.

Get a quote for custom DC circuit breakers from Langir



How Does a DC Circuit Breaker Protect Electrical Systems?

DC breakers monitor current and trip when they detect abnormal conditions. During an overload, they open the circuit to prevent overheating; during a short circuit, they isolate the fault quickly to limit damage. Properly selected breakers prevent cascading failures and keep systems running safely.

Recent studies highlight advanced methods for real-time DC fault interruption.



Solid-State DC Breaker for Microgrid Fault Protection

Demonstrates real-time interruption of DC faults using an active injection circuit. Low-voltage solid-state DC breakers can provide fast, reliable fault protection for isolated DC microgrid clusters.



Low-voltage solid-state DC breaker for fault protection applications in isolated DC microgrid cluster, MSS Danish, 2019



What Makes DC Circuit Protection Unique Compared to AC?

The main difference is that DC lacks the natural zero-crossing found in AC. Without that periodic zero, interrupting DC can produce sustained arcing, so DC breakers incorporate specialized arc-management features—magnetic blowout coils, arc chutes, and other measures—to extinguish arcs and safely break the circuit.

This need for effective arc extinction is well documented in arc-extinction research.



Magnetic Blow-Out for DC Arc Extinction

Direct current is harder to interrupt than AC because AC benefits from current-zero points. Magnetic blow-out devices are commonly used to extinguish DC arcs and improve interruption reliability.

Fundamental characteristics of arc extinction by magnetic blow-out at DC voltages (< 500V) II, 2015



What are the Main Types of DC Circuit Breakers?

DC circuit breakers come in several formats to match different voltages, currents, and environments. Choosing the right type depends on system size, fault levels, and installation constraints.



What are DC Miniature Circuit Breakers and Their Uses?

DC miniature circuit breakers (MCBs) are compact devices for low-voltage applications, commonly used in residential and light commercial systems. They’re easy to install and reliable for small circuits, but their interruption capability limits them to lower-voltage DC applications where fault currents are manageable.



How Do Molded Case Circuit Breakers Differ in DC Applications?

Molded case circuit breakers (MCCBs) are built for higher currents and voltages, making them appropriate for industrial DC systems. MCCBs offer greater breaking capacity and typically include enhanced arc-extinguishing features so they can handle the sustained currents and higher fault levels found in larger DC installations.



Where are DC Circuit Breakers Commonly Applied in Industry?

DC circuit breakers are used across many industries wherever DC power is present. They’re critical for protecting equipment, maintaining uptime, and meeting safety requirements.



Get a quote for custom DC circuit breakers from Langir

How Do DC Circuit Breakers Protect Solar Photovoltaic Systems?

In photovoltaic systems, DC breakers protect solar arrays, combiner boxes, and inverters from overloads and faults. Rapid isolation of faults helps prevent equipment damage and preserves system performance, which is essential for reliable energy production.



What Role Do DC Breakers Play in Electric Vehicle Charging Infrastructure?

DC breakers are essential in EV fast-charging stations to manage high charging currents and protect chargers and battery systems. Proper DC protection ensures safe operation, reduces downtime, and supports compliant, dependable charging infrastructure.



How Do AC and DC Circuit Breakers Differ?

Understanding the differences between AC and DC protection helps you choose the right device. The key distinctions are in how each type handles arc interruption and fault transients.



Why Can’t AC Circuit Breakers be Used for DC Circuits?

AC breakers rely on the AC waveform’s zero-crossings to help extinguish arcs. In DC systems, that zero-crossing is absent, so using AC-designed breakers can lead to prolonged arcing and potential equipment damage. For safe, reliable interruption of DC currents, purpose-built DC breakers are required.

The different fault behavior in DC systems means AC protection strategies often aren’t sufficient for DC grids.



DC Grid Fault Protection System Design

Protection schemes designed for AC power systems do not always translate to DC systems, because DC fault transients behave fundamentally differently. Effective DC protection requires purpose-built analysis and design.



Fault analysis and protection system design for DC grids, A Ukil, 2020



What are the Key Design Differences Between AC and DC Breakers?

Design differences focus on arc control and interruption methods. DC breakers commonly add magnetic blowouts, longer arc paths, and arc chutes to manage continuous current; AC breakers take advantage of waveform zero-crossings and can use simpler interruption mechanisms.



How Does Langir’s JB Series Enhance DC Circuit Breaker Performance?

Langir’s JB Series is engineered for dependable DC protection across industrial and commercial applications. The series integrates features aimed at safe interruption, compact installation, and operational reliability.



What Features Ensure Safety and Reliability in Langir’s DC Breakers?

Langir DC breakers include bidirectional current protection and a lockable OFF position for secure maintenance isolation. These design choices reduce operational risk and simplify safe servicing in demanding DC environments.



How Does Langir’s Customization Service Meet Industrial Needs?

Langir Electric offers customization options to adapt breakers to specific electrical, mechanical, and regulatory requirements. Tailored solutions help businesses meet unique operational needs and streamline system integration.



How to Select the Right DC Circuit Breaker for Your Application?

Choosing the right DC breaker requires matching the device to your system’s electrical and environmental conditions so it can protect reliably under real-world faults.

Get a quote for custom DC circuit breakers from Langir



What Technical Factors Should Guide DC Circuit Breaker Selection?

Key factors include system voltage and continuous current, peak and fault current levels, breaking capacity, environmental ratings (temperature, humidity, corrosion), and installation constraints. Compliance with applicable standards and coordination with upstream/downstream protection is also essential.



How Do Voltage, Current, and Breaking Capacity Influence Choice?

Voltage and current ratings determine the breaker’s normal operating range, while breaking capacity defines the maximum fault current the breaker can interrupt safely. Select a breaker with ratings and a safety margin that exceed your system’s maximum expected fault current to ensure reliable protection.



What is a DC Circuit Breaker | FAQs



What are the advantages of using DC circuit breakers in renewable energy systems?

DC breakers protect sensitive components like inverters and batteries, isolate faults quickly to prevent equipment damage, and are engineered to handle DC-specific interruption challenges—making them a better match than AC breakers for many renewable installations.



How do environmental conditions affect the performance of DC circuit breakers?

Temperature, humidity, dust, and corrosive atmospheres can reduce a breaker’s reliability and service life. Choose breakers with appropriate IP/enclosure ratings and materials for the environment, and follow manufacturer guidance for installations in harsh conditions.



What maintenance practices are recommended for DC circuit breakers?

Regular visual inspections, functional trip testing, cleaning and tightening of terminals, and following the manufacturer’s maintenance schedule keep breakers reliable. Address signs of wear, overheating, or corrosion promptly to avoid failures.



Can DC circuit breakers be used in residential applications?

Yes—DC breakers are commonly used in residential renewable systems such as rooftop solar arrays. Ensure the breaker’s type, voltage, and current ratings match the system and consult a qualified electrician for proper selection and installation.



What are the latest advancements in DC circuit breaker technology?

Advances include solid-state breakers with faster response and enhanced fault detection, and improved arc-extinction techniques such as magnetic blowout and active current injection. These developments increase reliability and reduce maintenance needs in demanding applications.



How do I determine the appropriate breaking capacity for a DC circuit breaker?

Calculate the maximum potential fault current for your system considering source impedance and configuration. Choose a breaker whose breaking capacity exceeds that value with an appropriate safety margin. If needed, consult an electrical engineer or the breaker manufacturer for accurate calculation guidance.



Conclusion

DC circuit breakers are a critical safety element for renewable-energy systems, EV charging, and other DC-powered installations. Understanding their unique requirements—especially arc management and breaking capacity—helps you specify the right device for reliable operation. For tailored DC protection solutions, explore Langir Electric’s product range and customization services to find the best fit for your project.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Knowing whether an AC circuit breaker can work in a DC system matters for safety and reliable protection. AC and DC behave differently, and those differences change how breakers interrupt current. This article walks through the risks of using AC breakers on DC, explains why purpose-built DC circuit breaker options are the safer choice, and outlines the factors to consider when choosing protection for your system. We’ll also touch on how Langir Electric supports customers with quality circuit protection solutions.



What Are the Fundamental Differences Between AC and DC Currents?

The main difference is how the current flows. AC (alternating current) reverses direction periodically; DC (direct current) flows in one steady direction. That simple contrast has big implications for how protection devices behave and how arcs form and are extinguished.

Get a quote for custom DC circuit breakers from Langir



How Does Current Flow Differ in AC Versus DC Systems?

AC alternates—typically at 50 or 60 Hz—making it easy to step voltages up and down for long-distance transmission. DC keeps a constant voltage and current, which is why batteries, solar strings, and many modern power electronics use it. Because the waveform behavior differs, a breaker’s interrupting method must match the type of current it’s protecting.



What Is the Role of Zero Crossing in AC Circuit Protection?

Zero crossing is the moment the AC waveform passes through zero volts. Breakers can interrupt current near that point, which helps extinguish arcs. DC has no natural zero crossing, so interrupting DC current is more challenging and increases the chance of sustained arcing if the breaker isn’t designed for DC.



Why Are AC Circuit Breakers Unsuitable for DC Applications?

AC breakers are engineered around AC waveform behavior. When you move those breakers into DC circuits, several design assumptions no longer apply—raising safety and reliability concerns.



What Is the Zero-Crossing Problem Affecting AC Breakers in DC Circuits?

AC breakers rely on the waveform’s zero-voltage moments to help stop the current. With DC, that assist is missing, so an AC breaker may struggle to interrupt the circuit cleanly. The result can be prolonged arcing, overheating, and ultimately failure of the breaker or downstream equipment.

Research and field experience both show why interrupting DC is more demanding than interrupting AC.



Why DC Current Interruption is Harder Than AC

DC current is harder to interrupt because AC naturally reaches current-zero; to break DC arcs, methods like magnetic blow-out are commonly used to drive and extinguish the arc.

Fundamental characteristics of arc extinction by magnetic blow-out at DC voltages (< 500V) II, 2015



What Risks Arise from Using AC Breakers in DC Systems?



1. Equipment Damage: Failure to clear DC faults can cause excessive heat and damage sensitive components.
2. Fire Hazards: Persistent arcing raises the risk of ignition and fire.
3. System Failure: Inadequate protection can cascade into larger outages, costly repairs, and downtime.

Those risks make it clear: use protection rated for the current type in your system.



How Do DC Circuit Breakers Work to Ensure Electrical Safety?

DC circuit breakers are designed to handle continuous current flow and the tougher arc conditions it creates. They use specific features to control and extinguish arcs reliably.



Get a quote for custom DC circuit breakers from Langir

What Specialized Arc Extinguishing Mechanisms Are Employed in DC Breakers?



• Magnetic Blowout: A magnetic field stretches and pushes the arc into arc chutes so it cools and extinguishes safely.
• Air Gap Extinguishing: Larger contact separation increases the dielectric strength needed to sustain an arc.
• Resistive Elements: Snubbers or resistive components absorb energy and reduce arc intensity during interruption.

These techniques let DC breakers interrupt fault currents without the zero-crossing advantage AC breakers rely on.



Which Types of DC Circuit Breakers Are Available and Their Applications?

DC breakers come in several forms for different voltages and uses. Typical categories include:



• Miniature Circuit Breakers (MCBs): Suited for low-voltage setups—common in residential solar and small battery systems.
• Solar Circuit Breakers: Purpose-built for photovoltaic arrays and related DC sources.
• High-Voltage DC Breakers: Designed for heavy industrial and transport applications, such as traction systems and utility-scale renewables.

Choosing the right type depends on system voltage, fault levels and installation constraints.



What Are the Key Factors in Selecting the Right DC Circuit Breaker?

Selecting the correct DC breaker requires matching device ratings and performance to your system’s actual conditions.



How Do Voltage, Current, and Breaking Capacity Influence DC Breaker Selection?

When picking a DC breaker, verify these essentials:



1. Voltage Rating: The breaker must withstand the system’s maximum voltage.
2. Current Rating: Choose a rating that supports normal load without nuisance trips.
3. Breaking Capacity: Confirm the breaker can interrupt the maximum expected fault current safely.

Standards and design guides emphasize matching breaker selection to operating conditions and voltage-limiting behavior in DC systems.



DC Circuit Breaker Selection & Voltage Limiting

Selection of DCCBs depends on actual working conditions; reviewing voltage and current absorption principles helps illustrate how voltage is limited during interruptions.

DC circuit breaker evolution, design, and analysis, M Moradian, 2023

Verify ratings, consider environmental and load factors, and consult manufacturer data to ensure safe operation.



Why Are Polarity and Trip Curves Important in DC Circuit Protection?

Polarity matters for devices with directional components or electronics—install them as specified. Trip curves define how quickly a breaker reacts to overcurrent: choosing the right curve prevents unnecessary trips while still protecting equipment from faults.



How Does Langir Provide Expertise in DC Circuit Protection and Custom Switches?

Langir Electric manufactures a range of circuit protection products with an emphasis on quality and practical performance. We design and test devices to meet real-world requirements across renewable, industrial, and transport applications.



What Features and Benefits Do Langir DC Circuit Breakers Offer for Renewable Energy?

Langir’s DC breakers are engineered with features that support renewable installations. Key benefits include:



• High Breaking Capacity: Reliable interruption in high-current fault scenarios.
• Compact Design: Easier integration where panel space is limited.
• Robust Construction: Built to handle harsh environments for long service life.

Those design choices make our breakers a practical fit for solar and other DC-heavy systems.



How Can Customers Access Custom Push Button Switches and Bulk Order Services?

Langir Electric also provides custom push button switches and supports bulk orders. Customers can use the website to inquire about bulk orders and customization options and get guidance on specifications, lead times, and pricing. We work with buyers to tailor solutions to their projects.



Can AC Circuit Breakers Be Used for DC | FAQs

Get a quote for custom DC circuit breakers from Langir



What are the main safety concerns when using AC circuit breakers in DC applications?

The main issues are sustained arcing and failed interruption. An AC breaker may not clear a DC fault cleanly, which increases heat, fire risk, and potential equipment damage. Use breakers rated for DC to avoid these hazards.



How can I determine the right DC circuit breaker for my solar power system?

Match the breaker’s voltage rating to your system’s maximum PV string voltage, pick a current rating that covers expected loads, and ensure the breaking capacity handles possible fault currents. Look for devices tested for PV use and consult a qualified installer or Langir’s technical team if you need help.



What is the lifespan of a DC circuit breaker compared to an AC circuit breaker?

Lifespan depends on design and operating conditions. DC breakers are built to handle tougher arc conditions, but real-world longevity depends on load cycles, fault incidents, and maintenance. Regular inspections and correct application will maximize service life for either type.



Are there any specific maintenance requirements for DC circuit breakers?

Yes. Inspect contacts for wear, check for overheating or deformation, keep mechanisms clean of dust and debris, and test trip functions periodically per the manufacturer’s guidance. Proper maintenance keeps breakers reliable and extends service life.



What are the advantages of using specialized DC circuit breakers over standard AC breakers?

Specialized DC breakers use arc control methods—magnetic blowout, extended air gaps, and resistive elements—that let them interrupt DC safely. They offer better protection against equipment damage and fire risk in DC systems compared with AC-rated devices.



Can I use a DC circuit breaker in an AC application?

It’s not recommended to substitute a DC breaker for an AC application unless the device is explicitly rated for AC use. DC breakers are optimized for continuous-current interruption and may not perform as intended on AC systems unless certified for both.



Can an AC Circuit Breaker Be Used Safely in a DC System?

No. Using an AC-rated breaker in a DC circuit is unsafe in most cases because it won’t address the absence of zero crossing and the higher arcing risk. Use breakers specified for DC to ensure reliable protection.



What Happens If an AC Breaker Is Applied to a DC Circuit?

An AC breaker in a DC circuit may fail to interrupt fault current, overheat, sustain long-lasting arcs, and ultimately cause equipment damage or fire. Misapplication creates serious safety and operational risks.



Conclusion

Understanding the limits of AC breakers in DC environments is essential for safe system design. Direct current demands breakers built to manage continuous conduction and tougher arcing. Choose devices with appropriate voltage, current and breaking ratings—and rely on tested, purpose-built DC protection for renewable and battery-backed systems. Explore Langir’s DC circuit breakers to find solutions that meet your technical and reliability requirements.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Whether a DC circuit breaker can be used in an AC circuit is more than a technical question — it affects safety, equipment life, and code compliance. Understanding how AC and DC breakers differ will help installers, engineers, and maintenance teams choose the right protection for each application. Below we explain the key differences, the hazards of mixing breaker types, and practical selection guidance. We also highlight Langir’s circuit protection products and customization services so you can find the right solution for your project.



What Are the Fundamental Differences Between AC and DC Circuit Breakers?

Both AC and DC breakers protect circuits from overloads and short circuits, but they are designed around different electrical behaviors. The way current flows — alternating versus direct — dictates the internal mechanisms, ratings, and interruption methods each breaker must use.

Get a quote for custom DC circuit breakers from Langir

In practice, breakers are usually classified by the type of current and voltage they’re rated for; however, published literature can be inconsistent about where application boundaries fall.



Classifying AC & DC Circuit Breakers for Power Systems

Circuit breakers are commonly classified by system type — direct current (DC) or alternating current (AC) — with voltage rating as a primary differentiator. Reviewed literature often does not clearly separate specific application limits for DC versus AC breakers across power networks.



Applications of various types of circuit breakers in electrical power systems: a review, PI Obi, 2021



How Do AC and DC Currents Differ in Electrical Systems?

AC (alternating current) reverses direction periodically, which provides natural zero crossings that help extinguish arcs. That makes AC well suited for bulk transmission and many building systems. DC (direct current) flows in a single direction and is common in batteries, solar arrays, and many electronic systems. Those fundamental differences shape component selection, protection strategies, and breaker design.



What Are the Distinct Arc Extinguishing Mechanisms in AC vs. DC Breakers?

AC breakers rely on the current’s zero-crossing to help interrupt arcs; DC has no such natural interruption, so DC breakers must use engineered solutions — e.g., magnetic blowouts, arc chutes, resistive elements, or hybrid techniques — to force arc extinction. Choosing the wrong type can compromise fault clearing and safety.

Because DC lacks a natural zero crossing, arc interruption is a key engineering challenge and requires different design approaches than AC.



DC Arc Extinguishing Challenges: No Zero Crossing

The absence of a zero-crossing point for DC arc current makes extinguishing the arc more difficult.



Investigation on arc behavior during arc motion in air DC circuit breaker, F Yang, 2013



Why Is Using a DC Circuit Breaker for AC Circuits Risky?

Installing a DC-rated breaker in an AC circuit can introduce operational and safety risks because the device may not be engineered to interrupt alternating waveforms or meet relevant AC ratings. These mismatches can lead to unreliable protection and increased hazard potential.



What Safety Hazards Arise from Misusing DC Breakers in AC Systems?

Misapplying DC breakers on AC systems can cause delayed fault clearing, sustained arcing, overheating, and in extreme cases, electrical fires. Since the breaker’s internal arc-control and timing are optimized for DC behavior, it may not interrupt AC faults as expected, creating unsafe conditions for people and equipment.



How Can Equipment Damage and Fire Risks Occur Due to Improper Breaker Use?

If a breaker fails to clear an overload or short promptly, conductors and equipment can overheat, degrading insulation and components and potentially igniting nearby materials. Persistent arcing can further damage contacts and enclosures. Selecting the correct breaker type and rating is essential to prevent these outcomes.



How to Choose the Right Circuit Breaker for Industrial and Solar Applications?

Picking the right breaker requires matching the device to the system’s electrical characteristics and operating environment. Consider voltage and current ratings, interruption capacity, DC/AC designation, environmental and mechanical constraints, and coordination with upstream and downstream protection.



Get a quote for custom DC circuit breakers from Langir

What Factors Should Guide Circuit Breaker Selection for AC and DC?

Key selection factors include the system voltage, nominal and fault current levels, breaking capacity (kA or kAic), trip characteristics, ambient temperature and derating, mounting and bus compatibility, and whether the breaker is certified for AC, DC, or both. For DC systems, pay special attention to the DC breaking rating and arc-control features.



How Do Standards Like IEC 60947-2 Influence Breaker Compliance?

Standards such as IEC 60947-2 set the performance, testing, and marking requirements for low-voltage circuit breakers. Compliance demonstrates a product has been tested to operate safely under specified conditions. Always confirm that the breaker’s certifications and ratings match your application and local codes.



What Are Langir’s DC Circuit Breakers and Their Applications?

Langir supplies a range of DC circuit breakers engineered for renewable energy, industrial power, and other DC-heavy applications. Our focus is on reliable interruption, clear ratings, and practical installation features that simplify system design and operation.



What Features Define Langir’s JB Series DC Circuit Breakers?

The JB Series combines a rugged mechanical design with high interrupting capacity and international compliance. These breakers deliver overload and short-circuit protection, clear DC ratings, and form factors that integrate easily into solar arrays, battery systems, and industrial DC panels.



Which Industrial and Renewable Energy Systems Benefit from Langir’s DC Breakers?

Langir’s DC breakers are well suited to solar photovoltaic arrays, energy storage systems, EV charging stations, and DC bus applications in manufacturing. Wherever reliable DC fault interruption is required, properly rated Langir breakers help protect equipment and maintain uptime.



How Does Langir Support Custom Circuit Protection and Switch Solutions?

We offer tailored circuit protection and switching solutions to meet project-specific needs. From product selection to OEM customization, Langir works with clients to deliver components that fit technical and branding requirements.



What Customization Services Does Langir Offer for Circuit Protection Products?

Langir provides OEM design support plus customization for color, labeling, packaging, and product markings. These options let customers streamline installation, meet branding guidelines, and ensure components match system requirements.



How Can Bulk Purchasing and OEM Services Benefit Industrial Clients?

Bulk ordering and OEM services reduce unit cost, simplify procurement, and accelerate deployment for large projects. Langir’s customization and production capabilities help industrial clients scale faster while keeping quality and compliance consistent.



What Are Common Questions About Using DC Circuit Breakers for AC?

Below are answers to the most frequent concerns we hear about mixing breaker types and choosing the right protection for AC and DC systems.



Can I Use an AC Circuit Breaker in a DC System?

No — AC breakers are not generally suitable for DC systems. AC devices rely on the waveform’s zero-crossing to assist arc interruption; without that, an AC breaker may not extinguish the arc reliably. Always use breakers specifically rated and certified for DC when protecting DC circuits.

That guidance reflects a fundamental technical limit: AC breakers assume a natural zero crossing that does not exist in direct current applications.



Why AC Breakers Fail in DC: No Natural Zero Crossing

Traditional AC breakers are unsuitable for DC use because DC currents do not have the natural zero crossing present in AC systems.



Comparative analysis of hybrid DC breaker and assembly HVDC breaker, B Mitra, 2017



Why Are DC Circuit Breakers More Expensive Than AC Breakers?

DC breakers typically cost more because they require additional engineering and materials to manage continuous current and extinguish arcs without a zero-crossing. Specialized designs, more rigorous testing, and higher-performance components all add to the final price.



Can You Use a DC Circuit Breaker for AC | FAQs



Get a quote for custom DC circuit breakers from Langir

What are the potential consequences of using a DC circuit breaker in an AC circuit?

Using a DC breaker on AC can lead to unreliable fault clearing, sustained arcing, overheating, and increased fire risk. Equipment may be damaged and installations can fall out of compliance with standards. The safe choice is a breaker rated for the circuit’s current type and voltage.



How can I identify the right circuit breaker for my specific application?

Match the breaker to the circuit’s type (AC or DC), system voltage, expected load, and maximum fault current. Check the breaker’s interrupting rating, trip curve, and certifications. When unsure, consult the manufacturer’s datasheets or a qualified electrician to verify correct selection and coordination.



What are the common signs that a circuit breaker may be failing?

Warning signs include frequent or unexplained tripping, buzzing or crackling sounds, warm or hot enclosures, visible discoloration or burn marks, and a burning smell. If you notice any of these, de-energize the circuit and have a qualified technician inspect or replace the breaker.



Are there specific regulations governing the use of circuit breakers in different applications?

Yes. International and regional standards (for example, IEC standards and the NEC in the U.S.) set requirements for ratings, testing, and installation. Local electrical codes may impose additional rules. Always verify that the selected breaker meets applicable standards for your jurisdiction and application.



What maintenance practices should be followed for circuit breakers?

Regular maintenance includes visual inspections, cleaning of dust and debris, checking for loose connections, thermal and operational testing, and exercising trip mechanisms per the manufacturer’s schedule. Proper maintenance preserves reliability and helps detect problems before they become hazards.



Can circuit breakers be repaired, or should they be replaced?

Because breakers are safety devices, replacement is typically the preferred option for significant faults or wear. Some minor issues — like resetting a tripped device — can be addressed on site, but damaged or degraded breakers should be replaced and evaluated by a qualified professional to ensure safety.



Conclusion

Selecting the correct breaker for AC or DC is essential for safety, reliability, and compliance. Use breakers rated for the circuit type, verify interrupting capacity and standards compliance, and follow proper installation and maintenance practices. For project-specific guidance or custom protection solutions, explore Langir’s product range and contact our team to find the right breaker for your system.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Choosing the right circuit breaker matters for safety and uptime, whether you work on a home panel, a commercial installation, or an industrial power system. This guide explains the practical differences between AC and DC breakers, how each type works, and where they belong. AC breakers are built for alternating current and benefit from the waveform’s natural zero-crossings. DC breakers must handle steady current and use specialized arc-control features. We cover operation, design trade-offs, and how those differences affect the best choice for specific applications.

Research supports grouping breakers by voltage and current type to guide correct selection in power systems.



AC vs. DC Circuit Breaker Classification & Applications

A review of circuit breaker types used in power transmission and distribution. The paper shows classifying breakers by voltage rating — and by AC or DC application — is practical. It notes DC solutions (mechanical, solid-state, hybrid) are common in DC systems including HVDC, while AC breakers are produced for both high- and low-voltage networks.



Applications of various types of circuit breakers in electrical power systems: a review, PI Obi, 2021



What Is an AC Circuit Breaker and How Does It Work?

An AC circuit breaker protects a circuit by stopping alternating current when it detects a fault like an overload or a short. Most AC breakers use thermal and/or electromagnetic trip elements that react to excess current and open the circuit. Because the AC waveform crosses zero twice each cycle, breakers can use that moment to extinguish arcs more easily, which simplifies arc control and helps protect wiring and equipment.



Get a quote for custom DC circuit breakers from Langir

What Are the Typical Applications of AC Circuit Breakers?



1. Residential Settings: Protect wiring, outlets, and household appliances from overloads and short circuits.
2. Commercial Buildings: Defend panels, lighting circuits, and HVAC equipment in offices and retail spaces.
3. Industrial Facilities: Protect motors, control circuits, and production lines from electrical faults.

These common uses show why AC breakers are the default choice where alternating current is the system standard.



How Does Zero-Crossing Arc Extinguishing Function in AC Breakers?

Zero-crossing arc extinguishing takes advantage of the AC waveform dropping to zero volts twice per cycle. By interrupting near those points, the breaker reduces arc energy and makes it easier to put the arc out quickly. That natural interruption window lowers stress on contacts and insulating materials, improving breaker longevity and safety in AC installations.



What Is a DC Circuit Breaker and What Makes It Unique?

A DC circuit breaker is built to interrupt steady direct current. Because DC doesn’t cross zero, arcs are harder to extinguish and can persist. DC breakers therefore use extra measures — like magnetic blowout coils, arc chutes, or electronic switching — to stretch, cool, and break the arc reliably. These features let DC breakers handle continuous current safely in solar, EV, and industrial systems.



What Are Common DC Circuit Breaker Applications Including Langir’s JB Series?



1. Solar Power Systems: Protect PV strings, combiner boxes, and inverter inputs from overcurrent.
2. Electric Vehicle Charging Stations: Provide safe disconnection and fault protection during charging.
3. Industrial Equipment: Safeguard DC-powered drives, control systems, and specialty machinery.

Langir Electric’s JB Series is engineered for these DC environments, delivering reliable interruption and robust arc control for demanding applications.



How Do Magnetic Blowout Coils and Arc Chutes Extinguish Arcs in DC Breakers?

Magnetic blowout coils create a magnetic field that pulls and stretches the arc, increasing its length and lowering its current density until it can be quenched. Arc chutes cool and split the arc into smaller segments inside a controlled chamber so it loses strength quickly. Used together, these methods let DC breakers interrupt faults that would otherwise sustain dangerous arcs.



What Are the Core Design Differences Between AC and DC Circuit Breakers?

Design differences reflect how each current type behaves. AC breakers rely on waveform zero-crossings to help extinguish arcs; DC breakers need dedicated arc-control hardware and often stronger insulation. Those differences affect contact design, spacing, insulation levels, and overall mechanical layout.



Design Feature	AC Circuit Breaker	DC Circuit Breaker
Arc Extinguishing	Zero-crossing mechanism	Magnetic blowout coils and arc chutes
Contact Spacing	Generally closer	Requires wider spacing to manage arcs
Insulation Requirements	Standard insulation	Higher insulation levels due to continuous current and higher voltage



How Do Contact Spacing and Insulation Vary Between AC and DC Breakers?

AC breakers can use tighter contact spacing because the waveform gives natural interruption points. DC breakers need wider gaps and more insulation to stop sustained arcs and prevent flashovers. As voltage and current rise, designers increase creepage distances and dielectric strength to keep installations safe.



Why Is DC Breaker Design More Complex Than AC Breakers?

DC breaker design must solve persistent-arc problems that AC breakers usually avoid. That pushes engineers to optimize contact materials, spacing, magnetic blowout geometry, arc-chute layout, and insulation. The result is a more intricate design process aimed at safe, repeatable interruption under continuous current.

Recent studies emphasize the detailed energy-absorption and arc-management strategies required across breaker designs.



AC vs. DC Circuit Breaker Design & Energy Absorption

The paper discusses how different breaker designs handle the energy released during fault interruption. While AC mechanical breakers protect AC circuits effectively, alternative designs and strategies are important for absorbing and managing released energy in other systems.

DC circuit breaker evolution, design, and analysis, M Moradian, 2023



Why Are DC Arcs Harder to Interrupt Than AC Arcs?

DC arcs are harder to interrupt because the current is continuous and lacks the natural zero points of AC. Without those brief zeros, an arc can persist until it’s physically lengthened, cooled, or suppressed by magnetic or mechanical means. That reality drives the special features you see in DC breakers.

Get a quote for custom DC circuit breakers from Langir

The greater difficulty of interrupting DC compared with AC is well documented in arc-extinction research.



DC Arc Interruption Challenges vs. AC Current-Zero

DC current is harder to interrupt because AC has a current-zero each cycle. For DC voltages (below 500V in this study), magnetic blow-out is commonly used to extinguish arcs.

Fundamental characteristics of arc extinction by magnetic blow-out at DC voltages (< 500V) II, 2015



What Challenges Does Continuous DC Current Pose for Arc Extinguishing?



1. Sustained Arcing: Arcs can burn as long as current flows, so breakers need stronger suppression.
2. Higher Energy Levels: DC faults can carry more steady energy, increasing damage risk if not cleared quickly.
3. Increased Heat Generation: Longer arcs produce more heat, stressing contacts and insulation.

These factors make robust arc control and reliable interruption essential in DC systems.



How Do Arc Suppression Techniques Differ for AC and DC Systems?

AC systems rely heavily on the waveform’s zero crossings for arc suppression, while DC systems use mechanical and magnetic measures — such as blowout coils, arc chutes, and segmented contacts — or electronic breakers that switch rapidly. Choosing the right technique depends on voltage, current, and the application’s safety requirements.



Can AC and DC Circuit Breakers Be Used Interchangeably?

Although both types protect circuits, AC and DC breakers are not interchangeable in most cases. Each is engineered for the electrical behavior it will face; using the wrong type risks ineffective arc control, insulation failure, or unsafe operation.



What Are the Safety Risks of Using AC Breakers in DC Circuits?



1. Inadequate Arc Management: AC breakers often can’t extinguish DC arcs, leading to prolonged arcing and damage.
2. Insulation Failure: AC-rated insulation may not tolerate higher or sustained DC voltages.
3. Increased Risk of Fire: Persistent arcing and overheating raise the chance of fires.

Those risks show why selecting a breaker rated for the circuit’s current type and voltage is critical.



How Does Interchangeability Affect Reliability and Equipment Protection?

Swapping AC and DC breakers can reduce reliability and increase maintenance or replacement costs. An AC breaker used on DC may fail prematurely or allow unsafe arcs; a DC breaker used on AC can be overbuilt and more expensive than necessary. Match the breaker to application needs to protect equipment and budgets.



How Do Application Differences Influence AC vs DC Circuit Breaker Selection?

Application needs — like expected currents, voltage, and the source type — drive breaker selection. Understand the operating environment and fault scenarios to pick the right technology and rating.



Get a quote for custom DC circuit breakers from Langir

Which Circuit Breakers Are Preferred for Residential and Commercial AC Systems?

For homes and many commercial sites, miniature circuit breakers (MCBs) are common because they combine compact size with reliable protection against overloads and short circuits. For added safety, commercial systems may use MCBs alongside residual current devices (RCDs) to guard against ground faults.



Why Are DC Breakers Essential for Solar PV, EV Charging, and Industrial Systems?

Solar PV, EV charging, and many industrial systems generate or use continuous DC. DC breakers are designed to interrupt steady currents safely and to manage the higher insulation and arc-control requirements those systems need. That makes them indispensable for protecting equipment and personnel in DC environments.

Different breaker types play distinct roles across systems. Base your choice on current type, voltage rating, and environmental or safety requirements. For tailored advice or to discuss specific project needs, please contact us.



Application	Preferred Circuit Breaker Type	Key Features
Residential AC	Miniature Circuit Breaker (MCB)	Compact, effective overload protection
Commercial AC	MCB or Residual Current Device (RCD)	Enhanced safety features, ground fault protection
Solar PV	DC Circuit Breaker	Designed for high voltage and continuous current
EV Charging	DC Circuit Breaker	Fast response to overloads, reliable performance
Industrial	DC Circuit Breaker	Robust design for heavy-duty applications



AC vs DC Circuit Breakers | FAQs



What are the main differences in safety features between AC and DC circuit breakers?

AC breakers often include ground-fault protection and standard overload trips suited to alternating current. DC breakers focus on preventing and extinguishing sustained arcs, using features like magnetic blowout coils, arc chutes, or solid-state interruption. Each approach addresses the distinct hazards of the current type to keep systems safe.



How do environmental factors influence the choice between AC and DC circuit breakers?

Temperature, humidity, dust, and corrosive atmospheres affect breaker performance. AC breakers are typically designed for a broad range of conditions, while DC breakers may need extra enclosures, coatings, or IP-rated housings to protect arc-control components and ensure long-term reliability in harsh environments.



What maintenance practices are recommended for AC and DC circuit breakers?

Regular inspections and preventive maintenance extend life and reliability. For AC breakers, check trip mechanisms, contacts, and signs of wear. For DC breakers, add checks of arc-control parts, contact spacing, and insulation condition. A scheduled maintenance plan helps catch wear before it leads to failures.



Can circuit breakers be retrofitted for different applications?

Some breakers can be adapted, but converting between AC and DC use is rarely advisable. Retrofitting often requires significant changes to insulation, contact geometry, and arc-control systems. In most cases it’s safer and more cost-effective to install a breaker designed for the specific application.



What role do circuit breakers play in renewable energy systems?

Breakers protect inverters, string connections, and downstream equipment from overloads and short circuits. In solar systems, DC breakers are especially important at the PV side to manage continuous current and arc risk, while AC breakers protect inverter outputs and building circuits.



How do voltage ratings affect the selection of circuit breakers?

Voltage rating determines the maximum voltage the breaker can safely interrupt. AC breakers commonly match household and commercial voltages (e.g., 120V, 240V), while DC breakers may require higher ratings for PV, battery, or HVDC systems. Choosing the correct voltage rating prevents insulation breakdown and ensures safe interruption.



What advancements are being made in circuit breaker technology?

Innovations include smart breakers with remote monitoring and control, improved contact materials, and hybrid designs that combine mechanical and solid-state interruption for faster, cleaner breaks. Advances in digital trip units and arc-suppression methods are improving safety and diagnostics across both AC and DC products.



Conclusion

Knowing the differences between AC and DC circuit breakers helps you pick the right protection for any system. Each type has strengths tailored to its current form — AC breakers take advantage of waveform zeros, while DC breakers include dedicated arc-control and insulation features. Choose breakers that match your voltage, current type, and operating environment to maximize safety and reliability. For product recommendations or technical support, please contact us.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]
