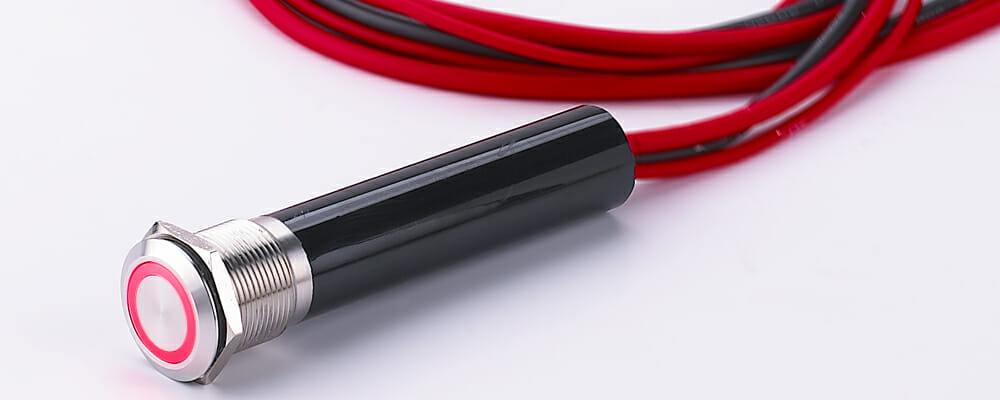

High Current Anti-vandal switch for Marine and Automotive

[/vc_column_text][vc_row_inner][vc_column_inner][vc_single_image image=”41″ img_size=”1200×400″ alignment=”center”][/vc_column_inner][/vc_row_inner][vc_column_text]19mm diameter panel cutout, Max. rating 21A24VDC, Long life, High reliability, Anti-Vandal IK09/ Sealed IP68, Dot, Ring or Power symbol illumination available, Multiple actuator options, Simple installation, Efficient design, Marine/ Automotive[/vc_column_text][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]

Features:

[/vc_column_text][vc_column_text]

• 19mm diameter panel cutout
• Variety LED option
• Dot, ring or power symbol illumination available
• Multiple actuator options
• Pilot indicator option
• IP65 rated,
• Momentary Off-(On), Latching Off-On
• Simple installation
• Efficient design
• Marine/ Automotive

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Specifications

[/vc_column_text][vc_column_text]

• Electrical Rating: 21A, 24VDC
• Mechanical Life: 1,000,000 Cycles
• Electrical Life: 50,000 Cycles
• Contact Resistance: 50mΩ Max.
• Insulation Resistance: 1000 MΩ Min.
• Dielectric Strength: 2,000VAC
• Operating/Storage Temperature: -20°C to 55°C
• Travel: 1.50mm
• Moisture Protection: IP65
• Actuation Force: 4N
• Panel Thickness: 1-11mm
• Mounting Nut Torque: 5-14Nm

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text][/vc_column_text][vc_column_text] DownLoad(1MB)[/vc_column_text][vc_zigzag]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text]

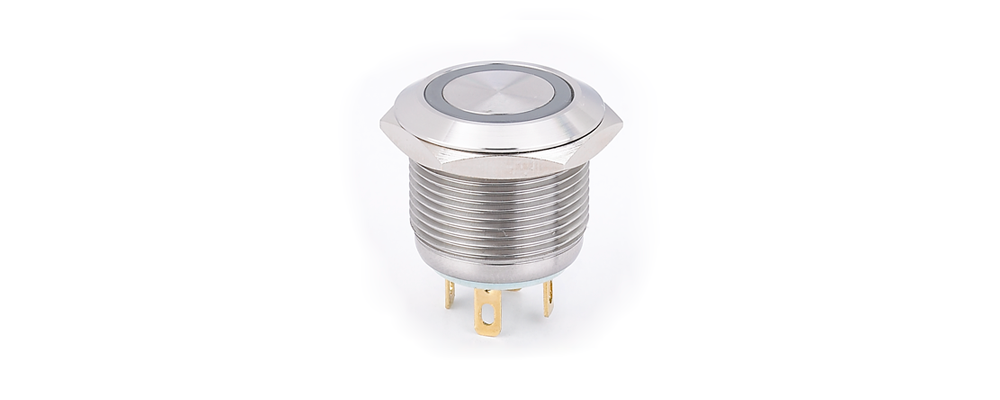

Economy Type of 19mm Anti Vandal Switches

[/vc_column_text][vc_column_text]This product shell can be made of stainless steel and aluminum alloy material can effectively prevent product damage by external forces, waterproof pole IP65, anti damage grade IK09, the surface of the product easy to clean.[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text][/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]

Order Code:

[/vc_column_text][vc_column_text][/vc_column_text][vc_column_text]

Features:

[/vc_column_text][vc_column_text]

• Save cost approx 40% than same series
• Stainless steel – available with LED illumination and engraving
• IP67 Dust and water resistant, Sea-water and detergent resistant

[/vc_column_text][vc_column_text] DownLoad(1MB)[/vc_column_text][vc_zigzag]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text]

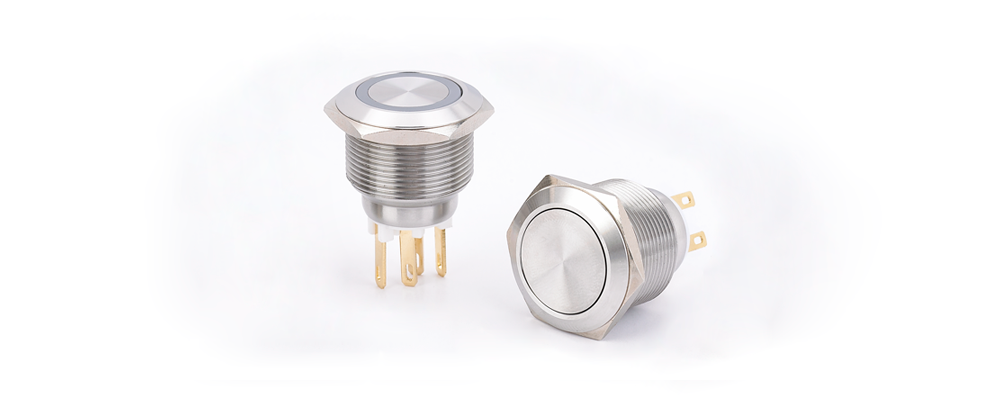

Micro-trip of 22mm Anti Vandal Switches

[/vc_column_text][vc_column_text]This product shell can be made of stainless steel, brass and aluminum alloy material can effectively prevent product damage by external forces, waterproof pole IP65, anti damage grade IK09, the surface of the product easy to clean.[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text][/vc_column_text][vc_separator][/vc_column_inner][/vc_row_inner][vc_column_text]

L22A Order Code:

[/vc_column_text][vc_column_text][/vc_column_text][vc_zigzag][vc_column_text]

L22M Order Code:

[/vc_column_text][vc_column_text][/vc_column_text][vc_zigzag]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text][/vc_column_text][vc_column_text]

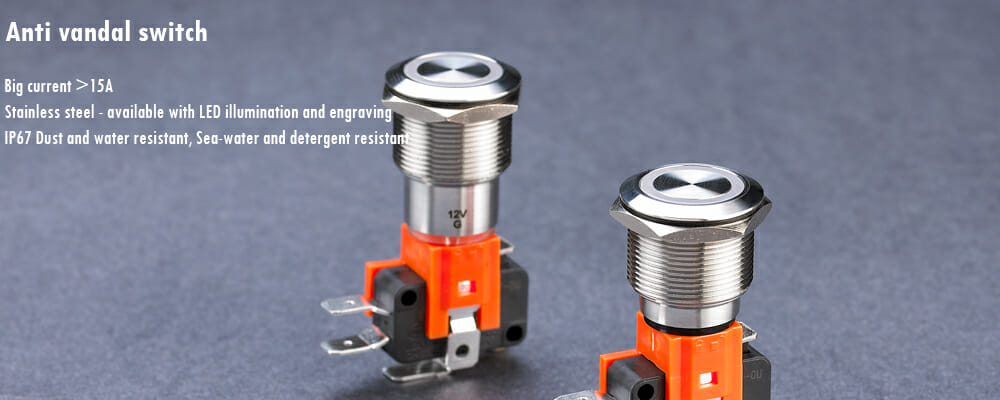

Big Current Anti Vandal Switches >15A

This product shell can be made of stainless steel, brass and aluminum alloy material can effectively prevent product damage by external forces, waterproof pole IP65, anti damage grade IK09, the surface of the product easy to clean.

Features:

• Big range bushing diameters(19~25mm)
• Stainless steel – available with LED illumination and engraving
• IP67 Dust and water resistant, Sea-water and detergent resistant

[/vc_column_text][vc_column_text]L19B Big current anti vandal switch[/vc_column_text][vc_column_text][/vc_column_text][vc_column_text][/vc_column_text][vc_column_text]L22B High current anti vandal switch[/vc_column_text][vc_column_text][/vc_column_text][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]
