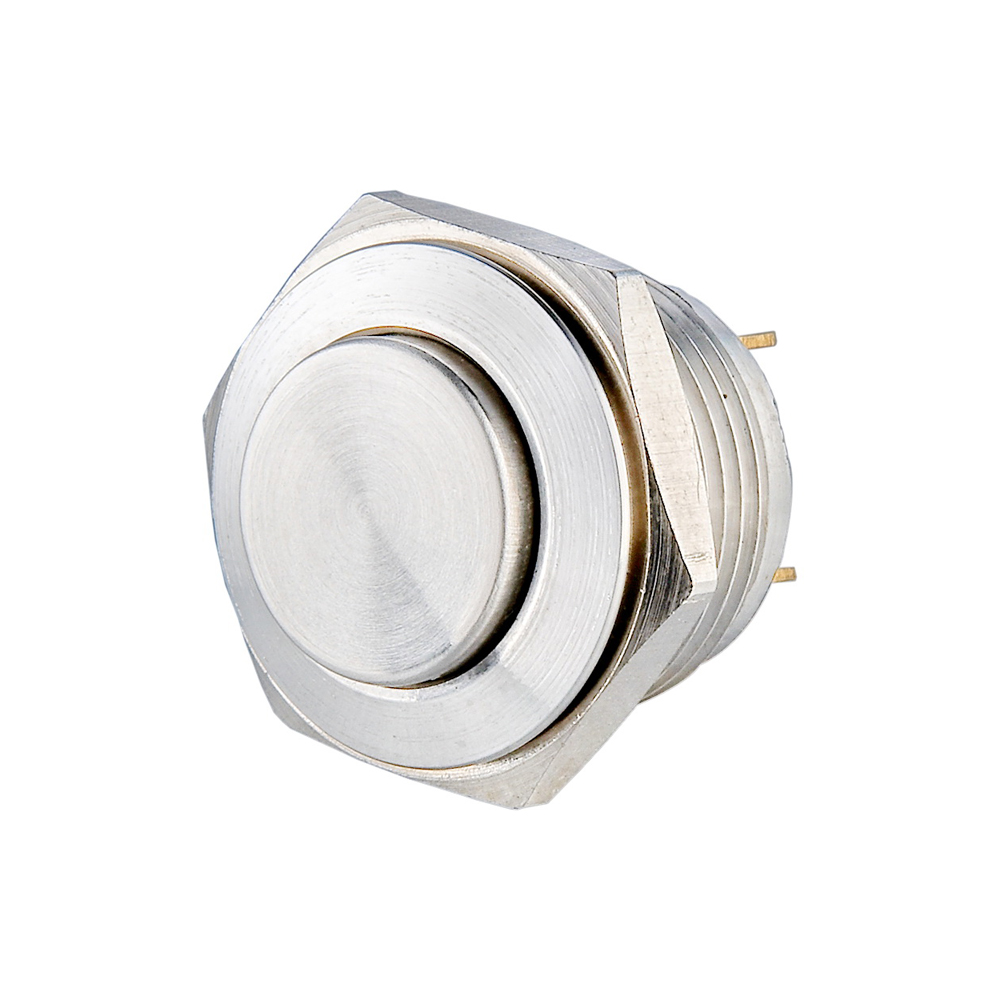

V16 Sealed, Anti-vandal switch

[vc_row][vc_column][vc_custom_heading text=”V16 Anti vandal switches” font_container=”tag:h2|text_align:left|color:%23000000″ use_theme_fonts=”yes”][vc_row_inner][vc_column_inner width=”2/3″][vc_column_text]The V16 Series sealed anti-vandal switch is vandal and water resistant to an IP65 ingress protection rating. This anti-vandal switch has a long life expectancy and is meant for mounting in a panel cutout sized of 16mm in diameter.

The V16 Series water resistant switch offers a single-pole, Off-(On) circuit configuration and your choice of domed, flat, or high actuator options. This anti-vandal switch is also available with a black anodized finish option, along with four other attractive finishes.[/vc_column_text][vc_column_text]

• IP65 rated for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole, Off-(On) circuit
• Solder and screw terminal options available

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”8922″ img_size=”full” alignment=”center”][vc_custom_heading text=”Brochure” font_container=”tag:h2|font_size:18|text_align:center|color:%23f19901″ use_theme_fonts=”yes” link=”url:https%3A%2F%2Fwww.langir.com%2Fwp-content%2Fuploads%2F2019%2F04%2Fv16-anti-vandal-switch.pdf|title:Brochure|target:_blank”][/vc_column_inner][/vc_row_inner][vc_column_text]Applications for this sealed, anti-vandal switch include:[/vc_column_text][vc_column_text]

• Kiosks
• Ticket dispensers
• Industrial-type applications

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Functions

[/vc_column_text][vc_column_text][/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text]

Order Code

[/vc_column_text][vc_column_text][/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text]

Actuator Options

[/vc_column_text][vc_column_text][/vc_column_text][vc_column_text]

Technical Data

[/vc_column_text][vc_column_text]

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Descriptions/ Panel cutout

[/vc_column_text][vc_column_text][/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Dimension

[/vc_column_text][vc_column_text][/vc_column_text][vc_column_text]

Solder terminal

[/vc_column_text][vc_column_text][/vc_column_text][vc_column_text]

Screw terminal

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][vc_tta_accordion c_icon=”” active_section=”1″ no_fill=”true” collapsible_all=”true” title=”FAQs”][vc_tta_section title=”What core features make the Langir 16mm vandal resistant switch stand out?” tab_id=”1753111031798-58ecd092-9dd5″][vc_column_text]The Langir 16mm vandal resistant switch offers robust IK09 impact resistance and IP65-rated sealing, providing long-lasting protection from tampering, dust, and water. It is available in multiple actuator designs (domed, flat, high), finishes (including black anodized and stainless steel), and supports both momentary and maintained functions for a range of demanding environments.[/vc_column_text][/vc_tta_section][vc_tta_section title=”How does the switch’s IP65 and IK09 rating benefit industrial and public applications?” tab_id=”1753112744421-5c0bcf39-0a7a”][vc_column_text]IP65 certification ensures complete protection against dust ingress and low-pressure water jets, making it suitable for outdoor use. The IK09 rating allows the switch to withstand severe mechanical impact, ensuring reliable operation in high-traffic or exposed areas such as public terminals, kiosks, and industrial machinery.[/vc_column_text][/vc_tta_section][vc_tta_section title=”What actuator and terminal options are available for this switch?” tab_id=”1753112684216-476671fa-0293″][vc_column_text]Langir offers actuator customization—choose domed, flat, or high profiles, illuminated or non-illuminated, and multiple LED color options. Terminal options include solder lug, screw, or flying leads for easy adaptation to different wiring needs.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Is custom branding or design available for bulk orders?” tab_id=”1753112713775-ba448e23-ddbf”][vc_column_text]Yes, Langir accepts bulk orders with custom branding services such as engraved or laser-etched symbols, bespoke colors, and even unique actuator shapes to meet your project specifications and corporate identity requirements.[/vc_column_text][/vc_tta_section][vc_tta_section title=”What are the typical applications for this 16mm vandal resistant switch?” tab_id=”1753113920539-f3240a17-50b8″][vc_column_text]Ideal for self-service kiosks, elevators, ticketing machines, industrial control panels, marine and automotive equipment, and access control systems—anywhere durability and reliability in harsh or abusive environments are essential.[/vc_column_text][/vc_tta_section][vc_tta_section title=”What is the mounting size and supported panel thickness?” tab_id=”1753113952310-d6b24be3-0a31″][vc_column_text]The switch is designed for industry-standard 16mm panel cutouts and typically fits panel thicknesses from 1mm up to 10mm, with secure nut or screw mounting options to ensure stability in vibration-prone settings.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Does the Langir 16mm switch support momentary or latching operations?” tab_id=”1753113984809-8f2f26a5-697f”][vc_column_text]You can specify either momentary (returns when released) or latching (maintains position until pressed again) functions, selectable based on your application’s control requirements.[/vc_column_text][/vc_tta_section][vc_tta_section title=”What certifications and compliance standards does this switch meet?” tab_id=”1753114029350-c419ddaa-8953″][vc_column_text]Langir 16mm switches comply with international standards such as CE, RoHS, and are engineered to pass UL and related certifications for global markets. We support all B2B documentation needs with datasheets and compliance certificates upon request.[/vc_column_text][/vc_tta_section][vc_tta_section title=”How reliable is the switch in terms of operational lifespan?” tab_id=”1753114063864-8ff9a46e-6ec2″][vc_column_text]These switches deliver mechanical endurance up to 1,000,000 cycles with stable electrical performance, making them suitable for high-frequency, mission-critical tasks with minimal need for replacement or maintenance.[/vc_column_text][/vc_tta_section][vc_tta_section title=”How do I request a quote, samples, or technical support for my project?” tab_id=”1753114092138-64812c37-d803″][vc_column_text]Contact us via our website’s inquiry form or through direct email. Our team responds within 24 hours with lead times, pricing, minimum order quantities, and technical support. Small sample orders are encouraged for testing and validation before bulk procurement.[/vc_column_text][/vc_tta_section][/vc_tta_accordion][vc_zigzag]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]
