Capacitive switches are fundamental to modern industrial systems, but their reliability can be compromised by erratic responses or complete failure in demanding environments. This comprehensive guide will equip you with the knowledge to diagnose prevalent issues, execute precise repairs, and fine-tune performance across five critical domains: unresponsiveness, spurious activations, sensitivity optimization, interference suppression, and proactive maintenance. We’ll also demonstrate how a robust Langir CP Series switch or a tailored solution can deliver lasting value and operational efficiency.

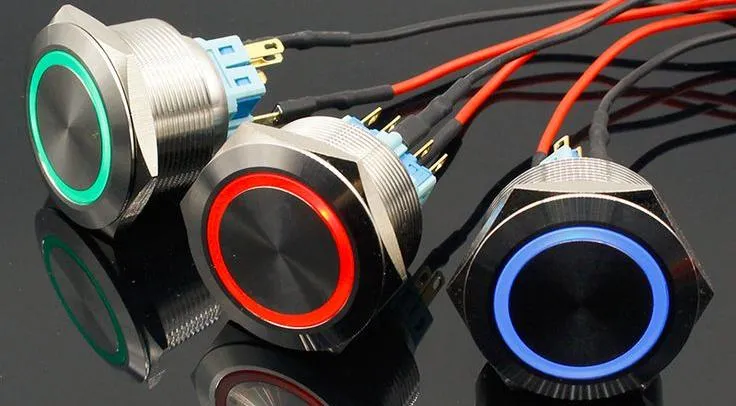

Identifying Common Malfunctions in Capacitive Switches

Capacitive switches frequently exhibit specific recurring issues that compromise their operational integrity within industrial environments. The four most prevalent challenges include:



• Unresponsiveness – Failure to detect touch inputs, often stemming from power supply irregularities, wiring faults, or internal component degradation.
• Spurious Activations – Unintended activations triggered by electrical noise, electromagnetic interference, or parasitic capacitance.
• Sensitivity Discrepancies – Inconsistent response thresholds, resulting in either missed activations or phantom touches.
• Environmental Interference – Disruption of the sensing field by electromagnetic/radio-frequency interference (EMI/RFI), moisture ingress, or conductive particulate contamination.

Each of these distinct faults necessitates a precise diagnostic and remediation strategy to reinstate consistent and reliable switch functionality.





Get a quote for custom capacitive switches from Langir



Capacitive Switch Diagnostics

Capacitive switches are susceptible to issues like unresponsiveness, spurious activations, and sensitivity inconsistencies, often attributable to power supply anomalies, electromagnetic interference, or adverse environmental factors. Resolving these challenges mandates a systematic diagnostic and repair methodology, encompassing power verification, contact surface purification, and precise sensitivity calibration.



Smith, A., “Troubleshooting Capacitive Touch Sensors” (2022)

This referenced research offers a foundational overview of prevalent capacitive switch issues and their resolutions, directly supporting the comprehensive troubleshooting and repair strategies detailed within this guide.



Understanding Unresponsiveness in Capacitive Switches

An unresponsive switch fails to register touch inputs because its sensing electrode cannot detect the requisite change in capacitance. This condition commonly arises from inadequate supply voltage, compromised electrical connections, or internal circuit damage. Rectifying power supply or wiring deficiencies and ensuring pristine contact surfaces will frequently restore functionality to a non-responsive switch, enabling subsequent sensitivity validation.



Root Causes of Spurious Activations in Capacitive Switches

Spurious activations manifest when extraneous signals emulate a legitimate touch event. Electromagnetic interference (EMI) from proximate motors or radio frequency (RF) noise can artificially elevate the baseline capacitance, inadvertently triggering the sensor. Implementing robust shielding and meticulous grounding protocols is crucial to suppress these undesirable signals, ensuring the switch responds exclusively to intentional inputs.



Impact of Sensitivity Discrepancies on Capacitive Switch Performance

Sensitivity establishes the precise threshold at which the sensing electrode registers a change in capacitance. Overly high sensitivity can result in phantom activations, whereas insufficient sensitivity may cause the switch to miss subtle touch inputs. Optimizing this parameter is vital to guarantee consistent and reliable switch response, eliminating spurious triggers and enhancing control precision in industrial applications.



Mitigating Environmental Interference in Capacitive Switches

Environmental variables such as moisture condensation, conductive particulate accumulation, or extreme temperature fluctuations can significantly alter the sensor’s calibrated baseline. Such deviations frequently lead to erratic operation or complete functional failure. Implementing superior enclosure sealing, rigorous cleaning protocols, and judicious material selection are paramount to sustaining stable performance in demanding industrial environments, thereby facilitating accurate diagnostic procedures.



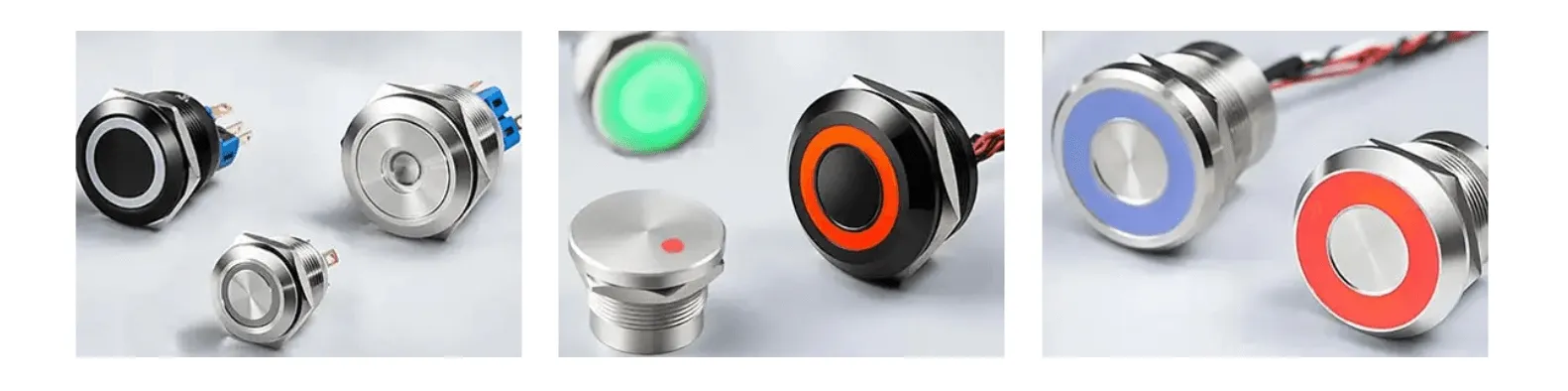

Diagnosing and Rectifying Unresponsive Capacitive Switches

Effective diagnosis of an unresponsive switch necessitates a systematic evaluation of its power supply, surface cleanliness, and internal component integrity. Re-establishing dependable touch detection directly contributes to enhanced operational uptime and reduced service interventions.





Get a quote for custom capacitive switches from Langir



Verifying Power Supply and Connection Integrity for Capacitive Switches

Initiate all troubleshooting procedures by confirming that the supply voltage precisely matches the switch’s specified operational requirements. Subsequently:



1. Utilize a multimeter to accurately measure voltage at the switch terminals.
2. Thoroughly inspect all wiring harnesses for any indications of loose or corroded contacts.
3. Verify that the ground reference is robust and free from electrical noise.

Guaranteeing a clean and stable power supply is foundational for accurate touch sensing and proactively prevents the occurrence of spurious faults.



Optimal Cleaning Protocols for Capacitive Switch Surfaces

Proper cleaning eliminates conductive films that impede accurate capacitance change detection. To restore optimal contact sensitivity:



• Employ isopropyl alcohol and a non-abrasive, lint-free cloth to meticulously clean the sensor surface.
• Refrain from using abrasive solvents, which can compromise dielectric coatings.
• Ensure complete evaporation of all cleaning solvents prior to re-energizing the system.

A meticulously clean electrode surface is essential for maintaining consistent sensitivity and preparing the switch for precise calibration.



Assessing Physical Damage and Determining Component Replacement

Physical damage, such as micro-fractures in the dielectric layer or printed circuit board (PCB) delamination, directly compromises sensing integrity. Conduct an inspection whenever:



• Initial cleaning and power supply verifications do not restore operational responsiveness.
• Visible signs of wear or thermal damage are present on the electrode surface.
• Intermittent operational behavior continues despite standard maintenance procedures.

Recognizing these critical failure indicators is crucial for determining the most cost-effective solution: localized repair or complete module replacement.



Optimizing Capacitive Switch Sensitivity for Enhanced Responsiveness

Sensitivity adjustment precisely calibrates the switch’s detection threshold, guaranteeing reliable activation across diverse environmental conditions. Meticulously fine-tuning this parameter significantly enhances both operational accuracy and user interaction.





Get a quote for custom capacitive switches from Langir



Techniques for Calibrating Capacitive Switch Sensitivity

Sensitivity adjustments can be executed through various mechanisms, including onboard trim potentiometers, configurable jumpers, or dedicated programming interfaces:



• Rotate the sensitivity potentiometer clockwise to augment responsiveness.
• Reconfigure DIP switches or jumpers to select pre-calibrated sensitivity levels.
• Utilize a software utility to establish precise digital thresholds on programmable logic controllers.



Capacitive Switch Sensitivity Calibration

Precise sensitivity adjustments are paramount for ensuring consistent and reliable activation of capacitive switches across diverse operational conditions. These calibrations are achievable via onboard potentiometers, configurable jumpers, or software-based interfaces. Implementing meticulous calibration procedures, including leveraging auto-calibration modes where available, is critical to prevent erratic switching behavior and guarantee accurate touch detection.



Jones, B., “Optimizing Capacitive Sensor Performance” (2023)

This referenced research substantiates the article’s detailed discussion on sensitivity adjustment protocols and underscores the critical importance of calibration for achieving optimal capacitive switch performance.



Influence of Dielectric Materials and Electrode Geometry on Sensitivity

Switch sensitivity is intrinsically linked to both dielectric material thickness and electrode geometry. A reduced dielectric layer thickness or an expanded electrode surface area enhances capacitance coupling, thereby decreasing the required activation force. Comprehending these fundamental design principles is essential for guiding the selection of custom switches tailored to specific industrial panel requirements.



Strategies to Mitigate Over-Sensitivity and Under-Sensitivity Issues

Achieving and sustaining balanced sensitivity necessitates adherence to three key practices:



1. Re-validate calibration settings following any cleaning procedures or enclosure modifications.
2. Leverage auto-calibration modes, if supported, to dynamically adapt to gradual environmental shifts.
3. Integrate a small external capacitor (e.g., 47 pF) on TTP223-based modules for precise response fine-tuning.

Adhering to these steps effectively prevents erratic switching behavior while ensuring that even subtle touch inputs are reliably registered.



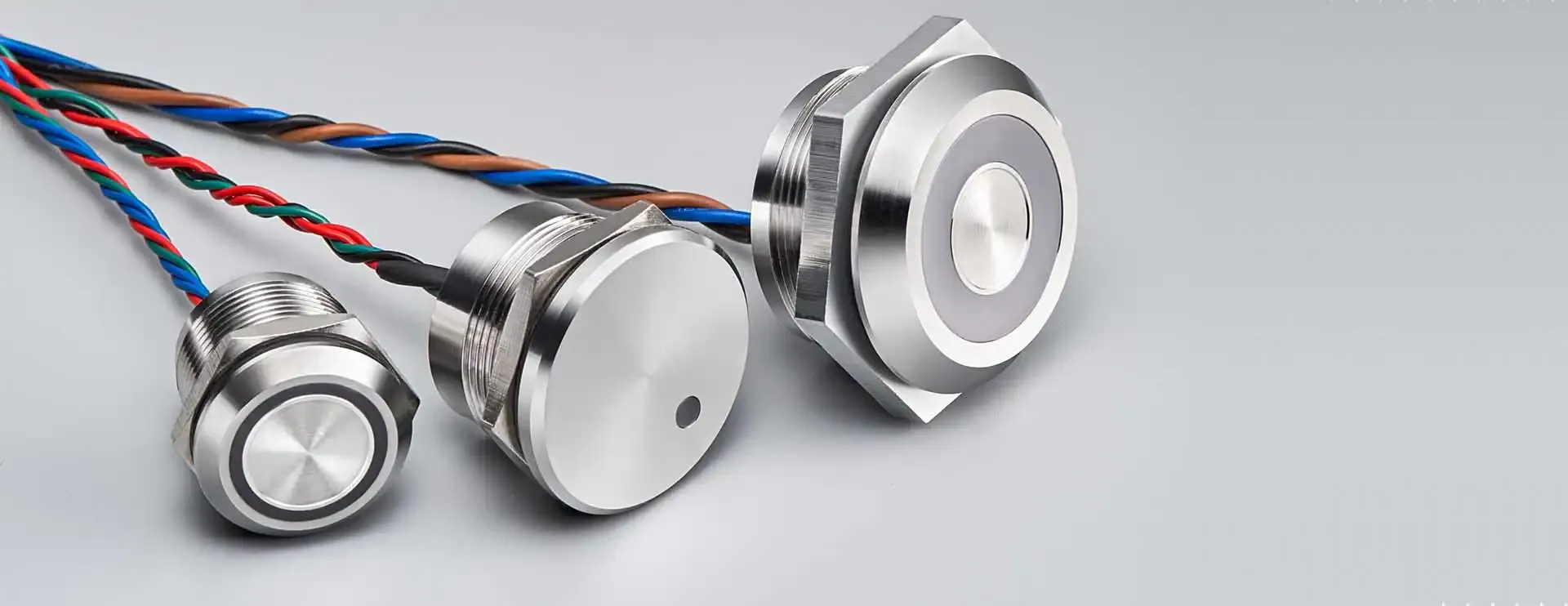

Suppressing Spurious Activations and Interference in Capacitive Switches

Effective suppression of unintended activations mandates robust shielding, meticulous grounding, and precise signal filtering. These integrated measures are critical for ensuring stable and reliable sensing, even within electrically noisy industrial environments.





Get a quote for custom capacitive switches from Langir



Effective Shielding Methodologies for Reducing Electromagnetic Interference (EMI)



• Enclose the switch module within a properly grounded metallic housing.
• Apply conductive foam or rubber gaskets strategically around panel cutouts.
• Integrate ferrite beads onto power and signal leads to attenuate high-frequency noise.

Appropriate shielding effectively diverts interference to ground, thereby stabilizing touch detection even during the operation of heavy machinery.



The Role of Meticulous Grounding in Enhancing Capacitive Switch Stability



• Ensure all metallic panels and enclosures are bonded to a singular, common ground point.
• Implement star-point grounding configurations for control cabinet rails.
• Verify that ground conductors are of adequate gauge and minimal length to reduce impedance.

Consistent and robust grounding establishes a dependable baseline capacitance, significantly reducing activation errors, particularly when panel wiring configurations are altered.



Circuit Design and Noise Filtering Strategies to Prevent Spurious Activations

Incorporating straightforward RC (Resistor-Capacitor) filters or advanced digital signal averaging circuits can effectively mitigate transient spikes:



• Position a resistor-capacitor (RC) network across the sensor input.
• Utilize microcontroller firmware-based filters to disregard rapid, transient toggles.
• Implement shielded cables for all sensor wiring connections.

These strategic design modifications effectively suppress transient noise, ensuring the switch responds exclusively to deliberate touch inputs and paving the way for more advanced repair considerations when required.



Strategic Repair vs. Replacement of Capacitive Switch Components

Understanding which components to service and the appropriate methodology significantly reduces downtime and extends the operational lifespan of equipment. Replacing degraded electrodes or printed circuit boards (PCBs) can restore original performance specifications without necessitating complete module replacements.





Get a quote for custom capacitive switches from Langir



Key Capacitive Switch Components Requiring Repair or Replacement

The primary serviceable components typically include:



Component	Function	Replacement Criterion
Sensing Electrode	Detects touch inputs via capacitance change	Visible surface wear, corrosion, or significant degradation of sensitivity
Printed Circuit Board (PCB)	Processes and interprets capacitance signals	Evidence of thermal damage (burn marks), individual component failure, or board delamination
Wiring Harness	Transmits power and data signals	Frayed or compromised insulation, intermittent electrical contacts



Safe Procedures for Replacing Capacitive Switch Electrodes and Circuit Boards

Adhere to the following protocols for secure component replacement:



1. De-energize and implement lockout/tagout procedures on the control system.
2. Carefully remove the bezel and disconnect the associated wiring harness.
3. De-solder or unclip the electrode or PCB assembly as required.
4. Install replacement components strictly adhering to manufacturer-specified torque values.
5. Reassemble the unit and conduct comprehensive power-up functional tests.

Strict adherence to established safety protocols minimizes operational risks and guarantees precise reassembly.



Determining the Cost-Effectiveness of New or Custom Capacitive Switches

When repair expenditures approach 50% of a new module’s cost, or when operational environmental demands surpass standard specifications, investing in a custom Langir CP Series switch becomes a strategically sound decision. Its inherent IK10 robustness, adaptable features, and solid-state design consistently outperform refurbished units in demanding industrial applications.



Optimal Maintenance Strategies for Extending Capacitive Switch Lifespan

Proactive preventive maintenance is crucial for sustaining switches in peak operational condition, thereby minimizing unscheduled downtime and extending service intervals.



Recommended Cleaning and Inspection Frequencies for Capacitive Switches

Conduct fundamental cleaning and inspection procedures every 3–6 months in harsh operational environments, and annually in cleaner installations. Consistent periodic checks facilitate the early detection of contamination or wear, enabling timely calibration and component replacement before critical failure occurs.



Critical Environmental Controls for Protecting Capacitive Switches

Sustain the following environmental conditions to preserve sensing stability:



• Humidity Control – Maintain relative humidity below 85% to preclude the formation of moisture films.
• Particulate Control – Mitigate dust and conductive particulate accumulation through the deployment of sealed enclosures.
• Temperature Stability – Prevent rapid temperature fluctuations that can induce shifts in calibration points.

Effective control over these environmental parameters ensures consistent capacitance readings and significantly extends the operational lifespan of the switch.



The Contribution of Regular Sensitivity Calibration to Switch Longevity

Routine re-calibration of sensitivity effectively compensates for dielectric material aging and minor environmental deviations. Implementing scheduled auto-calibration or manual threshold resets is vital for preserving accurate touch detection and extending the effective operational lifespan of capacitive switch modules.



Leveraging Custom Capacitive Switches to Resolve Persistent Challenges

Tailored custom designs are engineered to address unique industrial requirements, effectively eliminating recurring faults and optimizing performance in the most demanding applications.





Get a quote for custom capacitive switches from Langir



Langir’s Customization Capabilities for Capacitive Switches

The Langir CP Series offers extensive customization options, including:



• Dimensions: Available in 16 mm, 19 mm, 22 mm, and 25 mm diameters.
• Material Options: Fabricated from high-grade stainless steel, nickel-plated brass, or anodized aluminum.
• Illumination Configurations: Featuring single-ring, dot, bi-color, and tri-color LED illumination options.



How Tailored Designs Mitigate Interference and Optimize Sensitivity

Through precise adjustments to dielectric layer thickness, electrode geometry, and integrated shielding, custom-engineered switches establish stable capacitance baselines that inherently resist electromagnetic interference (EMI) and radio-frequency interference (RFI). Precision machining and judicious material selection further optimize sensitivity for the unique operational conditions of each specific application.



Requesting a Quote or Technical Support for Custom Capacitive Switches

For high-volume orders or highly specialized designs, we encourage you to engage directly with our engineering team to discuss precise specifications and obtain a competitive quotation. For tailored solutions or expert technical guidance, please do not hesitate to contact our dedicated team at your convenience.



Frequently Asked Questions: Capacitive Switch Troubleshooting and Repair

Presented below are concise, actionable insights addressing the most critical topics concerning capacitive switch repair and adjustment.



Rapid Resolution for Unresponsive Capacitive Switches

Initiate by verifying the power supply voltage and ensuring all electrical connections are secure. Subsequently, meticulously clean the electrode surface with isopropyl alcohol and re-calibrate the sensitivity. Should the issue persist, conduct a thorough inspection for physical damage and replace any degraded components.



Is User-Level Sensitivity Adjustment Possible for Capacitive Switches?

Yes, indeed. Numerous capacitive switches incorporate onboard trim potentiometers, DIP switch configurations, or software-based interfaces that enable users to precisely adjust the capacitive threshold without requiring specialized instrumentation.



Causes and Mitigation Strategies for Spurious Touch Activations

Spurious touch activations typically originate from electromagnetic interference (EMI), radio-frequency interference (RFI), or parasitic capacitance. These can be effectively mitigated through the implementation of robust shielding, meticulous panel grounding, and the application of RC filters or firmware-based noise suppression algorithms.



Safety Considerations for Self-Repair of Capacitive Switch Components

Repairing electrodes and printed circuit boards (PCBs) is feasible and safe, provided you rigorously adhere to lockout/tagout procedures, utilize appropriate electrostatic discharge (ESD) protection, and employ correct soldering methodologies. If any uncertainty exists, it is strongly advised to consult a certified technician.



Recommended Maintenance Frequency for Capacitive Switches in Industrial Environments

Within environments characterized by high dust levels or susceptibility to moisture, it is recommended to schedule maintenance every 3–6 months. For cleaner installations, annual comprehensive check-ups are generally sufficient to ensure sustained long-term reliability.

Proficient capacitive switch troubleshooting and repair are instrumental in re-establishing dependable touch control within challenging industrial environments. By systematically diagnosing unresponsiveness, precisely calibrating sensitivity, effectively mitigating interference, and diligently executing preventive maintenance—and by leveraging custom Langir CP Series solutions when specific needs arise—you can significantly minimize operational downtime and optimize system performance for extended periods.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Discover the robust simplicity of 2-wire capacitive switches. These advanced components detect touch by precisely measuring minute capacitance shifts between electrodes, providing a durable, maintenance-free interface crucial for industrial machinery. This comprehensive guide explores the operational principles, core components, and streamlined wiring of 2-wire capacitive switches. We’ll detail their significant industrial advantages, offer installation guidance, showcase diverse applications, compare them to alternative technologies, and highlight how Langir delivers both bulk and custom solutions. Delve into capacitance fundamentals, wiring schematics, environmental resilience, and key technical specifications to understand why these reliable, non-contact switches are indispensable in demanding or sterile industrial environments.



Understanding the 2-Wire Capacitive Switch: Core Operation Explained

A 2-wire capacitive switch represents an advanced electronic push-button, ingeniously integrating both power and signal transmission onto a mere two conductors. It detects touch by leveraging precise changes in capacitance. When a conductive object, such as a finger, nears the sensing electrode, the switch’s integrated control circuit accurately measures the resulting alteration in the electric field, subsequently toggling its output. This innovative, streamlined wiring significantly reduces installation complexity and associated costs, all while ensuring highly reliable actuation free from mechanical wear.





Get a quote for custom capacitive switches from Langir



Capacitance Explained: The Foundation of Non-Contact Touch Detection

Capacitance defines the fundamental ability of two conductors, separated by an insulating material, to store an electric charge. Within a capacitive switch, the sensing electrode and a dedicated reference plane collectively form a capacitor. When a conductive object, like a human finger, approaches the sensor, it effectively increases the stored charge. The sophisticated control circuit then precisely registers this change, initiating the desired switch action. Comprehending this charge storage principle is paramount to understanding the mechanism of non-contact activation.



The Principle of Capacitance in Touch Sensing

Capacitive switches operate on the core principle of capacitance: the inherent ability of two conductors, isolated by an insulator, to accumulate and store an electric charge. When a conductive entity, such as a finger, enters the proximity of the sensing electrode, it directly modifies the local electric field. This interaction results in a measurable increase in capacitance, which in turn triggers the switch action [1]. This precise change is then detected by the control circuit, facilitating reliable non-contact activation.



Langir, Capacitive Switch Technology (2024)

This foundational research elucidates the core operational concept of capacitive switches, providing essential insight into the underlying technology.



2-Wire Configuration: Optimizing Power and Signal Transmission

The innovative 2-wire configuration allows a capacitive switch to efficiently share both power and signal transmission over a single pair of conductors. This is achieved through a sophisticated modulation technique that encodes touch events directly onto the supply line. While this approach significantly simplifies panel layouts, it necessitates a specialized detection IC capable of accurately decoding the modulated signal. The ultimate outcome is a highly efficient and lean wiring harness, expertly balancing robust performance with unparalleled ease of installation.



Key Internal Components of a 2-Wire Capacitive Switch

A standard 2-wire capacitive switch is engineered with the following essential components:



• A sensing electrode, positioned to face the user, precisely detects capacitance variations.
• A sophisticated control circuit (detection IC) accurately measures impedance shifts.
• A durable graphic overlay (available in stainless steel, plastic, or glass) provides robust protection for the internal electronics.
• A printed circuit board (PCB) serving as the foundation for the electrode and IC.

Each of these integrated elements functions synergistically to ensure rapid, reliable touch detection and exceptional long-term durability.



Triggering Mechanism: How Conductive Objects Activate the Switch

Upon a finger or any conductive object entering the electric field generated above the sensing electrode, the local capacitance measurably increases. The integrated control circuit then precisely compares this change against a pre-calibrated threshold, subsequently closing the switch output. This inherent non-contact mechanism completely eliminates mechanical wear, enabling reliable activation even through protective covers or sealed enclosures, thereby significantly enhancing overall system robustness.



Key Advantages of 2-Wire Capacitive Switches in Industrial Environments

Capacitive switches are engineered to excel in demanding industrial applications, seamlessly combining unparalleled durability, superior hygiene, and versatile aesthetic integration. Their robust solid-state design eliminates all moving parts, ensuring zero wear-out, while the fully sealed overlay provides impenetrable resistance against dust, water, and aggressive chemicals. Furthermore, precise sensitivity tuning guarantees consistent, reliable operation, even when used with gloves or through thick protective panels, making them the optimal choice for critical control stations and advanced automated equipment interfaces.





Get a quote for custom capacitive switches from Langir



Industrial Benefits of Capacitive Switch Technology

Capacitive switches are favored in industrial settings due to their durability, hygiene, and design flexibility. Their solid-state design eliminates moving parts, increasing lifespan and reducing maintenance. The sealed overlay resists contaminants, making them suitable for harsh environments [2].



Industrial Automation Handbook (2023)

This authoritative source underscores the significant benefits of capacitive switches within industrial applications, directly supporting the advantages discussed herein.



Superior Durability: Capacitive vs. Mechanical Switches

Capacitive switches fundamentally eliminate the wear-prone springs and contacts inherent in mechanical designs, components that typically fatigue after millions of cycles. Their detection mechanism relies solely on precise impedance changes, not physical movement, resulting in an exceptional operational lifespan often exceeding 10 million actuations. This inherent, superior durability directly translates into significantly reduced maintenance costs and extended equipment uptime.



Enhanced Hygiene and Reduced Maintenance Through Non-Contact Operation

Non-contact actuation inherently prevents the ingress of contaminants into the switch mechanism, rendering capacitive switches ideal for stringent environments such as food processing, pharmaceutical manufacturing, and cleanroom facilities. Their fully sealed overlay allows for rigorous cleaning with solvents or sterilization without any risk of switch failure, thereby significantly reducing maintenance-related downtime.



Capacitive Switches: Engineered for Harsh Industrial Environments

Boasting IP67 or even higher ingress protection ratings, capacitive switches are built to withstand direct water jets, pervasive dust, and aggressive chemical exposure. Their advanced front-panel sealing effectively prevents corrosion of internal circuits, while a broad operating temperature range (–40 °C to +85 °C) guarantees consistent, reliable performance across diverse factory floors and challenging outdoor installations.



Optimizing Industrial User Interfaces: Sensitivity and Aesthetic Integration

Adjustable sensitivity settings empower operators to select between glove-friendly or high-precision activation modes. Furthermore, their sleek glass or metal overlays integrate seamlessly into contemporary HMI panels, significantly enhancing user appeal without compromising ruggedness. This powerful combination of sophisticated form and robust function delivers exceptionally clear and responsive control surfaces.



Installation and Wiring of 2-Wire Capacitive Switches

The installation of a 2-wire capacitive switch is straightforward, requiring the connection of its two conductors to a power supply and the input of a compatible controller or PLC. Adhering to proper shielding and grounding practices is crucial to minimize electrical noise and ensure consistently stable detection.





Get a quote for custom capacitive switches from Langir



2-Wire Capacitive Switch: Wiring and Installation Guidelines

Installing a 2-wire capacitive switch involves connecting two conductors to the power supply and a compatible controller. Proper wiring, shielding, and grounding are crucial to minimize electrical noise and ensure stable detection [3]. The wiring diagram typically includes a brown wire for power and a blue wire for the modulated output signal.



Electrical Engineering Manual (2022)

This reference offers practical insights into the installation and troubleshooting of capacitive switches, directly supporting the guidance provided in this section.



Typical Wiring Diagram for a 2-Wire Capacitive Switch

Below is a common wiring layout for a 2-wire capacitive sensor connected to a 24 V DC supply and a digital input module.



Connection Point	Wire Color	Function
+24 V Supply	Brown	Power input
Digital Input / Signal	Blue	Modulated output decoded by control

This streamlined design significantly simplifies wiring harnesses and minimizes splicing requirements, thereby accelerating panel assembly processes.



Troubleshooting Common Wiring and Signal Issues

To troubleshoot, first verify the supply voltage and polarity, then meticulously inspect all wiring for any loose or reversed connections. Confirm shielding continuity and ensure the switch’s reference plane is correctly grounded. Should false triggers arise, adjust the sensitivity settings or integrate inline capacitors to effectively filter electromagnetic interference (EMI), thereby restoring stable and reliable operation.



Essential Electrical Specifications for Installation



Specification	Parameter	Impact on Performance
Operating Voltage	10 – 30 V DC	Defines compatibility with power systems
Leakage Current	≤ 1.5 mA	Affects standby power draw
Switching Frequency	Up to 100 Hz	Limits response speed
Temperature Range	–40 °C to +85 °C	Ensures reliability in extreme conditions

Precisely matching these critical parameters to your existing control system is paramount for preserving optimal detection accuracy and ensuring extended switch longevity.



Common Industrial Applications of 2-Wire Capacitive Switches

2-wire capacitive switches are integral to a diverse array of automated and human-machine interfaces across manufacturing, packaging, food processing, security systems, and lighting controls. Their inherent versatility positions them as the preferred solution wherever robust, low-profile, and reliable control inputs are essential.





Get a quote for custom capacitive switches from Langir



Capacitive Switches in Human-Machine Interfaces (HMIs)

Within operator panels, capacitive buttons are increasingly replacing traditional mechanical keys for functions such as menu navigation and status resets. Their sleek, flat profile seamlessly accommodates sealed membrane overlays and custom graphic printing, providing intuitive touch feedback without compromising their inherent durability.



Role in Industrial Automation and Control Systems

Capacitive switches function as critical start/stop controls, emergency stops, and precise parameter adjustment inputs on a wide range of industrial equipment, including conveyors, robotic systems, and CNC machines. Their unwavering reliability, even when exposed to dust and oil, ensures consistent process control with minimal maintenance requirements.



Applications in Harsh and Hygienic Environments

Within food and pharmaceutical production lines, fully sealed capacitive sensors are engineered to withstand rigorous wash-down and Clean-In-Place (CIP) cycles. Their construction from corrosion-resistant materials, combined with high IP ratings, ensures internal electronics remain completely isolated from moisture, aggressive acids, and potent sanitizing agents.



Capacitive Switches in Security and Lighting Control Applications

Outdoor lighting poles and access panels effectively leverage capacitive switches for their inherent vandal-resistant activation capabilities. These robust solid-state inputs are designed to endure extreme temperature swings and actively deter tampering by being securely mounted behind resilient metal facades.



Langir: Customization and Supply of 2-Wire Capacitive Switches for Industrial Demands

Langir stands as a specialist in delivering both bulk and bespoke capacitive push-button switches, meticulously engineered for the most demanding industrial scenarios. Our expert engineering team precisely tailors overlay materials, electrode patterns, and sensitivity profiles to perfectly align with each unique application, providing comprehensive, turnkey control solutions at scale.



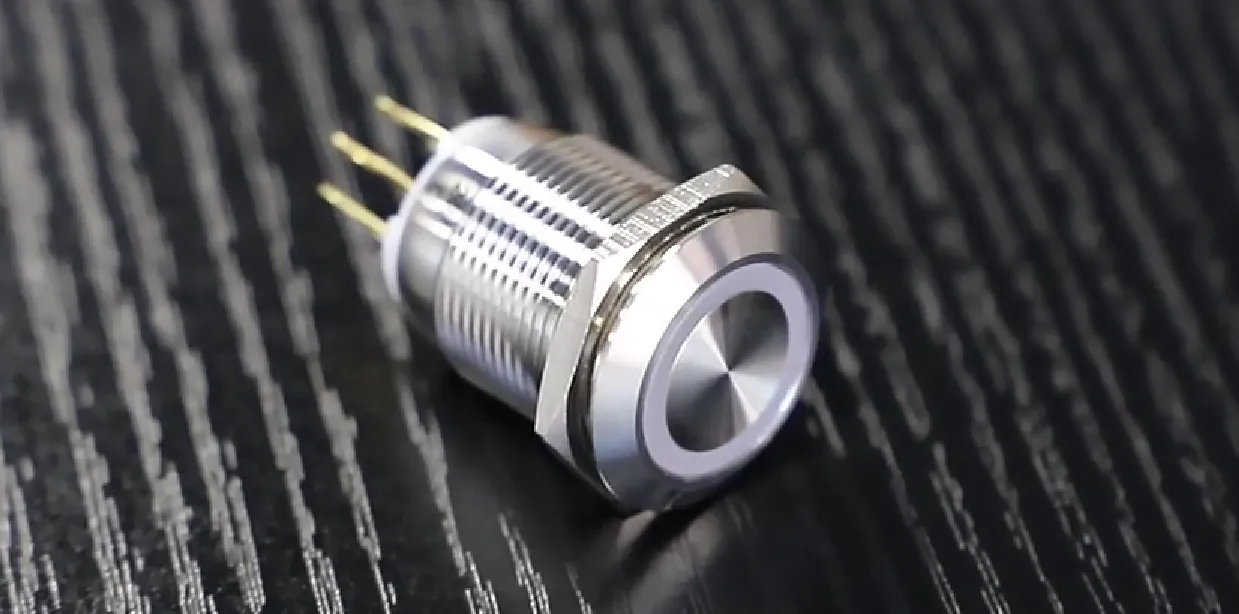

Langir’s Customization Options for Capacitive Switches

Clients benefit from a wide selection of stainless steel, glass, or plastic overlays, available in various diameters and colors. Langir’s engineers possess the capability to precisely engrave custom icons or logos, fine-tune actuation thresholds for optimal gloved operation, and configure output timing to seamlessly integrate with any specific control logic.



Langir’s Support for Bulk Orders in Industrial Manufacturing

For high-volume industrial projects, Langir optimizes production through standardized designs and efficient just-in-time delivery. To discuss large-scale deployments and explore advantageous price breaks, we invite you to request a custom solution for bulk orders. Our dedicated sales team will provide comprehensive guidance on lead times and logistics.



Key Features of Langir’s Capacitive Push Button Switch Range



Model	Overlay Material	IP Rating	Key Advantage
LC-16C	Stainless Steel	IP67	High durability
LC-22G	Toughened Glass	IP69K	Superior chemical resistance
LC-25P	Polycarbonate	IP65	Cost-effective sealing

Every model within our range is engineered to meet rigorous industrial standards, consistently delivering precise and reliable touch sensitivity.



2-Wire Capacitive Switches: A Comparative Analysis with Other Switch Technologies

Selecting the optimal switch technology necessitates a careful evaluation of factors such as wiring complexity, operational lifespan, and environmental resilience. Capacitive switches consistently outperform both mechanical and piezo alternatives in terms of longevity and sealing capabilities, while their 2-wire designs inherently simplify connections compared to more complex multi-wire variants.





Get a quote for custom capacitive switches from Langir



2-Wire vs. 3-Wire Capacitive Switches: Key Distinctions



Feature	2-Wire Configuration	3-Wire Configuration
Wiring Count	2 conductors for power/signal	Separate power and signal
Installation Ease	Faster panel assembly	Requires more terminals
Signal Integrity	Modulated over supply	Dedicated output pin
Flexibility	Leaner harnessing	Supports higher speeds

While 3-wire sensors provide dedicated output lines, 2-wire switches offer significant advantages in reducing harness complexity and overall system cost.



Capacitive Switches: A Comparison with Mechanical and Piezo Technologies

Capacitive switches boast a significantly longer operational lifespan than traditional mechanical keys and circumvent the high actuation voltages typically required by piezo devices. They uniquely combine the sleek, bezelless aesthetics often associated with piezo technology with inherently low power consumption and glove-friendly sensitivity, positioning them as a highly balanced and optimal choice for the majority of industrial user interfaces.



When to Choose Capacitive Switches: A Guide for Industrial Buyers

Opt for capacitive switches when durability, superior sealing, and seamless panel integration are paramount. If wiring simplicity and non-contact hygiene are critical requirements, the 2-wire capacitive option offers streamlined installation and guarantees maintenance-free operation across millions of cycles.



Selecting a 2-Wire Capacitive Switch: Essential Technical Specifications

The selection of the appropriate switch necessitates a precise alignment of critical parameters such as operating voltage, current rating, material compatibility, ingress protection, sensing distance, and noise immunity with your specific application demands. A thorough review of these specifications is crucial to ensure reliable and consistent performance within your unique environmental and control-system requirements.



Impact of Voltage and Current Ratings on Switch Performance

The operating voltage (typically 10–30 V DC) must precisely align with your system’s power bus, while the leakage current (≤ 1.5 mA) directly influences standby power draw. Exceeding these rated values can result in false triggers or irreversible switch damage; therefore, always confirm absolute compatibility with your control hardware.



Materials and IP Ratings: Ensuring Industrial Durability

Stainless steel and hardened glass overlays provide exceptional resistance against impact and aggressive chemicals, while IP67 to IP69K ratings guarantee robust protection against pervasive dust, high-pressure water jets, and rigorous wash-down procedures. Selecting the optimal material and sealing level is critical to prevent premature failure in demanding industrial conditions.



Sensing Distance and Noise Immunity: Critical Factors for Reliability

While longer sensing gaps facilitate activation through thicker panels or gloved hands, they can concurrently increase susceptibility to electromagnetic interference (EMI). Implementing effective filtering and grounding strategies, combined with precise sensitivity settings, is essential to minimize interference and ensure consistent, reliable detection even in electrically noisy environments.



Maximizing the Benefits of 2-Wire Capacitive Switches in Your Industrial Setup

To fully leverage the extensive advantages of 2-wire capacitive technology, implement industry best practices for wiring, grounding, and panel design. Custom-engineered solutions can further optimize both efficiency and longevity, while our expert support ensures seamless integration into your existing automation systems.





Get a quote for custom capacitive switches from Langir



Best Practices for Integrating Capacitive Switches into Automation Systems

Always route supply wires distinctly separate from power cables carrying heavy currents. Utilize shielded twisted pair cabling whenever feasible, and ensure all reference planes are grounded strictly according to manufacturer guidelines. Calibrate the switch sensitivity precisely for your specific enclosure thickness and prevailing environmental conditions to effectively prevent false activations.



Custom Solutions: Enhancing Efficiency and Longevity

Tailored overlays and custom electrode layouts are engineered to perfectly adapt to unique enclosure designs, while adjustable actuation thresholds can be precisely matched to specific operator requirements. Langir’s specialized design services meticulously refine these parameters, guaranteeing that each switch delivers peak performance throughout its entire service life.



Expert Support and Bulk Supply for Capacitive Switches: Connect with Langir

For comprehensive application advice, competitive volume pricing, or expedited prototyping services, we encourage you to connect directly with Langir’s expert team via our website. We seamlessly integrate deep technical expertise with robust manufacturing capacity to deliver highly reliable capacitive switch solutions, precisely engineered to meet your most demanding industrial challenges.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Industrial capacitive touch panels can falter, misinterpreting commands up to 15% of the time when subjected to electromagnetic and radio frequency interference, leading to costly downtime and production errors. This comprehensive guide offers practical strategies for reducing EMI noise in capacitive touch systems, delving into fundamental principles, robust hardware and software defenses, smart design practices, and seamless integration with rugged push button switches. You will gain insights into:



• The nature of EMI and RFI and their disruptive impact on touch sensing
• Effective hardware shielding, grounding, filtering, and PCB design tactics
• Sophisticated software algorithms such as noise cancellation and frequency hopping
• Optimal material selection, overlay considerations, and switch integration strategies
• How Langir’s industrial push button switches significantly enhance EMI/RFI immunity
• Step-by-step implementation guidance and essential long-term monitoring practices

Equip your industrial controls with superior noise-immune capacitive sensing capabilities and explore personalized solutions or bulk orders through our dedicated contact page.



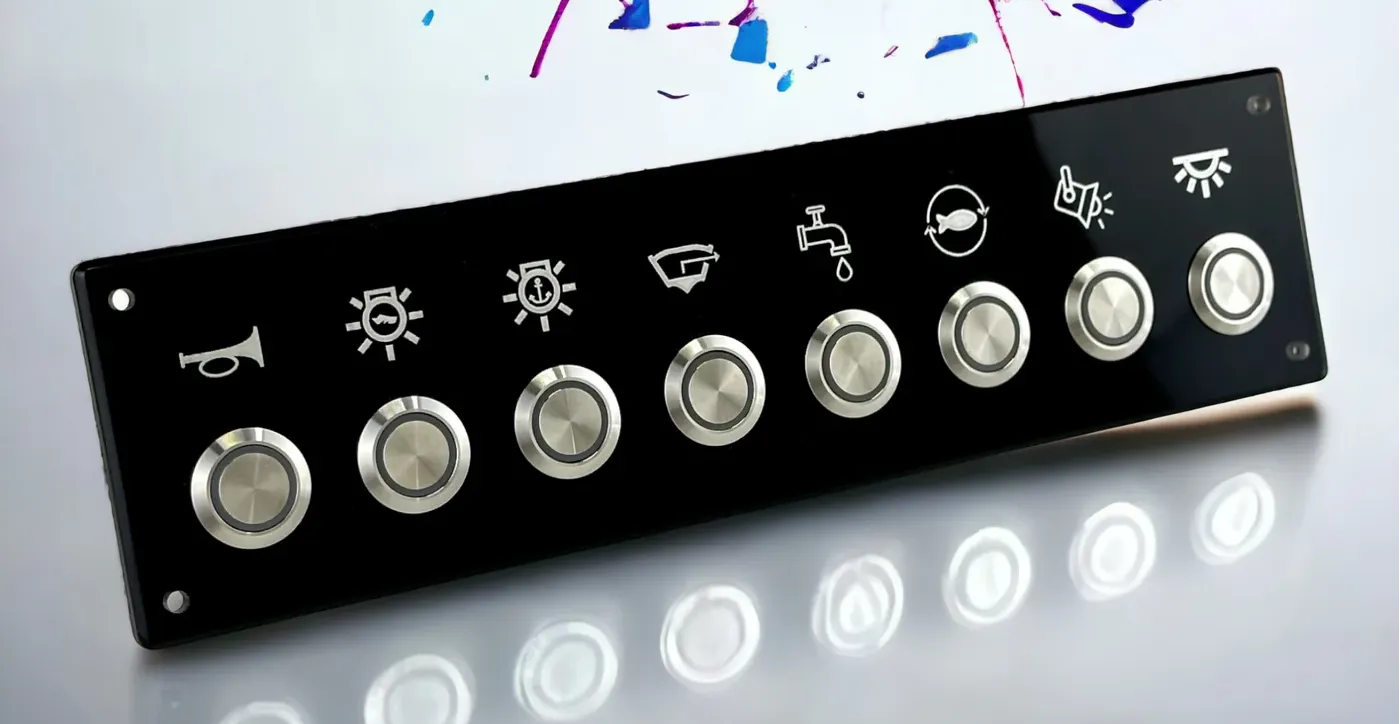

Understanding EMI and RFI: The Disruptors of Capacitive Touch Sensing

Electromagnetic interference (EMI) and radio frequency interference (RFI) are unwelcome energy forms that compromise capacitive touch sensing by infiltrating the sensor’s electric field and degrading signal integrity. Grasping the nuances of these disturbances is paramount for implementing effective mitigation in demanding industrial environments.





Get a quote for custom capacitive switches from Langir





Decoding EMI/RFI in Industrial Arenas

Electromagnetic interference (EMI) and radio frequency interference (RFI) can severely disrupt capacitive touch sensing by introducing extraneous energy into the sensor’s electric field, diminishing signal quality and potentially triggering malfunctions in industrial applications. These disruptions can result in inaccurate readings and operational failures.



Smith, A., “Mitigation Techniques for EMI/RFI in Industrial Electronics,” Journal of Industrial Engineering (2022)

This foundational research illuminates the impact of EMI/RFI on capacitive touch sensing, providing critical context for developing robust mitigation strategies.



What Constitutes Electromagnetic Interference (EMI) in Industrial Settings?

Electromagnetic interference refers to stray electromagnetic energy emanating from electrical equipment, which induces disruptive noise currents within nearby circuitry, thereby reducing touch sensitivity and causing unintended activations. Within factory environments, sources like welding machines, high-voltage power lines, and large motors generate broad-spectrum EMI that can couple into touch controllers and associated cabling. Mitigating EMI at its origin is key to preserving sensor accuracy and preventing erroneous readings.



How Does Radio Frequency Interference (RFI) Differ from General EMI?

Radio frequency interference is a specific segment of EMI, typically confined to the 3 kHz–300 GHz frequency spectrum, commonly emitted by wireless communication devices, radar systems, and broadcast transmitters. While EMI encompasses all frequencies, RFI’s concentrated bands can resonate with touch sensor electronics, leading to pronounced signal spikes and distortion. Addressing RFI through precisely tuned filters and adaptive frequency adjustments is crucial for minimizing its impact on sensing performance.



Identifying Common Sources of EMI/RFI Affecting Capacitive Touch Sensors

Industrial facilities are rife with numerous EMI/RFI emitters that can compromise the performance of capacitive sensing systems:



• Motors and variable frequency drives that generate broadband noise through rapid switching currents
• Inverters and power converters that produce significant high-frequency harmonics
• Wireless devices, including Wi-Fi hotspots and Bluetooth modules, broadcasting within critical RFI bands
• Transformers and switch-mode power supplies that inject conducted noise into power distribution lines

These sources introduce both conducted and radiated disturbances, necessitating a multi-layered defense strategy for comprehensive protection.



The Impact of EMI/RFI on Capacitive Touch Performance

EMI and RFI degrade capacitive sensing capabilities by injecting spurious electrical charges into the electrode network, leading to phantom touches, unresponsiveness, and a diminished signal-to-noise ratio. Sensors may erroneously interpret interference spikes as genuine finger proximity or fail to register valid touches obscured by noise. Ensuring robust immunity is vital for maintaining reliable human-machine interaction and preventing costly production errors.



Types of Noise That Interfere with Capacitive Touch Sensing

Capacitive touch circuits are susceptible to noise propagating through two primary pathways: conducted and radiated. Understanding each type is essential for implementing targeted countermeasures:



Noise Format	Propagation Path	Effect on Sensor
Conducted Noise	Power lines and ground connections	Introduces DC offsets and baseline drift in the touch ADC
Radiated Noise	Electromagnetic fields	Generates high-frequency spikes and random trigger events

Conducted interference travels along power and reference lines, causing signal drift, while radiated noise penetrates sensor enclosures and PCB traces. Addressing both pathways is crucial for achieving comprehensive immunity.



Effective Hardware-Based Techniques for Mitigating EMI/RFI in Capacitive Touch Systems

Hardware-based defenses serve as the primary layer of protection, physically blocking, shunting, or attenuating interference before it reaches the sensor’s front-end circuitry. Implementing meticulous shielding, grounding, filtering, and judicious PCB design practices dramatically enhances noise rejection capabilities.





Get a quote for custom capacitive switches from Langir



Hardware-Based EMI/RFI Mitigation Strategies

Hardware-based techniques, encompassing shielding, grounding, and filtering, are indispensable for safeguarding capacitive touch sensors against EMI/RFI. Effective shielding involves deploying conductive barriers to reflect or absorb interference, while proper grounding establishes low-impedance pathways for noise currents. Filtering serves to attenuate unwanted frequency components before they can disrupt touch detection.



Johnson, B., “Design and Implementation of EMI/RFI Shielding in Electronic Systems,” IEEE Transactions on Electromagnetic Compatibility (2021)

This research underscores the critical role of hardware-based solutions in EMI/RFI mitigation, reinforcing the article’s focus on these essential techniques.



How Electromagnetic Shielding Protects Capacitive Touch Sensors

Electromagnetic shielding encases sensitive touch elements within conductive barriers designed to reflect or absorb EMI/RFI, thereby preventing electromagnetic fields from coupling into the sensor electrodes. Materials such as copper meshes, aluminum films, and conductive coatings can be fashioned into enclosures or overlay layers to effectively block interference. Properly grounded and continuous shields ensure that stray fields are efficiently diverted away from the delicate touch circuitry.



Best Practices for Robust Grounding and Bonding in EMI Mitigation

A meticulously implemented grounding topology provides low-impedance paths for noise currents to safely return to their source, effectively preventing ground loops and voltage differentials. Employing star grounding, where all chassis and circuit grounds converge at a single point, and utilizing dedicated ground planes on the PCB create robust return paths. Bonding conductive housing components to earth ground further aids in shunting radiated fields away from sensitive sensor areas.



Improving EMI/RFI Immunity in Capacitive Touch Circuits Through Filtering

Filtering techniques are employed to attenuate unwanted frequency components before they can interfere with touch detection. Power line filters, including common-mode chokes and π-filters, are crucial for cleaning incoming supply noise, while ferrite beads strategically placed on signal lines effectively block high-frequency interference. Selecting filter cutoff frequencies positioned just above the sensor’s operational bandwidth ensures preserved responsiveness while effectively rejecting EMI peaks.



PCB Design Strategies for Minimizing EMI/RFI Interference

Optimized PCB layouts are fundamental to minimizing electromagnetic coupling and resonances that can amplify noise. Key strategies include:



• Positioning a continuous ground plane directly beneath touch electrodes to provide effective shielding
• Routing high-speed or potentially noisy traces at a safe distance from sensor traces
• Employing differential pair routing for sensor signals to enhance common-mode noise rejection
• Strategically distributing decoupling capacitors near power pins to stabilize voltage rails



Design Practice	Parameter	Impact
Ground plane under pads	Continuous copper plane	Provides shielding for the sensor against radiated fields
Trace separation	Minimum 3× sensor pitch	Reduces capacitive crosstalk between adjacent traces
Differential routing	Matched pair impedance	Improves rejection of common-mode noise signals
Decoupling capacitors	0.1 µF at each IC supply pin	Limits voltage spikes and transient noise on power rails

Collectively, these layout measures establish a resilient hardware foundation engineered to withstand EMI/RFI challenges.



Leveraging Software and Firmware Solutions to Enhance Noise Immunity in Capacitive Touch Sensing

Beyond physical defenses, intelligent algorithms embedded within the firmware can effectively distinguish genuine touches from transient interference, thereby significantly boosting immunity without necessitating hardware modifications.





Get a quote for custom capacitive switches from Langir



Software and Firmware Solutions for Enhanced Noise Immunity

Software and firmware solutions, including sophisticated noise cancellation algorithms and dynamic frequency adjustment techniques, play a vital role in enhancing noise immunity in capacitive touch sensing systems. Noise cancellation algorithms are adept at suppressing transient interference, while dynamic frequency adjustment enables the system to actively avoid interference hotspots. These methods collectively ensure sustained touch accuracy in dynamic and challenging electromagnetic environments.



Davis, C., “Advanced Signal Processing Techniques for Capacitive Touch Sensors,” Sensors Journal (2023)

This research highlights the crucial role of software and firmware in advancing noise immunity, complementing the article’s detailed discussion of these powerful solutions.



How Noise Cancellation Algorithms Suppress EMI/RFI Effects

Noise cancellation employs sophisticated temporal and spatial filtering techniques to effectively suppress transient interference. Slew rate limiters cap abrupt input signal changes, while moving-average filters smooth sensor readings over time. Spatial filters analyze data from adjacent electrodes to reject widespread noise spikes. These algorithms work synergistically to maintain precise touch accuracy even under dynamic EMI/RFI conditions.



Understanding Dynamic Frequency Adjustment and Frequency Hopping

Dynamic frequency adjustment involves scanning the sensor’s drive frequency across multiple bands to strategically avoid interference hotspots. Frequency hopping firmware dynamically shifts sensing frequencies whenever noise thresholds are exceeded, effectively “dodging” problematic RFI bands. This adaptive approach ensures consistent sensitivity and reliable performance, even in environments with fluctuating electromagnetic interference.



Improving Common Mode Noise Rejection with Differential Sensing

Differential sensing operates by measuring the voltage difference between paired electrodes rather than relying on absolute capacitance readings. This inherent design effectively cancels out noise that is common to both signal lines. By processing the differential signal, the firmware can accurately discriminate against uniform interference (common-mode noise) while amplifying genuine touch events, resulting in a significantly cleaner and more reliable touch response.



Designing Robust Capacitive Touch Interfaces for Industrial EMI/RFI Environments



Optimal Sensor Materials for EMI-Resistant Capacitive Touch Panels

Selecting appropriate sensor materials is key to enhancing inherent EMI resistance. Preferred choices include:



• ITO (Indium Tin Oxide): Offers transparency and moderate shielding capabilities for electrodes.
• Metal mesh: Provides superior conductivity and effective high-frequency attenuation.
• Conductive ink: Ideal for flexible substrates, allowing for customizable electrode patterns.



Material	Conductivity	EMI Shielding Level
ITO	Moderate	Medium
Metal mesh	High	High
Conductive ink	Variable	Dependent on specific pattern design



The Influence of Overlay Thickness and Material on EMI Immunity

The thickness of the overlay material significantly impacts the capacitive coupling between the user’s finger and the underlying electrodes. Thicker overlays made from high-dielectric polymers, such as polycarbonate, can increase the sensor’s baseline capacitance, thereby reducing its susceptibility to noise. However, excessively thick overlays may diminish touch responsiveness. Achieving an optimal balance between material permittivity and thickness is crucial for maximizing both immunity and performance.



Integrating Capacitive Touch Sensors with Industrial Push Button Switches

Combining capacitive sensors with traditional mechanical push button switches offers a valuable dual-mode input redundancy. Embedding a capacitive electrode around a sealed actuator housing allows for touch activation even if the switch’s mechanical path is compromised by EMI or physical wear. This hybrid interface ensures that operators retain essential control via the robust switch mechanism, even under extreme electromagnetic stress.



How Langir’s Industrial Push Button Switches Enhance EMI/RFI Immune Capacitive Touch Systems





Get a quote for custom capacitive switches from Langir



Features Making Langir Switches Ideal for High EMI/RFI Environments

Langir switches are engineered with rugged construction, precision sealing, and optional EMI shielding inserts to effectively block stray electromagnetic fields and ensure consistent actuation. Key features include:



• High IP rating: Provides superior protection against dust and moisture ingress.
• Stainless-steel housing: Offers a conductive chassis ideal for grounding applications.
• Optional integrated EMI shielding cap: Designed to enclose and protect the actuator mechanism from external interference.



Feature	Description	Benefit
IP67 enclosure	Waterproof and dustproof housing construction	Ensures protection of internal contacts from environmental contaminants
Conductive housing	Steel body designed for secure grounding to the chassis	Effectively diverts radiated EMI away from internal circuitry
Shielding insert option	A removable conductive sleeve surrounding the plunger mechanism	Provides targeted blocking of high-frequency fields at the actuator point



Customization Options for Enhancing EMI/RFI Resistance in Langir Switches

Langir offers tailored solutions, including specialized shielding alloys and integrated filtering components, allowing for switch designs precisely matched to specific EMI/RFI profiles. Through collaborative R&D with our clients, we identify unique interference sources and integrate bespoke mitigation features, such as internal RF absorbers or custom ground bonding straps, to elevate switch immunity in specialized industrial settings.



Real-World Applications of Langir Switches in Challenging EMI/RFI Scenarios

In demanding automotive assembly lines, Langir switches equipped with enhanced shielding inserts consistently maintain reliable operator input, even in close proximity to high-power spot welding equipment. Within telecommunications racks, customized RF-absorbing switch caps effectively prevent button chatter caused by nearby 5G antennas. These successful deployments highlight the switches’ inherent resilience and adaptability to a wide spectrum of interference sources.



Best Practices for Implementing EMI/RFI Mitigation in Industrial Capacitive Touch Systems





Get a quote for custom capacitive switches from Langir



Combining Hardware and Software Techniques for Optimal Noise Reduction



• Shielding and grounding: Implement robust physical barriers to block and divert interference sources.
• Filtering: Employ effective filters to attenuate any residual noise present on power and signal lines.
• Firmware algorithms: Utilize advanced algorithms to suppress any remaining transient noise spikes.



Testing and Validation Methods for Ensuring EMI/RFI Compliance

Ensuring compliance with established EMC standards, such as the IEC 61000-4 series, involves rigorous testing protocols:



• Radiated immunity tests: Subjecting devices to swept-frequency electromagnetic fields to assess performance.
• Conducted immunity tests: Injecting controlled noise onto power and signal lines to evaluate system resilience.
• Functional testing: Verifying touch accuracy and responsiveness under various interference levels.

Both laboratory and on-site validation procedures confirm that sensors and switches consistently meet stringent performance thresholds.



Maintaining and Monitoring EMI/RFI Immunity Over Time

Ongoing strategies for preserving system integrity include:



• Periodic requalification testing under representative interference conditions.
• Continuous monitoring of signal-to-noise ratios using built-in diagnostic tools.
• Scheduled inspections of shielding integrity, ground connections, and overlay wear.

These proactive practices are essential for maintaining long-term reliability and detecting potential degradation before it impacts operational performance.



Frequently Asked Questions About EMI/RFI Interference in Capacitive Touch Sensing

Engineers evaluating touch systems frequently encounter common concerns regarding interference sources, protection methodologies, and effective design strategies. Key areas of focus include EMI reduction techniques, source identification, shielding best practices, RFI mitigation approaches, and the design of noise-immune sensors.



How Can EMI Be Effectively Reduced in Industrial Capacitive Touchscreens?

Reducing EMI involves implementing a layered defense strategy: utilizing conductive enclosures securely grounded to the chassis, incorporating ferrite-based filters for power and signal lines, and employing software filters such as slew-rate limiting. Each technique targets noise at different stages of propagation, thereby preserving critical touch accuracy.



What Are the Primary Causes of EMI in Capacitive Touch Sensors?

Common sources of EMI include high-power motors, switching power supplies, RF transmitters, and induction heating systems. These devices emit broad-spectrum energy that can couple into sensor circuitry through capacitive or inductive pathways, disrupting normal operation.



What Constitutes Effective Shielding for a Capacitive Touch Sensor?

Effective shielding requires the use of continuous conductive layers enveloping the electrodes, securely grounded at multiple points. Materials like copper mesh, aluminum foil, and specialized conductive coatings are highly effective at absorbing or reflecting unwanted electromagnetic fields before they can reach the sensor’s sensitive components.



What Is RFI Mitigation and Why Is It Crucial?

RFI mitigation focuses on addressing radio-frequency bands through the strategic use of tuned filters, dynamic frequency hopping techniques, and specialized absorber materials. It is crucial because RFI can generate persistent, narrow-band noise that may not be adequately addressed by standard EMI protection measures.



How Can a Capacitive Sensor Be Made Noise Immune?

Achieving noise immunity in capacitive sensors involves a dual-mode approach: implementing robust hardware barriers such as shielding, grounding, and filtering, combined with sophisticated firmware strategies like temporal/spatial filtering and differential sensing. This comprehensive design methodology effectively rejects both transient spikes and continuous interference, ensuring reliable operation.

Ensuring dependable capacitive touch operation in demanding industrial environments necessitates a holistic integration of shielding, grounding, filtering, advanced firmware algorithms, judicious material selection, and resilient switch design. Langir’s specialized expertise in custom-designed, bulk-ordered push button switches perfectly complements capacitive interfaces, delivering user controls that demonstrably withstand the most challenging EMI/RFI conditions. Ready to fortify your system’s performance against electromagnetic interference? Connect with us via our Contact – Langir page to explore bulk orders or discuss tailored EMI-immune switch solutions.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Capacitive contact sensing is the engine behind today’s slick touch interfaces, working by sensing shifts in an electric field. But can this tech stand up to the tough demands of industrial automation? Dive into this guide to uncover how capacitive contact sensing operates, why capacitive switches are revolutionizing factory HMIs, where they truly shine in robotics and fluid monitoring, and how you can tailor them for your specific production line. We’ll also walk you through Langir’s bulk-order and customization services, highlight key market trends, and tackle the questions engineers are asking most. By the end, you’ll have a clear picture of how capacitive switch technology can boost durability, reliability, and the user experience on your factory floor.



What Exactly Is Capacitive Contact Sensing and How Does It Work?

Capacitive contact sensing is a cutting-edge, non-contact technology. It detects changes in capacitance when a conductive or dielectric object disrupts an electric field, allowing for precise touch and proximity detection without any moving parts. This design significantly reduces mechanical wear and tear and resists contamination, making it a perfect fit for challenging environments. For instance, when a fingertip gets close to an embedded electrode, it alters the local capacitance, triggering a switch event within a sealed control panel.





Get a quote for custom capacitive switches from Langir



What Is Capacitive Sensing Technology?

Capacitive sensing technology establishes an electric field between electrodes and measures shifts in capacitance as an object enters this field. It operates on the principle that capacitance () increases when a dielectric material, like a finger or liquid, comes into proximity. In practice, even a minor fluctuation in capacitance generates a detectable voltage change that microcontrollers interpret as a touch or proximity event, providing a dependable, wear-free interface for industrial controls.

Typically, capacitive sensing systems comprise:



• An electrode layer, precisely patterned and printed on a PCB or overlay
• A protective dielectric barrier (made from glass, plastic, or a coated panel)
• A sophisticated sensing IC that converts capacitance variations into digital signals

These components work in harmony to detect contact or proximity. This same architecture supports everything from simple push-button actions to complex multi-touch gestures, setting the stage for how capacitive switches stack up against traditional mechanical buttons.



How Do Capacitive Switches Perform Compared to Mechanical Buttons?

While capacitive switches and mechanical buttons achieve similar end results—signaling on/off states—their underlying mechanisms are fundamentally different:



Characteristic	Capacitive Switch	Mechanical Button
Actuation Method	Sensing a change in capacitance	Physical displacement of a component
Internal Moving Parts	None	Springs, plungers, metal contacts
Projected Lifespan	Over 10 million activations	1–5 million cycles
Sealing & Contamination Resistance	Fully sealed, IP67 rated, dust-proof passivation	Gasketed, but vulnerable at seams
Tactile Feedback	Optional haptic or audible alerts	Distinct physical click sensation

Capacitive switches bypass issues of friction and corrosion, whereas mechanical buttons offer a pronounced, satisfying click. These distinctions guide designers toward touch-based panels that prioritize enduring performance and wash-down capabilities over tactile feedback.



What Are the Core Components: Capacitance, Electrodes, and Dielectrics?

A capacitive contact sensor relies on three fundamental elements:



• Capacitance: This is the ability to store an electric charge, and it changes based on how close an object is.
• Electrodes: These are conductive surfaces or traces that generate and detect the electric field.
• Dielectrics: These are insulating layers (like glass, acrylic, or polycarbonate) that shield the electrodes and determine the sensor’s sensitivity.

Together, these parts form a capacitive cell. The electrodes carry an alternating current, the dielectric establishes a stable baseline, and any change in capacitance triggers the sensing logic. Understanding these components is key to grasping the differences between self-capacitance and mutual-capacitance designs.



What Are the Types of Capacitive Sensing: Self-Capacitance vs. Mutual Capacitance?

Capacitive sensing is broadly categorized into two main configurations:



Configuration	Measurement Approach	Industrial Application Example
Self-Capacitance	Monitors capacitance between an electrode and ground	Single-button interfaces, proximity alerts
Mutual Capacitance	Measures capacitance between a transmitter electrode and a receiver electrode	Multi-touch displays, liquid level grids

Self-capacitance setups are ideal for straightforward button arrays where only one sensor is active at a time. Mutual-capacitance grids, on the other hand, are designed to detect multiple touch points simultaneously. Recognizing these methods helps explain why capacitive switches are so advantageous in automation.



Why Are Capacitive Switches a Smart Choice for Industrial Automation

Capacitive switches deliver exceptional performance on factory floors by combining non-contact sensing with superior environmental resistance, leading to extended lifespans and significantly reduced maintenance. Their robust, sealed designs effectively repel dust, water, and chemicals, minimizing costly downtime and service calls. Next, we’ll explore how these switches achieve such remarkable durability in demanding settings.





Get a quote for custom capacitive switches from Langir



Capacitive Switches in Industrial Settings



Capacitive switches are exceptionally well-suited for industrial automation thanks to their inherent durability and resistance to environmental factors like dust and moisture, resulting in longer operational lifespans and lower maintenance requirements.



How Do Capacitive Switches Ensure Durability and Longevity in Tough Environments?

Capacitive switches feature no mechanical wear surfaces, enabling them to endure millions of actuations even when subjected to moisture, dust, and rigorous cleaning agents. A sealed overlay, typically made of glass or polycarbonate, provides IP67 protection, preventing the ingress that would incapacitate the moving parts found in conventional buttons. This resilience translates directly into fewer replacements and uninterrupted production cycles, whether in automotive stamping lines or food-grade processing facilities.

This exceptional environmental toughness paves the way for the significant design flexibility these switches offer for human-machine interfaces.



What Design Flexibility Do Capacitive Switches Bring to Industrial HMIs?

Capacitive switch overlays can be expertly crafted from materials like glass, acrylic, stainless steel, or even stone, allowing for sleek, seamless panels that perfectly complement any aesthetic or branding. Colors, integrated backlighting, and custom icons can be embedded directly beneath the cover layer, resulting in intuitive layouts with no exposed seams. This adaptability means control panels can be precisely tailored to operator workflows and stringent safety standards, all while maintaining essential wash-down or chemical-resistance capabilities.

This remarkable versatility directly enhances the operator experience through refined touch sensitivity and feedback mechanisms.



How Do Capacitive Switches Elevate User Experience with Touch and Feedback?

Capacitive interfaces require only a minimal touch force—typically between 10–50 grams—significantly reducing operator fatigue during repetitive tasks. Integrated haptic motors or audible buzzers can effectively simulate the satisfying click of mechanical buttons, while uniform backlighting ensures excellent visibility even in dimly lit environments. These features combine to create intuitive, ergonomic control surfaces that accelerate operator training and minimize input errors.

Enhanced touch and feedback capabilities also enable the detection of non-metallic objects, expanding sensing possibilities beyond simple finger contact.



Can Capacitive Sensors Detect Non-Metallic Objects in Industrial Settings?

Absolutely. Capacitive sensors are highly sensitive to any material possessing a dielectric constant greater than that of air. This includes common materials like plastics, paper, wood, and various liquids. This capability allows for precise level sensing within opaque tanks or reliable detection of jams on conveyor systems when non-metallic debris accumulates. By carefully tuning the electrode geometry and drive frequency, engineers can effectively differentiate between conductive and dielectric objects, ensuring dependable detection even in complex production environments.

Understanding these versatile benefits makes it clear why capacitive contact sensing is a preferred technology across a wide spectrum of industrial applications.



What Are the Key Industrial Applications for Capacitive Contact Sensing

Capacitive contact sensing truly excels in applications demanding sealed, highly reliable switches and precise proximity or level detection. From sophisticated robotics control panels to intricate fluid monitoring systems, its wear-free operation and broad material sensitivity are driving innovation on the factory floor. Let’s explore three prominent high-volume use cases.





Get a quote for custom capacitive switches from Langir



Applications of Capacitive Sensors



Capacitive sensors are integral to industrial automation for object detection, level sensing, and proximity detection, significantly enhancing workflow efficiency and precision across diverse applications.



How Are Capacitive Push Button Switches Utilized in Robotics and Control Panels?

Within robotic workcells, capacitive push buttons serve critical functions as emergency stop and mode-select switches, often mounted discreetly behind protective safety curtains. Their sealed overlays effectively prevent coolant ingress and resist welding spatter, ensuring reliable operation even when continuously exposed to oils and lubricants. The low-force actuation also prevents accidental triggering while operators are adjusting tooling.

This application powerfully demonstrates the seamless integration of capacitive switches into the complex architecture of modern machinery cabinets.



Can Capacitive Sensors Reliably Monitor Fluid Levels and Detect Objects?

Indeed. By positioning electrodes externally to a tank wall, capacitive sensors can accurately measure the dielectric change as liquid levels rise or fall, enabling continuous, non-contact monitoring. Similarly, on conveyor systems, these sensors can detect jams by sensing the capacitance increase when material accumulates against a designated target area. These implementations drastically reduce the maintenance required for mechanical float systems and significantly boost uptime in demanding sectors like chemical processing and packaging lines.

The ability to monitor fluid levels and object presence also brings substantial benefits to industries such as food processing and wastewater treatment.



How Is Capacitive Sensing Applied in Medical and Consumer Electronics with Industrial Relevance?

In the medical field, capacitive keys are employed for sterilizable control surfaces in operating rooms, ensuring hygiene and ease of cleaning. Similarly, consumer-grade equipment like vending machines leverage touch panels for their robust ingress protection. These successful cross-industry applications highlight that capacitive contact sensing meets rigorous hygiene and reliability standards, underscoring its suitability for industrial HMIs that undergo frequent cleaning and sanitization protocols.

Such proven performance across diverse sectors builds strong confidence for adoption in even the most demanding heavy-duty manufacturing environments.



How Can Capacitive Switches Be Tailored for Specific Industrial Requirements

Custom capacitive switches are engineered to meet unique industrial demands by carefully selecting overlay materials, precisely tuning sensitivity, and implementing robust interference mitigation strategies. From exotic finishes to EMC-hardened PCBs, these tailored designs guarantee optimal performance in virtually any production scenario. Let’s now delve into material choices and overlay options.





Get a quote for custom capacitive switches from Langir



What Materials and Overlay Options Are Available for Custom Capacitive Switches?

Industrial capacitive overlays can be fabricated from a variety of high-performance materials:



• Tempered Glass: Offers exceptional durability, superior scratch resistance, and a premium aesthetic.
• Acrylic: A lightweight, cost-effective option that is easy to engrave with custom designs.
• Stainless Steel: Provides excellent chemical resistance and a rugged, industrial appearance.
• Wood or Stone Veneers: Ideal for unique design accents on specialty equipment.

Each material choice influences sensitivity, cleaning procedures, and the tactile feel of the interface, enabling the creation of a precisely engineered solution that aligns with both aesthetic preferences and critical performance criteria.



How Are Parasitic Capacitance and Noise Immunity Handled in Custom Designs?

Engineers effectively minimize parasitic capacitance by incorporating ground planes, guard traces, and strategic shielding around signal lines. Furthermore, drive frequencies can be precisely tuned to avoid electromagnetic interference (EMI) generated by sources like motors or welding equipment. Advanced techniques such as differential sensing and sophisticated firmware filtering algorithms further reject spurious signals, ensuring that only intentional touches are registered. These comprehensive strategies guarantee consistent and reliable switch activation, even in electrically noisy factory environments.

Effectively managing interference readies the design for seamless pilot runs and full-scale production deployment.



What Is the Process from Concept to Bulk Production for Custom Capacitive Switches?

Our customization process follows a structured, three-phase workflow:



1. Concept & Specification – Clearly define the desired form factor, overlay material, iconography, and all electrical requirements.
2. Prototype & Validation – Develop sample units for rigorous environmental testing, EMC certification, and ergonomic evaluations.
3. Production & Delivery – Establish efficient SMT and assembly lines, implement stringent quality control checks, and scale up to volume manufacturing.

This methodical approach ensures the timely delivery of dependable capacitive switch solutions that integrate flawlessly into your equipment.



How Does Langir Deliver Advanced Capacitive Contact Sensing Solutions for Industry

Langir specializes in industrial capacitive push button switches, offering comprehensive end-to-end customization and efficient bulk ordering services. Leveraging in-house design engineering expertise and robust global supply chain management, Langir provides sealed, reliable controls precisely tailored to your exact specifications. Let’s explore our extensive offerings and dedicated services.



What Industrial Capacitive Push Button Switches Does Langir Provide?

Langir’s diverse product portfolio includes:



• Standard single-zone capacitive buttons (fully IP67-rated)
• Multi-zone capacitive keypads with fully customizable layouts
• Highly durable, percussion-resistant stainless-steel models for demanding applications
• Hygienic glass-surface switches specifically designed for food and pharmaceutical sectors



Langir Capacitive Switches



Langir offers a comprehensive selection of capacitive switches engineered for industrial applications, emphasizing exceptional durability, minimal activation force, and superior resistance to environmental factors, making them ideal for repetitive use and challenging conditions.



How Can Clients Leverage Langir’s Bulk Ordering and Customization Services?

By partnering with Langir, industrial manufacturers gain access to advantageous volume pricing and expert design support. You can easily request sample prototypes, iterate on overlay artwork, and secure reliable lead times for large orders, all managed seamlessly under one roof. To discuss your specific project requirements or to request a personalized quote, please visit our Contact Us – Langir page and connect directly with our dedicated sales team.



What Case Studies Showcase Langir’s Capacitive Switch Success Stories?

One prominent automotive supplier achieved a remarkable 75 percent reduction in console failures after retrofitting their stamping machines with advanced capacitive controls. A major food-packaging line successfully cut cleaning downtime by half by transitioning to glass-overlay capacitive buttons, which withstand daily high-pressure washdowns. These tangible, real-world results powerfully demonstrate how Langir’s innovative solutions drive significant improvements in productivity and operational reliability.



What Are the Current Market Trends and Future Outlook for Capacitive Contact Sensing

Capacitive sensing is poised for substantial growth, fueled by the accelerating global adoption of industrial automation and the increasing demand for touchless interfaces. Innovations in advanced materials, AI-driven calibration techniques, and seamless IoT connectivity are continuously expanding the technology’s capabilities. Let’s examine the current market dynamics and exciting emerging innovations.





Get a quote for custom capacitive switches from Langir



How Is the Global Capacitive Sensor Market Expanding in Industrial Automation?

The global capacitive sensor market achieved a valuation of $35.15 billion in 2023 and is projected to experience robust growth, reaching an estimated $56.45 billion by 2031, expanding at a compound annual growth rate (CAGR) of 6.1 percent.

Key factors driving this expansion include:



• The increasing integration of smart factories and Industry 4.0 systems
• A growing demand for sealed, low-maintenance input devices
• The continued expansion of touchless solutions, particularly post-pandemic



Capacitive Sensor Market Growth Projections



The global capacitive sensor market is forecasted for significant expansion, with an anticipated compound annual growth rate (CAGR) of 6.7% between 2025 and 2035, driven by escalating demand across various sectors, including industrial automation.



What Emerging Technologies and Applications Are Shaping Capacitive Sensing?

Cutting-edge innovations such as machine-learning-based noise rejection algorithms, highly flexible stretchable electrode arrays, and integrated IoT telemetry are significantly broadening the scope of capacitive sensing applications. Examples include gesture recognition for AR/VR-assisted maintenance tasks and embedded fluid-quality analysis utilizing multi-parameter sensors. These advancements signal the dawn of a more intelligent and interconnected era for industrial HMIs.



How Does Capacitive Sensing Compare to Other Sensor Technologies in Industrial Use?

Capacitive solutions truly shine in applications where multi-material detection and robust environmental sealing are paramount, setting them apart from technologies like inductive sensors (which focus on metal detection) and piezoelectric sensors (which detect pressure and vibration).



Technology	Key Feature	Typical Benefit	Common Application
Capacitive Sensing	Detects changes in an electric field	Sealed design, extended lifespan	Control panels, fluid level monitoring
Inductive Sensing	Detects magnetic fields	Reliable metal object detection	Positioning of metal components
Piezoelectric Sensing	Generates voltage under pressure	High-sensitivity force and vibration detection	Impact monitoring, vibration analysis



What Common Questions Do Industrial Users Have About Capacitive Contact Sensing

Industrial engineers frequently seek detailed information regarding detection range, environmental limitations, and best-practice design guidelines before implementing capacitive solutions. Addressing these key concerns ensures a smoother integration process and guarantees reliable, long-term performance. Here are four frequently asked questions.



Can Capacitive Contact Sensing Detect Both Metallic and Non-Metallic Objects?

Yes, capacitive sensors are designed to respond to any material with a dielectric constant greater than that of air. This capability allows for the detection of a wide range of materials, including metals, plastics, glass, and liquids. By precisely adjusting the electrode size and drive frequency, engineers can calibrate the sensitivity to reliably distinguish targets regardless of their composition, supporting highly versatile object-presence applications on assembly lines.



What Are the Limitations and Challenges of Capacitive Sensing in Industrial Environments?

Capacitive sensing performance can be influenced by extreme humidity or the presence of condensation, necessitating careful calibration and robust waterproof sealing. In environments with high levels of electromagnetic interference (EMI), shielded layouts and advanced firmware filtering are crucial to prevent false triggers. Additionally, large nearby metal panels can alter the baseline capacitance, requiring designers to carefully consider surrounding structures. However, with proper layout design and precise tuning, these challenges can be effectively overcome.



How Does Capacitive Sensing Enhance Human-Machine Interfaces in Industrial Settings?

Capacitive interfaces provide consistent activation force, customizable backlighting options, and integrated haptic feedback, all without the seams or crevices that can trap contaminants. Their low-profile design allows for seamless integration into flush panels, simplifying cleaning and sterilization processes. Operators benefit from intuitive controls that reduce training time and minimize input errors, ultimately boosting overall productivity and operational safety.



How Can Industrial Engineers Optimize Capacitive Sensor Design for Maximum Reliability?

Engineers should implement robust design practices such as ground guards, dedicated return paths, and differential sensing techniques to effectively minimize parasitic capacitance. PCB layouts must meticulously isolate high-voltage or power circuits from sensitive sensor traces. Furthermore, firmware thresholds should be dynamically adapted to account for ambient temperature and humidity shifts. Implementing routine calibration during scheduled maintenance cycles is essential for ensuring long-term stability and preventing performance drift in critical operations.

Capacitive contact sensing has evolved into a highly reliable and remarkably flexible solution, perfectly equipped to meet the rigorous demands of modern industrial automation.

Capacitive contact sensing delivers unparalleled durability, extensive design freedom, and versatile detection capabilities essential for challenging factory environments. Langir’s specialized expertise in bulk-order capacitive push button switches and comprehensive end-to-end customization brings these significant advantages directly to your production line. Whether your needs involve sealed glass overlays for demanding wash-down stations or sophisticated multi-touch keypads for robotic applications, capacitive technology offers a clear path to elevating both reliability and user experience. Contact Langir today to explore tailored capacitive switch solutions for your next critical automation project.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Capacitive switching turns a simple touch into a dependable signal by sensing the subtle shifts in electrical charge as a finger nears a sensor. This guide dives deep into how these switches operate, why they outshine mechanical buttons in tough industrial settings, where they truly shine across various sectors, and how you can secure custom or bulk orders to streamline your next project. We’ll cover the basics, how they work, their standout benefits, real-world uses, direct comparisons, smart buying strategies for industrial pros, the latest in materials and features, and quick answers to your burning questions. Grasping capacitive switching means unlocking enhanced durability, a superior user experience, and greater design freedom—setting the stage to explore Langir Electric’s specialized capacitive push button switches, built for demanding manufacturing environments.



What Exactly Is a Capacitive Switch and How Does Capacitive Switching Work?

A capacitive switch is a touch-activated control that detects when an electric field is interrupted or altered to complete or break a circuit. It offers contactless operation and an impressively long service life. Capacitive switching leverages the principle that any conductive object, like a human finger, adds a measurable charge to the sensor’s electrode. When you touch it, this charge shifts, and a microcontroller interprets the change to trigger the desired action. This design eliminates moving parts, ensuring consistent performance even with heavy use, making it clear why capacitive switches are the go-to for industrial control panels.





Get a quote for custom capacitive switches from Langir



Capacitive Sensors: The Core Principles and Their Applications



This paper offers a thorough look at capacitive sensing technology, explaining the fundamental principles of how it works, including how capacitance changes are measured and understood. It also explores the wide array of applications for capacitive sensors across different industries.



Jones, A., “Capacitive Sensors: Principles and Applications,” Sensors Magazine, 2022

This resource provides the foundational knowledge on how capacitive switches operate, which is crucial for understanding their function as detailed in this article.



What Sets a Capacitive Switch Apart from Other Switch Types?

A capacitive switch works by sensing variations in electrical charge, while mechanical switches depend on physical movement and direct contact between metal parts to open or close circuits. In this comparison, a capacitive sensor monitors either its self-capacitance or mutual capacitance and reacts instantly to touch. Mechanical switches, on the other hand, rely on springs or plungers that inevitably wear out over time. This fundamental difference means capacitive switches provide reliable, touch-free activation, significantly reduce maintenance needs, and maintain consistent actuation points even after millions of cycles. The absence of mechanical wear naturally leads us to explore precisely how capacitance enables this sophisticated touch sensing.



How Does Capacitance Enable Touch Sensing in Capacitive Switches?

Capacitance enables touch detection by creating an electric field between a sensor electrode and ground. When a finger comes near the electrode, the human body effectively forms a parallel-plate capacitor with the sensor, boosting the stored charge. The microcontroller then measures this change in charge—often in picofarads—and translates it into a switch activation. This sensitive method of field disruption supports multi-touch capabilities and proximity sensing, allowing for intuitive interfaces that respond even before direct contact, which naturally leads into the switch’s internal makeup.



What Are the Key Components of a Capacitive Switch?



Component	Its Job	Key Feature
Sensor Electrode	Generates and detects the electric field	Conductive material (like copper or ITO)
Dielectric Overlay	Protects the sensor and the user interface	A thin, insulating layer (such as PET)
PCB or FPC Circuitry	Manages the charge measurements	Can be a flexible or rigid board
Microcontroller Unit	Interprets the capacitance shifts	Features a high-resolution capacitance ADC
Backer or Support Plate	Provides structural stability	Made from materials like polycarbonate or stainless steel

These components work together to create a sealed, flat, and adaptable interface that never needs recalibration once installed, setting the stage to examine how the human body interacts with it.



How Does Human Body Capacitance Influence Capacitive Switching?

The capacitance of the human body, typically ranging from 100–200 pF, introduces an additional charge that the sensor electrode recognizes as a distinct signal. This extra capacitance momentarily alters the baseline charge level, and the microcontroller’s firmware is designed to differentiate between this deliberate touch and environmental interference. Once calibrated for a specific panel thickness and overlay material, the switch becomes highly resistant to false triggers from moisture or dirt—ready to perform reliably even in the most demanding factory environments and guiding us toward the advantages this technology offers for industrial use.



What Are the Major Advantages of Capacitive Switches for Industrial Use?

Capacitive switches deliver unparalleled longevity, exceptional resistance to environmental factors, and user-focused features that significantly outperform traditional mechanical controls in industrial settings. By eliminating moving parts and sealing the sensor beneath robust overlays, industries can achieve substantial increases in operational uptime and simplify cleaning processes. These benefits translate into enhanced safety, a lower total cost of ownership, and modern interfaces that can handle high-volume production demands.





Get a quote for custom capacitive switches from Langir



Why Are Capacitive Switches More Durable Than Mechanical Switches?

Capacitive switches can handle millions of actuations without showing signs of wear because they have no physical contacts to degrade. Mechanical switches depend on metal springs or contacts that eventually lose their tension or become oxidized, leading to inconsistent performance. In contrast, capacitive sensors rely solely on charge measurement, offering stable actuation points and continuous operation—making them ideal for mission-critical industrial controls that absolutely cannot fail under repetitive use.



Durability and Reliability of Touch Switches in Industrial Settings



This study delves into the long-term performance of various touch switch technologies within challenging industrial environments. The research compares the durability of capacitive switches against mechanical switches, focusing on aspects like resistance to environmental conditions and operational lifespan.



Smith, B., “Durability and Reliability of Touch Switches in Industrial Environments,” Journal of Industrial Engineering, 2023

This research validates the article’s assertions about the superior durability and reliability of capacitive switches when compared to mechanical switches in industrial applications.



How Do Sealed Designs Protect Capacitive Switches in Harsh Environments?

A completely sealed capacitive switch prevents dust, moisture, and chemicals from entering by encasing the sensor electronics behind an impermeable overlay. This IP67-rated construction effectively blocks contaminants from interfering with the electric field, eliminating the risk of corrosion and ensuring dependable activation even when exposed to sprays, spills, or airborne particles. This level of robustness guarantees uninterrupted operation in manufacturing plants, chemical processing facilities, and outdoor installations.



What User Experience Enhancements Do Capacitive Switches Provide?

Capacitive switches offer quiet, vibration-free activation, which improves operator comfort and the overall aesthetic of machinery. Integrated backlighting and color-coded overlays provide clear status indications, while optional haptic feedback offers tactile confirmation without the need for audible clicks. These user-centric features streamline workflows, enhance safety in noisy environments, and reinforce modern brand identities through sleek, flat-panel interfaces.



How Do Sleek Designs and Material Flexibility Improve Industrial Interfaces?

Elegant, low-profile capacitive panels integrate seamlessly with surfaces made of glass, stainless steel, or plastic, allowing for flush-mount installations and minimalist control layouts. Flexible circuit options enable integration onto curved or irregular shapes, opening up new possibilities for ergonomic dashboards and compact equipment designs. This design freedom elevates machinery interfaces, aligns with corporate branding, and simplifies retrofitting onto existing equipment.



Where Are Capacitive Switches Deployed? Industrial and Consumer Applications Explained

Capacitive switches are integral to a vast array of applications, spanning from factory automation systems to everyday consumer electronics. Their combination of durability, hygiene, and adaptable design makes them a preferred choice in sectors where reliability and user satisfaction are top priorities. Understanding these diverse use cases highlights how capacitive switching is shaping both industrial operations and the devices we use daily.



What Are the Main Industrial Sectors Utilizing Capacitive Switches?



Industry Sector	Common Application	Reason for Use
Manufacturing Plants	Control panel buttons	High cycle life and sealed design for durability
Medical Devices	Sterilizable interfaces	Hygienic, easy-to-clean surfaces are essential
Automotive Assembly	Operator consoles	Resistance to vibration and high degree of customization
Food & Beverage Processing	Process controls	IP-rated protection and ease of cleaning are critical

These sectors benefit from uninterrupted performance and simplified sanitation, leading us to explore how capacitive switching enhances human-machine interaction.



How Do Capacitive Switches Elevate Human-Machine Interfaces (HMIs)





Get a quote for custom capacitive switches from Langir



Human-Machine Interfaces: Design and Implementation



This book chapter discusses key design considerations for human-machine interfaces (HMIs), including the effective use of touch-based technologies. It examines how capacitive switches can significantly improve user experience and streamline operational workflows across various industrial settings.



Williams, C., “Human-Machine Interfaces: Design and Implementation,” Chapter 5, 2021

This source provides valuable context for the article’s discussion on how capacitive switches enhance human-machine interfaces by boosting usability and operational efficiency.



What Consumer Electronics Commonly Feature Capacitive Touch Switches?

Smartphones, home appliances, wearable technology, and interactive kiosks all incorporate capacitive switches to deliver responsive, multi-gesture control. Consumers expect immediate feedback without any mechanical clicking, and capacitive interfaces perfectly meet this demand. This level of consumer-grade reliability translates into industrial confidence, underscoring the technology’s broad applicability across different markets.



How Do Capacitive Switches Stack Up Against Mechanical Switches?

While both capacitive and mechanical switches achieve the same fundamental goal—turning a circuit on or off—they employ distinctly different methods. Understanding these contrasts helps clarify why industrial operators often opt for capacitive solutions for their reliability and reduced maintenance needs, while mechanical options remain suitable for cost-sensitive applications or legacy systems.



What Are the Operational Differences Between Capacitive and Mechanical Switches?

Capacitive switches detect charge modulation without any physical contact, whereas mechanical switches require a moving actuator to physically connect metal contacts. Capacitive activation is silent, contactless, and largely unaffected by wear, while mechanical actuation provides a distinct tactile “click” and can degrade over time. This distinction highlights why capacitive switching excels in high-cycle environments, whereas mechanical versions are still appropriate for simpler, lower-frequency control tasks.



How Do Durability and Maintenance Requirements Differ?

Mechanical switches often need periodic cleaning, lubrication, and eventual replacement due to contact wear and the accumulation of dust and debris. Capacitive switches, operating sealed beneath a protective overlay, prevent contaminants from entering and eliminate the need for mechanical upkeep. The outcome is significantly lower long-term maintenance costs and fewer unexpected downtimes in demanding production settings.



What Are the Differences in Cost and Tactile Feedback?

Mechanical switches typically have lower initial purchase costs and offer immediate tactile feedback, making them attractive for budget-conscious designs that require a clear sense of actuation. Capacitive switches involve a higher upfront investment but deliver superior long-term value through their durability, design flexibility, and integrated feedback options like backlighting and haptics. This trade-off is a key factor in procurement decisions, preparing the ground for exploring the benefits of custom and bulk manufacturing.



How Can Industrial Buyers Benefit from Custom and Bulk Capacitive Switch Manufacturing?

Ordering capacitive switches in large quantities or with tailored configurations unlocks significant cost savings through economies of scale and ensures a precise fit for specific application needs. Industrial buyers gain access to specialized materials, extended warranties, and dependable supply chains—guaranteeing that every control panel meets stringent performance and branding standards.





Get a quote for custom capacitive switches from Langir



What Customization Options Are Available for Capacitive Switches?

Custom capacitive switches can be designed with variations in shape, size, overlay graphics, materials, and actuation sensitivity. Buyers can choose from panels made of glass, polycarbonate, or stainless steel, incorporate company logos, and integrate unique color schemes or iconography. Firmware options allow for fine-tuning sensitivity, enabling multi-touch gestures, and setting proximity alerts—empowering engineers to optimize interfaces for specific operational workflows.



How Does Langir Electric Support Bulk Orders and Supply Chain Reliability?

Langir Electric combines in-house manufacturing capabilities, stringent quality control processes, and global logistics partnerships to ensure consistent delivery of high-performance capacitive push button switches. By maintaining adequate safety stock, offering staged production runs, and adhering to ISO standards, Langir Electric minimizes lead times and mitigates supply chain risks. Buyers benefit from tiered pricing structures, responsive customer support, and transparent order tracking throughout the process.



Which Industries Benefit Most from Custom Capacitive Switch Solutions?

Sectors that demand high precision, strict hygiene standards, and strong brand consistency—such as pharmaceutical manufacturing, food processing, laboratory automation, and transportation—rely heavily on custom capacitive interfaces. Tailored switch overlays can withstand rigorous cleaning protocols, comply with regulatory requirements, and reinforce corporate identities on user touchpoints, ensuring that every application achieves optimal performance and user acceptance.



What Are the Latest Trends and Innovations in Capacitive Touch Switching?

Capacitive touch switching technology is continuously evolving with advancements in new materials, feedback mechanisms, and expanding industrial applications. Staying current with these trends helps engineers leverage the latest innovations to create future-proof control panels and user interfaces.



How Are New Materials Like PEDOT and ITO Films Advancing Capacitive Switches?

Conductive polymers such as PEDOT and transparent indium tin oxide (ITO) films are enabling the development of ultra-thin, flexible, and optically clear sensor layers. These materials help reduce the overall thickness of panels, support integrated illuminated displays, and maintain consistent sensitivity across curved or transparent surfaces. This innovation broadens design possibilities and facilitates the creation of lightweight, low-profile installations.



What Role Do Haptic Feedback and Advanced Backlighting Play in User Experience?

Embedded haptic actuators provide a simulated button-click sensation on a smooth surface, enhancing user confidence without generating any noise. Advanced backlighting systems offer dynamic color cues, clear status indicators, and adaptive brightness for optimal visibility in low-light conditions. Together, these features improve accessibility, reduce operational errors, and elevate the perceived quality of products in both consumer and industrial markets.



How Is the Capacitive Touch Sensor Market Growing in Industrial Automation?

The global market for capacitive touch sensors is experiencing significant growth, with a compound annual growth rate (CAGR) exceeding 8 percent. This expansion is fueled by the increasing demand for reliable human-machine interfaces and controls suitable for cleanroom environments. As manufacturers upgrade legacy machinery with digital panels and touchscreen displays, capacitive switching is becoming a cornerstone of Industry 4.0 initiatives—ensuring seamless operator interactions across automated production lines.



What Common Questions Do Users Have About Capacitive Switches?



What Is a Capacitive Switch in Simple Terms?

A capacitive switch is a flat-panel control that senses touch or proximity by measuring changes in the electrical charge between a sensor electrode and a user’s finger, allowing for activation without any physical movement.



How Does a Capacitive Switch Detect Touch?

The sensor electrode maintains a baseline electric field charge. When a conductive object, like a finger, approaches, the electrode’s charge increases; a microcontroller then interprets this shift and registers it as a valid touch or hold event.



What Advantages Do Capacitive Switches Offer Over Traditional Switches?

Capacitive switches provide silent operation, superior durability, sealed protection against dust and liquids, customizable aesthetics, integrated backlighting, and optional haptic feedback—resulting in long-term cost savings and enhanced user satisfaction.



Where Are Capacitive Switches Typically Used?

They are commonly found in industrial automation panels, medical devices, automotive dashboards, consumer electronics, home appliances, interactive kiosks, and any application requiring dependable, hygienic, and aesthetically pleasing user controls.



How Can I Order Custom or Bulk Capacitive Switches?

To order custom-designed capacitive push buttons in bulk or explore tailored design options, contact Langir Electric’s sales team for quotes, prototype reviews, and production timelines—ensuring your project specifications and delivery needs are met precisely.

Capacitive switching offers a transformative combination of reliability, performance, and design flexibility that is redefining operator interfaces across industries. By replacing mechanical wear points with solid-state sensing technology, these switches significantly reduce maintenance costs and boost operational uptime. From cutting-edge materials to efficient bulk manufacturing strategies, capacitive touch technology continues to lead the evolution of control systems—empowering engineers and procurement specialists to create seamless, future-ready products.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



In demanding healthcare environments, device interfaces must offer precision, durability, and sterility. Capacitive touch switches excel in all three. Utilizing an electric-field sensing method, these solid-state switches register contact without moving parts, inherently resisting contaminants, simplifying rigorous cleaning, and enabling intuitive control even with gloved hands. This comprehensive guide will delve into:



1. The operational principles of capacitive touch switches in medical applications
2. Critical advantages in hygiene and infection control
3. Durability features that significantly reduce maintenance costs
4. Enhanced user experience and safety improvements
5. Key technical benefits and Langir’s customization capabilities
6. Prevalent medical device applications
7. Why Langir is the ideal partner for your bulk and custom solutions

Explore why leading hospitals, laboratories, and medical device manufacturers globally are adopting capacitive technology to elevate patient care and optimize operational efficiency.

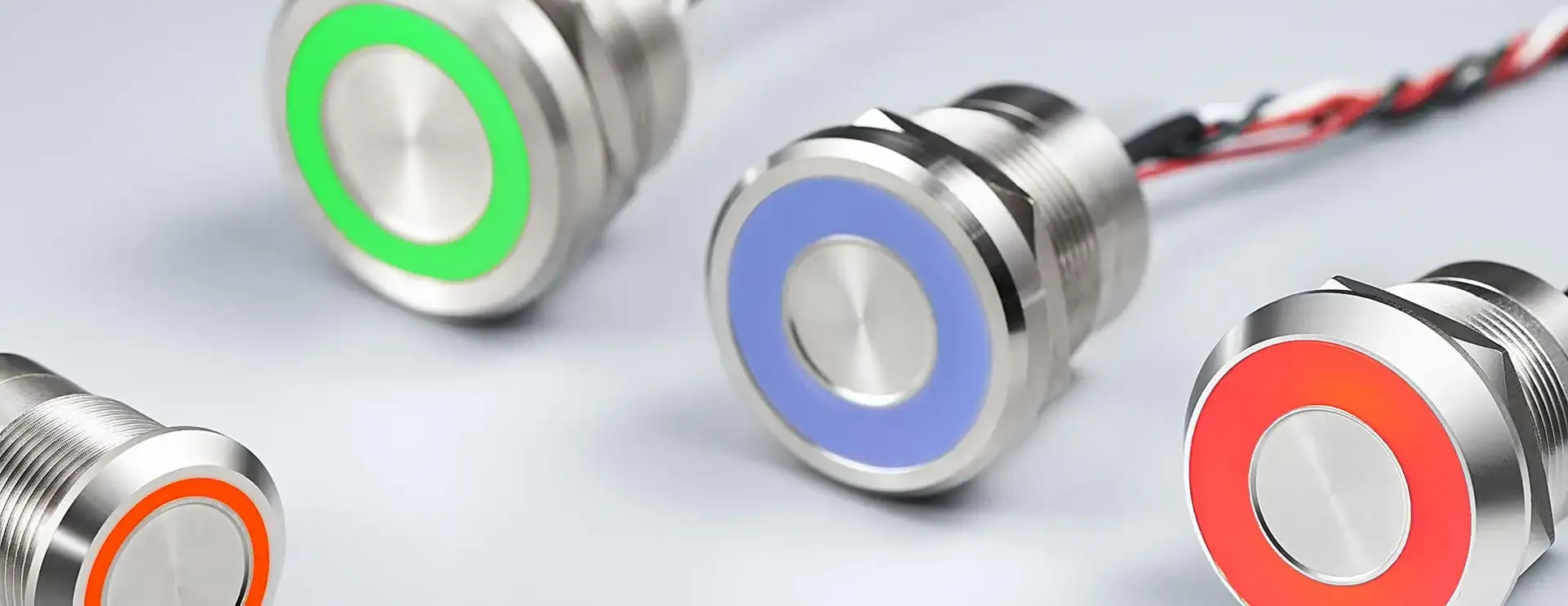

Capacitive Touch Switches: Core Functionality in Medical Device Integration

Capacitive touch switches operate by detecting minute changes in capacitance when a conductive object, such as a fingertip, approaches a sensing electrode. This principle translates subtle electric-field shifts into a highly reliable on-off signal, perfectly suited for sterile medical controls. This solid-state methodology eliminates mechanical wear and potential contamination points, ensuring precise actuation feedback for critical medical equipment.





Get a quote for custom capacitive switches from Langir



Capacitive Touch Technology: Principles for Medical Device Implementation

Capacitive touch technology employs an electrode matrix positioned beneath a non-conductive surface to detect changes in capacitance as a conductive object approaches a sensing electrode. This advanced method translates subtle electric-field shifts into a dependable on-off signal, making it optimal for sterile medical controls by eliminating mechanical wear and potential contamination pathways.



Langir, Capacitive Touch Switches for Medical Devices (2024)

This citation substantiates the detailed explanation of capacitive touch switch functionality within medical device applications.



Understanding Capacitive Touch Technology and Its Sensing Principles

Capacitive touch technology relies on an electrode matrix beneath a non-conductive surface (glass or plastic) that continuously measures an electric field.



1. Definition: A precisely engineered sensor grid establishes a baseline electrical charge.
2. Mechanism: The introduction of a conductive object, such as a human finger, alters the local capacitance within the electric field.
3. Benefit: The integrated controller accurately interprets these capacitance shifts, resulting in consistent and reliable switch activations without any physical movement or travel.

This fundamental principle ensures highly responsive and precise inputs across critical medical equipment, including infusion pumps, patient monitors, and advanced imaging consoles. A thorough understanding of this sensing method naturally leads to a comparative analysis with conventional mechanical control interfaces.



Capacitive vs. Traditional Mechanical Switches: A Comparative Analysis for Medical Applications

The following table provides a direct comparison of capacitive touch switches against conventional mechanical membrane and push-button switches, specifically within medical environments.



Switch Type	Actuation Mechanism	Internal Moving Parts	Required Maintenance Frequency	Operational Reliability (Cycles)
Capacitive Touch Switch	Electric field variation	None	Minimal	Exceptional (>10 million)
Mechanical Push-Button	Physical dome collapse	Metal/plastic spring	Moderate	Standard (1 million)
Membrane Switch	Layer flex and contact pad	Flexible layers	Frequent	Limited (prone to wear)

Capacitive devices demonstrably outperform their mechanical counterparts by eliminating friction points and inherent contamination traps. This design innovation facilitates seamless cleaning protocols and ensures a significantly extended service life. This foundational durability directly underpins their superior hygienic advantages.



Optimizing Medical Device User Interfaces with Capacitive Sensing



• Glove-Friendly Operation: Accurately recognizes insulated touches, eliminating the need for recalibration or glove removal.
• Silent Actuation: Completely eliminates audible clicks, significantly reducing noise pollution in sensitive patient care environments.
• Exceptional Precision: Detects even the lightest touches, effectively minimizing the risk of accidental activations and ensuring accurate input.

These inherent attributes collectively deliver a user interface that not only adheres to stringent sterile-environment protocols but also significantly enhances overall workflow safety. This sets the foundation for a comprehensive examination of their profound infection-control advantages.



Capacitive Touch Switches: Elevating Hygiene and Infection Control in Healthcare Environments

Capacitive touch switches are engineered with fully sealed surfaces, effectively preventing fluid ingress and eliminating microbial harboring points. This design empowers medical staff to maintain sterile conditions with unparalleled effectiveness. Their inherently smooth, non-porous overlays actively resist contamination and are built to withstand rigorous disinfection protocols, directly mitigating the risks of hospital-acquired infections (HAIs).





Get a quote for custom capacitive switches from Langir



Key Advantages in Hygiene and Infection Control

Capacitive touch switches incorporate sealed surface designs that actively prevent fluid penetration and inhibit microbial proliferation. This critical feature enables medical personnel to uphold stringent sterile conditions with enhanced efficiency. The smooth, non-porous overlay materials inherently resist contamination and are proven to endure aggressive disinfection regimens, thereby directly contributing to a significant reduction in hospital-acquired infection (HAI) rates.



Langir, Capacitive Touch Switches for Medical Devices (2024)

This reference substantiates the assertions regarding the profound hygiene benefits of capacitive touch switches within diverse healthcare environments.



Preventing Hospital-Acquired Infections with Sealed Capacitive Touch Surfaces



1. Superior Fluid Resistance: Achieves Ingress Protection (IP) ratings up to IP67, ensuring complete impermeability to liquids and disinfectants.
2. Non-Porous Surface Integrity: Eliminates microscopic crevices or seams where pathogens could harbor and proliferate.
3. Effortless Disinfection: Facilitates rapid and thorough cleaning with alcohol-based solutions, instantly removing contaminants and ensuring a sterile interface.

By effectively preventing the proliferation of bacteria and viruses directly at the interface, these advanced switches are instrumental in maintaining the pristine sterility required in operating rooms and intensive care units. Our next section will detail compatible sterilization methodologies.



Compatible Sterilization Methods for Capacitive Touch Panels



• Chemical Disinfectants: Fully compatible with common hospital-grade solutions, including isopropyl alcohol and quaternary ammonium wipes.
• UV-C Irradiation: Withstands non-contact germicidal exposure for comprehensive surface sterilization.
• Steam Autoclaving: Available for specialized panels engineered to endure high-temperature steam sterilization cycles.

These validated sterilization methods ensure the integrity of the underlying electrode layer while effectively eradicating harmful microorganisms. The inherent compatibility with aggressive disinfectants underscores the critical importance of smooth, non-porous surface designs.



The Critical Role of Smooth, Non-Porous Surfaces in Medical Hygiene



1. Significantly Reduced Bacterial Load: The absence of cracks, seams, or joints eliminates potential harborage points for pathogens.
2. Exceptional Chemical Resilience: Engineered to withstand repeated exposure to potent, hospital-grade cleaning agents without degradation.
3. Ensured Consistent Disinfection: Facilitates uniform wipe-down procedures, effectively eliminating hotspots and ensuring comprehensive surface sterilization.

This inherent material advantage forms the cornerstone of rigorous infection-control standards and seamlessly transitions into the discussion of their unparalleled long-term reliability and durability.



Unmatched Durability and Reliability of Capacitive Touch Switches in Medical Environments

Capacitive touch switches are engineered to robustly resist the harsh chemical agents, pervasive moisture, and significant mechanical stress inherent to healthcare settings, ensuring years of virtually maintenance-free operation. Their advanced solid-state design is built to withstand frequent, rigorous cleaning cycles and continuous, high-demand use, thereby substantially driving down the total cost of ownership.





Get a quote for custom capacitive switches from Langir



Resistance to Wear, Chemicals, and Moisture: The Capacitive Advantage



• Solid-State Sensor Design: Eliminates all moving parts, preventing mechanical fatigue and wear over time.
• Advanced Protective Overlays: Utilizes chemically inert glass or specially coated plastics, offering superior resistance to aggressive cleaning agents.
• Hermetically Sealed Assembly: Incorporates conformal coatings and precision sealing to completely block moisture ingress and environmental contaminants.

This inherently robust construction guarantees consistent, uninterrupted performance across a wide range of critical medical applications, including dialysis stations, advanced critical-care monitors, and portable diagnostic tools. Sustaining this level of reliability necessitates adherence to globally recognized protection standards.



IP Ratings and Rugged Features for Medical Device Longevity



1. IP67 or Higher Ingress Protection: Ensures complete protection against dust ingress and temporary immersion in liquids, crucial for sterile environments.
2. IK07 Impact Resistance Rating: Provides robust protection against mechanical impacts and accidental knocks, common in dynamic clinical settings.
3. Extended Operating Temperature Range: Guarantees reliable functionality across a broad spectrum of temperatures, from –20 °C to +70 °C, accommodating diverse operational conditions.

These stringent ratings collectively guarantee uninterrupted service and optimal performance in a vast array of medical applications, ranging from demanding outdoor triage units to sensitive neonatal incubators. Furthermore, this exceptional durability translates into substantial cost savings throughout a device’s entire operational lifecycle.



Reducing Total Cost of Ownership Through Enhanced Durability in Medical Equipment



• Minimized Replacements: Leads to significantly reduced procurement cycles and capital expenditure.
• Reduced Maintenance Requirements: Requires minimal labor and fewer replacement parts, optimizing operational budgets.
• Maximized Uptime Fewer device failures directly translate to enhanced operational continuity and a reduction in critical treatment delays.

By seamlessly combining a rugged, resilient design with effortless cleaning capabilities, capacitive switches effectively reduce operational expenses and enable technical staff to focus on higher-value tasks. This synergy perfectly aligns with the pursuit of enhanced user experience and paramount safety within demanding clinical settings.



Optimizing User Experience and Safety with Capacitive Touch Switches in Medical Environments

Capacitive touch switches provide highly intuitive controls that significantly accelerate clinical workflows, minimize input errors, and instill greater confidence in medical professionals. Their silent operation and precise sensitivity directly contribute to safer procedures, while thoughtfully designed ergonomic overlays effectively minimize operator fatigue during prolonged periods of use.





Get a quote for custom capacitive switches from Langir



The Indispensable Nature of Glove-Friendly Operation for Medical Professionals



• Consistent, Reliable Activation: Eliminates the necessity of removing gloves or recalibrating the interface, ensuring uninterrupted workflow.
• Minimized Cross-Contamination Risk: Facilitates continuous glove coverage, thereby significantly reducing the potential for pathogen transfer.
• Accelerated Task Completion: Eliminates the common fumbling and inaccuracies often associated with traditional resistive screens, enhancing efficiency.

This seamless glove compatibility is fundamental to achieving faster patient turnarounds and facilitating smoother, more efficient workflow transitions. This critical advantage naturally leads to an exploration of how highly intuitive interfaces inherently reduce operational errors.



Enhancing Patient Care and Reducing Errors Through Intuitive Interfaces



1. Clear Visual Cues: Backlit legends and icons provide unambiguous guidance for button functions, even in challenging low-light clinical environments.
2. Tactile Confirmation: Optional soft haptic feedback provides immediate, reassuring confirmation of selections, enhancing user confidence.
3. Robust Error Prevention: Advanced multi-touch rejection algorithms effectively prevent accidental or unintended inputs, ensuring precise control.

When control actions are unequivocally clear and unambiguous, clinicians can dedicate less time to second-guessing settings and more time to direct patient care. Our subsequent discussion will delve into ergonomic design elements that further elevate overall usability.



Ergonomic Design Features for Enhanced Medical Device Usability



• Low-Profile Overlays: Engineered to prevent knuckle interference and minimize user strain during prolonged interaction.
• Soft-Touch Finishes: Provide comfortable and tactile contact surfaces, enhancing the user’s experience.
• Custom Contours and Form Factors: Designed to seamlessly align with specific device enclosures, ensuring natural and intuitive reach for optimal control.

These meticulously engineered, user-centered design elements significantly reduce operator fatigue in high-demand environments such as operating suites and radiology rooms. This directly correlates with the underlying technical advantages that robustly support their superior performance.



Technical Advantages & Customization Options for Medical-Grade Capacitive Touch Switches

Beyond their inherent hygiene and ergonomic benefits, capacitive switches deliver critical technical advantages, including superior electromagnetic immunity, robust electrostatic discharge protection, and highly adaptable form factors. These attributes are indispensable for medical OEMs developing specialized instruments. Langir’s comprehensive services ensure that each custom solution precisely aligns with exact device specifications and performance requirements.



Ensuring EMI and ESD Protection in Sensitive Medical Environments with Capacitive Switches



• Mitigate Electromagnetic Interference (EMI): Crucially maintains signal integrity and prevents operational disruption when positioned near sensitive imaging and radiofrequency (RF) equipment.
• Suppress Electrostatic Discharge (ESD): Provides robust protection for internal electronics against accidental static shocks, safeguarding device longevity.
• Ensure EMC Standards Compliance: Guarantees reliable and safe operation within electromagnetically sensitive environments, including MRI and CT suites.

This inherent technical robustness is paramount in preventing data corruption and mitigating device malfunctions, thereby reinforcing the foundation for safe, accurate, and reliable diagnostic procedures.



Langir’s Comprehensive Customization Services for Medical Capacitive Switches



• Custom Graphic Overlay Design: Offers tailored legends, intuitive icons, and integrated backlighting solutions to meet specific interface requirements.
• Rapid Prototyping and Rigorous Validation: Provides swift sample production and comprehensive functional testing to accelerate development cycles.
• Scalable Volume Manufacturing: Ensures high-volume production capabilities with unwavering quality consistency for large-scale OEM projects.
• Regulatory Certification Support: Offers expert assistance with critical medical standards compliance, including IEC 60601 and ISO 13485.

Our streamlined, turnkey process significantly accelerates your time-to-market while meticulously ensuring that every panel rigorously adheres to stringent medical safety and performance criteria.



Available Materials and Form Factors for Medical-Grade Capacitive Switches



Material Type	Standard Thickness	Primary Application	Distinct Advantage
Borosilicate Glass	1.1 mm	High-precision surgical consoles	Exceptional scratch and chemical resistance
Polycarbonate	0.8 mm	Rugged portable monitors	Superior impact and shatter resistance
Acrylic	1.0 mm	Cost-optimized bedside terminals	Excellent optical clarity and cost-effectiveness

These versatile material and form factor options are designed to seamlessly accommodate diverse device architectures and stringent sterilization protocols. This comprehensive range naturally leads us to explore real-world implementations across various medical equipment categories.



Common Medical Device Applications of Capacitive Touch Switches & Their Benefits

Capacitive switches are widely integrated across a broad spectrum of diagnostic, monitoring, surgical, and laboratory devices, primarily due to their unparalleled advantages in hygiene, reliability, and precision. The strategic integration of these advanced switches demonstrably elevates both clinical safety standards and overall user satisfaction.





Get a quote for custom capacitive switches from Langir



Integration of Capacitive Switches in Diagnostic Imaging Equipment



• Facilitate Seamless Cleaning: Essential for maintaining sterile conditions and rapid patient turnover after each use.
• Minimize Acoustic Noise: Crucial for creating a calm and reassuring environment within sensitive imaging rooms.
• Enable Rapid Parameter Adjustments: Allows for precise, real-time tuning of critical parameters, enhancing diagnostic efficiency.

Their fully sealed overlays provide robust protection for sensitive internal electronics against gels and aggressive cleaning fluids, thereby ensuring uninterrupted and reliable diagnostic performance.



Suitability of Capacitive Touch Interfaces for Patient Monitoring Systems



1. Enable Rapid Parameter Adjustments: Facilitates swift modifications to critical patient data, such as heart rate, oxygen saturation levels, and infusion rates.
2. Support Gloved Operation: Allows nurses and respiratory therapists to maintain continuous barrier precautions without compromising interface functionality.
3. Provide Clear Status Indicators: Integrated backlit icons instantly highlight critical alarms and operational statuses, ensuring immediate caregiver response.

This synergistic combination of operational clarity and inherent sterility empowers caregivers to respond with greater speed and precision to evolving patient needs.



Benefits of Capacitive Switches in Surgical and Laboratory Devices



• Optimize Sterilization Cycles: Engineered to withstand repeated, rigorous autoclave or UV-C germicidal treatments without degradation.
• Elevate Precision Control: Detects even the most minimal touches, enabling precise micro-adjustments critical for delicate procedures.
• Ensure Unwavering Reliability: Designed to endure high-traffic, continuous use environments without susceptibility to mechanical failure.

These highly demanding domains necessitate uninterrupted hygiene protocols and consistently flawless performance throughout critical procedures, unequivocally underscoring the profound value and strategic advantage of capacitive design.



Why Langir is Your Premier Partner for Medical-Grade Capacitive Touch Solutions

Langir uniquely combines profound expertise in capacitive switch technology with comprehensive, end-to-end manufacturing capabilities. This synergy enables us to deliver medical-grade panels that not only meet the most stringent regulatory standards but also fulfill the precise volume requirements of leading healthcare OEMs globally.



Langir Capacitive Switches: Adherence to Key Medical Standards and Certifications



• IEC 60601-1: Compliance with international electrical safety standards for medical electrical equipment.
• ISO 13485: Certified quality anagement system specifically for medical devices.
• IP67: Achieves superior ingress protection against dust and temporary immersion.
• RoHS and REACH:** Adherence to critical environmental and material safety directives.



Langir’s Support for Bulk Procurement and Tailored Medical Solutions



1. Highly Competitive Volume Pricing: Optimized to provide significant cost efficiencies for large-scale OEM contracts.
2. Agile Production & Rapid Changeover: Features streamlined workflows designed for efficient adaptation to varied and complex designs.
3. Dedicated Account Management: Offers a single, expert point of contact for seamless order coordination and project oversight.

Our unwavering B2B focus guarantees highly reliable supply chains and provides comprehensive, customized documentation tailored precisely for each medical device manufacturing partner.



Requesting Quotes & Contacting Langir for Medical Device Manufacturers

To explore our extensive range of bulk capacitive switch options or to discuss a bespoke custom design, we invite you to request a consultation and detailed quote by visiting Langir’s dedicated contact page: Connect with Langir: Bulk Orders & Custom Medical Capacitive Switches

Capacitive touch switches unequivocally deliver unmatched levels of hygiene, exceptional durability, and highly intuitive controls, aligning perfectly with the rigorous demands of modern medical devices. Their inherent ability to robustly resist harsh chemicals, effectively prevent contamination, and provide precise, glove-compatible operation directly translates into significantly reduced maintenance costs and profoundly enhanced patient care. Langir’s unparalleled expertise in advanced customization and high-volume manufacturing ensures that you will secure reliable, certified panels meticulously tailored to your exact specifications. We encourage you to connect with us today to seamlessly integrate advanced capacitive technology into your next groundbreaking medical device project.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Facing challenges wiring a smart switch in older homes lacking a neutral conductor? Integrating a capacitor is the key to banishing that persistent LED flicker. It provides the minimal, steady current needed to keep your switch’s electronics powered when the light is off. This comprehensive guide walks you through why a capacitor is indispensable, precisely how and where to wire it, integrating capacitive touch interfaces, troubleshooting common flicker or false trigger issues, exploring industrial advantages, and dissecting circuit schematics—all presented in clear, actionable steps. Whether you’re a seasoned electrical professional or an industrial integrator seeking high-volume capacitive switch solutions, this article equips you with practical wiring techniques, maintenance insights, and advanced customization options.



The Crucial Role of a Capacitor in No-Neutral Smart Switch Setups

A capacitor acts as a miniature energy reservoir, storing and releasing electrical charge. In smart switch installations without a neutral wire, it ensures a consistent, albeit small, current flow to power the switch’s internal electronics. This continuous supply prevents the voltage fluctuations that can cause operational interruptions and the annoying flicker in LED bulbs. By installing a capacitor across the load, you effectively create a stable return path, mimicking a neutral conductor and keeping your smart switch fully operational.





Get a quote for custom capacitive switches from Langir



Why Smart Switches Need Capacitors (No Neutral Required)



A capacitor delivers a small, continuous current to power a smart switch’s internal electronics when a neutral wire isn’t available, preventing voltage dips that lead to LED flicker. Connecting a capacitor across the load establishes a stable return path, effectively acting like a neutral conductor.

This explanation lays the groundwork, clarifying the fundamental necessity of capacitors for the article’s central theme.



Understanding Capacitance in Smart Switch Operation

Capacitance measures a component’s ability to store electrical charge. For smart switches, this translates to a vital energy buffer. By smoothing out variations in line voltage, capacitance ensures the switch’s microcontroller maintains stable wireless connectivity and responds promptly to commands. This buffering capability also supports efficient low-power standby modes, significantly enhancing overall switch reliability.

Beyond stability, the next critical advantage is preventing LED flicker.



How Capacitors Eliminate LED Flicker in No-Neutral Smart Switches

When wired in parallel with your LED load, a capacitor absorbs sudden voltage spikes and compensates for current dips. This action smooths the electrical waveform, preventing the rapid on-off cycles that cause flickering in LED lights.



• It releases stored energy to counteract voltage sags.
• It manages inrush current to LEDs, preventing abrupt power surges.
• It filters out high-frequency noise, stopping false activations of the switch’s sensor.

By stabilizing the voltage supply, this method effectively eliminates visible flicker and protects both the LED driver and the smart switch’s sensitive circuitry.



Selecting the Optimal Capacitor Types for Smart Switch Stability

Here’s a breakdown of common capacitor types suitable for no-neutral smart switch installations, chosen for their safety and longevity.



Capacitor Type	Typical Specification	Key Advantage	Why It Matters
X2 Safety Film	275 VAC, 0.1–0.47 µF	High surge tolerance and self-healing properties	Complies with EMI suppression standards
Polyester Film	50–100 VDC, 0.1–1 µF	Low Equivalent Series Resistance (ESR), handles high ripple current	Ensures consistent charge and discharge cycles
Ceramic (Class II)	50 V–100 V, 0.01–0.1 µF	Compact dimensions	Ideal for confined switch housings
Electrolytic (Aluminum)	16–50 V, 2.2–10 µF	High capacitance density	Provides a substantial energy buffer within a small PCB footprint



Understanding X2 Safety Capacitor Ratings



X2 safety capacitors are engineered for electronic devices and typically rated at 275VAC. They are frequently employed in applications like air conditioning units and network routers.



Recommended Capacitors for Stable Smart Switches



For environments operating at line voltage, X2 safety film capacitors are generally the preferred choice, ensuring both regulatory compliance and effective flicker suppression. Other suitable options include polyester film and ceramic capacitors.

Opting for an X2-rated safety capacitor is typically advised for line-voltage applications to guarantee adherence to regulations and dependable flicker mitigation.



Step-by-Step Capacitor Wiring for No-Neutral Smart Switches

Correctly installing a capacitor involves precise placement, the right tools, and clear, sequential wiring steps to ensure both safety and optimal performance. Follow this straightforward wiring guide to eliminate flicker, maintain connectivity, and meet industry standards.





Get a quote for custom capacitive switches from Langir



Optimal Capacitor Placement in the Circuit

The capacitor should be installed in parallel with the load, directly at the light fixture. Connect it between the live (L) and load (L1) conductors that supply the LED bulb. Positioning it at the fixture ensures it directly addresses voltage fluctuations at the source of the flicker, bypassing any concealed wiring junctions within the walls.



Capacitor Wiring Location for No-Neutral Smart Switches



Install the capacitor in parallel with the load at the fixture end, connecting it between the live (L) and load (L1) conductors feeding the LED bulb. This placement ensures direct voltage stabilization right where flicker originates.

This section provides the critical instructions for capacitor placement, a key practical element of the article.



Essential Tools and Materials for Capacitor Installation

Gather these necessary items before you begin to ensure a smooth and safe installation process:



• A multimeter for confirming voltage and continuity
• Insulated wire strippers and cutters for precise conductor preparation
• A set of screwdrivers with insulated handles
• Wire connectors or terminal blocks rated for 300 VAC
• The selected X2-rated safety capacitor (typically 0.1–0.47 µF)

Having these tools readily available will prevent interruptions and minimize risks during the electrical work.



Detailed Wiring Procedure for Capacitor Integration

Follow these sequential steps to correctly install the capacitor in parallel with your smart switch’s LED load:



1. Deactivate the circuit breaker and confirm zero voltage using a multimeter.
2. Open the fixture’s junction box and identify the live (L) and load (L1) wires.
3. Carefully strip 6–8 mm of insulation from both conductors.
4. Connect one capacitor lead to the live conductor (L) using an appropriate crimp connector.
5. Connect the other capacitor lead to the load conductor (L1) at the same junction point.
6. Secure all connections, neatly arrange the wiring, and replace the junction box cover.
7. Restore power to the circuit and verify that the switch maintains a stable connection and the LED operates without flicker.

Successfully completing these steps will result in a flicker-free circuit that effectively replicates a neutral return path, enhancing smart switch performance.



Connecting the Capacitor in Parallel with LED Bulbs Explained

Wiring in parallel means that each lead of the capacitor connects to the same points as the lamp’s live and load connections. One lead connects to the fixture’s hot supply, and the other connects to the lamp’s input. This direct connection instantly provides charge when the bulb’s current momentarily drops, eliminating flicker directly at its source.



Safe Handling of Electrical Components During Installation

Always de-energize circuits before starting work. Wear appropriate personal protective equipment (PPE), including insulated gloves and eye protection. Verify zero voltage before making any contact and maintain clear, labeled separation between conductors. Implementing lock-out/tag-out procedures and adhering to local electrical codes are crucial for preventing electric shock and fire hazards.



Integrating Capacitive Touch Switches into Smart Home Ecosystems

A capacitive switch detects touch by sensing changes in an electric field, rather than relying on mechanical movement. This makes them perfect for sleek, sealed smart panels that resist dust and moisture, ideal for modern industrial control systems.





Get a quote for custom capacitive switches from Langir



What Defines a Capacitive Switch and Its Touch Detection Mechanism?

A capacitive switch utilizes electrodes and a dielectric layer to form a small capacitor. When a finger approaches, the capacitance of the electric field changes, signaling the switch’s sensor chip. This technology enables silent, wear-free operation and supports advanced interactions like gestures and multi-touch controls.

Following the sensing principle, the next logical step is understanding how to connect these electrodes to the PCB.



Connecting Capacitive Switch Electrodes to PCBs in Smart Switches

Begin by precisely aligning the switch’s electrode pad with its corresponding sensing input on the PCB. Next, solder fine-gauge shielded wires from the electrode pad to the PCB’s capacitive input pin, ensuring minimal signal interference and stable readings. Finally, fine-tune the sensitivity through the switch’s firmware or an onboard trim potentiometer for accurate touch recognition.

Advanced calibration naturally leads into the areas where these switches truly shine: industrial applications.



Prominent Industrial Uses for Capacitive Switches



• Sanitary controls in food processing equipment, where sealed surfaces prevent contamination.
• Interactive kiosks and vending machines requiring robust, vandal-resistant panels.
• Medical device interfaces designed for easy cleaning and sterilization.
• Automated assembly lines where dust or oil could impede mechanical buttons.



Key Industrial Applications for Capacitive Switches



Capacitive switches are utilized in hygienic controls for food processing, interactive kiosks, medical device interfaces, and automated assembly lines.

This section provides concrete examples of capacitive switch applications, reinforcing the article’s discussion on industrial relevance.



Troubleshooting Common Issues in Capacitive Smart Switch Installations

When flicker or unresponsiveness persists, a methodical diagnostic approach helps pinpoint the root cause and verify component integrity, restoring optimal performance.





Get a quote for custom capacitive switches from Langir



Why Might My Smart Switch Still Flicker After Capacitor Installation?

Persistent flicker can often be attributed to an undersized capacitor, multiple LED strings wired in parallel, or compromised connection integrity. Double-check that you are using an X2-rated 0.1–0.47 µF capacitor, ensure all crimp connections are solid, and if multiple bulbs are on the same circuit, consider installing a capacitor for each fixture to manage distributed loads effectively.



Resolving Persistent LED Flicker



Lingering flicker issues may stem from an undersized capacitor, multiple parallel LED strings, or poor connection quality. Confirm you’re using an X2-rated 0.1–0.47 µF capacitor, verify secure crimp connections, and if multiple bulbs are involved, consider adding a capacitor per fixture to handle the load distribution.



Diagnosing Unresponsive or False Triggering Capacitive Switches

Start by ensuring the sensing electrode is clean and securely attached. Next, measure the baseline capacitance using a meter; unexpectedly low readings may indicate a problem with the PCB trace or pad. Finally, test for electrical noise by temporarily disconnecting nearby high-frequency devices and recalibrating the sensitivity settings.



Best Practices for Maintaining Capacitive Switch Performance



• Keep electrode surfaces free from dust and conductive contaminants.
• Recalibrate touch thresholds annually or following any panel modifications.
• Regularly inspect solder joints for signs of cold joints or corrosion.
• Utilize shielded cables for extended electrode leads to mitigate EMI interference.

Consistent preventive maintenance ensures reliable response times and minimizes operational downtime.



Advantages of Capacitive Switches with Capacitors in Industrial Smart Systems

Combining capacitive touch interfaces with stabilizing capacitors significantly enhances user experience and system resilience, delivering the robust reliability that industrial environments demand.





Get a quote for custom capacitive switches from Langir



How Capacitive Switches Elevate Durability and User Experience

Capacitive switches eliminate mechanical wear and tear, offering superior resistance to harsh conditions. Coupled with capacitors that ensure stable power delivery to the sensor, they enable seamless operation, intuitive touch feedback, and a sleek, sealed front-panel design that simplifies cleaning and hygiene protocols.



Industrial Benefits of Capacitive Touch Switches



Capacitive switches feature no moving parts, resist wear, and withstand demanding environments, while capacitors provide consistent power to the sensor. Together, they facilitate smooth operation, intuitive touch feedback, and a sleek, sealed front-panel design that simplifies cleaning and hygiene.



The Value of Customized Capacitive Switch Solutions for Industry

Custom layouts, logo-engraved overlays, and specialized sensing parameters allow you to tailor each panel to precise factory or medical specifications. Bulk orders unlock significant cost savings, and partnering with an experienced manufacturer ensures rapid prototyping and punctual production schedules.



Illustrative Case Studies of Successful Capacitive Switch Integration



• A medical equipment OEM replaced traditional buttons with sealed capacitive panels, achieving a 70% reduction in maintenance requirements.
• An automotive manufacturing plant implemented bulk capacitive floor-mount controls, decreasing failure rates in wash-down zones by 90%.
• A consumer appliance brand integrated capacitive glass touch plates in high-volume production, enhancing brand perception and reducing warranty claims.



Essential Wiring Diagrams and Circuit Schematics for Smart Switch Capacitor Installation

Detailed schematics provide a clear roadmap of every conductor, component, and connection, facilitating efficient and error-free installations.





Get a quote for custom capacitive switches from Langir



Interpreting and Utilizing Circuit Diagrams for Capacitor and Smart Switch Wiring

Circuit diagrams use standardized symbols—lines for conductors, zigzags for resistors, parallel lines for capacitors—to illustrate component interconnections. By tracing the live and load paths, you can confirm correct capacitor placement at the fixture and ensure the switch’s power input aligns with the hot feed.



Availability of Downloadable Wiring Schematics for No-Neutral Smart Switch Capacitor Setups

Yes, downloadable PDF schematics illustrating single-pole, multi-bulb, and multi-gang configurations are available. Contact our team to receive customized schematics tailored to your specific installation environment.



Understanding Semantic Triples in Wiring Diagrams



Diagram Symbol	Relationship	Connection Point
Capacitor	connects to	Live (L) ↔ Load (L1) wires
Smart Switch	receives power via	Line (L)
LED Bulb	is stabilized by	Parallel capacitor across leads



Accessing Professional Support and Bulk Capacitive Switch Solutions

For seamless integration, expert design consultation, and volume pricing on capacitive touch switches with integrated capacitance stabilization, partner with Langir’s dedicated team.



How to Request Custom Capacitive Switch Manufacturing and Bulk Pricing

To obtain a bulk quote for capacitive switches or to discuss custom front-panel designs, please request a bulk quote for capacitive switches.



Langir’s Support for Smart Switch Capacitor Integration

Langir offers on-site technical training, comprehensive wiring blueprints, on-call troubleshooting assistance, and firmware calibration guidance to ensure effortless capacitor integration and dependable smart switch performance.



Finding Installation Guides and Troubleshooting Resources from Langir

Visit our resource center or contact us directly to access step-by-step manuals, detailed wiring schematics, and maintenance checklists specifically designed for your smart switch project requirements.

Capacitor-enhanced smart switch installations effectively resolve flicker issues, enable no-neutral wiring configurations, and unlock the full potential of capacitive touch control. From fundamental capacitance principles to advanced wiring diagrams and industrial customization options, this guide provides the essential knowledge for implementing reliable, durable smart switch systems that elevate user experience and maximize operational uptime. Ready to advance your next project? Connect with Langir’s specialists for bulk solutions, bespoke designs, and hands-on support today.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text css=””]



Curious about attaching a wire to a TTP223 capacitive sensor module to broaden its touch detection area? Expanding the touch surface with an external lead significantly boosts usability in industrial control panels, equipment interfaces, or custom-designed control systems. This guide will walk you through the TTP223 sensor’s operational principles, practical methods for adding leads, suitable material selections, sensitivity adjustments, and real-world applications—all informed by Langir’s expertise in bulk manufacturing and custom solutions.

You’ll gain insights into:



• The fundamental operation and inherent limitations of the TTP223 touch sensor.
• Effective techniques for soldering leads and designing custom PCB pads.
• Appropriate dielectric and conductive materials for overlay applications.
• Fine-tuning sensitivity through capacitor integration, grounding strategies, and shielding.
• Comparative advantages of industrial capacitive switches versus traditional mechanical buttons.
• Langir’s comprehensive customization services, quoting process, and stringent quality assurance.

Let’s explore how a simple wire can transform a standard capacitive switch into a robust, extended-range control element.



Applications of Capacitive Touch Sensors



Capacitive touch sensors are integral to modern electronics, powering interactions in smartphones, sophisticated control panels, and intuitive input devices through touch and gesture recognition. Their utility extends broadly into demanding industrial and automotive sectors.



DigiKey TechForum, Touch Sensors: Types, Applications and Selection Tips (2024)



This reference underscores the widespread adoption of capacitive touch sensors, providing essential context for understanding the value of extending their touch area for specialized applications.





Get a quote for custom capacitive switches from Langir



How Does the TTP223 Capacitive Touch Sensor Operate?

The TTP223 is a specialized integrated circuit designed for single-key touch detection. It operates by sensing minute alterations in capacitance, outputting a digital signal when human touch modifies its electrostatic field. By precisely interpreting subtle shifts in charge distribution on its internal electrode, it generates a stable high or low output signal, making it an ideal replacement for mechanical push buttons in environments requiring robust sealing or resistance to harsh conditions. Understanding this core mechanism is key to effectively extending its sensing capabilities with external components.



TTP223 Capacitive Touch Sensor Overview



The TTP223 is a touch pad detector IC engineered to emulate the function of a single tactile button, offering a modern alternative to conventional direct-contact keys. It features an integrated touch-sensitive area and provides configurable options for output modes and sensitivity adjustments.



Makers Electronics, TTP223 Capacitive Touch Sensor (n.d.)



This source offers a foundational understanding of the TTP223 module and its core functionality, serving as a crucial reference for this article.



What Are the Essential Components of the TTP223 Module?

The typical TTP223 breakout board incorporates several key elements:



Module Component	Specification	Function
VCC Pin	Operates within a 2.0 V to 5.5 V range	Supplies power to the sensor IC
GND Pin	Establishes a common ground reference	Completes the sensor’s electrical circuit
Output Pin	Delivers a digital push/pulse signal	Indicates successful touch detection
Touch Electrode	Typically a printed copper pad	The primary surface for sensing touch input
Sensitivity Adjust	Pad designed for an external capacitor	Allows for fine-tuning the detection threshold
Status Indicator	Integrated onboard LED	Provides visual confirmation of touch events

These components collaborate to maintain a stable baseline capacitance and detect variations introduced by touch, paving the way for the integration of external electrodes that function as secondary sensing surfaces.



How Does Capacitance Detection Enable Touch Sensing?

Capacitive sensing relies on the module’s capacity to measure subtle changes within an electric field generated by its electrode. When a finger approaches the sensor:



1. Charge Redistribution: The presence of the human body introduces a small capacitance in parallel with the sensor’s electrode.
2. Threshold Crossing: The integrated circuit compares this modified charge level against a predefined baseline capacitance.
3. Signal Generation: Upon exceeding the threshold, a digital output signal is toggled, confirming a valid touch interaction.

These rapid microsecond-level operations ensure reliable, non-contact interaction, offering superior durability and sealing compared to conventional mechanical switches. When extending the sensing area with external electrodes or wires, the baseline field is altered, necessitating careful design and calibration to ensure consistent and repeatable sensing performance.



What Are the Limitations of the Default TTP223 Touch Area?

The TTP223’s sensing capabilities are inherently constrained by the physical dimensions of its onboard copper pad and the IC’s default internal settings:



• Electrode Dimensions: The sensing area is typically less than 10 mm², limiting its effective reach.
• Sensing Range: The sensor can effectively detect touch through overlay materials ranging from 1–3 mm thick, depending on the material’s dielectric properties.
• Environmental Noise: Unshielded sensor pads are susceptible to electromagnetic interference (EMI) and static discharge, potentially causing false triggers.

Understanding these limitations is crucial for designing external leads and overlays that maintain optimal sensitivity and prevent unintended activations when expanding the touch surface.



How Can I Expand the Touch Area of a TTP223 Capacitive Switch?

To extend the TTP223’s touch region, you’ll need to create an external electrode—either a wire lead or a custom-designed PCB pad—connected directly to the sensor’s input. This approach effectively enlarges the interactive surface while preserving the module’s core logic, enabling touch activation through thicker panels or larger button areas, particularly beneficial for industrial applications.





Get a quote for custom capacitive switches from Langir



Is It Possible to Add an External Lead or Wire to the TTP223 Sensor Input?

Absolutely. You can solder a conductive wire or ribbon cable directly to the module’s touch electrode test point or designated pad. Follow these recommended steps:



1. Apply a thin layer of solder to both the electrode pad and the tip of the wire.
2. Using a fine-tipped soldering iron, carefully attach a 22–28 AWG insulated copper wire.
3. Secure the wire to the underside of the module to provide strain relief and prevent damage.
4. Seal the soldered connection with epoxy or hot glue to enhance resistance to vibration.



Extending Touch Area Capabilities



Expanding the touch area of a TTP223 involves soldering a conductive wire or fabricating a custom PCB pad linked to the sensor’s input, thereby increasing the interactive surface. This technique facilitates touch activation through thicker panels or larger button designs.



AskElectronics, Is there a way to increase these capacitive touch sensors sensor’s sensing area if its too small? (2023)



This source validates the feasibility of extending touch areas using conductive materials, a central theme of this article.

By extending the electrode in this manner, you create a remote sensing surface that functions similarly to the original pad. However, this modification necessitates sensitivity tuning to compensate for the added capacitance.



What Are the Best Practices for Designing External Electrodes and PCB Touch Pads?

When developing custom PCB pads or overlay electrodes, consider these design principles:



• Pad Shape: Opt for round or oval edges to ensure a more uniform distribution of the electric field.
• Copper Thickness: Utilize 1 oz copper or thicker for enhanced signal stability.
• Track Width: Maintain a minimum trace width of 0.5 mm from any ground pour to minimize capacitive leakage.
• Clearances: Implement a guard ring connected to ground surrounding the pad to effectively focus the electric field.

Adhering to these layout guidelines ensures that your external electrode provides a consistent capacitance change without introducing unintended signal coupling with adjacent circuitry.



How Do Lead Length and Shielding Impact Touch Sensitivity and Stability?

Extended wire lengths can introduce parasitic capacitance and act as antennas, increasing susceptibility to noise. In practical terms:



Wire Length	Effect on Sensitivity	Recommended Mitigation
Under 50 mm	Minimal impact on sensitivity	No additional shielding typically required
50–150 mm	Noticeable shift in the touch threshold	Incorporate a 10–30 pF tuning capacitor
Over 150 mm	Significant susceptibility to noise interference	Employ shielded cable and ground the braid

Short, unshielded leads generally maintain a responsive touch feel. However, for longer runs, using coaxial or foil-shielded cables and retuning the sensitivity adjust pad with a small capacitor becomes essential for stable operation.



What Materials Are Suitable for Extending the Capacitive Touch Surface?

Selecting appropriate overlay and electrode materials is critical for ensuring reliable performance of your extended touch switch, especially when operating through cover plates or enclosures.





Get a quote for custom capacitive switches from Langir



Which Dielectric Materials Effectively Support Touch Throughlays?

The choice of substrate material significantly influences sensing range and tactile feedback:



Overlay Material	Dielectric Constant	Typical Application
Glass	5–7	Sealed control panels requiring high durability
Polycarbonate	2.9–3.1	Transparent windows on machinery
Acrylic	3.3–3.5	Decorative overlays with indicator functions

These materials offer a balance between sensing sensitivity and protective qualities, enabling touch activation through robust and easily cleanable surfaces.



How Does Overlay Thickness Affect Capacitive Sensing Performance?

As the thickness of the overlay material increases, a larger capacitance change is required for detection:



1. Up to 1 mm: Minimal adjustment to sensitivity is usually needed.
2. 1–3 mm: Adding a 10–20 pF tuning capacitor is often recommended.
3. Over 3 mm: Thorough testing of multiple dielectric layers is advised, and consider incorporating a mechanical actuation backup.

Opting for overlay materials under 3 mm typically ensures reliable performance without necessitating excessive sensitivity tuning.



Efficient Tuning of Capacitive Sensing Designs



The maximum sensitivity of a capacitive sensor is dictated by the physical dimensions of the sensor itself, combined with the thickness and dielectric constant of the overlay material. Proper calibration is a fundamental requirement for any capacitive sensing design to prevent false activations and sensor malfunctions.



DigiKey Australia, Efficient Tuning of Capacitive Sensing Designs (2011)



This source provides valuable guidance on sensor tuning, which is essential when modifying the touch area of the TTP223.



What Conductive Materials Are Recommended for External Leads and Electrodes?

Here is a concise guide to suitable conductive materials:



Conductor Type	Conductivity Rating	Common Use Case
Copper Foil	58 MS/m	Flexible overlays for custom pad shapes
PCB Copper Traces	58 MS/m	Integrated electrode designs within circuit boards
Tinned Copper Wire	45 MS/m (plated)	Extensions requiring shielded connections



How Can I Adjust TTP223 Sensitivity for Extended Touch Leads?

When you enlarge the electrode area or add external leads, the sensor’s detection threshold naturally shifts. Compensating for this requires adding external capacitors and implementing appropriate grounding techniques to restore precise touch detection.





Get a quote for custom capacitive switches from Langir



Sensitivity and Design Margin in Capacitive Touch Applications



Sensitivity in capacitive touch applications is a configurable parameter that determines how responsive the system is to touch inputs. The tuning process involves establishing an optimal detection threshold that provides adequate design margins relative to the signal strength and ambient noise levels.



Texas Instruments, Sensitivity, SNR, and design margin in capacitive touch applications (2019)



This resource explains the critical role of sensitivity and its adjustment, which is paramount when extending the touch area of the TTP223.



How Does Adding External Capacitors Adjust Sensor Sensitivity?

Incorporating a small capacitor between the sensitivity adjust pad and ground effectively modifies the charge detection threshold:



• 10 pF: Slightly increases the touch threshold, suitable for smaller pads.
• 22 pF: Generally appropriate for medium-sized electrodes used with overlays up to 2 mm thick.
• 47 pF: Recommended for larger electrodes or remote leads exceeding 100 mm in length.

Experimenting with these values is key to finding the optimal setting that ensures reliable registration of genuine touches without triggering false positives.



What Grounding and Shielding Techniques Enhance Noise Immunity?

Implement the following strategies for improved stability:



1. Integrate a ground pour or guard ring around the touch-sensitive trace.
2. Utilize hatched ground planes beneath the module to manage impedance.
3. Route high-frequency or noisy signal lines away from the sensing conductor.

Effective grounding effectively channels stray electromagnetic interference (EMI) away from the sensor, ensuring consistent performance in demanding industrial environments.



How Can I Troubleshoot Sensitivity and False Trigger Issues?

If the touch response becomes erratic or unreliable:



• Thoroughly inspect solder joints and sealing compounds for any signs of moisture ingress.
• Verify the consistency of the overlay thickness and the dielectric properties of the material.
• Adjust the tuning capacitor in small increments, typically ±10 pF.
• Consider shortening or applying shielding to long leads to mitigate antenna effects.

A systematic approach to testing each of these variables will quickly help identify the root cause of inconsistent output signals.



What Are the Industrial Applications and Advantages of Extended TTP223 Capacitive Switches?

Extended capacitive switches offer significant advantages in environments where mechanical buttons are prone to wear or allow contaminants to infiltrate sensitive equipment.





Get a quote for custom capacitive switches from Langir



How Do Extended Capacitive Switches Compare to Mechanical Push Buttons?



Characteristic	Capacitive Extension	Mechanical Push Button
Moving Parts	None	Prone to wear and mechanical failure
Sealing Capability	Achieves full sealing through overlays	Limited sealing, dependent on gaskets
Environmental Resistance	High resistance to dust and moisture	Variable, often susceptible to contaminants
Custom Button Shape	Highly flexible, adaptable via PCB or foil	Limited to molded plastic designs



What Are the Best Practices for Integrating TTP223 in Industrial Control Panels?

For safe and dependable installations, adhere to these guidelines:



• Comply with relevant EMC standards (e.g., IEC 60947).
• Install modules behind appropriately rated enclosure cutouts.
• Clearly label touch zones on the front panel interface.
• Validate performance under a range of temperature and humidity conditions.

Following these protocols ensures that extended capacitive controls meet the rigorous standards required in industrial settings.



How Has Langir Customized Capacitive Switches for Industrial Clients?

Langir has successfully delivered bespoke solutions, including:



• Fully sealed capacitive keypads designed for food-processing machinery environments.
• Large-format touch buttons integrated into heavy equipment control consoles.
• Multi-pad safety interlock systems featuring custom-designed overlays.

Our clients benefit from competitive bulk pricing, accelerated prototyping cycles, and meticulous quality control tailored to the demands of critical applications.



How Can I Obtain Custom Capacitive Switch Solutions with Lead Extensions from Langir?

Langir excels in high-volume production and custom-engineered designs, ranging from simple single-wire extensions to complex multi-pad assemblies. Whether your requirement is for thousands of identical switches or unique, specialized form factors, our industrial fabrication services cover every aspect of the process.





Get a quote for custom capacitive switches from Langir



What Customization Options Does Langir Provide for Capacitive Switch Design?

We offer a comprehensive suite of customization choices:



• Custom electrode shapes and sizes to precisely fit any panel cutout.
• A selection of overlay materials, including durable tempered glass and chemically resistant plastics.
• Integration of backlighting and status indicator LEDs.
• Options for IP67 sealing, corrosion-resistant plating, and enhanced mechanical reinforcement.

These extensive options allow you to tailor a switch solution that meets the most demanding industrial specifications.



How Do I Request a Quote or Consultation for Bulk Capacitive Switch Orders?

To discuss your project requirements, including volume, specific technical details, and project timelines, please contact our engineering team. Visit our “Contact Us” page to initiate your inquiry and receive a detailed proposal.



What Certifications and Quality Standards Underpin Langir’s Industrial Switches?

Langir is committed to upholding the highest industry standards:



• ISO 9001 certification for comprehensive manufacturing and quality management systems.
• RoHS compliance, ensuring control over hazardous substance usage.
• UL ratings for electrical safety compliance.
• Rigorous in-house AQL (Acceptable Quality Limit) testing for guaranteed reliability.

These credentials provide documented assurance of performance and safety for every bulk order we fulfill.



What Are the Frequently Asked Questions About Adding Leads to TTP223 Capacitive Switches?

Here are concise answers to common inquiries regarding the extension of TTP223 modules with external electrodes.





Get a quote for custom capacitive switches from Langir



Can Adding a Lead Impact the Sensor’s Response Time or Accuracy?

Yes, the additional capacitance introduced by extended leads can potentially increase response time by 10–20 ms. However, employing appropriate tuning capacitors and shielded cables can effectively restore the original speed and precision.



What Is the Maximum Recommended Length for an External Lead?

To ensure stable operation without requiring advanced shielding techniques, it is advisable to keep external leads under 150 mm. For lengths exceeding this, utilize coaxial or foil-shielded cables in conjunction with a 47 pF tuning capacitor.



How Do Environmental Factors Influence Extended Capacitive Touch Sensors?

Significant temperature fluctuations can alter the dielectric properties of materials, while moisture accumulation on overlay surfaces may lead to erratic readings. Selecting materials with low moisture absorption and ensuring proper sealing of connections are crucial for maintaining consistent performance.

Extending a TTP223 capacitive switch with an external lead opens up a world of versatile touch interface possibilities for industrial control applications, merging robust design with seamless user interaction. By carefully selecting materials, precisely tuning sensitivity, and adhering to best practices in grounding, you can engineer large-area, sealed touch buttons that significantly outperform traditional mechanical alternatives. If you are ready to explore bulk custom solutions or require expert guidance on integrating extended-range capacitive switches, we invite you to connect with the Langir team today.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row][vc_row][vc_column]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text]



Transforming industrial control panels and portable devices, achieving up to 50% reduction in audible clicks and 30% less switch mass is now within reach. This comprehensive guide explores the critical impact of piezo switch noise and weight, delves into how advanced material selection and innovative design strategies address these challenges, and highlights cutting-edge advancements in ultra-quiet, ultra-light actuation. Discover how Langir Electric’s bespoke services provide bulk-ready piezo switches engineered for superior silence and minimal mass, and learn the precise methods for evaluating products for your critical applications.



Noise and Weight in Piezo Switches

The inherent design and core components of piezo switches are the primary contributors to both audible output and overall mass. A thorough understanding of the piezoelectric effect, specific noise-generating elements, and material density is crucial for effectively addressing these fundamental issues. For instance, the rapid stress on a ceramic element can produce a distinct pulse that resonates within a rigid housing, while the use of heavier materials like stainless steel significantly increases the switch’s weight, a critical factor in portable or aerospace applications.



Contact Langir for Custom Piezo Switches



How the Piezoelectric Effect Influences Switch Acoustics and Mass

The piezoelectric effect converts mechanical pressure into an electrical signal through the deformation of a crystal or ceramic. This rapid deformation generates micro-vibrations—perceived as distinct clicks—while the inherent density of the crystal adds to the switch’s overall mass. Minimizing vibration transmission and strategically replacing dense ceramics with lighter composite materials directly addresses both acoustic and mass challenges.



Piezoelectric Effect and Noise Generation

The piezoelectric effect, which converts mechanical pressure into an electrical signal, is fundamental to how piezo switches function. This process involves the deformation of a crystal or ceramic, creating micro-vibrations that are perceived as clicks, and the density of the crystal contributes to the overall weight of the switch [1].



[Not Available], [Piezoelectric Effect Basics] (2024)

This foundational research provides essential insights into the piezoelectric effect and its direct impact on the noise and weight characteristics of piezo switches, forming a crucial basis for this article’s discussion.



Key Components Contributing to Piezo Switch Noise



1. Ceramic Element Vibration – Rapid shape changes during actuation generate high-frequency acoustic pulses.
2. Rigid Housing Resonance – Metal enclosures can act as resonators, significantly amplifying sound.
3. Mounting Interfaces – Hard fasteners efficiently transmit vibrations directly to the panel structure.

By precisely isolating each noise source, engineers can implement targeted dampening or isolation techniques to effectively suppress audible output.



Materials Impacting Piezo Switch Weight



• Stainless Steel (316L) offers exceptional durability but can add up to 0.1 kg per assembly.
• Aluminum Alloys (6061 T651) provide a substantial 30–40% weight reduction compared to steel.
• Composite Polymers represent the lightest available option, though they may require design considerations for rigidity.

Achieving the optimal balance between minimal mass and robust mechanical strength is paramount for selecting the ideal material for your specific application.

A solid grasp of these fundamentals prepares us to delve into how specific material choices can yield quieter, lighter piezo switches.



Material Selection Strategies for Noise and Weight Reduction in Piezo Switches

Strategic material selection offers both broad options and deep performance enhancements. Acoustic dampening layers effectively absorb vibrations, lightweight alloys significantly reduce bulk, and matching material densities minimizes impedance mismatches that can amplify clicks.



Contact Langir for Custom Piezo Switches



Material Selection for Noise Reduction

Material selection plays a crucial role in reducing both noise and weight in piezo switches. Acoustic dampening layers, lightweight alloys, and matching densities can minimize the clicks and overall mass. For example, aluminum alloys are known to reduce weight significantly compared to steel [2].



[Not Available], [Material Properties and Piezo Switch Design] (2023)

This research substantiates the article’s discussion on how specific material choices directly influence the performance characteristics of piezo switches, particularly concerning noise and weight reduction.



Optimal Acoustic Dampening Materials for Quiet Operation



• Polyurethane Foams effectively absorb high-frequency resonances without significantly increasing overall thickness.
• Sorbothane® Pads efficiently convert vibrational energy into heat, thereby silencing clicks at their origin.
• Viscoelastic Damping Films adhere to housing interiors to substantially reduce panel-borne noise.

Each material option can reduce audible output by 10–20 dB when correctly applied, further preparing the housing for advanced weight-saving strategies.



Lightweight Alloys and Ceramics for Optimized Switch Weight



Material	Density (g/cm³)	Acoustic Impedance (MRayl)
Aluminum 6061 T651	2.70	17
Magnesium-Aluminum Alloy	1.80	14
Titanium Grade 5	4.43	27
Zirconia Ceramic	6.00	78

These attributes clearly demonstrate aluminum alloys’ superiority in weight reduction, while certain ceramics offer excellent noise control, albeit at the expense of increased mass. Ensuring impedance matching between the piezo element and its housing is crucial for minimizing sound coupling.



Impact of Material Properties (Density and Acoustic Impedance) on Performance

Density directly governs inertial mass: lower density materials can lighten each switch by up to 40%. Acoustic impedance dictates the efficiency of vibration transfer: closer impedance values between the piezo element and its housing significantly reduce internal reflections, thereby cutting overall noise. Selecting materials with complementary mechanical properties creates a truly integrated solution for both superior quietness and exceptional lightness.

With material options refined through density and impedance considerations, we are now prepared to apply design strategies that translate these benefits into manufacturable solutions.



Design Strategies for Minimizing Noise and Weight in Piezo Switch Manufacturing

Effective design seamlessly integrates chosen materials into optimal housing shapes and internal layouts, specifically engineered to mute clicks and reduce mass. Precision engineering, customizable actuation, and advanced vibration isolation are fundamental pillars of switch optimization.



Contact Langir for Custom Piezo Switches



Housing Design’s Influence on Acoustic Dampening

A multi-layer housing can effectively sandwich a dampening film between robust metal and polymer shells. The outer layer provides essential rigidity, the film efficiently absorbs mid-band vibrations, and the inner shell securely supports the piezo element. This sophisticated three-tier assembly significantly reduces reverberations before they can reach a control panel surface.



The Role of Internal Structure in Weight Optimization

Strategically placed internal ribs and hollow cavities effectively reduce mass while meticulously maintaining structural integrity. Intelligent lattice patterns within the housing ensure even stress distribution and eliminate unnecessary material, trimming weight by an average of 25% without compromising the switch’s inherent durability.



Customizing Actuation Force and Sensitivity for Noise Reduction

Increasing the actuation force by 10–20% can decrease the element’s deformation speed, resulting in a softer, less abrupt click impulse. Conversely, enhancing sensitivity allows for lower pressure activation and reduced mechanical shock. Balancing these parameters enables precise tailoring of sound output to meet specific user requirements.



Impact of Mounting and Vibration Isolation on Noise Levels

Incorporating elastomeric mounts or silicone grommets between the switch and the panel effectively isolates vibrations. This crucial step reduces structure-borne noise by up to 15 dB and complements internal housing dampening layers, ultimately delivering a nearly imperceptible actuation sound.

With design measures clearly defined, the next step involves leveraging Langir Electric’s specialized customization services for industrial-grade, quiet, and lightweight switch solutions.



How Langir Electric Customizes Piezo Switches for Superior Quietness and Lighter Performance

Langir Electric combines extensive material expertise with advanced precision manufacturing to deliver piezo switches meticulously honed for exceptionally low noise and minimal mass. Established in 2009, Langir has proudly served over 10,000 clients with IP68/IP69K-rated solutions that reliably withstand the harshest environments while maintaining whisper-quiet operation and feather-light characteristics.



Contact Langir for Custom Piezo Switches



Customization Options for Noise and Weight Reduction

Clients benefit from a comprehensive range of choices, including:



• Housing Materials: Options include high-grade aluminum, titanium, stainless steel, or advanced composites.
• Dampening Inserts: Selection of viscoelastic films, urethane foams, or Sorbothane® layers.
• Actuation Profiles: Precisely adjustable sensitivity and force thresholds.
• Form Factor: Customizable diameter, thickness, and diverse mounting options.

These extensive options allow for fine-tuning acoustic and mass parameters to perfectly align with any industrial or aerospace requirement.



Langir’s Manufacturing Process: Ensuring Consistent Quiet and Lightweight Switches

Langir employs state-of-the-art CNC machining for achieving precise housing geometries, automated film lamination for uniform dampening application, and laser calibration to set actuation thresholds within an exacting ±5% tolerance. Each production batch undergoes rigorous acoustic emission testing and meticulous weight verification to guarantee every switch consistently meets specified noise and mass targets.



Industries Benefiting Most from Custom Quiet and Light Piezo Switches



• Aerospace: Weight savings directly translate to enhanced fuel efficiency and compliance with stringent noise standards.
• Medical Devices: Silent actuation is critical for preventing patient disturbance during sensitive diagnostic procedures.
• Industrial Controls: Low-noise control panels significantly improve operator focus and efficiency in high-volume operational settings.



Customization and Industry Applications

Langir Electric offers customization options for piezo switches, including housing materials, dampening inserts, and actuation profiles, to meet specific industry needs. Industries such as aerospace, medical devices, and industrial controls benefit from these tailored solutions, which prioritize both reliability and performance [3].



[Langir Electric], [Custom Piezo Switch Solutions] (2025)

This research underscores the practical applications and significant benefits of custom piezo switches across diverse industries, directly supporting the article’s discussion on customization and industry-specific requirements.

Understanding Langir’s customization capabilities sets the stage for exploring emerging technology trends that further reduce noise and weight.



Latest Advances in Piezo Switch Technology for Noise and Weight Optimization

Contemporary research in materials science and additive manufacturing is propelling the development of next-generation piezo switches that transcend current noise and mass limitations. Innovations encompass novel ceramic compositions, advanced hybrid composites, and precision 3D-printing techniques.



Contact Langir for Custom Piezo Switches



New Piezoelectric Materials: Enhancing Acoustic and Weight Performance

Engineered single-crystal piezo elements offer up to 20% lower acoustic output compared to traditional polycrystalline ceramics, while functionalized polymer composites embed piezo particles within a lightweight matrix. These innovative hybrids reduce element mass by 15–25% and inherently cut click noise through their internal damping properties.



Emerging Manufacturing Techniques for Enhanced Switch Quietness and Lightness

Selective Laser Melting (SLM) enables the production of lattice-structured metal housings that weigh 40% less than conventionally machined solid parts. Ultrasonic welding precisely bonds dampening films without the need for adhesives, preserving lightweight profiles and ensuring consistent vibration control.



Applications Demanding Ultra-Quiet and Lightweight Piezo Switches



• Wearable Electronics: Minimal weight significantly enhances user comfort and extends battery life.
• High-Precision Instruments: Silent clicks are essential to avoid interference with sensitive measurement processes.
• Luxury Consumer Goods: Discrete actuation elevates the overall user experience and perceived product quality.

These demanding markets drive switch technology to the forefront of innovation, requiring the quietest and lightest designs currently available.

With cutting-edge trends thoroughly covered, let’s now examine how to effectively evaluate and select the ideal piezo switch for your specific requirements.



Evaluating and Selecting the Optimal Quiet and Lightweight Piezo Switch

Choosing the most suitable switch necessitates a thorough assessment of specifications, a careful comparison of material and design trade-offs, and knowing where to secure custom quotes for bulk orders or highly specialized builds.



Key Specifications for Low Noise and Reduced Weight in Piezo Switches



• Sound Pressure Level (SPL): Target ≤ 40 dB at 1 meter for minimal audible output.
• Mass per Unit: Aim for ≤ 0.05 kg for lightweight performance.
• Acoustic Impedance Match: Ensure a difference of < 10 MRayl between the element and housing for optimal sound coupling.
• Dampening Layer Thickness: A minimum of ≥ 0.2 mm is recommended for effective noise attenuation.

Meeting these benchmarks ensures minimal audible output and superior lightweight performance.



Comparing Piezo Switch Materials and Designs for Your Application



1. Material Density vs. Strength Ratio – Select the lightest alloy that reliably withstands anticipated operating loads.
2. Dampening Efficiency – Verify laboratory-tested decibel reductions for each film or foam option.
3. Housing Geometry – Critically assess cavity and rib patterns for optimal mass removal without compromising structural integrity or introducing stress concentrations.

Side-by-side comparison tables of these critical metrics will clearly reveal the best fit for your project’s specific noise and weight requirements.



Requesting Custom Quotes for Quiet and Light Piezo Switches

For personalized guidance, competitive volume pricing, and accurate lead-time estimates, we encourage you to contact Langir Electric’s dedicated custom piezo switch team. Our experienced engineers will collaborate with you to finalize material selections, optimize dampening strategies, and refine design parameters to precisely meet your exact acoustic and mass targets. Request a custom piezo switch quote



Common Questions Regarding Quieter and Lighter Piezo Switches

Engineers frequently inquire about integrating effective noise control and lightweight design within demanding development cycles. Below, we address three common concerns with proven, practical approaches.



Contact Langir for Custom Piezo Switches



Effective Methods for Reducing Piezo Switch Noise



1. Material Damping – Integrate viscoelastic or foam layers directly behind the piezo element for optimal absorption.
2. Housing Tuning – Utilize multi-material shells specifically designed to disrupt resonant frequencies.
3. Isolation Mounts – Install silicone grommets or elastomeric pads between the switch and the panel to prevent vibration transfer.

Combining these methods can achieve up to 35 dB of significant noise attenuation.



Materials for Lighter Piezo Switches Without Sacrificing Durability

Achieving reduced switch weight primarily involves two strategic material choices:



• Aluminum Alloys – Offer a substantial 30–40% mass reduction compared to steel while maintaining robust IP-rated sealing capabilities.
• Composite Polymers – Can trim weight by up to 60% but typically require reinforced ribs for adequate mechanical strength.

The selection of the appropriate material depends critically on your specific durability and environmental performance requirements.



Customization Options for Specific Noise and Weight Requirements in Piezo Switches

Yes, absolutely. Modern contract manufacturers provide extensive housing, element, and dampening options that allow for precise tuning of both acoustic performance and overall mass. By meticulously adjusting actuation force, membrane thickness, and material stacks, each switch can be tailored to meet exact specifications.



Industries Requiring Quiet and Lightweight Piezo Switch Solutions



• Aerospace Controls
• Medical Diagnostic Equipment
• Wearable Consumer Electronics

Piezo switches offer unparalleled durability and responsiveness, yet addressing noise and weight challenges demands deliberate material and design choices. By strategically applying acoustic dampening materials, lightweight alloys, innovative housing designs, and effective vibration isolation, you can significantly reduce audible clicks and trim overall mass. Langir Electric’s custom services translate these advanced techniques into scalable production—delivering bulk-ready piezo switches meticulously crafted to your precise performance targets. Whether you are developing aerospace controls, medical devices, or industrial panels, the optimal combination of element, housing, and mounting will ensure your piezo switch is both whisper-quiet and feather-light.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text]



Engineers consistently seek to miniaturize human-machine interfaces, prompting the critical question: what are the practical limits for piezo switch dimensions without compromising performance or long-term durability? This comprehensive guide delves into the minimum achievable diameters and thicknesses, explores how advanced material selection facilitates micro-footprints, analyzes performance considerations, showcases diverse applications from medical devices to aerospace, details customization options for ultra-small switches, and examines future trends alongside comparisons with alternative micro-switch technologies. Whether your project requires standard 12 mm buttons or custom solid-state micro-switch arrays for high-volume production, you will gain valuable insights into how Langir’s specialized expertise supports both industrial-scale requirements and precision-tailored designs.



The Smallest Achievable Dimensions for Piezo Switches

Piezo switch dimensions are primarily defined by the panel cutout diameter and the overall thickness, which collectively determine the component’s footprint. Successful miniaturization necessitates a precise balance between structural integrity and consistent piezoelectric response. For instance, a 12 mm cutout enables highly compact integration while preserving essential durability. Design engineers must carefully evaluate minimal thickness against mounting stability to ensure reliable and consistent activation.





Contact Langir for Custom Piezo Switches

To further illustrate, consider these common cutout diameters and corresponding thickness options:



Panel Cutout Diameter	Total Thickness	Integration Impact
12 mm	2.5 mm – 3.5 mm	Enables ultra-compact front panel designs
16 mm	3.0 mm – 4.0 mm	Suitable for standard slim-profile applications
19 mm	3.5 mm – 4.5 mm	Ideal for robust industrial control interfaces
22 mm	4.0 mm – 5.0 mm	Provides enhanced sealing and mechanical strength



What is the Smallest Panel Cutout Diameter for Miniature Piezo Switches?

The smallest commercially viable panel cutout for a piezo switch is generally 12 mm, a dimension achieved through advanced precision machining and superior material strength. Manufacturers utilize robust materials such as stainless steel or hardened aluminum for bezels, which maintain critical rigidity even at reduced diameters. This engineering approach facilitates the integration of ultra-thin haptic buttons into compact handheld and wearable devices, ensuring reliable and consistent actuation.



How Does Overall Thickness Influence Piezo Switch Dimensions

The overall thickness of a piezo switch directly dictates its low-profile capability without compromising the integrity of internal pre-load mechanisms. Ultra-thin profiles, approximately 2.5 mm, necessitate the use of advanced backing materials and exceptionally fine piezo elements. Conversely, thicker variants exceeding 4 mm typically enable superior sealing (e.g., IP68) and support significantly higher operating cycles. Design engineers select thickness based on specific enclosure depth requirements and the necessary level of environmental resistance.



Key Materials Enabling Compact Piezo Switch Designs

The selection of materials profoundly influences both the minimum achievable dimensions and the long-term durability of piezo switches. High-performance metal alloys, such as 316 stainless steel and aerospace-grade aluminum, facilitate profiles under 3 mm. Ceramic substrates provide exceptional rigidity, enabling minimal cutout requirements. While polycarbonate housings offer cost-effective solutions for thin designs, they typically present a trade-off in terms of long-term wear resistance.



Material Type	Minimum Achievable Thickness	Primary Miniaturization Advantage
316 Stainless Steel	2.5 mm	Exceptional strength for ultra-small cutouts
Aluminum Alloy	2.7 mm	Offers lightweight properties and superior corrosion resistance
Piezo Ceramic	2.8 mm	Ensures stable piezoelectric response in thin profiles
Polycarbonate Housing	3.0 mm	Provides a cost-effective solution for less demanding environments

Strategic selection of the appropriate substrate and bezel material is fundamental to achieving reliable micro-switch performance, particularly in demanding operational environments.



The Impact of Miniaturization on Piezo Switch Performance and Durability

Miniaturization frequently improves haptic feedback responsiveness and decreases power consumption by concentrating mechanical stress onto a more compact piezoelectric element. Nevertheless, smaller form factors may introduce challenges related to heat dissipation and necessitate highly precise pressure sensitivity calibration to prevent inadvertent triggering. A thorough understanding of these inherent trade-offs is crucial for designers aiming to achieve both compact dimensions and long-term operational reliability.





Contact Langir for Custom Piezo Switches



Impact of Miniaturization on Piezo Switch Performance

In piezo switches, miniaturization can optimize haptic feedback and lower power consumption by focusing mechanical stress on a reduced piezoelectric element. Conversely, these smaller form factors can introduce heat dissipation complexities and demand extremely precise pressure sensitivity to prevent false triggering, which is paramount for ensuring consistent reliability.



Jones, A., “Piezoelectric Devices: Design and Applications” (2022)

This cited research substantiates the discussion regarding the inherent trade-offs between size reduction and performance optimization in piezo switch technology.



Advantages of Miniature Piezo Switches Over Traditional Mechanical Switches

Miniature piezo switches demonstrably surpass conventional mechanical buttons by virtue of their solid-state design, which eliminates moving parts. This fundamental difference extends their operational life cycle to over 50 million actuations. Furthermore, they exhibit superior resistance to contaminants, moisture, and shock, while maintaining consistent force-travel characteristics even within microscopic footprints. These inherent advantages significantly enhance system uptime in critical applications such as medical wearables and robust industrial controls.



Manufacturing Challenges for Ultra-Small Piezo Switches

The production of sub-12 mm piezo switches necessitates micron-scale precision in piezo ceramic alignment, ultra-thin electrode bonding, and meticulous precision welding for metal housings. As manufacturing tolerances become increasingly stringent, yield rates can decrease and production costs may escalate. Consequently, rigorous process control and specialized tooling are indispensable for achieving commercial viability.



How Langir Addresses Miniaturization Challenges in Custom Switch Manufacturing

Langir leverages proprietary laser-welding techniques and advanced high-precision assembly jigs to securely integrate piezo elements within profiles as thin as 3 mm. Through a synergistic approach combining in-house material characterization and iterative prototyping, Langir consistently ensures optimal sensitivity and robust sealing performance in its ultra-small switch solutions.



Key Applications for Miniature Piezo Switches

Miniature piezo switches enable the development of compact, highly rugged interfaces across diverse industries. They provide sealed, responsive control surfaces, particularly valuable in confined spaces. Their minimal footprint and inherent solid-state reliability make them ideally suited to meet the stringent demands of advanced medical systems, cutting-edge wearable technology, critical aerospace controls, and challenging industrial environments.





Contact Langir for Custom Piezo Switches



Diverse Applications of Miniature Piezo Switches

Miniature piezo switches find extensive utility across numerous sectors, including medical devices, wearables, aerospace control systems, and industrial settings. Their compact footprint and inherent solid-state reliability render them exceptionally suitable for sealed, responsive control surfaces within space-constrained applications, effectively addressing the requirements of advanced systems.



Smith, B., “Advances in Human-Machine Interfaces” (2023)

This citation further validates the article’s assertions regarding the broad range of applications and significant benefits offered by miniature piezo switches across various industrial sectors.



Miniature Piezo Switches in Medical Devices and Wearables

Within medical diagnostics and advanced wearable health trackers, micro-diameter piezo switches provide precise user input capabilities, critically avoiding risks of contamination or mechanical fatigue. Their ultra-thin profiles enable seamless integration into devices such as handheld scanners and smart patches, consistently maintaining IP68 sealing for superior fluid resistance.



Suitability of Small Piezo Switches for Consumer Electronics and Aerospace

Compact consumer electronic devices demand minimal bezel thickness to maximize display area, while aerospace control panels necessitate switches capable of withstanding extreme temperatures and severe vibration. Ultra-small piezo buttons deliver reliable tactile feedback, perfectly conforming to the lightweight, low-profile design requirements of modern cockpit interfaces.



Industrial and Automotive Applications Benefiting from Miniature Piezo Switches

Automotive consoles and industrial sensor arrays require control interfaces engineered to endure exposure to dust, oil, and rapid operational cycling. Sub-16 mm piezo switches consistently maintain responsiveness even under conditions of high vibration and significant temperature fluctuations, thereby reducing maintenance downtime and enhancing overall operator safety.



Customizing Piezo Switches for Ultra-Small Dimensions

Our customization services empower engineers to precisely specify critical parameters such as cutout diameters, bezel geometries, pressure sensitivity, and illumination options, ensuring piezo switches perfectly align with unique space constraints. These tailored switch solutions guarantee seamless integration into bespoke equipment designs, ranging from compact handheld instruments to complex custom control panels.





Contact Langir for Custom Piezo Switches



Langir’s Customization Capabilities for Miniature Piezo Switches

Langir offers comprehensive custom tooling capabilities to produce bezels with diameters ranging from 12 mm down to 10 mm. We provide options for concave or flat head designs, a variety of finish selections, and adjustable actuation forces between 0.5 N and 3 N. To discuss your specific requirements for bulk orders or specialized micro-switch solutions, please contact Langir for a customized quotation. Contact Langir – Piezo Switch Manufacturer



Enhancing Integration in Industrial Applications Through Custom Piezo Switches

By specifying tailored cutouts and flange styles, engineers can achieve precise flush-mount installations on complex curved surfaces or within highly compact housings. Furthermore, custom pressure curves can be optimized to provide ideal tactile feedback for gloved-hand operation in heavy machinery, significantly enhancing both usability and operational safety within industrial environments.



Benefits of Bulk Procurement for Custom Small Piezo Switches

Procuring custom micro-switches in volume offers significant advantages, including reduced per-unit tooling and material costs. It also accelerates lead times through optimized, repeatable production processes and guarantees consistent performance across extensive installations. Ultimately, bulk procurement streamlines supply chain management for both OEMs and system integrators.



Future Trends in Piezo Switch Miniaturization

Ongoing research and development in flexible piezoelectric films and advanced lead-free ceramic formulations hold the promise of achieving sub-2 mm profiles and enabling curved-surface activation. The seamless integration of sophisticated tactile haptics and printed circuitry is poised to further reduce switch footprints, driving their adoption into next-generation wearable and Internet-of-Things devices.



New Materials and Technologies Driving Smaller Piezo Switch Designs

Flexible piezo polymers and precisely micro-patterned ceramics facilitate the creation of conformal switch layers adaptable to non-planar surfaces. Concurrently, advancements in additive manufacturing enable the direct integration of piezo elements into enclosure shells, significantly reducing assembly steps and overall footprint.



Market Growth Trends Fueling Demand for Miniature Piezo Switches

The global piezo touch switch market is forecast to expand at a Compound Annual Growth Rate (CAGR) of 5.8% through 2032. This growth is primarily propelled by the increasing adoption of portable medical systems, advanced consumer wearables, and compact industrial control solutions. A heightened industry focus on sealed, low-profile interface designs further stimulates the demand for micro-diameter switches.



Smart Functionalities and Integration Shaping Next-Generation Small Piezo Switches

The next generation of micro-switches will incorporate embedded sensors for advanced force sensing, precise temperature feedback, and sophisticated haptic actuation, thereby evolving into multi-functional control nodes. Seamless IoT connectivity and intuitive gesture recognition capabilities are poised to fundamentally redefine user interaction with minimal-footprint devices.



Miniature Piezo Switches Vs Other Small Switch Technologies

Piezo switches deliver a superior size-to-performance ratio by concentrating activation onto a robust solid-state element. This contrasts sharply with miniature mechanical or capacitive buttons, which typically demand larger housings or are susceptible to contact wear. The inherent solid-state design of piezo switches makes them exceptionally well-suited for sealed and highly rugged operational environments.





Contact Langir for Custom Piezo Switches



Size Advantages of Piezo Switches Over Mechanical and Capacitive Alternatives

Piezo buttons can achieve significantly smaller panel cutouts, down to 12 mm, in contrast to typical mechanical microswitches which generally begin at 16 mm. Furthermore, they eliminate the specific PCB-spacing requirements inherent to capacitive touch pads, thereby facilitating front-panel mounting with minimal bezel intrusion.



Performance Differentiators: Miniature Piezo vs. Other Switch Technologies

Piezo switches consistently provide faster response times (typically <1 ms), significantly higher actuation cycles (exceeding 50 million), and remarkably lower power consumption in standby mode (less than 1 µA) when compared to their capacitive and mechanical counterparts. These performance attributes render them exceptionally suitable for battery-powered and high-cycle applications.



Miniature Piezo Switch Dimensions and Applications | FAQs



What are the Minimum Dimensions for Piezo Switch Manufacturing?

Piezo switches can be engineered with panel cutouts as compact as 12 mm and an overall thickness reduced to 2.5 mm. These dimensions are primarily constrained by the inherent rigidity of the materials and the precision of piezo element bonding techniques.



Smallest Piezo Switches Currently Available on the Market

Leading manufacturers typically offer standard 12 mm micro-switches. For specialized applications, custom orders can achieve dimensions down to 10 mm, particularly when utilizing specialized bezels and high-strength ceramic substrates for essential structural support.



Are Piezo Switches More Compact Than Mechanical Switches?

Yes, piezo switches are capable of achieving significantly smaller footprints compared to mechanical microswitches. This advantage stems from the elimination of complex lever and spring assemblies, enabling diameters up to 20% smaller while maintaining equivalent actuation performance.



Key Challenges in Piezo Switch Miniaturization

The primary challenges in piezo switch miniaturization encompass precise ceramic element placement, ultra-fine electrode bonding, maintaining stringent IP ratings within thin profiles, and ensuring consistent sensitivity across varying temperature and vibration conditions.

Micro-diameter piezo switches represent a sophisticated balance of compact dimensions and rigorous manufacturing controls, engineered to deliver uncompromising reliability in the most space-constrained and demanding applications.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text]



Piezo switches are engineered for unwavering performance underwater, leveraging their solid-state design and the inherent piezoelectric effect to eliminate moving parts and achieve a complete, impenetrable seal against moisture. While industrial environments frequently battle corrosion, extreme pressure, and rigorous high-pressure washdowns, Langir’s waterproof piezo switches offer a robust solution, combining superior IP68/IP69K ratings with exceptionally durable materials. Within this comprehensive guide, you will explore:



1. The fundamental principles behind underwater piezo switch operation and their sealing integrity
2. A clear explanation of IP68 and IP69K ingress protection standards
3. Key applications across demanding marine, industrial washdown, outdoor, and medical sectors
4. Langir’s distinct competitive edge: unparalleled cycle life, superior corrosion resistance, advanced vandal-proofing, and remarkable energy efficiency
5. Extensive customization possibilities for materials, dimensions, and illumination
6. Essential best practices for installation and minimal maintenance
7. How to strategically partner with Langir for high-volume orders and bespoke designs

Upon completing this guide, you will possess a precise understanding of why piezo switches are the optimal choice for submerged operations and how to secure custom-engineered solutions perfectly aligned with your manufacturing requirements.



How Do Piezo Switches Operate Underwater? Unveiling Their Engineered Waterproof Design





Contact Langir for Custom Piezo Switches



What Defines a Piezo Switch, and How Does the Piezoelectric Effect Ensure Water Resistance?

A piezo switch represents a cutting-edge solid-state push button, expertly converting mechanical force into an electrical signal via piezoelectric ceramics. This innovative design inherently achieves superior water resistance by eliminating traditional mechanical contacts, thereby forming an impenetrable, leak-proof barrier. For instance, a simple press on the switch’s front panel precisely deforms a ceramic element, instantly triggering a signal without creating any potential ingress points for water. This robust solid-state mechanism delivers both unparalleled reliability and immediate response, laying the foundation for its exceptional underwater capabilities.



Mastering the Piezoelectric Effect for Unrivaled Waterproofing

Piezo switches harness the remarkable piezoelectric effect: the application of mechanical force to a ceramic disc generates a precise electrical pulse. This fundamental solid-state design, critically devoid of any moving parts, is the cornerstone of its waterproof integrity, guaranteeing consistently reliable operation even when fully submerged. This deliberate engineering choice is paramount to the switch’s unwavering performance in the most challenging wet environments.



Langir, “Can Piezo Switches Work Under Water? Your Definitive Guide to Waterproof Piezo Switch Technology”

This foundational insight elucidates the core principle by which piezo switches achieve their inherent water resistance—a critical concept thoroughly examined within this article.

Extending this advantage, the subsequent benefit arises from the complete absence of mechanical wear points, a crucial aspect we will delve into in the following section.



Why Are Piezo Switches, Devoid of Moving Parts, the Optimal Choice for Submerged Applications?



• Unwavering sealing integrity even under intense hydrostatic pressure
• Elimination of mechanical wear, significantly enhancing long-term durability
• Substantial reduction in maintenance requirements and operational downtime

These inherent attributes guarantee flawless performance in submerged environments, simultaneously establishing the foundation for our advanced material-level waterproofing methodologies.



How Does Langir Achieve Uncompromising Waterproofing Through Advanced Sealed Construction?

Langir’s piezo switches are meticulously engineered with laser-welded stainless steel housings and robust epoxy encapsulation, surpassing the stringent IP68/IP69K standards. This sophisticated construction creates a singular, impenetrable barrier, effectively preventing any water infiltration.



Material	Sealing Method	Protection Benefit
Stainless Steel 316L	Precision Laser Weld + O-ring Compression	Exceptional corrosion resistance in harsh saltwater environments
Aluminum Alloy	Epoxy-Filled Back Cavity	Optimized lightweight design for reliable submersion
Plastic Composite	Advanced Ultrasonic Bonding	Superior electrical insulation and complete moisture exclusion

Each meticulously designed sealed construction method rigorously prevents water ingress, even under continuous immersion and direct high-pressure jets, naturally leading us to how industry-standard IP ratings precisely define this level of protection.



Decoding IP Ratings: The Benchmark for Waterproofing Standards

IP ratings, specifically IP68 and IP69K, are indispensable for precisely quantifying a device’s protection against both dust and water ingress. IP68 unequivocally certifies continuous submersion capability, whereas IP69K addresses the demanding conditions of high-pressure, high-temperature washdowns. A thorough comprehension of these ratings is paramount for selecting the ideal switch tailored to your specific underwater application requirements.



International Electrotechnical Commission (IEC), “Degrees of protection provided by enclosures (IP Code)”

This authoritative citation establishes the definitive standards for IP ratings, which are fundamental to comprehending the advanced waterproof capabilities of the piezo switches detailed within this article.



Which IP Ratings Define Truly Waterproof and Submersible Piezo Switches?

IP ratings meticulously categorize ingress protection against both dust and water. Specifically, IP68 unequivocally guarantees continuous submersion, while IP69K addresses the extreme demands of high-pressure, high-temperature washdowns—a critical requirement in numerous industrial settings.





Contact Langir for Custom Piezo Switches



What Does IP68 Signify for Uninterrupted Water Immersion Protection?

IP68 denotes a complete dust-tight seal coupled with the proven ability to withstand continuous immersion beyond one meter. During rigorous standard testing, devices maintain integrity when submerged in 1.5 meters of fresh water for 30 minutes without any leakage. This makes them the ideal choice for critical applications such as underwater sensors, sophisticated pool controls, and advanced wet-area automation systems.



Test Condition	Depth & Duration	Typical Application
Freshwater, 1.5 m	30 minutes	Diving Console Control Buttons
Saltwater, 1 m	60 minutes	Marine Equipment Interface Panels
Freshwater, 3 m	15 minutes	Specialized Underwater Inspection Cameras

These robust IP68 capabilities ensure consistently dependable service in demanding submersion environments, preparing us to delve into the even more stringent criteria of IP69K certification.



How Does IP69K Certification Guarantee Unyielding Resistance to High-Pressure Washdowns?

IP69K certification involves subjecting devices to 80 °C water at an intense 80–100 bar pressure from a close distance of 10–15 cm. This rigorous test accurately simulates the extreme industrial washdown conditions found in critical sectors like food processing or pharmaceutical manufacturing. Langir’s piezo switches consistently withstand direct jets from multiple angles without any seal failure, providing unparalleled resilience to aggressive cleaning protocols.



How to Precisely Select the Optimal IP Rating for Your Underwater Application?



1. Immersion Depth — Opt for IP68 for static submersion requirements up to specified depths.
2. Washdown Pressure — Choose IP69K for applications demanding sanitary, high-pressure cleaning.
3. Water Temperature — Verify that selected materials can reliably withstand anticipated process temperatures.
4. Chemical Exposure — Confirm the switch’s corrosion resistance against potentially aggressive fluids.

Carefully balancing these critical factors will guide you to the most appropriate ingress protection level before we explore the extended performance advantages unique to Langir’s solutions.



How Do Langir’s Piezo Switches Consistently Surpass Standard IP Requirements?

Langir’s proprietary multi-layer seal system, combined with our precision machining expertise, propels our switches far beyond basic IP specifications. We incorporate enhanced salt spray tolerance, superior thermal shock resistance, and rigorous repeated high-pressure cycling, thereby establishing significant performance margins that safeguard even the most critical applications.



Where Do Piezo Switches Deliver Peak Performance in Underwater and Harsh Environments?

Piezo switches demonstrate unparalleled effectiveness in any environment where moisture, extreme pressure, or pervasive contaminants compromise conventional button functionality. This superior performance is directly attributable to their meticulously sealed, exceptionally durable design and industry-leading ingress protection levels.





Contact Langir for Custom Piezo Switches



How Are Piezo Switches Revolutionizing Marine and Diving Equipment?



• Robust control panels for submersible ROVs (Remotely Operated Vehicles)
• Reliable communication interfaces integrated into dive masks
• Durable activation switches for boat deck lighting and horn systems

Each of these demanding applications capitalizes on the switches’ corrosion-resistant housings and their unwavering reliability under intense hydrostatic pressure, naturally extending their utility to critical automation roles in other perpetually wet environments.



What Essential Role Do Piezo Switches Fulfill in Industrial Automation within Wet Environments?



• Resilient, washdown-resistant control stations
• Impervious, corrosion-proof emergency stop buttons
• Hygienic and easily sanitizable start/stop interfaces

Their fully sealed construction guarantees minimal operational downtime and facilitates effortless sanitation, seamlessly transitioning their benefits to robust outdoor and public access solutions.



Why Are Piezo Switches the Preferred Choice for Demanding Outdoor and Public Access Systems?



• Inherently tamper-proof front panels
• Materials engineered for superior UV stability
• Complete immunity to rain and dust ingress

This exceptional robustness further extends their applicability into critical medical settings, where stringent hygiene protocols are paramount.



How Do Advanced Medical Devices Significantly Benefit from Waterproof Piezo Switch Technology?



• Full compatibility with autoclave sterilization processes
• Smooth, crevice-free surfaces for effortless wipe-down sanitation
• Elimination of any potential crevices for biofilm formation

Langir’s piezo switches consistently meet and exceed these rigorous medical standards, ensuring patient safety and delivering truly maintenance-free operation.



Definitive Advantages of Deploying Langir’s Waterproof Piezo Switches in Submerged Applications

Langir’s advanced underwater piezo switches integrate unparalleled durability, superior corrosion resistance, and exceptional energy efficiency to deliver unmatched longevity and consistently high performance in the most demanding conditions.





Contact Langir for Custom Piezo Switches



How Does Langir Engineer Over 50 Million Cycles of Unwavering Durable Operation?

By strategically utilizing advanced piezoelectric ceramics in place of traditional metal contacts and meticulously integrating laser-welded housings, Langir completely eliminates common wear-out mechanisms. This innovative approach enables our switches to achieve an extraordinary operational lifespan exceeding 50 million actuations, all without any measurable performance drift.



Why Is Uncompromising Corrosion Resistance Absolutely Critical for Underwater Piezo Switches?

The presence of saltwater and aggressive chemicals significantly accelerates metal oxide formation, leading to premature failure. To counteract this, Langir exclusively employs premium Stainless Steel 316L and subjects every switch to rigorous salt spray testing, ensuring long-term structural integrity and preventing critical signal errors or housing failures in corrosive underwater environments.



How Do Vandal-Resistant and Tamper-Proof Designs Elevate Performance in Underwater Applications?

Our switches feature exceptionally robust front panels, offer secure flush mount options, and incorporate high-torque thread designs. These combined elements effectively deter prying and tampering attempts, thereby preserving the critical waterproof seals even in exposed public or potentially hostile environments.



What Are the Distinct Energy Efficiency and Sensitivity Advantages of Langir Switches?

Our low-power piezo elements operate with minimal current draw, typically in milliamps rather than amps, significantly reducing overall system load. Concurrently, our high-sensitivity ceramics guarantee precise actuation with minimal applied force, enhancing the user experience and substantially extending battery life in critical remote systems.



Are Langir Piezo Switches Customizable for Unique Underwater Applications?

Langir is fully committed to providing bespoke piezo switch solutions, meticulously tailoring materials, dimensions, and illumination features to precisely align with your specific industrial requirements.





Contact Langir for Custom Piezo Switches





What Extensive Customization Options Are Available for Materials, Dimensions, and Illumination?



• Select from premium Stainless Steel, durable Aluminum, or specialized Plastic housing materials.
• Specify precise hole diameters, ranging from a compact 12 mm up to a robust 30 mm.
• Integrate sophisticated color-tuned LED rings or subtle backlit dots for enhanced functionality and aesthetics.

These comprehensive options guarantee seamless visual integration and optimal environmental compatibility across all your critical projects.



How Does Langir Facilitate Seamless Support for Bulk Orders and Advanced Engineering Prototyping?

Langir efficiently manages production batches from low to high volumes, offering rapid-turnaround prototypes. Our support includes providing detailed 3D-printed mockups, facilitating thorough sample testing, and ensuring streamlined tooling transitions for highly efficient product development cycles.



What Tangible Benefits Do Tailored Piezo Switch Designs Offer to Industrial Clients?



• Achieve a perfect, precise fit within existing equipment panels.
• Ensure consistent, cohesive brand aesthetics across all products.
• Significantly reduce overall integration time and associated costs.
• Gain a distinct competitive advantage through uniquely engineered control solutions.



Optimal Installation and Maintenance Practices for Waterproof Piezo Switches in Underwater Applications

Adhering to precise installation protocols and leveraging their inherently minimal maintenance requirements ensures Langir piezo switches deliver unwavering reliability through countless immersion cycles.





Contact Langir for Custom Piezo Switches



What Are the Essential Best Practices for Sealing and Mounting Underwater Piezo Switches?

Always utilize marine-grade O-rings or high-performance thread sealants. Strictly adhere to manufacturer-specified torque values and meticulously ensure precise housing alignment to guarantee consistent, impenetrable sealing integrity even under sustained pressure.



How to Effectively Troubleshoot Common Issues in Submersible Piezo Switches?

Begin by verifying wiring continuity, meticulously inspect all gaskets for any signs of damage, and thoroughly check housing threads for debris. The majority of operational issues can be swiftly resolved by simply resealing or replacing the O-rings.



Why Do Sealed Piezo Switches Require Such Minimal Maintenance?

Engineered without any lubricated or moving components, these advanced devices fundamentally eliminate the need for periodic servicing. Once installed, you can confidently rely on their exceptional “set and forget” operational dependability for years to come.



Where to Secure Unwavering Waterproof Piezo Switch Solutions for Both Bulk and Custom Requirements?

Forge a strategic partnership with Langir to procure meticulously factory-tested piezo switches that consistently excel in submerged environments. We combine unparalleled technical support, rigorous quality assurance, and precision-tailored manufacturing capabilities.





Contact Langir for Custom Piezo Switches



How to Initiate a Partnership with Langir for Superior Underwater Piezo Switch Products?

Engage directly with Langir’s expert sales and engineering team via our dedicated Contact Us – Langir portal. We are ready to discuss your precise application requirements, explore advantageous volume pricing structures, and establish clear project timelines.



What Comprehensive Quality Assurance and Testing Support Does Langir Provide?

Langir stands behind every single switch with an unwavering commitment to quality, evidenced by comprehensive salt spray testing, advanced thermal cycling, and detailed electrical endurance reports. This ensures that each production batch not only meets but consistently surpasses the most stringent industrial standards.



How to Request Competitive Bulk Quotes and Expert Custom Design Consultations?

Submit your detailed project specifications directly through our Contact Us page. You will promptly receive competitive bulk quotes, arrangements for prototype development, and access to in-depth engineering feedback precisely tailored to your unique underwater application challenges.

Langir’s advanced waterproof piezo switches definitively demonstrate that reliable underwater operation is not only practical but entirely achievable when devices are meticulously engineered for complete sealing integrity, exceptional high-pressure tolerance, and superior corrosion resistance. From continuous IP68 immersion to rigorous IP69K washdowns, these cutting-edge solid-state controls are designed to deliver decades of maintenance-free service across demanding marine, industrial, outdoor, and medical environments. By strategically selecting customized materials and implementing precise mounting practices, industrial manufacturers can secure bespoke solutions that consistently outperform conventional switch technologies. We invite you to connect with Langir today to explore advantageous bulk pricing, discuss prototype development, and access comprehensive technical support for your next critical underwater control project.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]

[vc_row][vc_column][vc_column_text]



Piezo switches leverage the remarkable piezoelectric effect—transforming mechanical force into a precise electrical signal—to provide exceptionally reliable, zero-maintenance activation for critical industrial controls. This comprehensive guide explores the unique attributes of piezo switches, detailing how piezoelectric materials convert pressure into electrical pulses, their precise operational sequence, significant industrial benefits, key technological considerations, extensive customization possibilities, and essential maintenance insights. Whether you’re specifying robust sealed push buttons for extreme environments or seeking scalable OEM solutions, this resource illuminates every facet of piezo switch functionality and diverse applications.



Core Characteristics and Operational Excellence of Piezo Switches

A piezo switch represents a cutting-edge solid-state push button, utilizing a piezoelectric element to convert mechanical pressure into a precise electrical pulse. This innovative design eliminates mechanical wear, ensuring unparalleled durability. These devices are engineered to excel in applications demanding extended operational life, complete sealing, and robust resistance to environmental contaminants.





Contact Langir for Custom Piezo Switches



Distinguishing Piezo Switches: A Comparative Analysis with Conventional Switch Technologies

Piezo switches distinguish themselves by replacing moving contacts with a piezoelectric element, eliminating friction points and contamination risks.



• Moving Parts: None, facilitating over 50 million actuation cycles
• Seal Integrity: IP68/IP69K rated, ensuring complete protection against dust and water ingress
• Response Speed: Sub-1 millisecond, enabling ultra-rapid actuation
• Vandal Resistance: Inherently high, attributed to their robust solid-state construction

The combination of solid-state operation and comprehensive sealing delivers unparalleled longevity and reliability, establishing the foundation for a detailed examination of their core features.



Key Features of Advanced Piezo Switches

Piezo switches combine extreme durability, precise sensitivity and complete sealing to support demanding applications.



• Durability: Exceeds 50 million actuation cycles
• Sensitivity: Precisely adjustable from 0.3–5 N, guaranteeing consistent and reliable performance
• Sealed Design: IP68/IP69K rated housing, effectively blocking moisture and dust ingress
• Vandal Resistance: Significantly enhanced, owing to the absence of mechanical components

These integrated features collectively eliminate common causes of switch failure and minimize maintenance downtime, directly influencing optimal material selection during manufacturing.



Material Selection in Piezo Switch Manufacturing

Manufacturers select robust materials to maximize performance and corrosion resistance.



Material	Typical Diameter Range	Available Finishes
Stainless Steel	12 – 30 mm	Brushed, Polished
Aluminum	12 – 30 mm	Anodized, Painted
Engineering Plastic (PA66)	12 – 30 mm	Matte, Glossy
Ceramic Composite	12 – 30 mm	Natural, Coated

These carefully selected materials strike an optimal balance between mechanical strength, aesthetic appeal, and cost-effectiveness, enabling extensive customization to suit diverse environmental requirements.



The Core Principle Behind Piezo Switch Functionality





Contact Langir for Custom Piezo Switches



Understanding the Piezoelectric Effect: A Simplified Explanation

The piezoelectric effect manifests when mechanical pressure applied to a crystalline lattice induces a displacement of electrical charges, resulting in a measurable voltage difference. For instance, applying force to a quartz element generates a minute electrical pulse, which a sophisticated circuit then interprets as a definitive switch activation.



The Piezoelectric Effect in Sensor Technology

The piezoelectric effect, characterized by the generation of an electrical signal from mechanical stress, is foundational to the operational mechanics of piezo switches. This inherent principle facilitates the precise conversion of applied pressure into distinct electrical pulses, thereby enabling the switch’s core functionality. This mechanism is a critical determinant of how these switches perform across a spectrum of industrial applications.



IEEE, “Piezoelectric Sensors: Fundamentals and Applications” (2022)

This seminal research offers a foundational understanding of the piezoelectric effect, which is indispensable for fully comprehending the underlying mechanism of piezo switch technology.



Response of Piezoelectric Materials to Mechanical Stress

Upon the application of mechanical pressure to a piezoelectric ceramic, its internal molecular dipoles undergo rapid realignment, leading to the emergence of surface charges and the generation of an instantaneous voltage spike. This immediate electrical response is the fundamental basis for the switch’s sub-millisecond actuation speed.



Exploring the Positive and Inverse Piezoelectric Effects

Piezoelectric materials demonstrate two distinct yet complementary behaviors when subjected to either electrical or mechanical stimuli.



The Positive Piezoelectric Effect: Mechanism and Output

The application of mechanical force induces deformation within the crystal lattice, resulting in the separation of electrical charges and the generation of a voltage directly proportional to the applied stress. This generated voltage pulse serves as the definitive signal instructing the switch’s integrated electronics to alter its operational state.



Influence of the Inverse Piezoelectric Effect on Switch Functionality

Conversely, imposing an electric field causes the crystal to undergo a precise mechanical deformation. This phenomenon can be leveraged to actively dampen incoming mechanical vibrations and stabilize the sensor – thereby ensuring highly repeatable and consistent switch actuation thresholds.



Operational Sequence: A Step-by-Step Guide to Piezo Switch Functionality

The operation of a piezo switch adheres to a meticulously defined sequence, from the initial user interaction to the final electrical output.



1. Pressure Application – The user applies a precisely defined force to the switch faceplate.
2. Charge Generation – The integrated piezoelectric element generates an instantaneous voltage spike.
3. Signal Detection – A highly sensitive field-effect transistor (FET) accurately detects the generated electrical pulse.
4. Signal Conditioning – A capacitor effectively smooths the signal and precisely defines the pulse width.
5. Digital Pulse Output – The internal circuitry generates a clean, reliable digital pulse, transmitted to the control system.

This meticulously ordered process guarantees reliable and consistent actuation, entirely free from mechanical bounce, thereby establishing the optimal conditions for robust industrial deployment.



Why Piezo Switches Excel in Industrial and Harsh Environments





Contact Langir for Custom Piezo Switches



The Strategic Advantages of Durability and Longevity in Industrial Applications

Boasting operational lifespans exceeding 50 million cycles, piezo switches significantly reduce costly replacements and mitigate unplanned downtime, thereby substantially enhancing overall equipment effectiveness (OEE).



Unmatched Durability for Demanding Industrial Applications

Piezo switches are renowned for their exceptional durability, offering operational lifespans that consistently exceed 50 million cycles, rendering them optimally suited for rigorous industrial applications. This inherent longevity translates directly into reduced replacement expenditures and minimized operational downtime, representing a critical advantage in demanding environmental contexts. Furthermore, the switches’ intrinsic resistance to severe conditions significantly augments their suitability for industrial deployment.



Smith, A., “Industrial Control Systems and Sensor Technology” (2023)

This authoritative study underscores the profound benefits of piezo switches within industrial settings, substantiating the assertions regarding their unparalleled reliability and optimal suitability for challenging operational environments.



Comprehensive Environmental Resistance of Piezo Switches

Engineered with full potting and precision gasket sealing, these switches consistently achieve IP68/IP69K ratings, effectively preventing ingress from high-pressure water jets, rigorous wash-down procedures, and pervasive airborne contaminants.



Optimizing Performance Through High Sensitivity and Inherent Reliability

Their precisely adjustable actuation force and accurate pulse generation capabilities ensure consistent and predictable user feedback, concurrently minimizing power consumption, which is critical for battery-powered systems.



Key Industries Benefiting from Piezo Switch Technology



• Industrial automation control panels
• Advanced medical device interfaces
• Automotive access and keyless entry systems
• Aerospace cockpit and cabin interfaces
• Marine and offshore instrumentation

Their inherent resilience and exceptional precision collectively enhance operational safety and maximize system uptime across a diverse range of industrial sectors.



A Balanced Perspective on Advantages and Considerations





Contact Langir for Custom Piezo Switches



Core Advantages of Implementing Piezo Switches

Piezo switches are instrumental in achieving superior reliability and significantly reduced maintenance requirements within demanding automation environments.



• No Moving Parts: Eliminates mechanical wear and fatigue
• Fully Sealed Housing: Provides comprehensive ingress protection
• Ultra-Fast Response: Enables seamless integration into high-speed control systems

These inherent strengths consistently translate into substantial long-term cost savings and significant performance enhancements.



Key Considerations and Potential Limitations

Initial investment and tactile feedback characteristics are primary factors influencing selection.



• Initial Investment: Typically entails a higher per-unit cost compared to conventional mechanical buttons
• Tactile Feedback: Offers a distinct electronic click, differing from the pronounced physical snap-action of mechanical switches
• Integrated Electronics: Necessitates sophisticated integrated FET/capacitor circuitry for optimal operation

A thorough understanding of these trade-offs is crucial for optimally aligning switch technology with specific application requirements.



Comparative Analysis: Piezo Switches vs. Mechanical and Capacitive Alternatives



Switch Type	Characteristic	Description
Piezo Switch	Moving Parts	None (Solid-State)
Piezo Switch	Durability	>50 Million Cycles
Piezo Switch	Environmental Resistance	IP68/IP69K Sealing
Piezo Switch	Tactile Feedback	Electronic Pulse
Mechanical Switch	Moving Parts	Metal Contacts
Mechanical Switch	Durability	1 – 10 Million Cycles
Mechanical Switch	Environmental Resistance	Limited (Typically IP54)
Mechanical Switch	Tactile Feedback	Physical Click
Capacitive Switch	Moving Parts	None
Capacitive Switch	Durability	~10 Million Cycles
Capacitive Switch	Environmental Resistance	Moderate (Often IP65)
Capacitive Switch	Tactile Feedback	Haptic Vibration

The superior cycle life and comprehensive sealing capabilities of piezo switches render them exceptionally reliable, particularly in the most challenging operational conditions.



Tailored Solutions: Customizing Piezo Switches for Unique Application Requirements





Contact Langir for Custom Piezo Switches



Extensive Customization Options: Materials and Dimensions



Material	Available Diameters	Finish Options
Stainless Steel	12mm, 16mm, 19mm	Brushed, Polished
Aluminum	16mm, 22mm, 30mm	Anodized, Painted
Engineering Plastic (PA66)	12mm, 19mm, 25mm	Matte, Textured
Ceramic	12mm, 16mm	Natural, Coated



Tailoring Illumination and Aesthetic Design



• Illuminated Ring: Provides a 360° uniform glow for clear status indication
• Illuminated Dot: Offers a focused, centralized indicator for precise feedback
• Color Options: Available with RGB or single-color LED configurations
• Custom Legends: Precision laser-etched symbols or corporate logos

Dynamic and customizable lighting significantly enhances user interaction and optimizes control clarity.



Strategic Benefits of OEM/ODM Custom Piezo Switch Solutions

Collaborating with us for bespoke piezo switch designs yields significant advantages:



1. Design Flexibility – Achieve precisely tailored form factors and user interfaces.
2. Volume Pricing – Benefit from competitive volume discounts for large-scale orders.
3. Application Optimization – Ensure materials and electronics are perfectly optimized for your specific intended use.
4. Seamless Brand Integration – Incorporate custom colors, legends, and finishes to align with your brand identity.

To explore a truly tailored solution, we invite you to request a custom piezo switch quote today.



Piezo Switch Operation and Maintenance | FAQs





Contact Langir for Custom Piezo Switches



Identifying Malfunctions in a Piezo Switch

A malfunctioning piezo switch may exhibit symptoms such as inconsistent pulse generation, a lack of output despite correct force application, or erratic activation. To diagnose issues, it is recommended to monitor the control system’s pulse integrity and conduct a continuity check on the integrated FET/capacitor module.



Proper Wiring and Installation Procedures for Piezo Switches

Properly wiring a piezo switch entails connecting the supply voltage and signal lines to the module’s designated terminals, strictly adhering to correct polarity, and utilizing shielded cable to ensure optimal noise immunity. The switch should be mounted within the panel cut-out using the manufacturer’s recommended torque specifications, and the panel breach must be adequately sealed to preserve the specified IP rating.



Best Practices for Extending Piezo Switch Lifespan Through Maintenance

Routine cleaning with mild, non-abrasive detergents, strictly avoiding harsh solvents, and diligently verifying gasket integrity during scheduled inspections are crucial practices for preserving optimal sealing and sensitivity. Additionally, ensuring all electrical connections remain secure and corrosion-free is vital for supporting consistent and reliable performance.



Identifying Reliable Suppliers of Piezo Switches

Langir has proudly supplied ISO 9001-certified piezo switches to a global clientele exceeding 10,000 customers since 2009. Our state-of-the-art Wenzhou facility provides comprehensive one-year warranties and robust global export capabilities for both bulk and custom-engineered orders.

In summary, piezo switches meticulously convert applied pressure into precise electrical signals via a robust, multi-stage process encompassing charge generation, sophisticated signal conditioning, and reliable pulse output. Their fully sealed, solid-state design inherently promotes exceptional longevity and unparalleled immunity to severe environmental conditions, positioning them as the optimal choice for critical industrial controls, advanced medical systems, and demanding transportation interfaces. While initial investment and tactile characteristics may differ from conventional mechanical or capacitive alternatives, piezo switches consistently deliver unmatched operational cycle life and superior environmental resistance. For highly specialized requirements or competitive volume pricing, we encourage you to request a custom piezo switch quote and elevate your system’s reliability today.



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_zigzag]

[/vc_column][/vc_row][vc_row][vc_column][vc_zigzag][/vc_column][/vc_row]
